2x2 TypeV Round Beam Lens For Car Parking Zone

Model: ALST50D4LEDT5R

Diameter: 50x50mm

Height: 8.8mm

Angle: T5 Round beam

Material: PC-1250Z

Transmittance: >88%

LED Type: 5050LED

Lighting Applications: Area Lighting

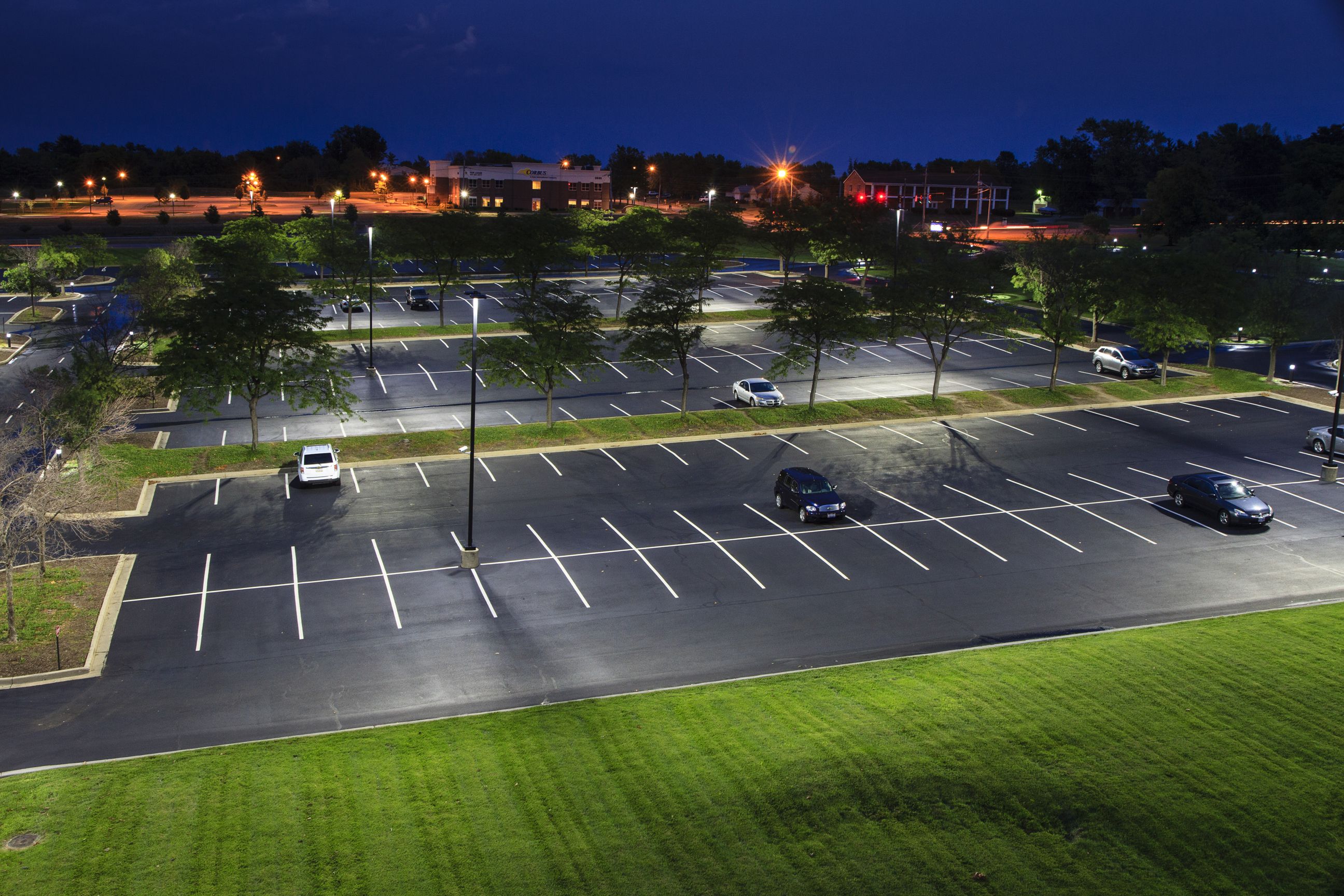

1. The 2x2 Type V lens suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.

2.Provides a wide and uniform distribution of light, making it suitable for applications that require coverage over a large area, such as street lighting and parking lot illumination.

3. The uniform distribution helps reduce glare issues, improving the comfort and safety of nighttime driving and pedestrian activities.

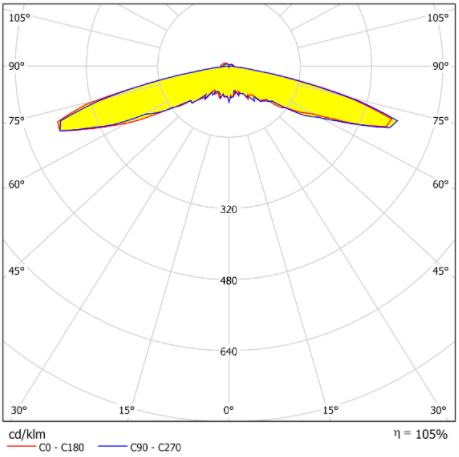

Distribution

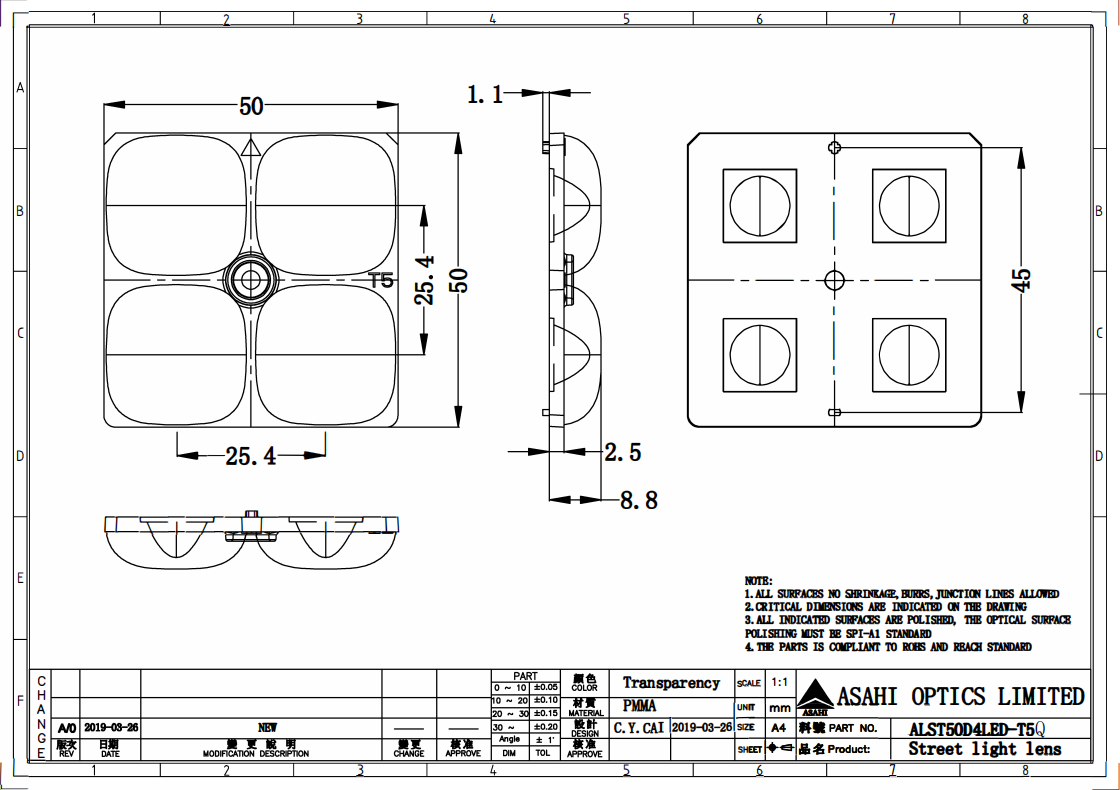

Specifications

Model:	ALST50D4LEDT5R
Diameter:	50x50mm
Height:	8.8mm
Angle:	TypeV
Material：	PC-1250Z
Transmittance：	>90%
LED Type	5050LED
Lighting applications	Area Lighting

LED Type

JR5005C 6-V E

DURIS S 8

LUXEON 5050 Square

NVAW144AR

NVAW144AM

Xl5050LED

EMC5050LED

Packaging

---

Material Information

Lens Material

L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature

PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability

PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec

PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate

400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

1. The 2x2 Type V lens suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.

2.Provides a wide and uniform distribution of light, making it suitable for applications that require coverage over a large area, such as street lighting and parking lot illumination.

3. The uniform distribution helps reduce glare issues, improving the comfort and safety of nighttime driving and pedestrian activities.
