Model: AJST275D35LEDT4
Diameter: 275mm
Height: 8.0mm
Angle: T4M
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street Lighting
1. 35in Type IV beam for wide area lighting like car parks.
2. Multi-beam angle T2,T3,T4,T5 is more flexible to meet the needs of different markets and applications.

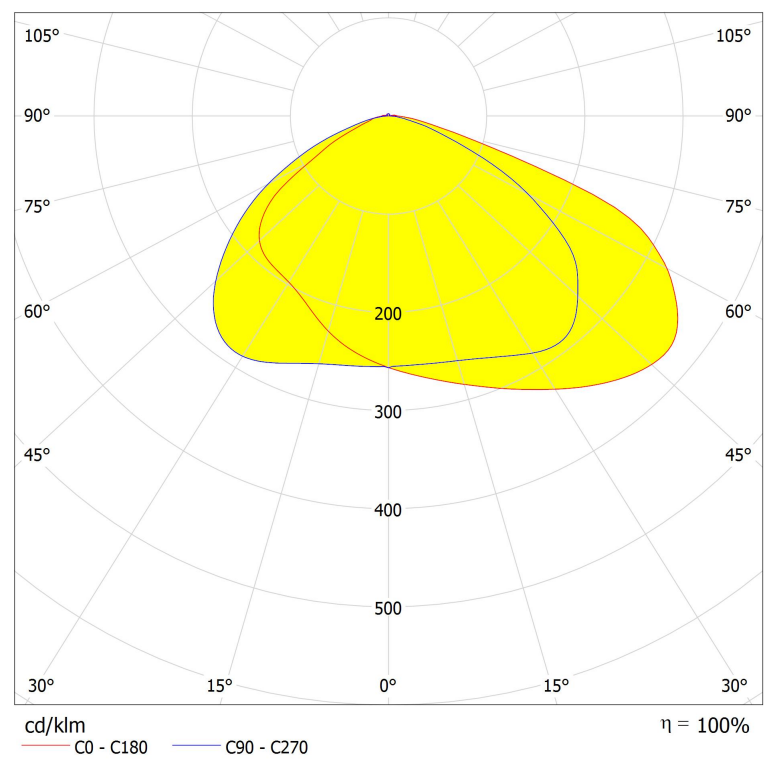

Distribution
Specifications
| Model: | AJST275D35LEDT4 |
| Diameter: | 275mm |
| Height: | 8.0mm |
| Angle: | T4M |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

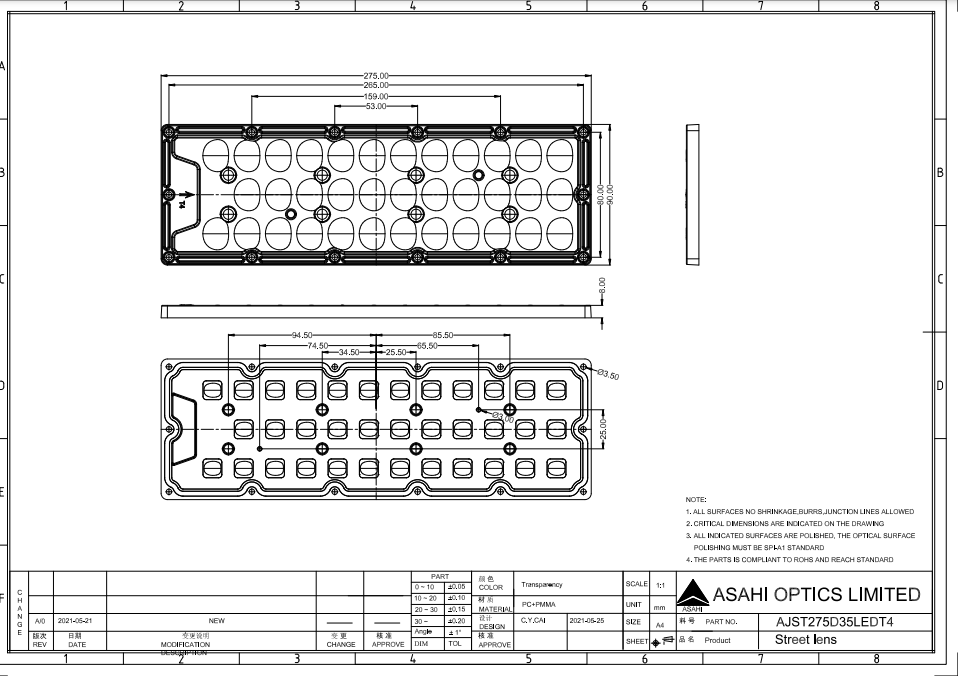

Asahi AJST275D35LEDT4 Drawing.dwg
Asahi AJST275D35LEDT4 Drawing.pdf
Asahi AJST275D35LED-PCB Drawing.dwg
Asahi AJST275D35LED-PCB Drawing.pdf
