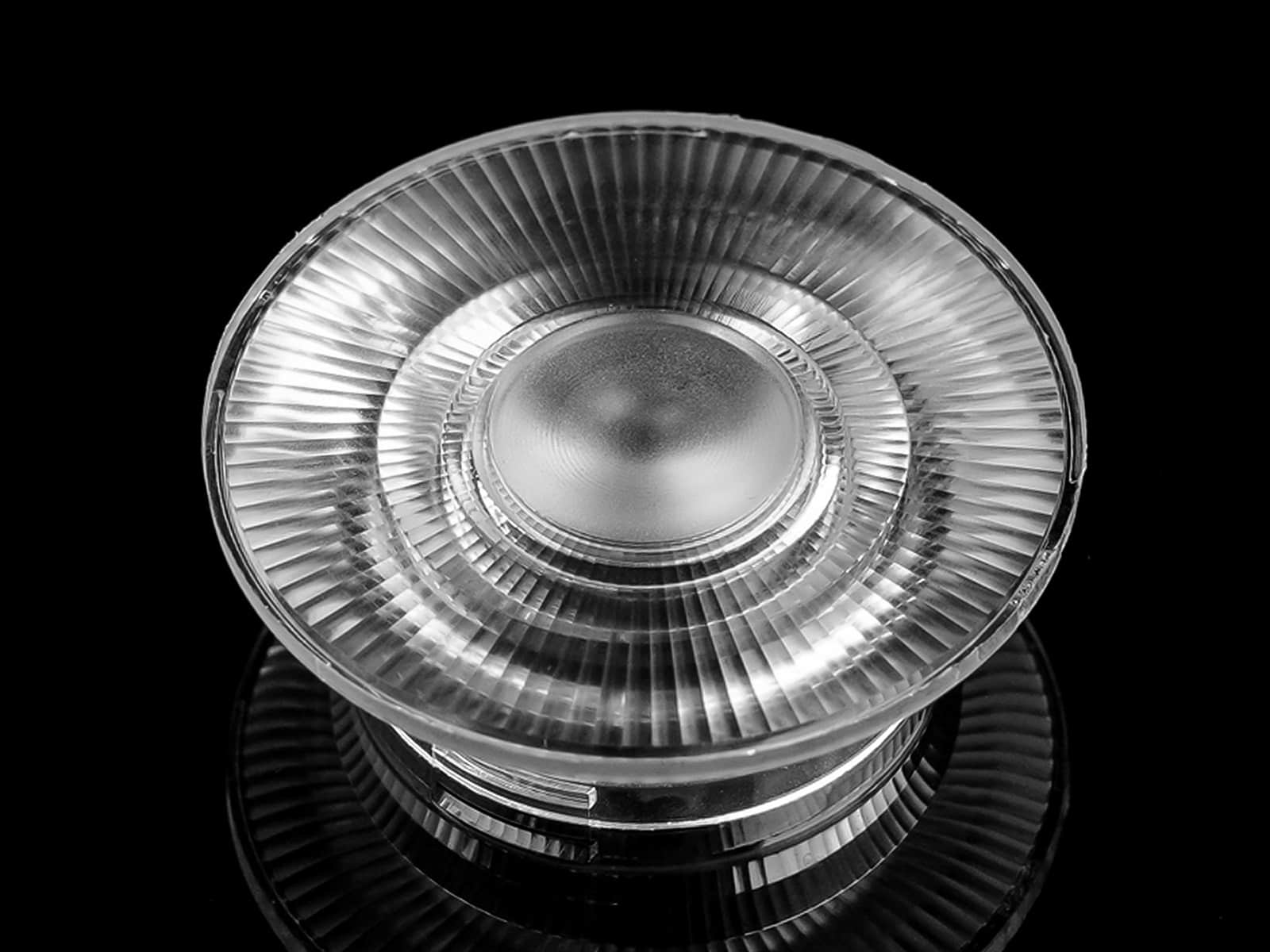

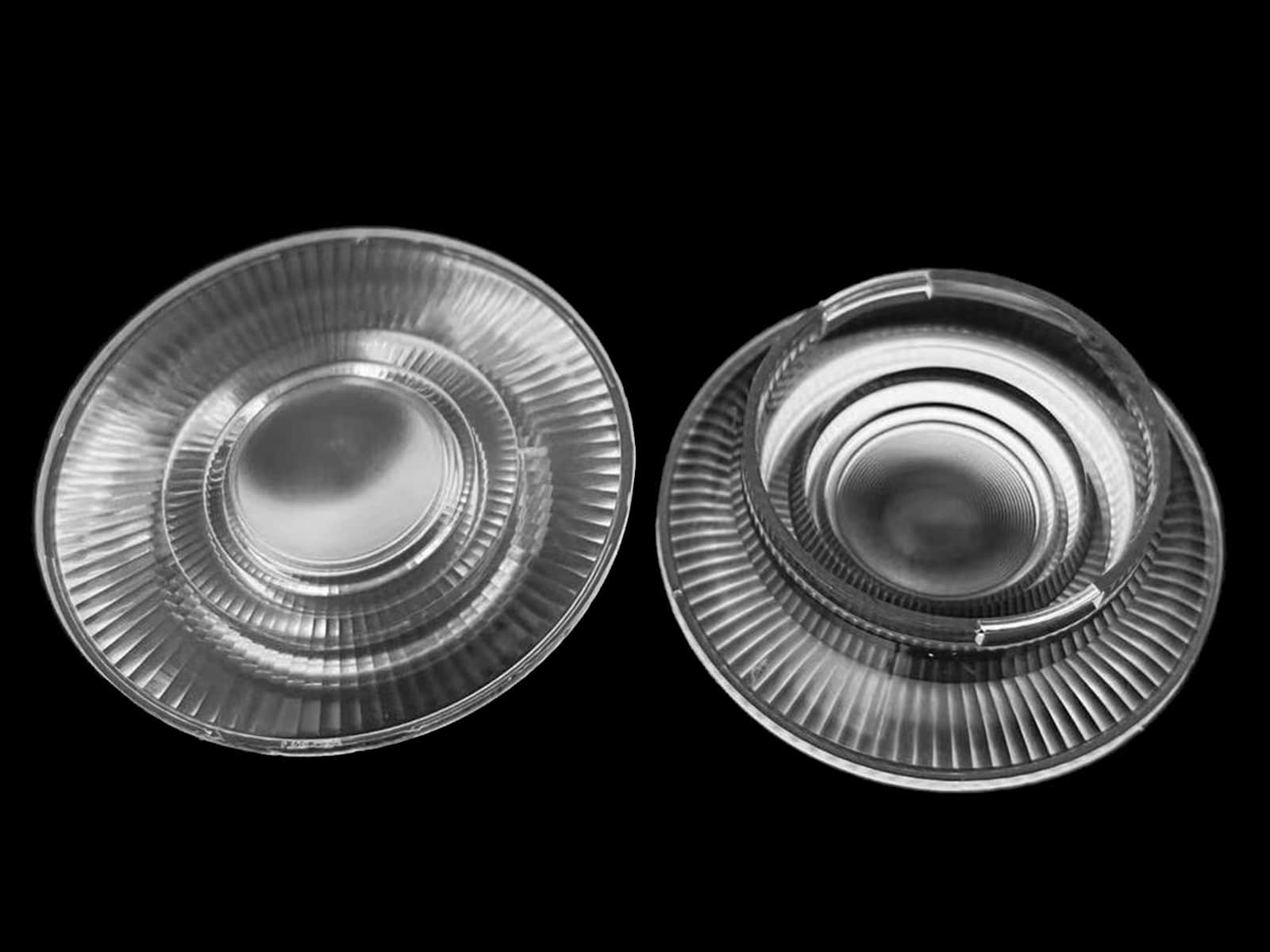

50mm 15 Degree Cob Led Down Light Lens

Model: AHCOB5015D

Diameter: 50mm

Height: 15mm

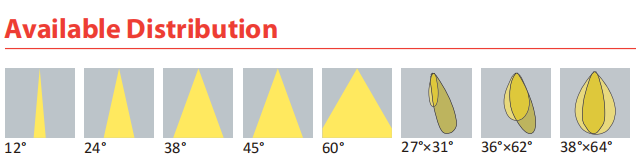

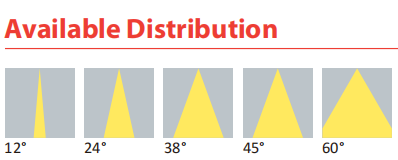

Angle: 12°,24°,38°,45°,60°,27°×31°,36°×62°,38°×64°

Material: PC

Transmittance: >90%

LED Type:

Lighting Applications: COB LED

1，COB lenses can help create a smooth and uniform beam by reducing hotspots or uneven light distribution.

2， COB lenses can be designed to produce a narrow spot, medium flood, or wide flood beam, depending on the desired application.

3，COB lenses are often employed in architectural lighting fixtures to shape and control the light output. They help create specific lighting effects, such as wall washing, accent lighting, or grazing, by directing the light in a controlled manner. COB lenses ensure uniform light distribution and enhance the visual impact of architectural structures.

Specifications

Model:	AHCOB5015D
Diameter:	50.0mm
Height:	15.0mm
Angle:	12°,24°,38°,45°,60°,27°×31°,36°×62°,38°×64°
Material：	PC
Transmittance：	>90%
LED Applications	COB LED

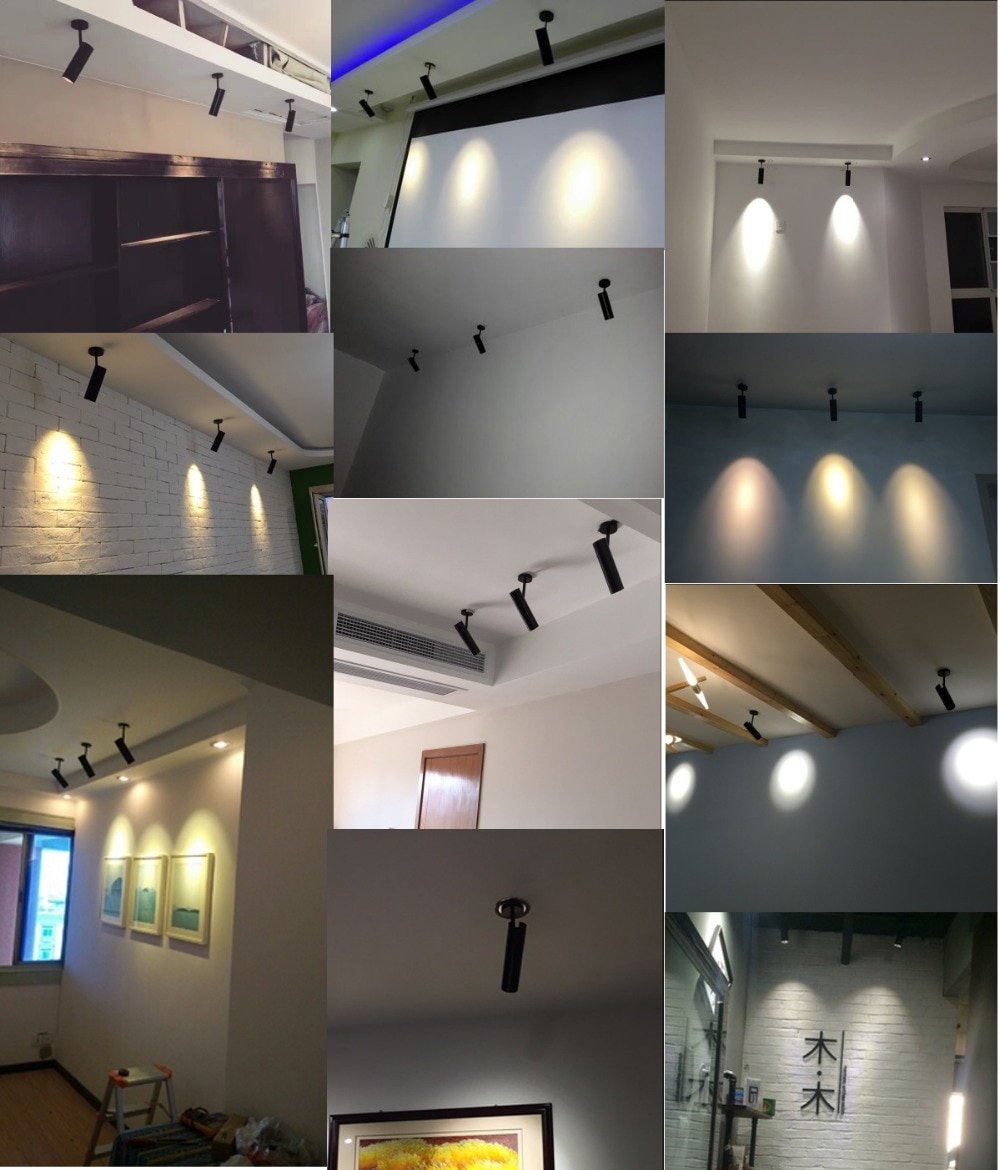

Lighting applications	PAR lighting, Spot Light, Down Light

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
