Model: AJST50D6LEDT2-3S
Size: 50x50mm
Height: 7.25mm
Angle: Type II
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street lighting
1. The T2M 2×3 optical lens is engineered for 5050 LEDs, delivering controlled, uniform illumination specifically optimized for road and street lighting applications.
2. With its refined optical design, the T2M 2×3 lens maximizes the luminous output of 5050 LEDs, ensuring high brightness and energy efficiency. It reduces optical losses, enhances the overall performance of LED fixtures, and provides a cost-effective, environmentally friendly solution for modern roadway lighting.

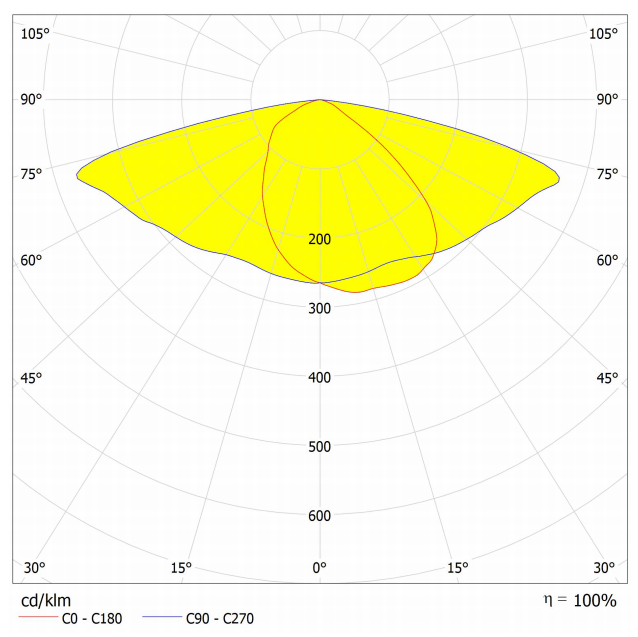

Distribution
Specifications
| Model: | AJST50D6LEDT2-3S |
| Diameter: | 50x50mm |
| Height: | 7.25mm |
| Angle: | Type II |
| Material： | PC |
| Transmittance： | ＞88%% |
| LED Type | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

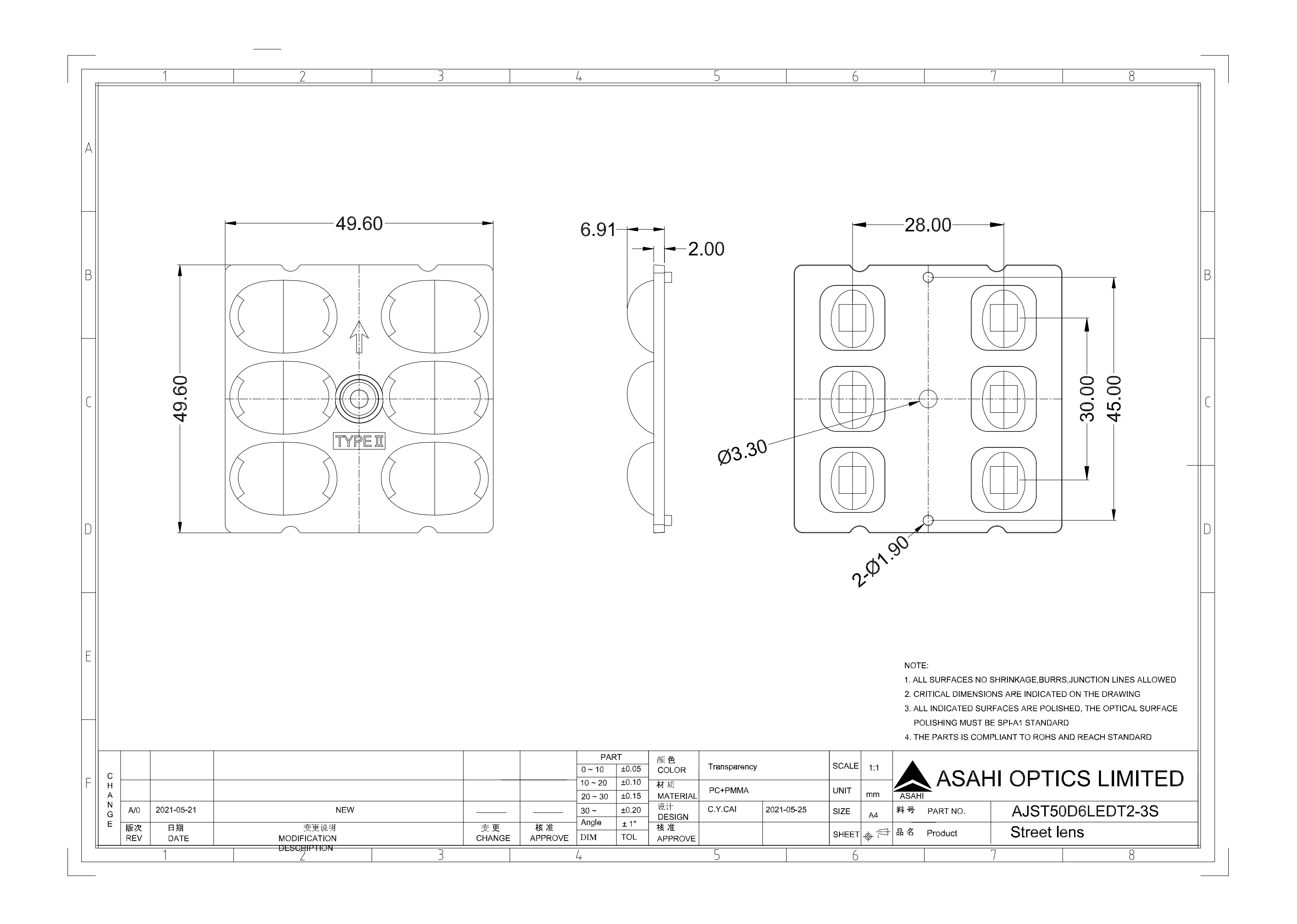

Asahi Optics AJST50D6LEDT2-3S Drawing.pdf
Asahi Optics AJST50D6LEDT2-3S PCB Drawing.dwg
Asahi Optics AJST50D6LEDT2-3S.ies
Asahi Optics AJST50D6LEDT2-3S.stp
