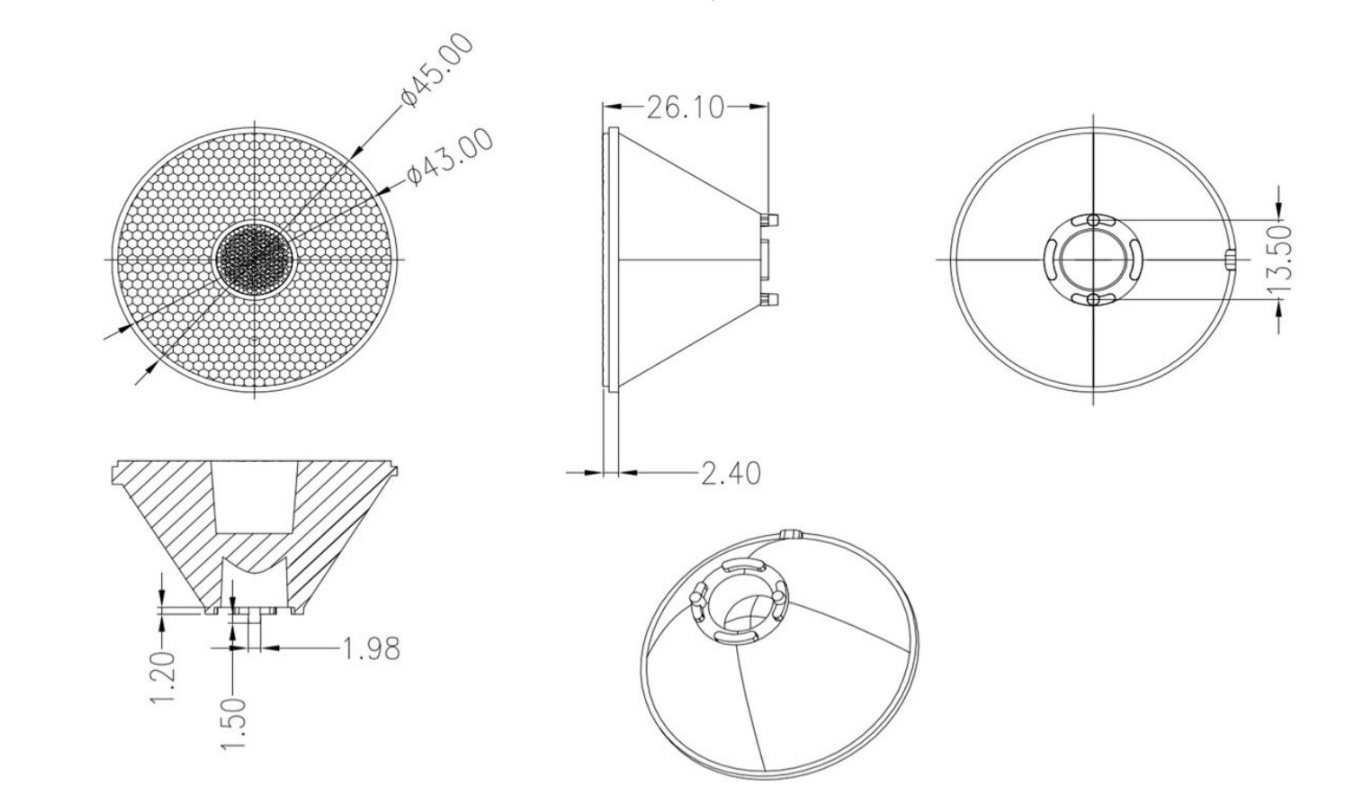

Model: AJS45DRGBW6G
Size: Ø45mm
Height: 26.1mm
Angle: 6°
Material: PMMA
Transmittance: >93%
LED Type: CREE XML-RGBW
Lighting Applications: Stage light
1, RGBW is a common color mixing system used in stage lighting fixtures such as LED wash lights or moving heads.
2, RGBW stands for Red, Green, Blue, and White, and it refers to the combination of these four colors to create a wide range of colors and shades.
3, RGBW lenses are employed in hotels, restaurants, and bars to create a welcoming and immersive atmosphere. These lenses enable the creation of lighting scenes that complement the overall ambiance, enhance the dining experience, and set the desired mood.
Distribution
Specifications
| Model: | AJS45DRGBW6G |
| Size: | Ø45mm |
| Height: | 26.1mm |
| Angle: | 6° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | CREE XML-RGBW |
| Lighting applications | Stage light |
LED Type
XPE/XPG2
CLQ6
XML
S5/2835/3030
SSL 80/120/150
P3737
5050
C/CZ/4in1
RUBIX
SPB05F0D
SPFOAFOA
SZ5-M4
15W/40W/60W
PBLA
PBLD
PBEE
PBEB
PBEF
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
Downloads
