Model: ALHB173D24LED60G
Diameter: 173mm
Height: 9.3mm
Angle: 60°
Material: PMMA/ PC-1250Z
Transmittance: >90%
LED Type: 2835/ 3030/ 5050LED

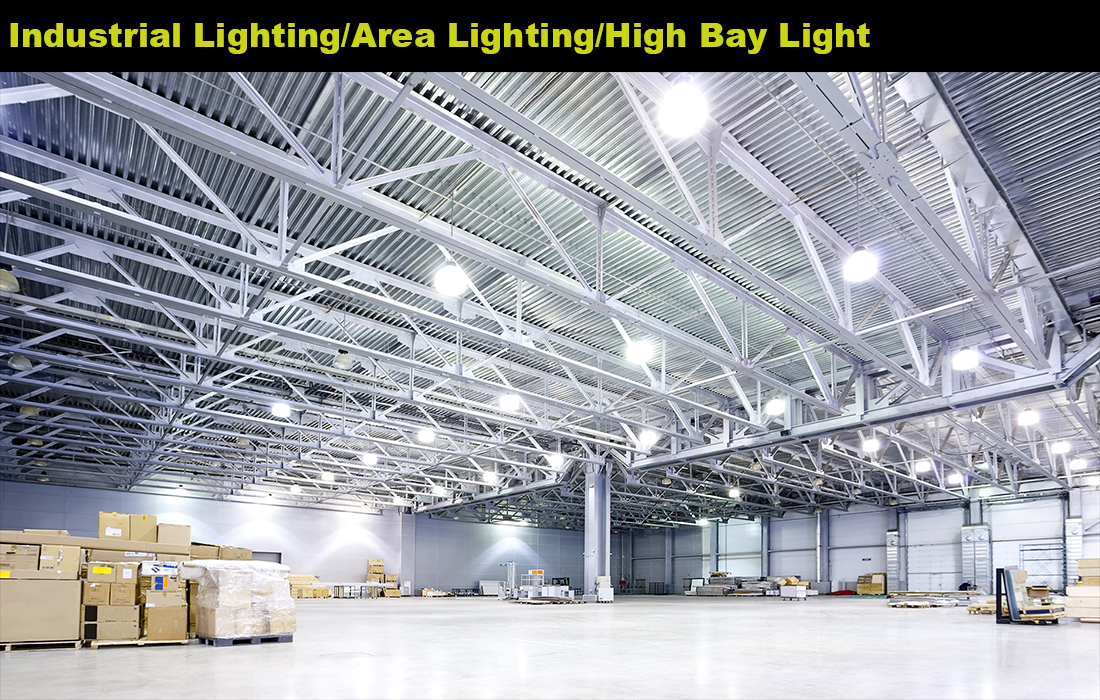

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. 3X8 IP lens,coupled with the 60° medium beam angle, provides versatile lighting distribution suitable for a range of applications, offering balanced coverage for flood lighting, high bay lighting, and stadium lighting.
2. It is made of high quality PMMA material,ensuring exceptional optical performance and durability.
3. With high IP66 resistance, ensures exceptional resistance against dust and water, allowing the lens to operate reliably in diverse and challenging weather and environmental conditions.

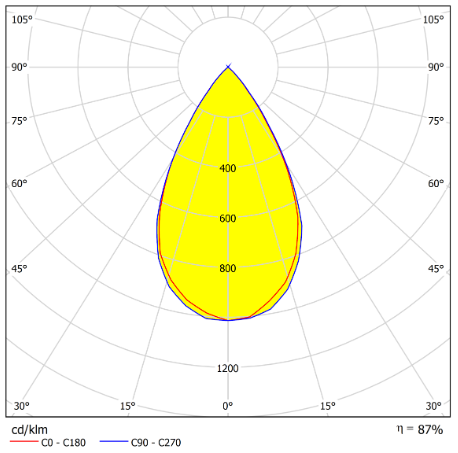

Distribution
Specifications
| Model: | ALHB173D24LED60G |
| Diameter: | 173x71.4mm |
| Height: | 9.3mm |
| Angle: | 60° |
| Material： | PMMA |
| Transmittance： | >90% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | High Bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

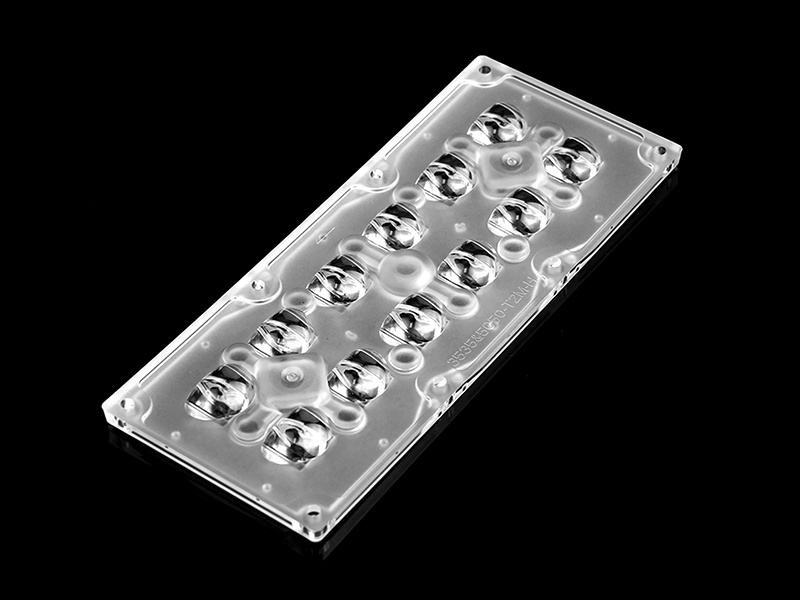

It shares the same profile 173mmx71.4mm as the 2x6 lens does,
which is specially desgined for the application on corridors, such as logistics warehouses and supermarkets.
The beam angle is available for street light T2M, T5, and high bay lighting 30°, 60°，90°, 120°, 30x90°
The high efficiency and powerful lumen output to meet customers’ required power
It can be compatible with different sizes and quantities of LED chips such as 2*2835/2*3030, 3*2835/3*3030, 4*2835/4*3030, and 5050LED

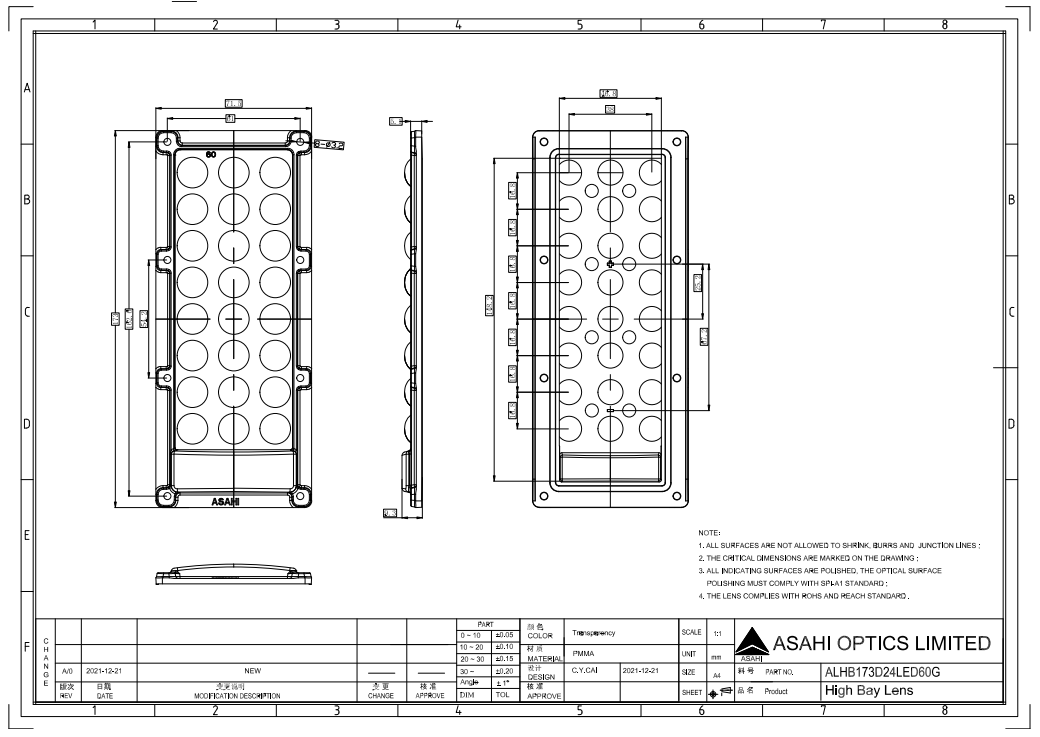

ASAHI OPTICS ALHB173D24LED60G lens 3D Drawing.stp
ASAHI OPTICS ALHB173D24LED60G Drawing.dwg
ASAHI OPTICS ALHB173D24LED60G Drawing.pdf
ASAHI OPTICS ALHB173D24LED PCB Drawing
ASAHI OPTICS 3X8 LENS LED BOARD.jpg
ASAHI OPTICS ALHB173D24LED60G-1x5050LED lens IES.ies
ASAHI OPTICS ALHB173D24LED60G-4x3030LED lens IES.ies
