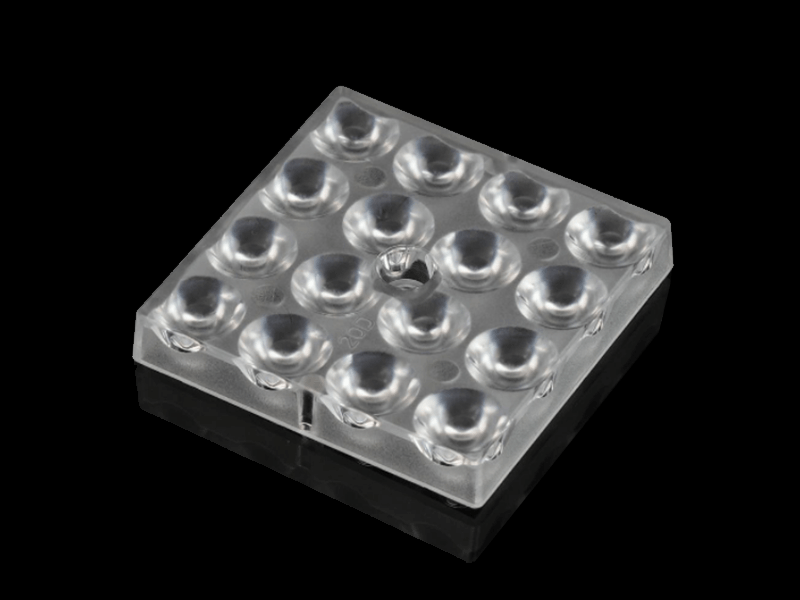

Model: ALHB50D16LED20G

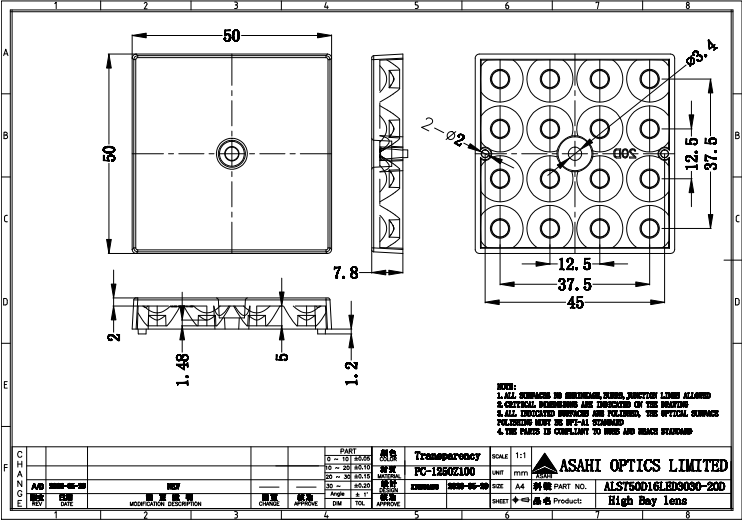

Diameter: 50x50mm
Height: 10.3mm
Angle: 20°
Material: PC-1250Z
Transmittance: >90%
LED Type: 3030LED

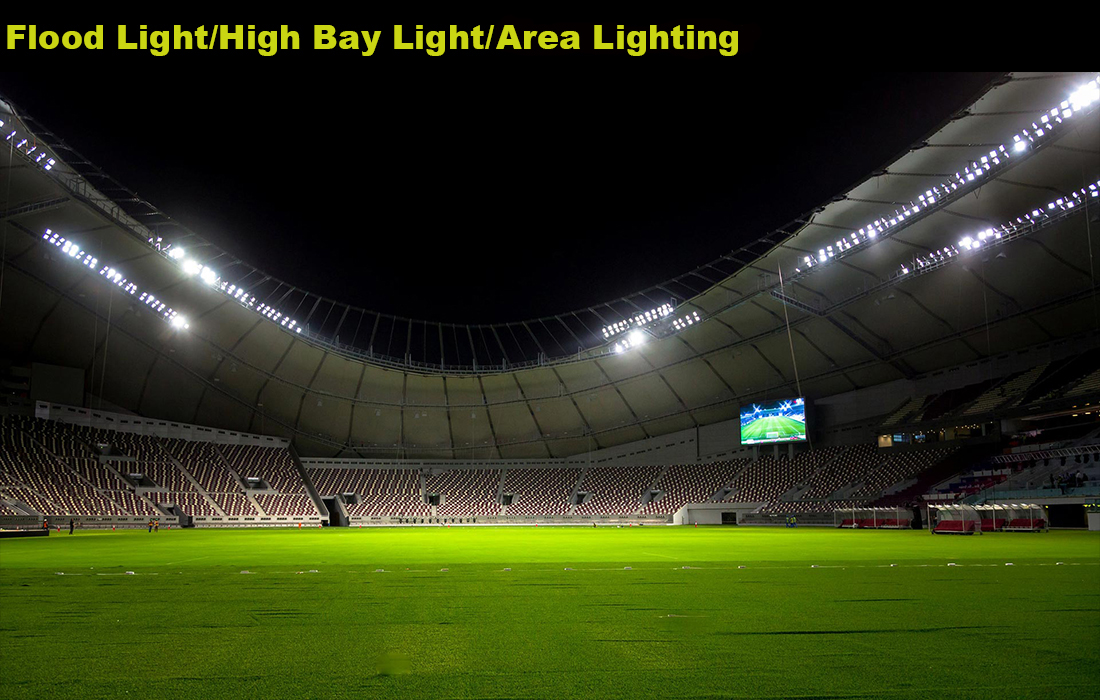

Lighting Applications: Architecture lighting,High Bay lighting
1.4x4 lens with 16 LEDs for a 3030 LED with a beam angle of 20°,which would focus and direct the light output from the LEDs, creating a narrow and controlled beam pattern.
2.The 16 LEDs would provide bright and uniform illumination, with narrow beam 20°, it is perfect for applications where a concentrated light beam is needed.
3.This setup would be ideal for use in spotlights, flashlights, stage lighting, and other applications where a focused beam is desired.

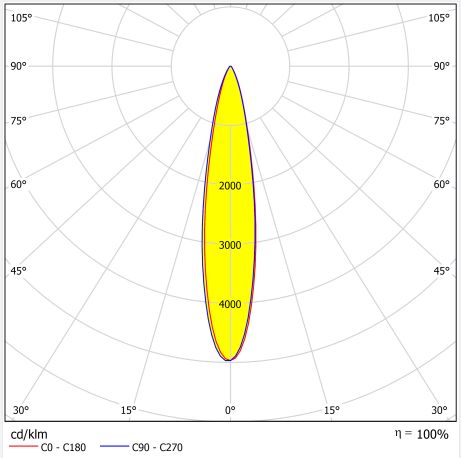

Distribution
Specifications
| Model: | ALHB50D16LED20G |
| Diameter: | 50x50mm |
| Height: | 10.3mm |
| Angle: | 20° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | Architecture lighting,High Bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
