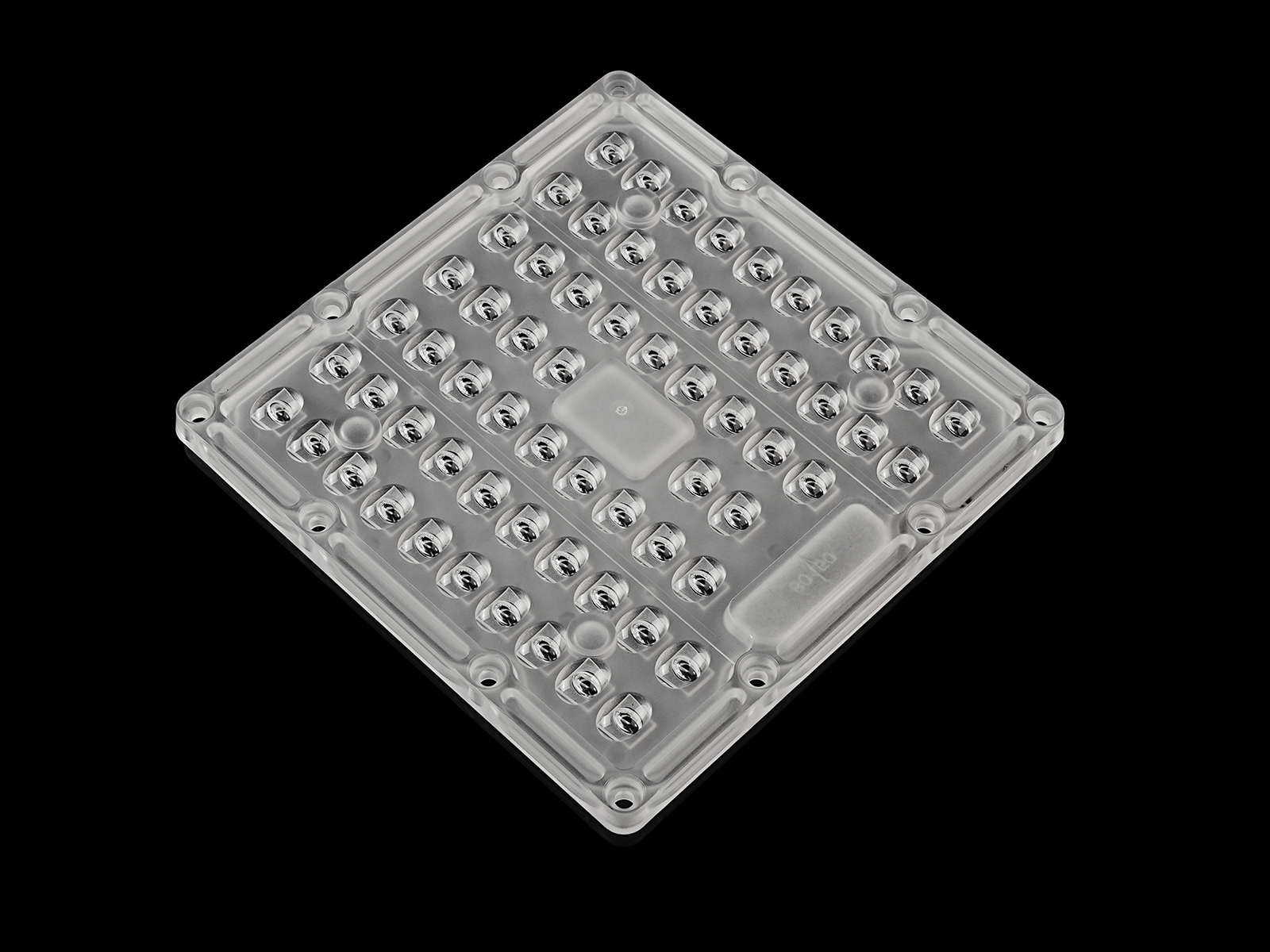

Model: AJHB130D64LED80150G
Size: 130x130(mm)
Height: 6.90mm
Angle: 80x150°
Material: PC
Transmittance: >90%
LED Type: 2835/ 3030LED
Lighting Applications: High Bay lighting, Street lighting
1. 64LEDs lens with Asymmetric Beam 80°×150°, ideal for aisle lighting, warehouse racks, or long corridors.
2. IP66 (Sealed Versions) – Dust/waterproof for outdoor/damp locations.

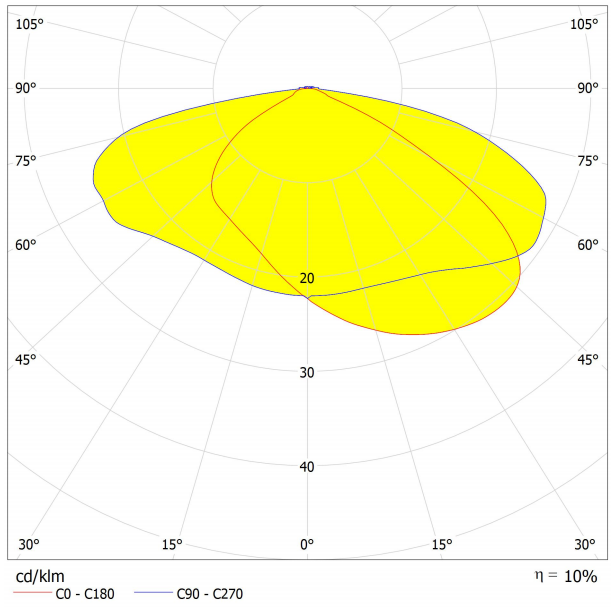

Distribution
Specifications
| Model: | AJHB130D64LED80150G |
| Size: | 130x130(mm) |
| Height: | 6.90mm |
| Angle: | 80x150° |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | High Bay lighting, Street lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. 64LEDs lens with Asymmetric Beam 80°×150°, ideal for aisle lighting, warehouse racks, or long corridors.
2. IP66 (Sealed Versions) – Dust/waterproof for outdoor/damp locations.
AJHB130D64LED80150G 3D Drawing.stp

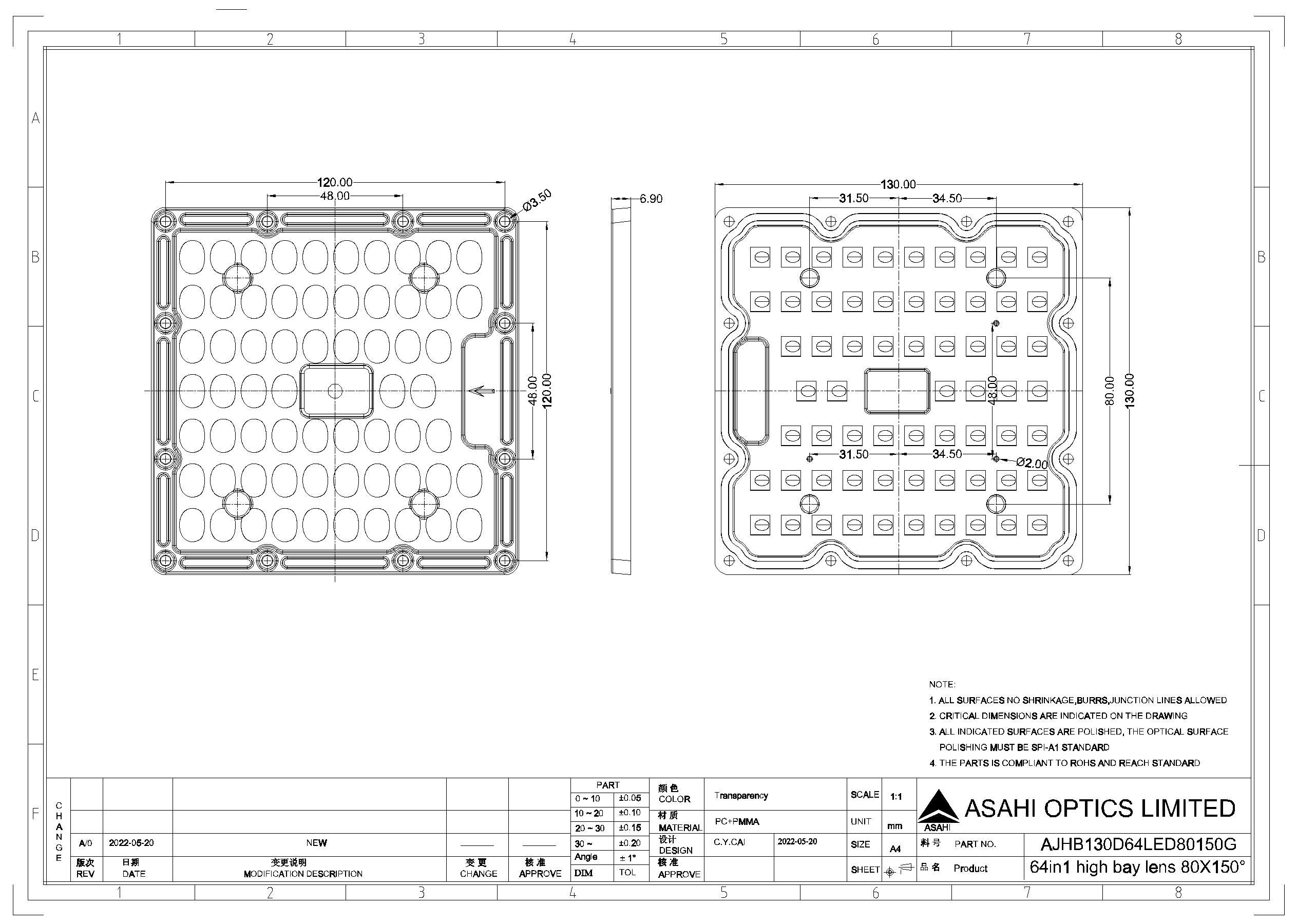

AJHB130D64LED80150G Drawing.dwg
AJHB130D64LED80150G Drawing.pdf
AJHB130D64LED80150G Datasheet.pdf
