Model: ALST173D12LEDT2WB-H
Diameter: 173x71.4mm
Height: 9.10mm
Angle: T2M Asymmetric With Backlight
Material: PMMA
Transmittance: >93%
LED Type: 5050LED

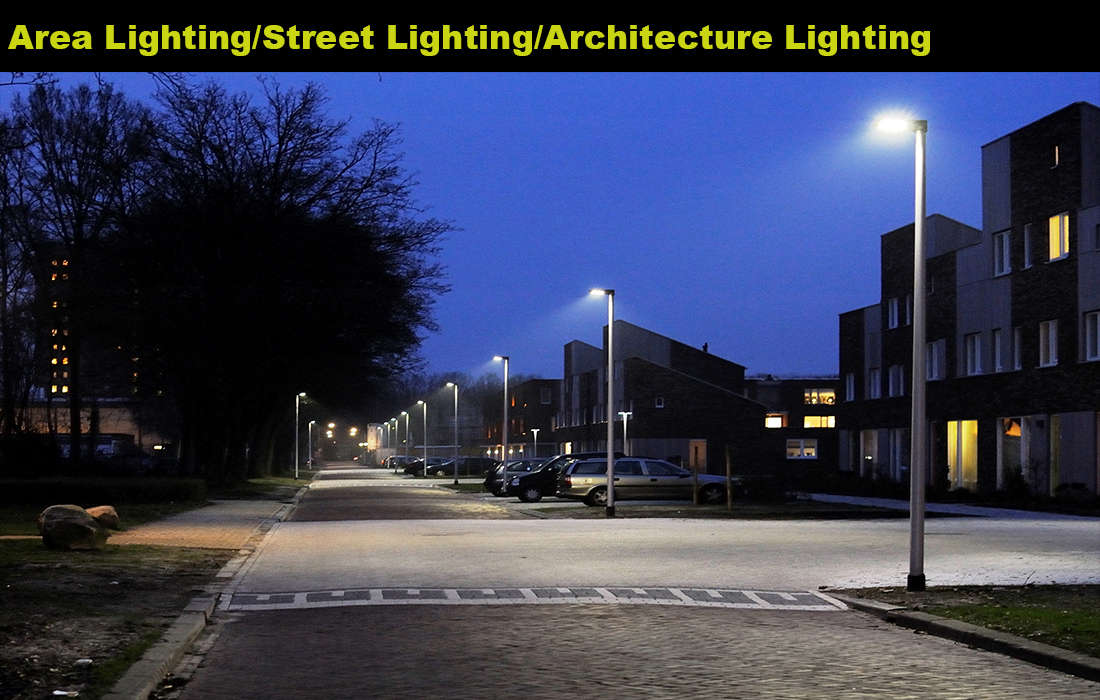

Lighting Applications: Street lighting,Architecture lighting,Area lighting
1. 2x6 TypeII-Medium boasts two lens options for both horizontal and vertical installations, catering to diverse preferences among customers for luminaire installation.
2. With an impressive IP66 rating,excels in dust and waterproof protection.
3. The lens compatibel with both 3535 and 5050 series LED

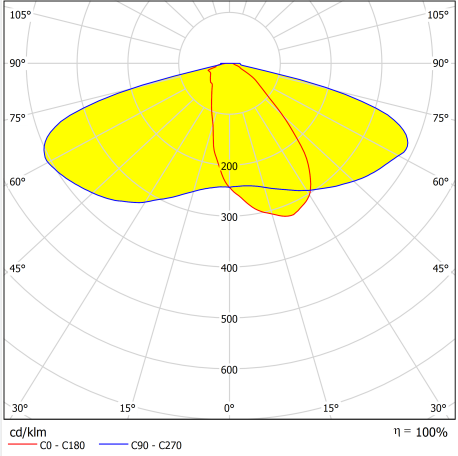

Distribution
Specifications
| Model: | ALST173D12LEDT2WB-H |
| Diameter: | 173x71.4mm |
| Height: | 9.10mm |
| Angle: | T2M Asymmetric With Backlight |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 5050LED |
| Lighting applications | Street lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

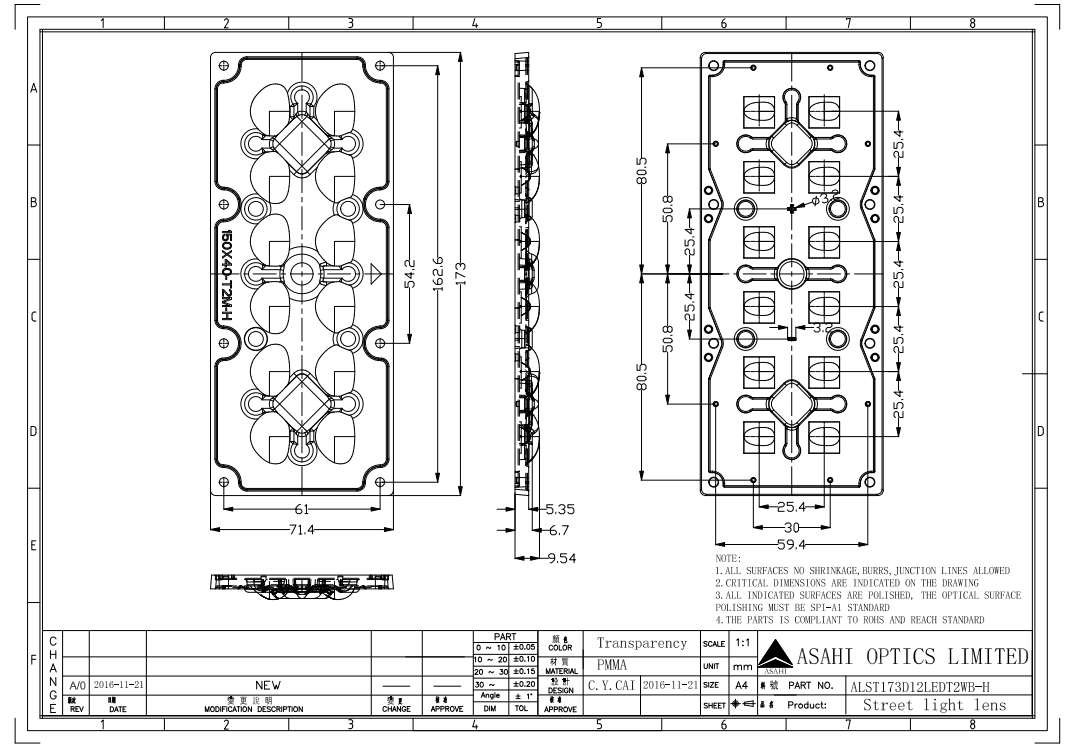

ASAHI OPTICS ALST173D12LEDT2WB-H Drawing.dwg
ASAHI OPTICS ALST173D12LEDT2WB-H Drawing.pdf
ASAHI OPTICS ALST173D12LEDT2WB-Lumileds5050 Dialux.pdf
ASAHI OPTICS ALST173D12LEDT2WB-Lumileds5050 lens IES.ies
ASAHI OPTICS ALST173D12LEDT2WB-SEOUL5050 lens IES.ies
