120in1 LED Lens Delivers High Bay High-Power Illumination
120in1 LED Lens Delivers High Bay High-Power Illumination

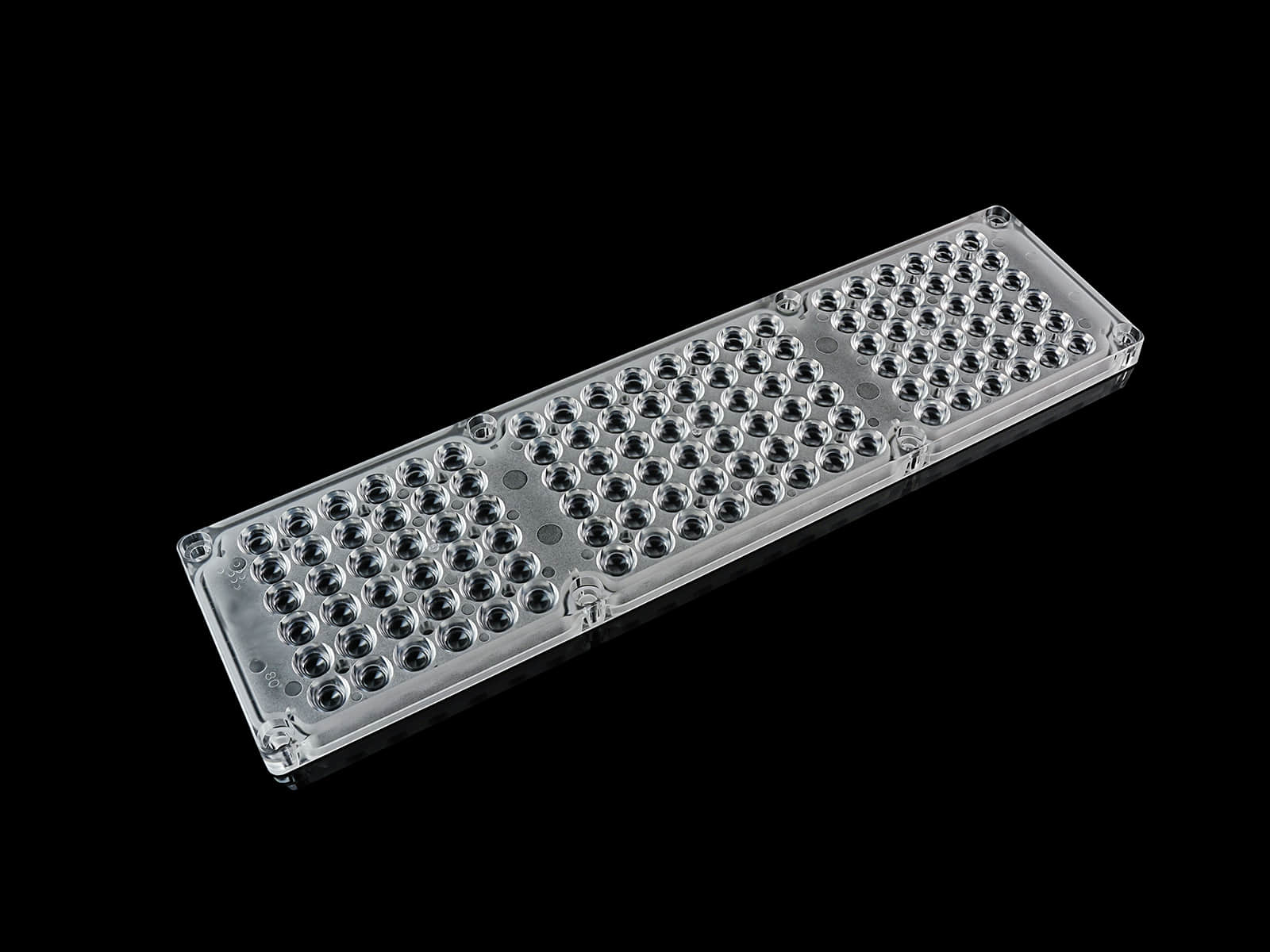

Asahi Optics ALH320D120LED80G

120in1 LED Lens Delivers High Bay High-Power Illumination

Model: ALH320D120LED

Size: 320x84(mm)

Height: 11.15mm

Angle: 50°,80°

Material: PC

Transmittance: >88%

LED Type: 3030 LED

Lighting Applications: High Bay lighting

1. ALHB320D3030LED is an ultra-high-density integrated optical module custom-designed for industrial-grade high-power high-bay lighting. It integrates up to 120 optical units, enabling a single module to drive exceptionally high luminous flux output.

2. It offers two professional beam angles—50° and 80°—capable of creating uniform, full light spots on target work surfaces, effectively eliminating dark zones and improving vertical illuminance and visual comfort. Designed to provide a powerful, uniform, and easy-to-install-and-maintain lighting solution for large industrial spaces with the fewest components.



Distribution

ALH320D120LED50G Distribution

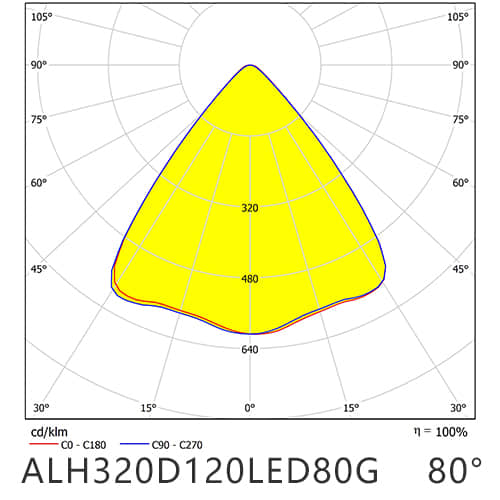

ALH320D120LED80G Distribution

Specifications

Model: ALH320D120LED
Size: 320x84(mm)
Height: 11.15mm
Angle: 50°,80°
Material： PC
Transmittance： >88%
LED Type 3030 LED
Lighting applications High Bay lighting

LED Type

OSRAM OSCONIQ® P 3030 osram

OSRAM OSCONIQ® P

Lumileds LUXEON 3030 HE lumileds

LUXEON 3030 HE

Nichia NFSW 3030 series nichia

NFSW 3030 series

EVERLIGHT XI3030 C0150 everlight_logo

XI3030 series

HONGLIZHIHUI EMC 3030 series honglizhihui

EMC 3030 series

Packaging

---

Material Information

pmma temperature
pc temperature
pmma rti
pc rti
glove 1
no chemical

  • Lens Material

    L06: PMMA 8N/ L46: PC 1250Z

  • Operating Temperature

    PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C

  • UL Flammability

    PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm

  • UL RTI Elec

    PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]

  • Light Transmission Rate

    400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

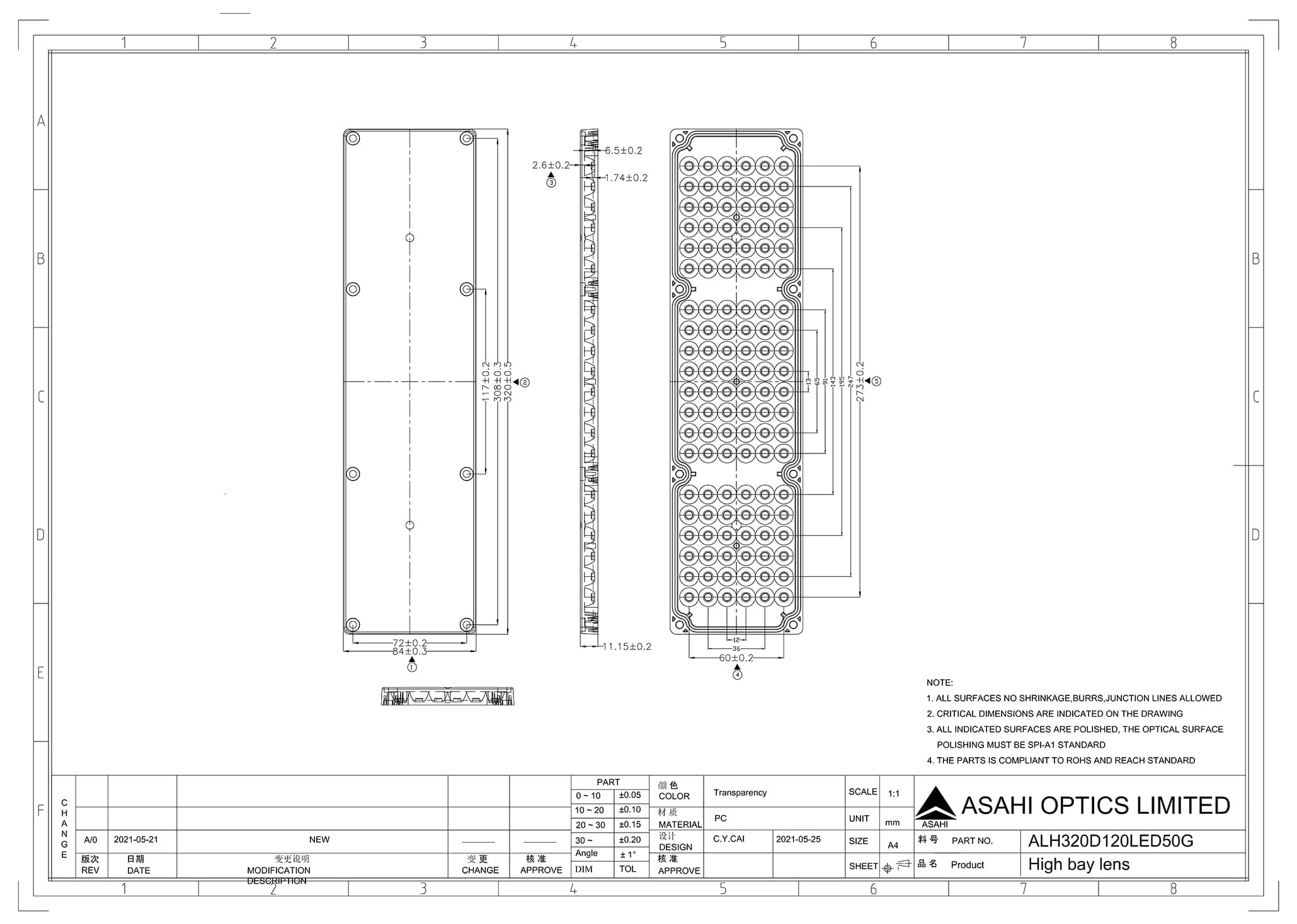

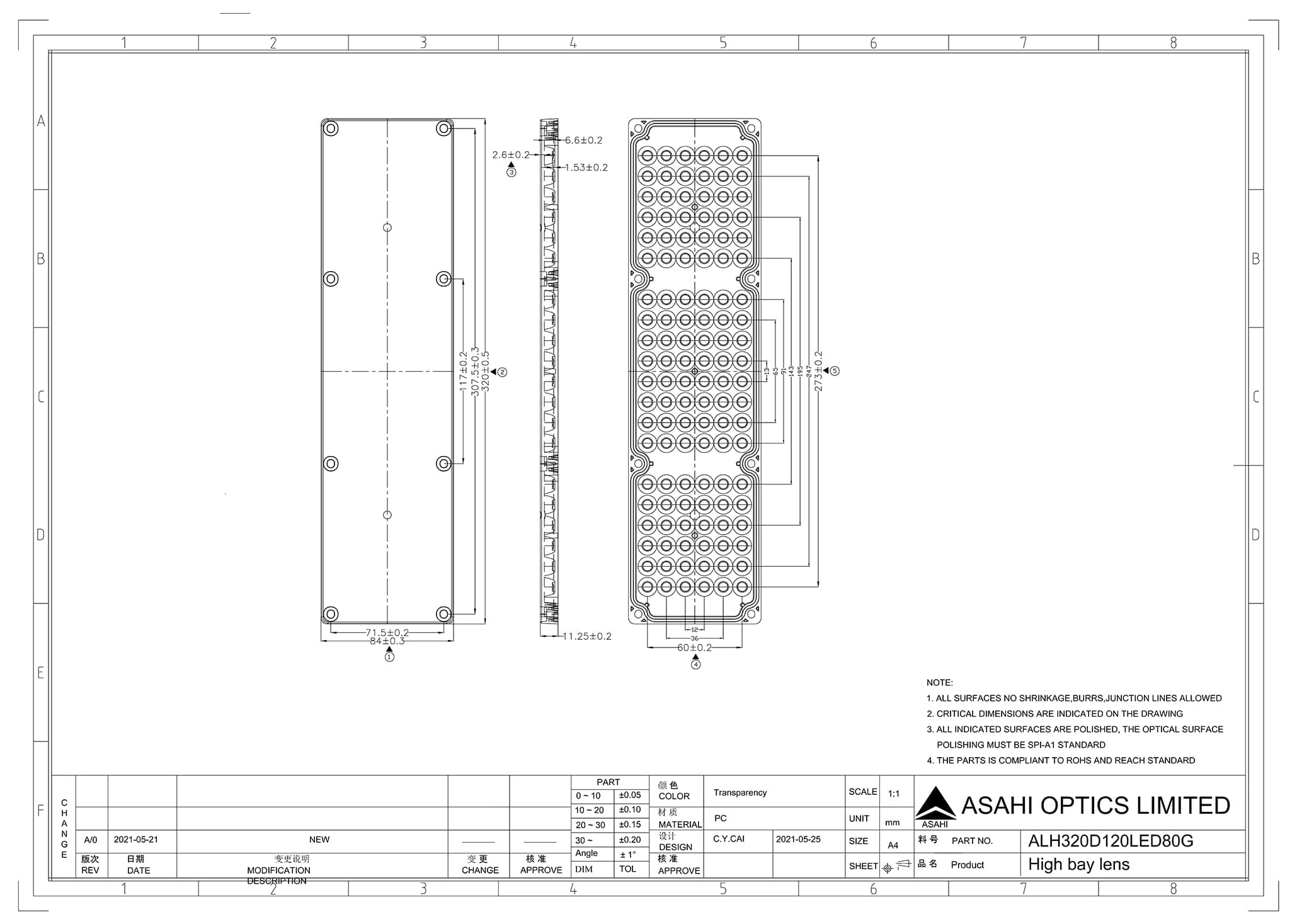

ALH320D120LED50G DrawingALH320D120LED80G DrawingIndustrial Lighting, High Bay Light
