Model: AJST50D4LED80155G
Size: 50x50(mm)
Height: 6.7mm
Angle: 80x155°
Material: PC
Transmittance: 90%
LED Type: 5050 LED
Lighting Applications: Street Light
1. Lightweight Design: Lighter than glass, easy to install, reducing transportation and labor costs.
2. Excellent Compatibility: Standard 2x2-inch (50x50mm) size fits most high bay light modules, with customizable optical solutions available.

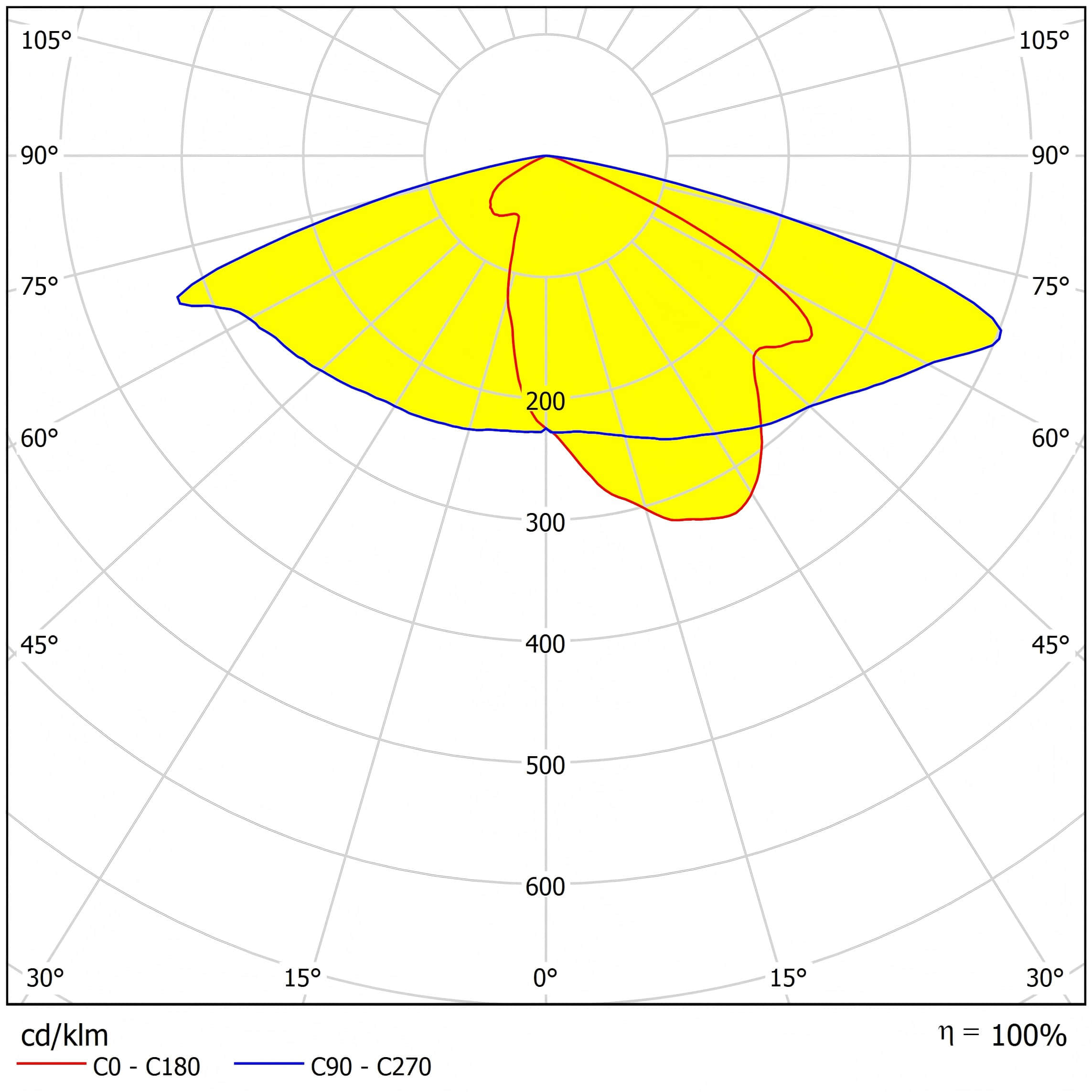

Distribution
Specifications
| Model: | AJST50D4LED80155G |
| Size: | 50x50(mm) |
| Height: | 6.7mm |
| Angle: | 80x155° |
| Material： | PC |
| Transmittance： | ＞90% |
| LED Type | 5050 LED |
| Lighting applications | Street Light |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

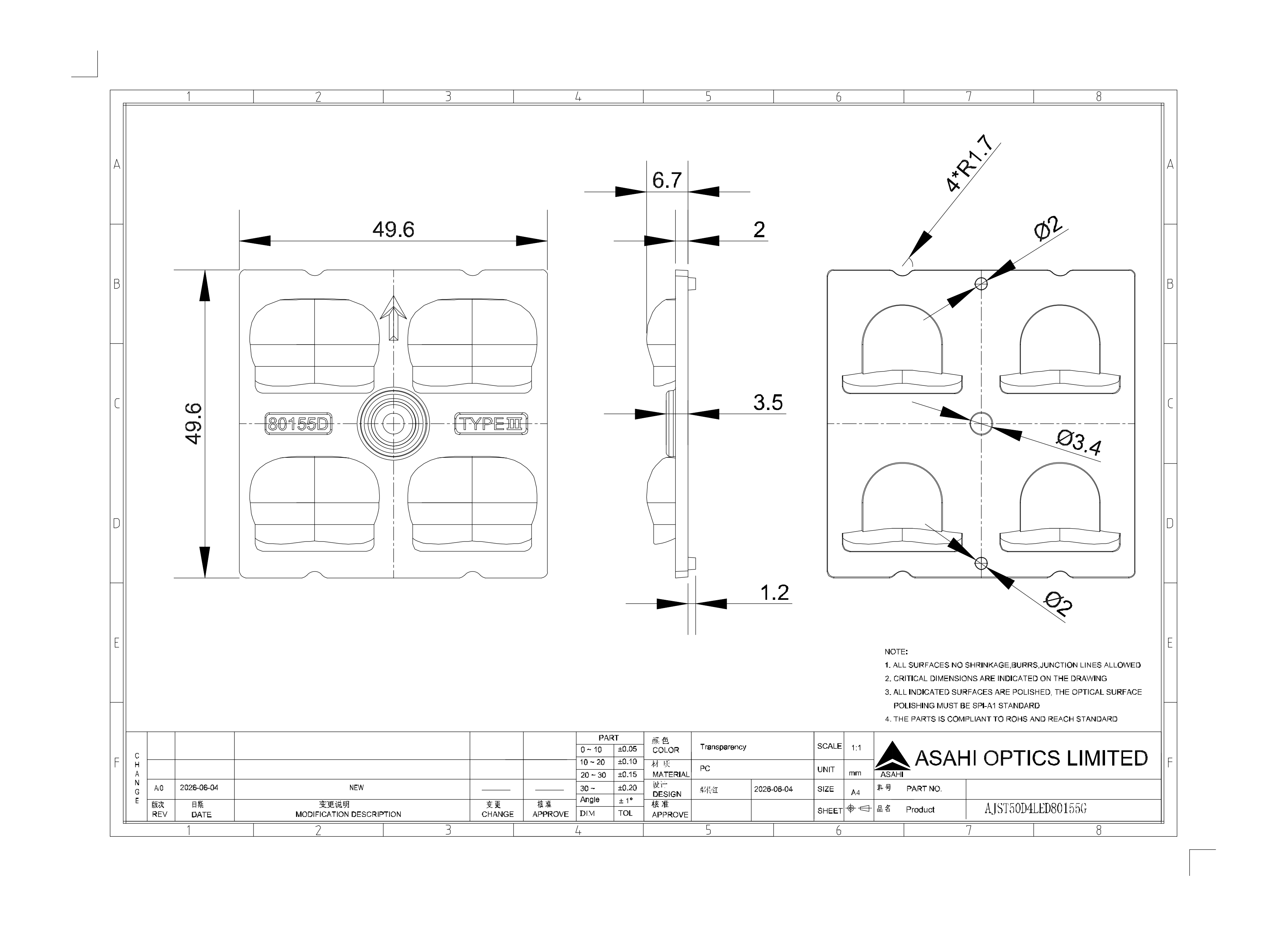

ASAHI OPTICSAJST50D4LED80155G Drawing.dwg
ASAHI OPTICSAJST50D4LED80155G Drawing.pdf
ASAHI OPTICS AJST50D4LED80155G lens IES.ies
ALST50D4LED5050T3M Datasheet.pdf
