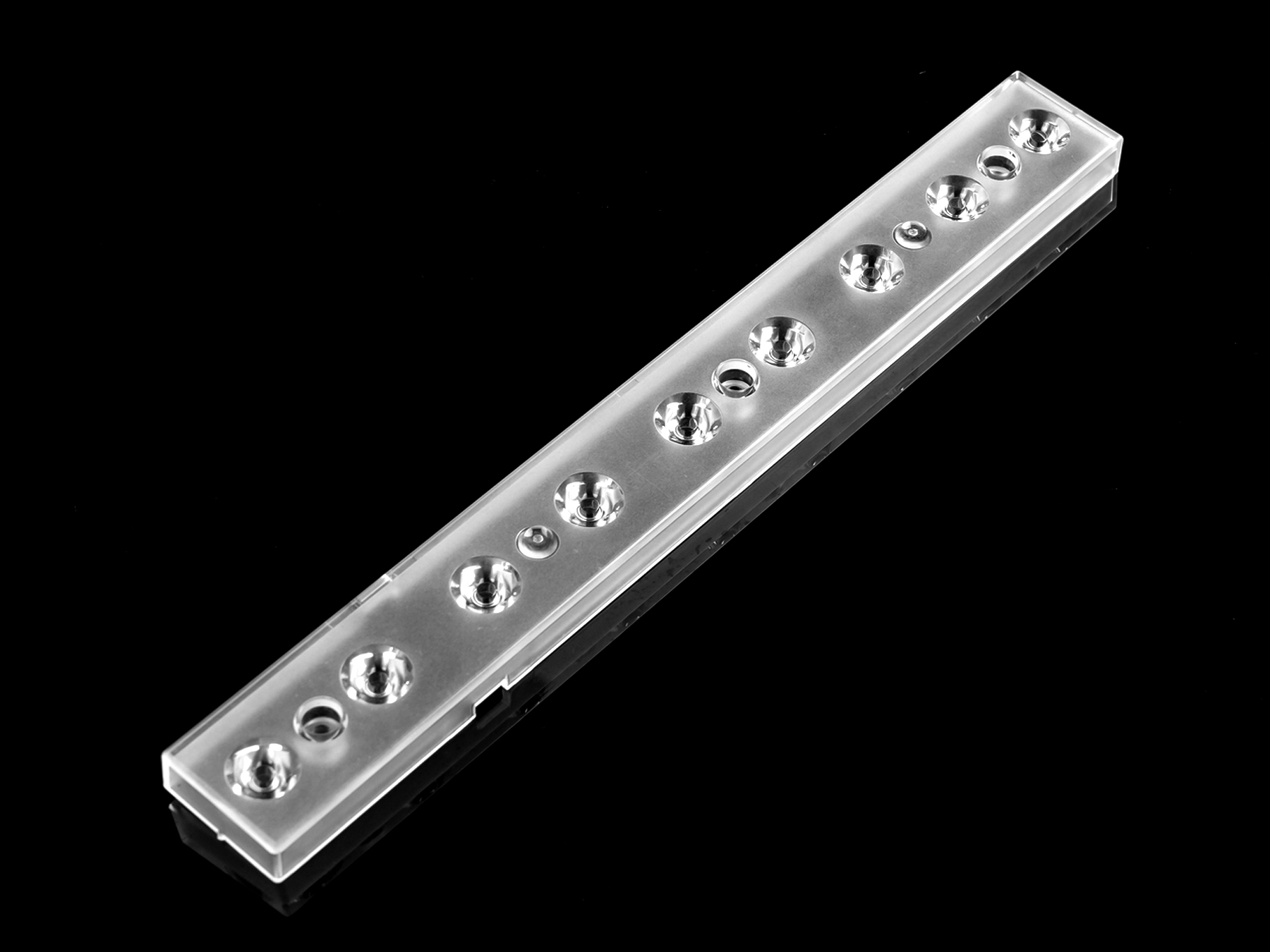

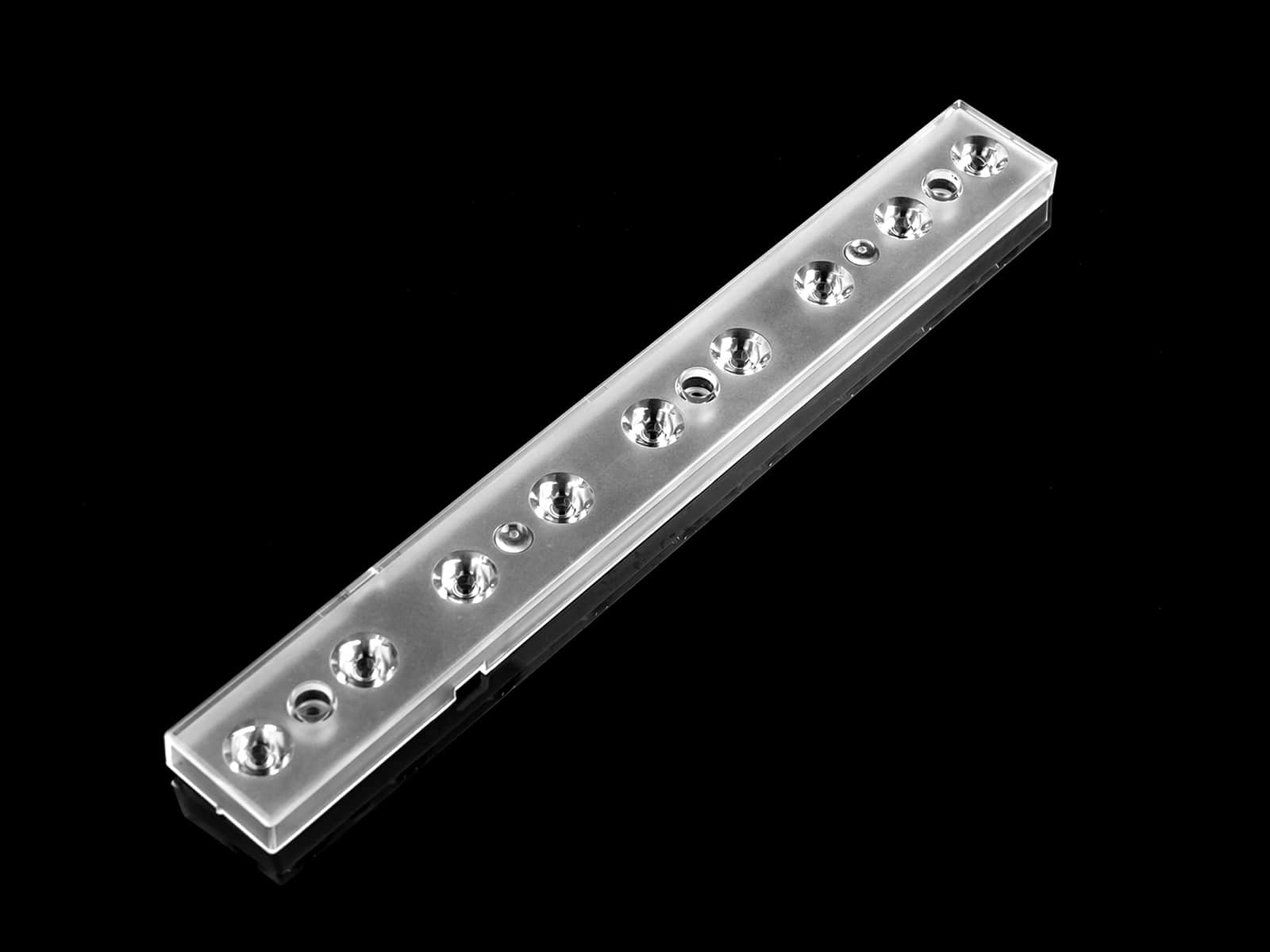

Model: ASL239D9LED15G
Size: 239mm
Height: 29.03mm
Angle: 15°
Material: PMMA
Transmittance: 93%
LED Type: 3535LED
Lighting Applications: Wall washer light

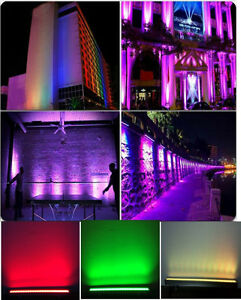

1. This 9LED linear lens with 239mm length can be easily installed on the luminaires to light up the buildings.
2. 15° narrow beam can illuminate and highlight the most important objects and enbale it to be seen by the public.
Distribution
Specifications

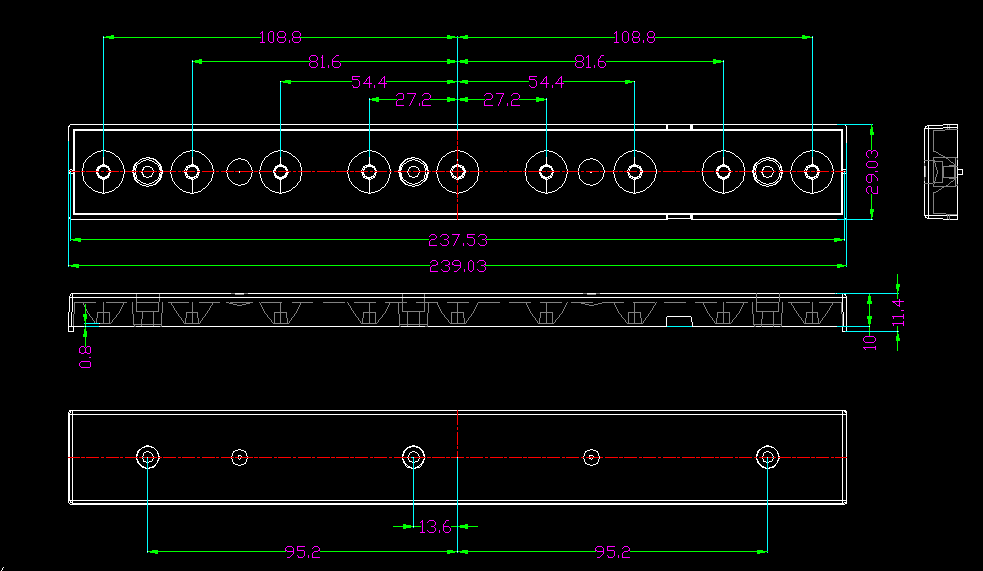

| Model: | ASL239D9LED15G |
| Size: | 239x11.4(mm) |
| Height: | 29.03mm |
| Angle: | 15° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | 3535LED |
| Lighting applications | Wall washer light |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

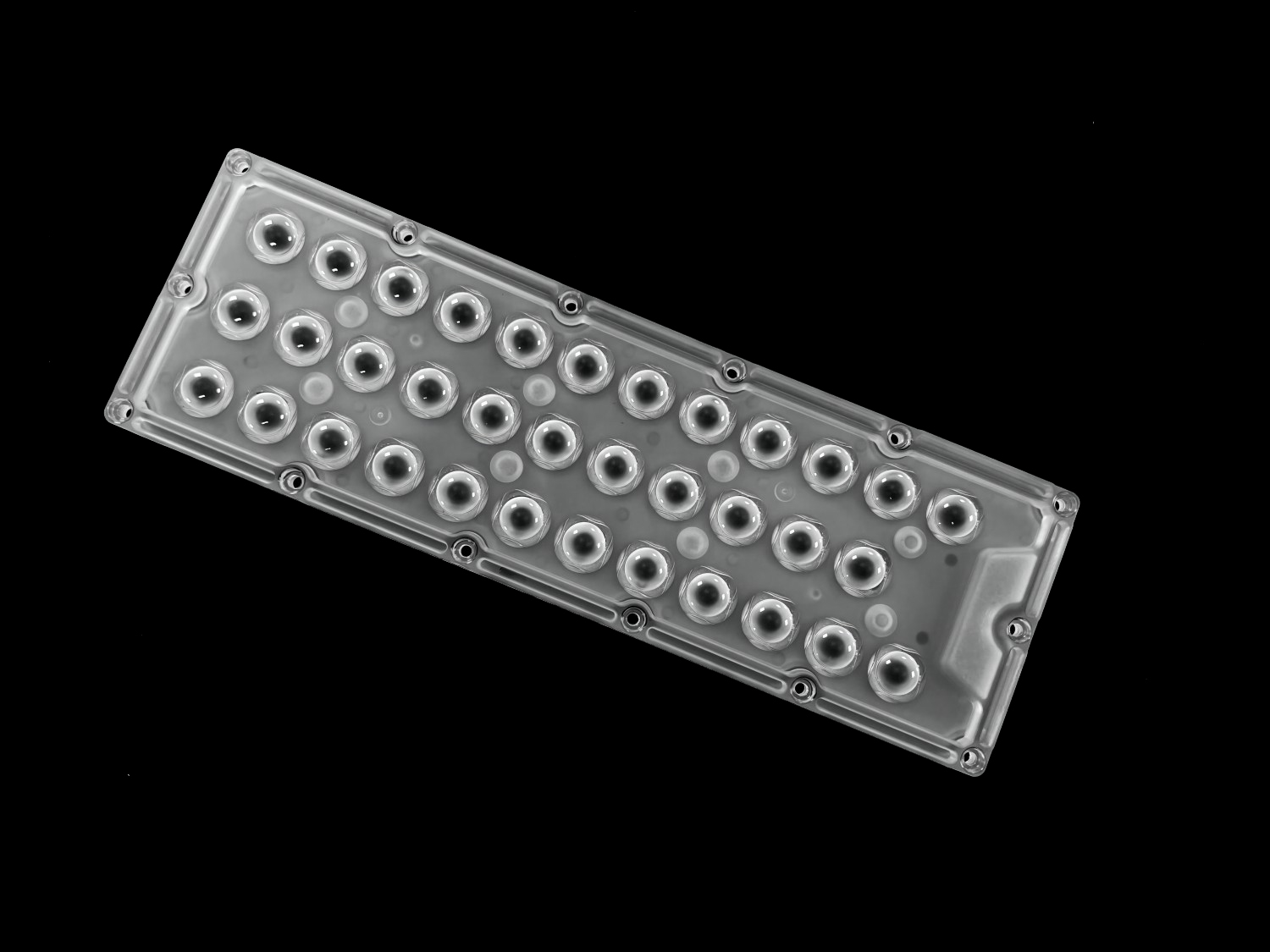

The 3X11 lens array is designed for Mid Power LEDs which is compatible with “3030”''5050''and“5630”LEDs.
For each optical surface, it is not only suitable for a single LED, but also can be matched with two LEDs to get higher lumens.
Instructions as below
