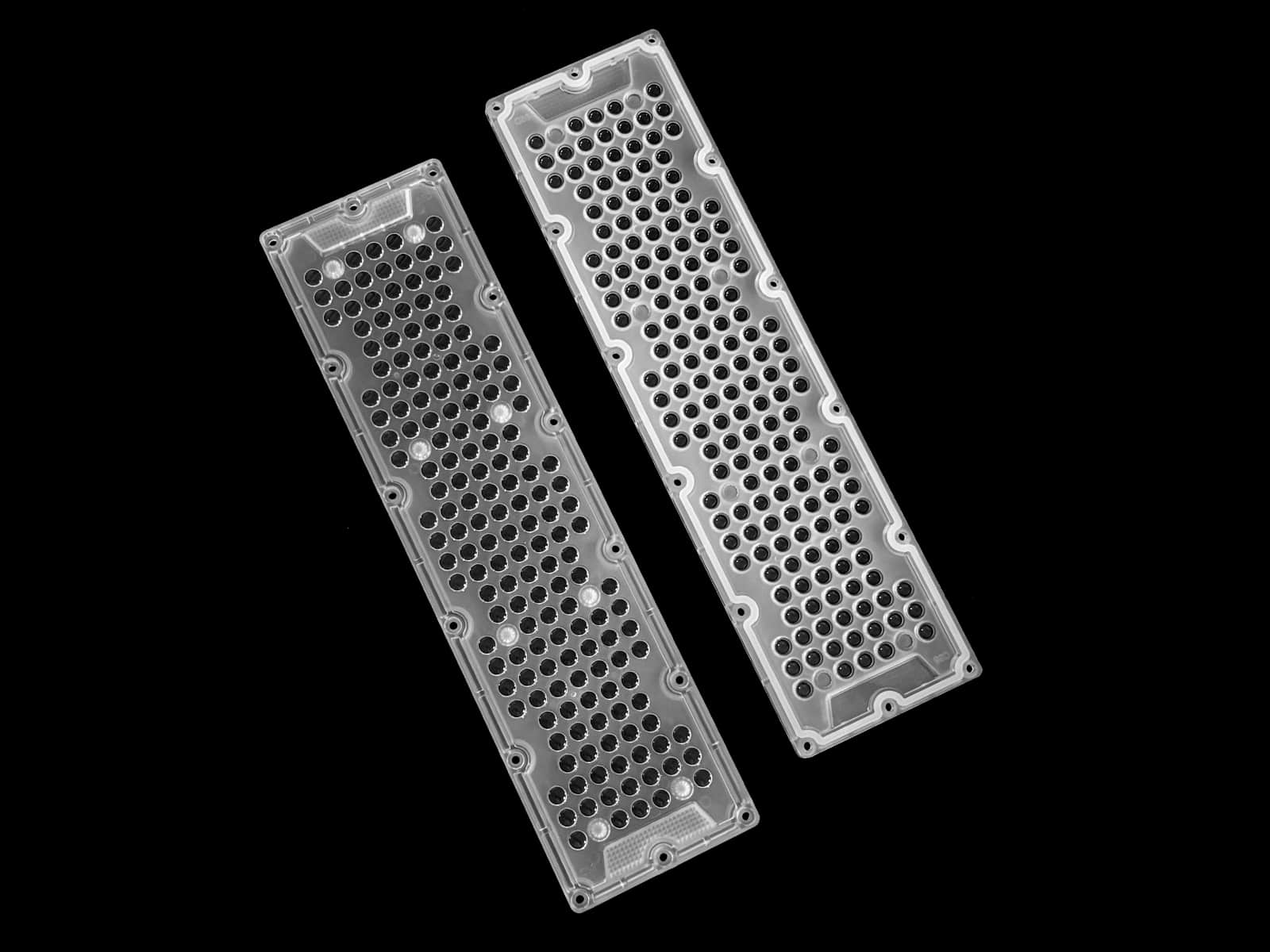

Multi-Angle 168LEDs for warehouse aisles and shelf lighting
Multi-Angle 168LEDs for warehouse aisles and shelf lighting

Multi-Angle 168LEDs for warehouse aisles and shelf lighting

Model: AJHB330D168LED

Size: 330.2x89.6 (mm)

Height: 7.0mm

Angle: 60°,85°,30x90°,30x90°(straight),30x110°

Material: PC

Transmittance: >88%

LED Type: 2835/3030 LED

Lighting Applications: Line lights, Office lighting, Warehouse aisles, Shelf lighting

1. Integrates 168 LEDs, with selectable beam angles including 60°, 85°, 30°×90°, 30°×90° (straight strip), and 30°×110°.

2. PC material, light transmittance >88%, compatible with 2835/3030 LEDs. Flexibly adapts to different shelf heights and aisle widths for precise light distribution.

3. Free choice of multiple beam angles to meet linear lighting needs in offices, warehouse aisles, shelving, and similar applications.

Distribution

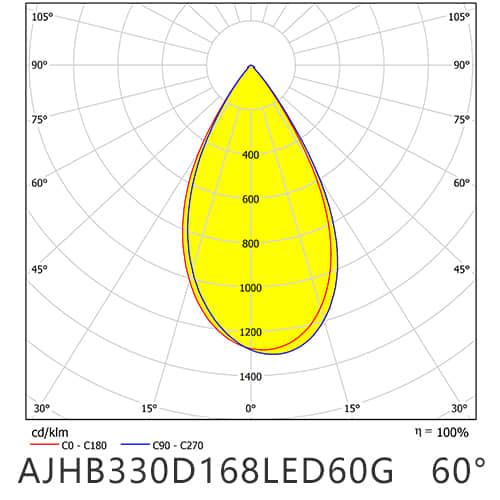

AJHB330D168LED60G distribution

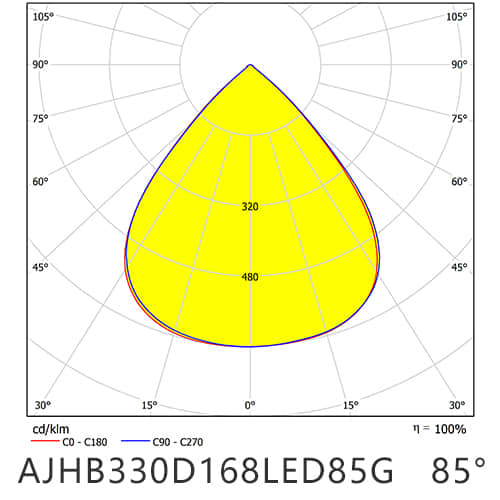

AJHB330D168LED85G distribution

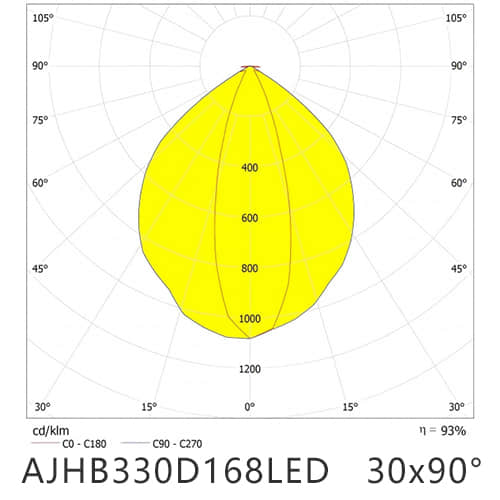

AJHB330D168LED3090G distribution

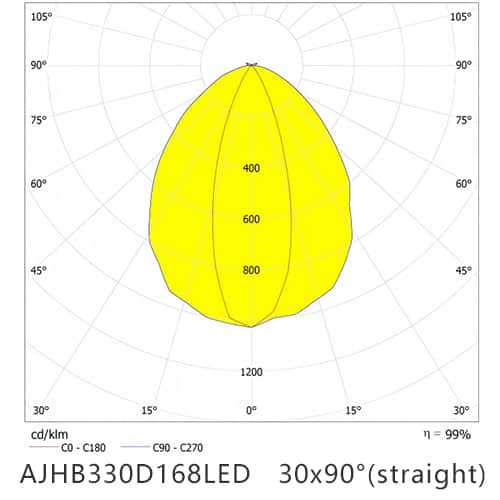

AJHB330D168LED3090SG distribution

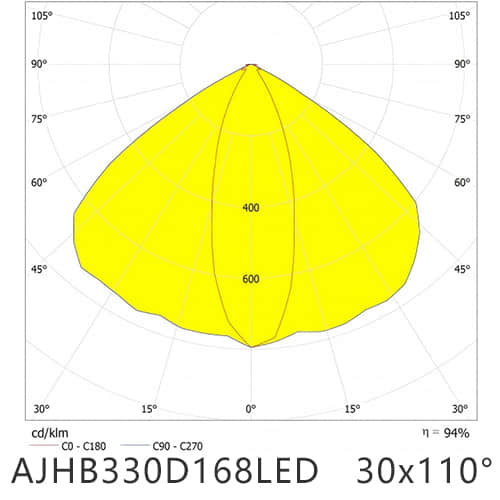

AJHB330D168LED30110G distribution

Specifications

Model: AJHB330D168LED
Size: 330.2x89.6 (mm)
Height: 7.0mm
Angle: 60°,85°,30x90°,30x90°(straight),30x110°
Material： PC
Transmittance： >88%
LED Type 2835/3030 LED
Lighting applications Line lights, Office lighting, Warehouse aisles, Shelf lighting

LED Type

OSRAM OSCONIQ® P 3030 osram

OSRAM OSCONIQ® P

Lumileds LUXEON 3030 HE lumileds

LUXEON 3030 HE

Nichia NFSW 3030 series nichia

NFSW 3030 series

EVERLIGHT XI3030 C0150 everlight_logo

XI3030 series

HONGLIZHIHUI EMC 3030 series honglizhihui

EMC 3030 series

Packaging

---

Material Information

pmma temperature
pc temperature
pmma rti
pc rti
glove 1
no chemical

  • Lens Material

    L06: PMMA 8N/ L46: PC 1250Z

  • Operating Temperature

    PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C

  • UL Flammability

    PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm

  • UL RTI Elec

    PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]

  • Light Transmission Rate

    400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

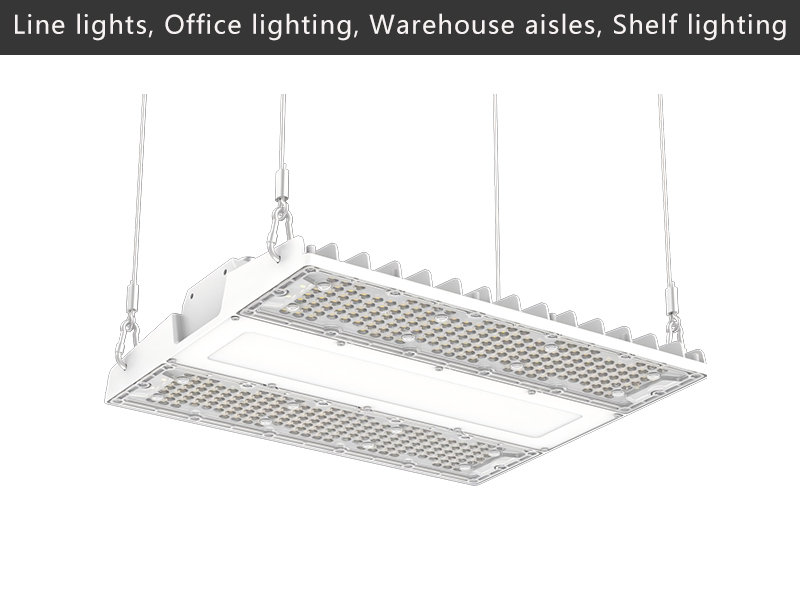

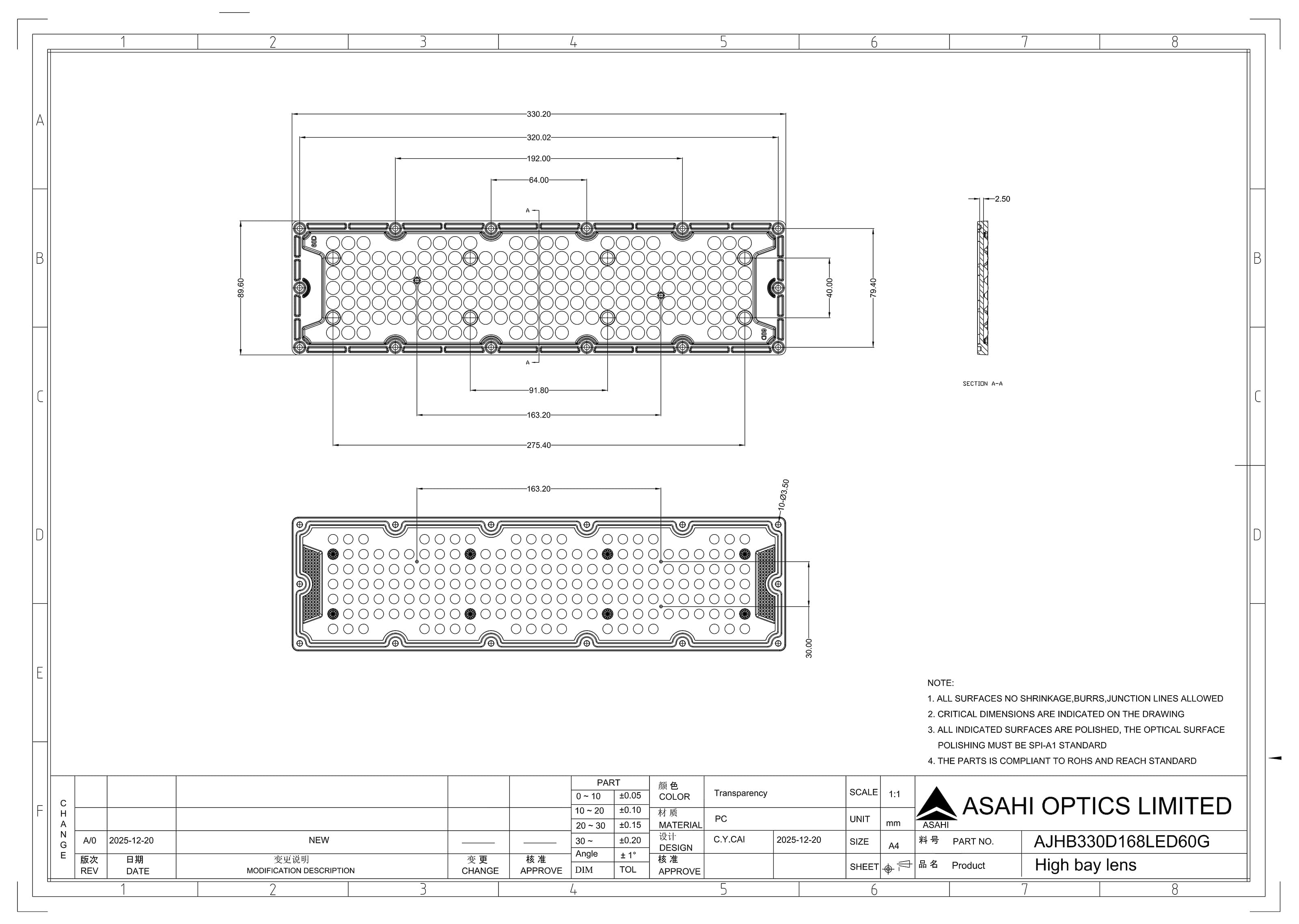

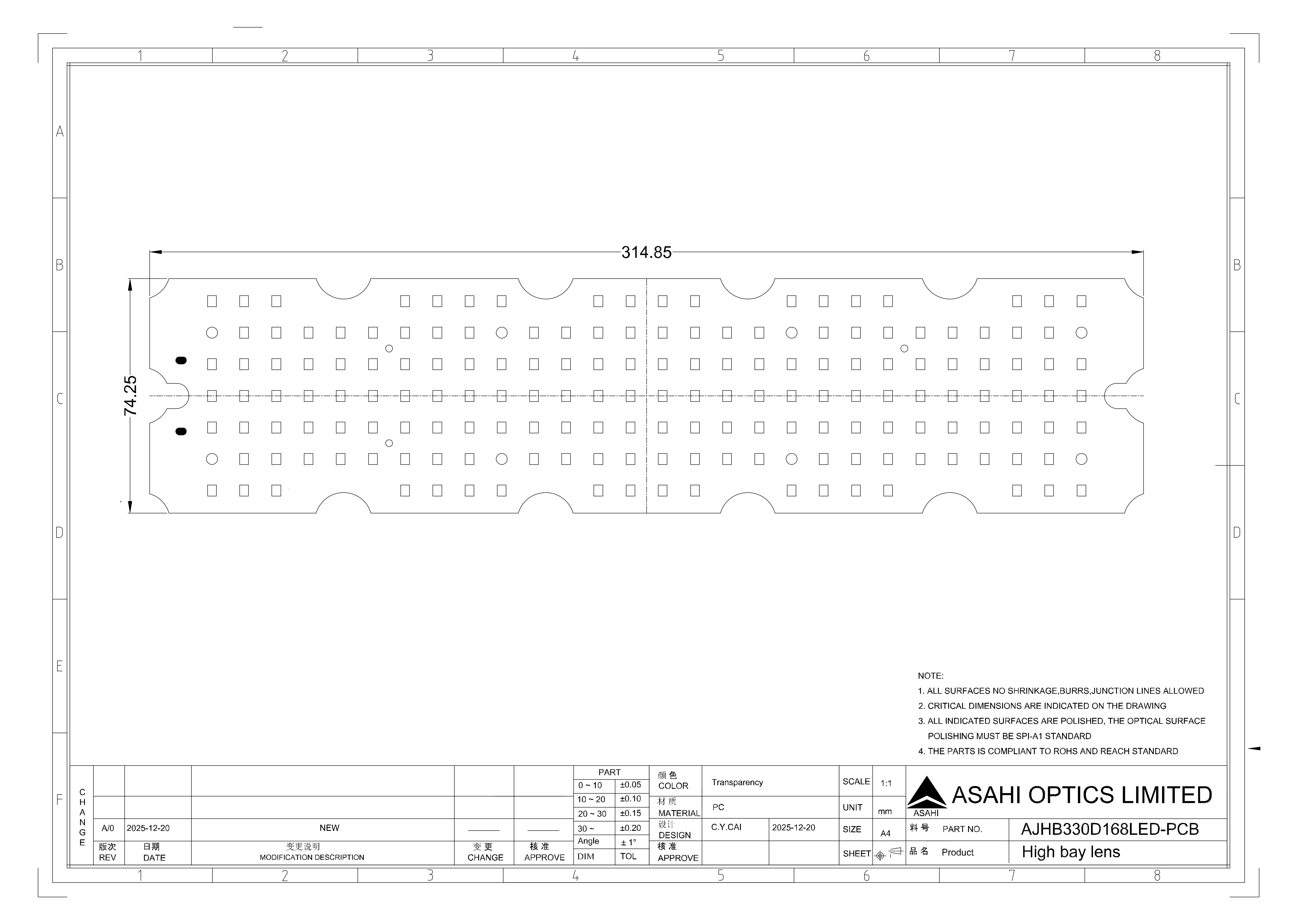

AJHB330D168LED60G DrawingAJHB330D168LED PCB Drawing168LEDs for Line lights, Office lighting, Warehouse aisles, Shelf lighting
