Model: AJST270D28LEDT3M
Diameter: 270mm
Height: 75mm
Angle: Type III
Material: PMMA , PC-1250Z
Transmittance: >90%
LED Type: 4x3030/ 5050LED
Lighting Applications: Street lighting
1. TYPE 3 lenses are typically used in street lighting fixtures, providing a wider distribution of light that is ideal for illuminating roadways, sidewalks, and bike paths.
2. The TYPE 3 lens design helps to minimize glare, light pollution, and dark spots, creating a well-lit and safe environment for pedestrians and drivers.
3. TYPE 3 street lighting lenses are a popular choice for municipal lighting projects, as they offer a balance of visibility, safety, and energy efficiency.

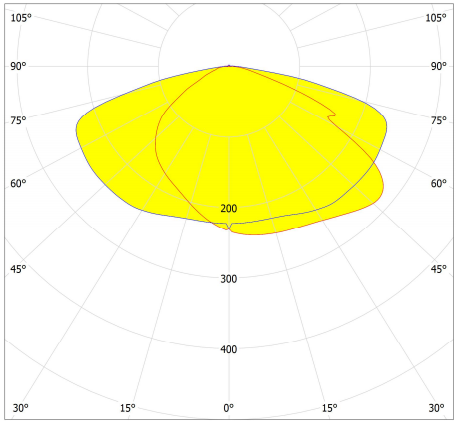

Distribution
Specifications
| Model: | AJST270D28LEDT3M |
| Diameter: | 270mm |
| Height: | 75mm |
| Angle: | Type III |
| Material： | PMMA ,PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 4x3030/ 5050LED |
| Lighting applications | Street lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

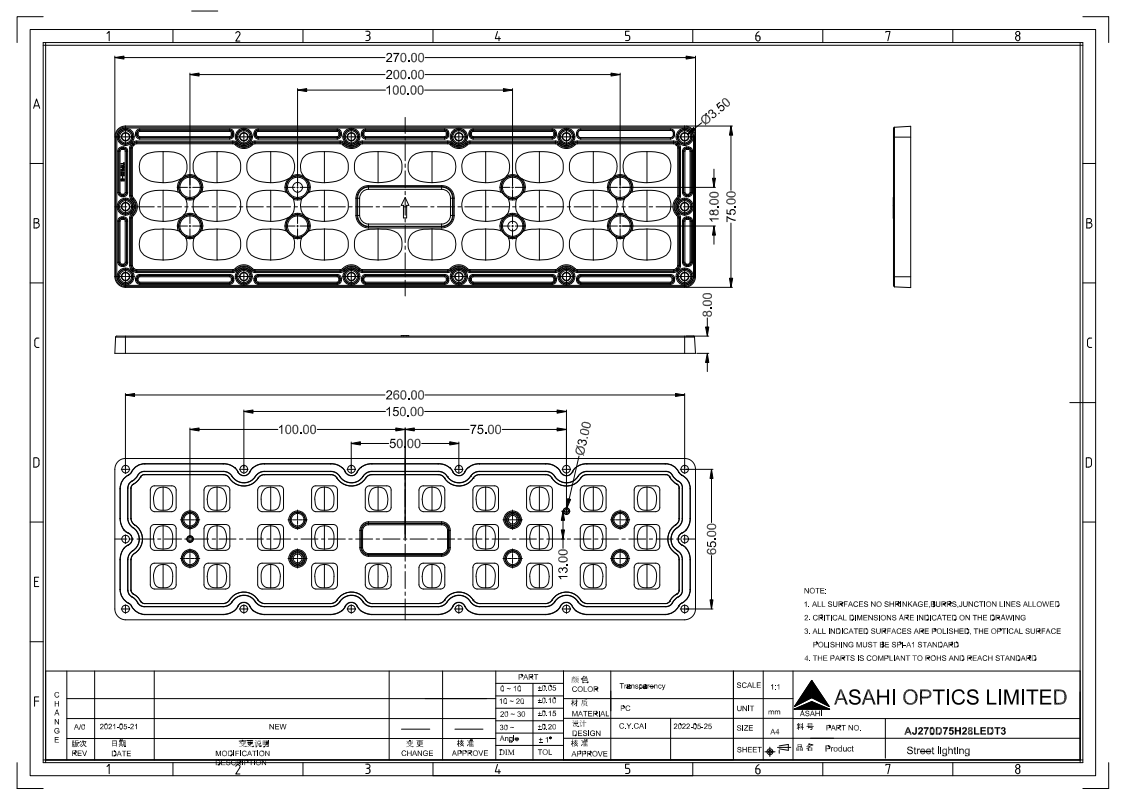

ASAHI OPTICS AJST270D28LEDT3M Drawing.dwg
ASAHI OPTICS AJST270D28LEDT3M Drawing.PDF
ASAHI OPTICS AJST270D28LEDT3M IES
