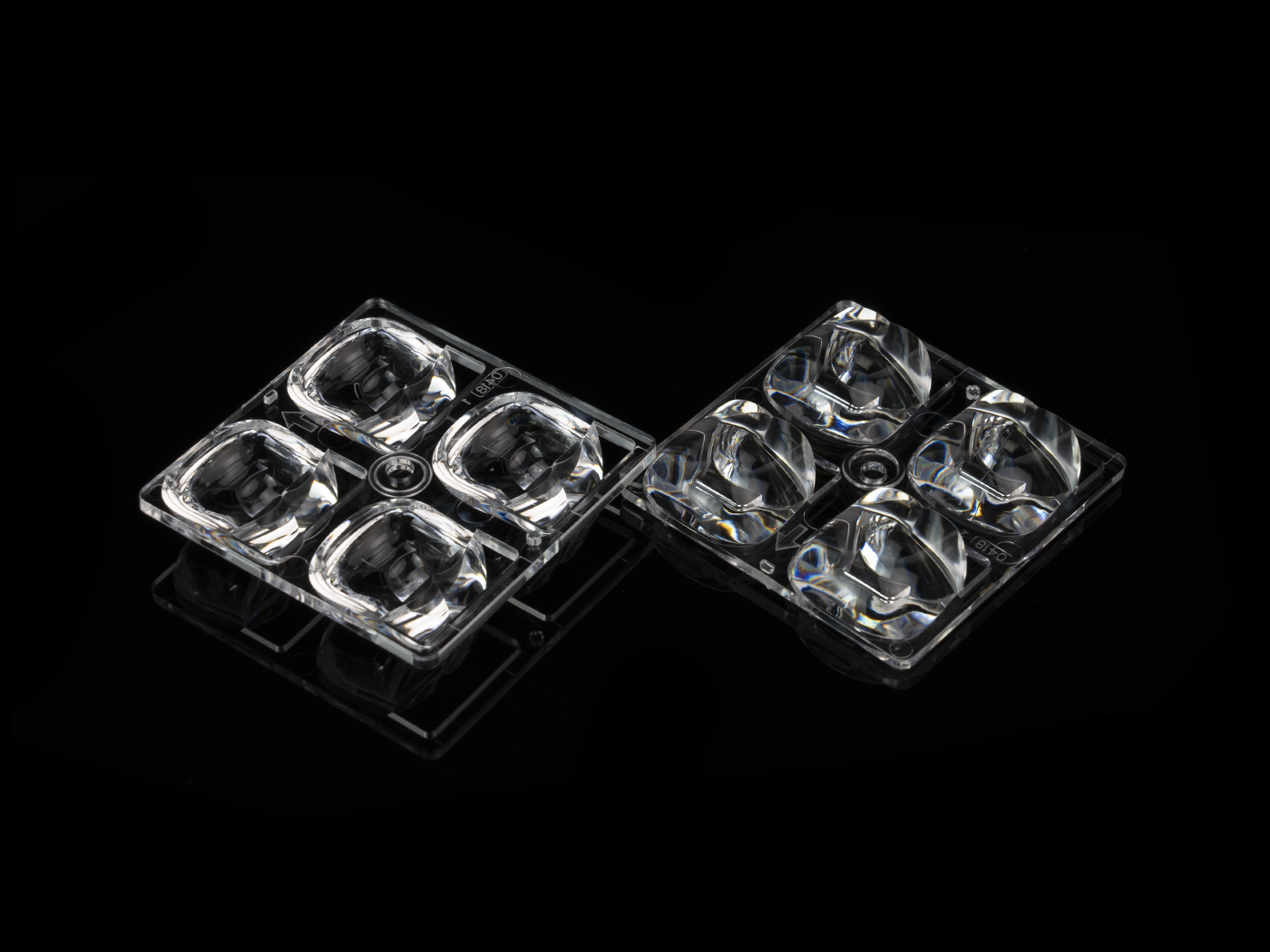

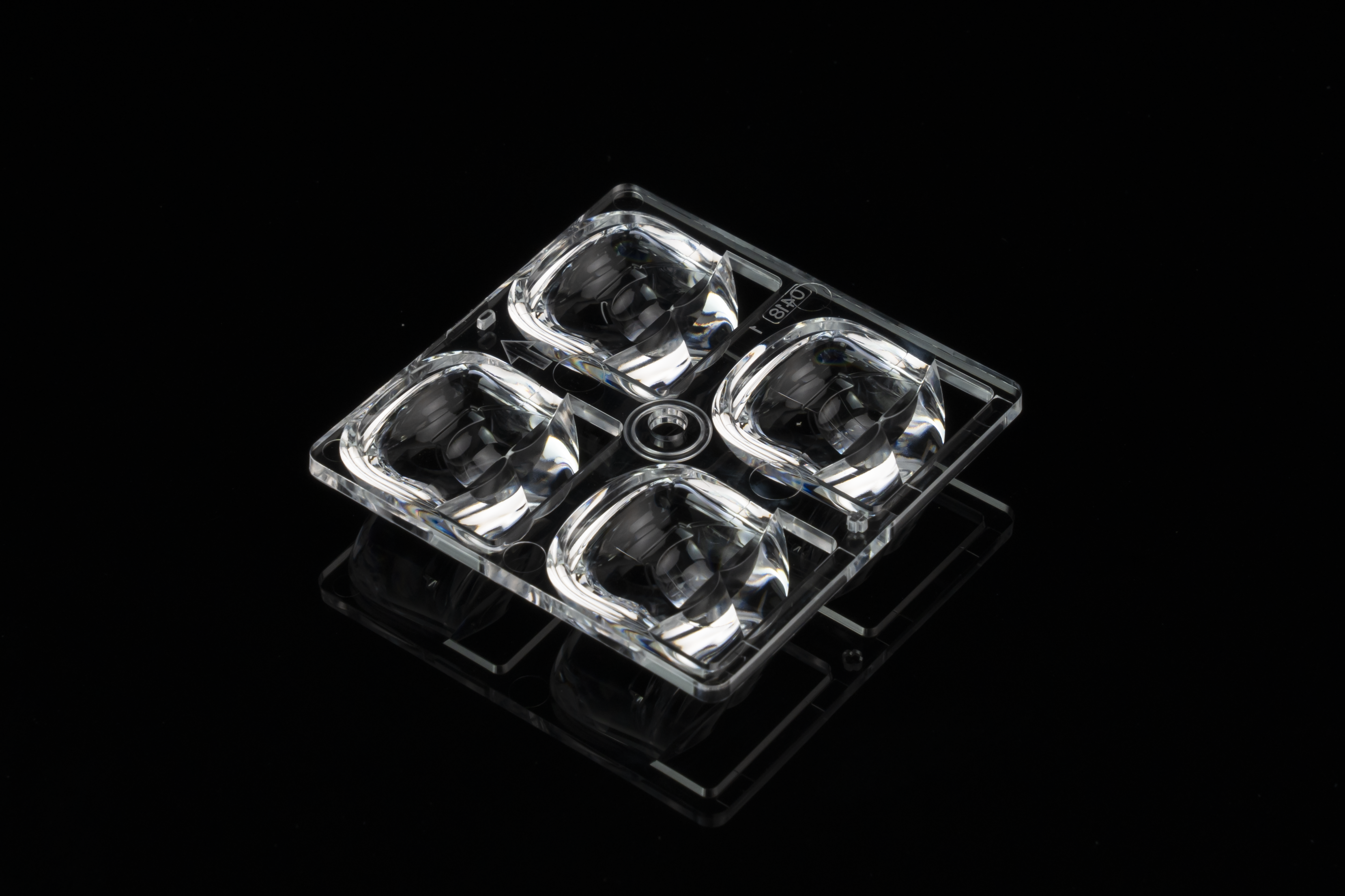

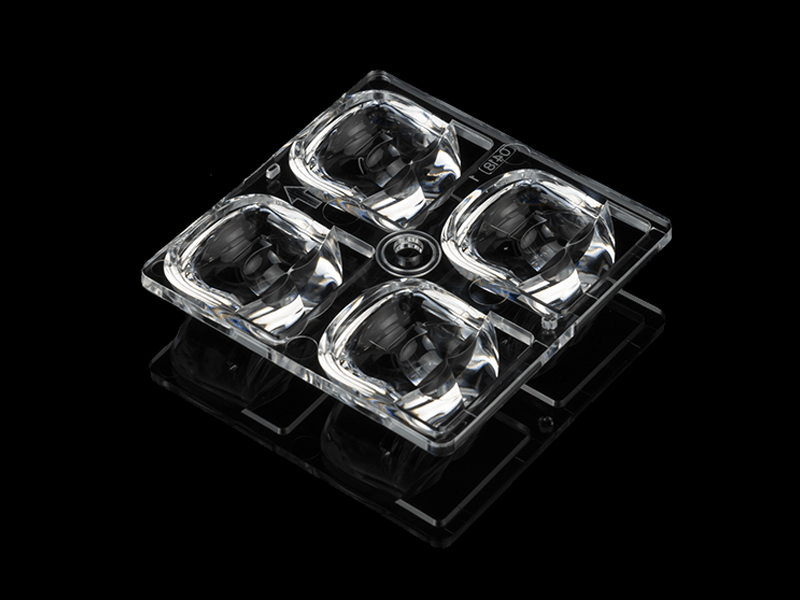

Narrow Forward Throw Beam 5050LED Stadium Lighting Lens

Narrow Forward Throw Beam 5050LED Stadium Lighting Lens

Model: ALSP50D4LEDT3VS-B

Diameter: 50x50mm

Height: 9.66mm

Angle: T3VS-B

Material: PC-1250Z

Transmittance: >90%

LED Type: 5050LED

Lighting Applications: Sport lighting, Stadium lighting

1. The design of the TYPE III-Very Short sport light lens provides a versatile light distribution, making it suitable for various sports fields and activities.

2. The focused lighting helps reduce glare, contributing to enhanced visual comfort for both players and spectators during sports events.

3.The lens provides precise control over the direction and spread of light, ensuring optimal illumination for sports activities.

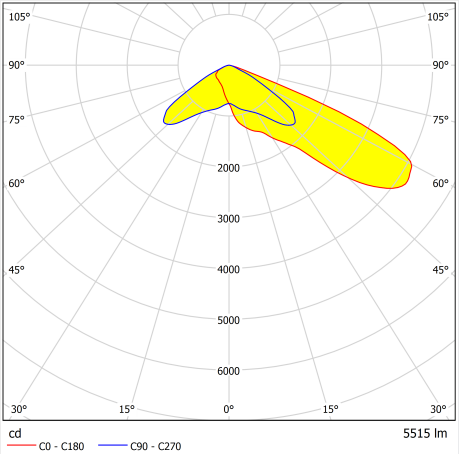

Distribution

Specifications

Model:	ALSP50D4LEDT3VS-B
Diameter:	50x50mm
Height:	9.66mm
Angle:	T3VS-B
Material：	PC-1250Z
Transmittance：	>90%
LED Type	5050LED
Lighting applications	Sport lighting, Stadium lighting

LED Type

JR5005C 6-V E

DURIS S 8

LUXEON 5050 Square

NVAW144AR

NVAW144AM

Xl5050LED

EMC5050LED

Packaging

---

Material Information

Lens Material

L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature

PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability

PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec

PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate

400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

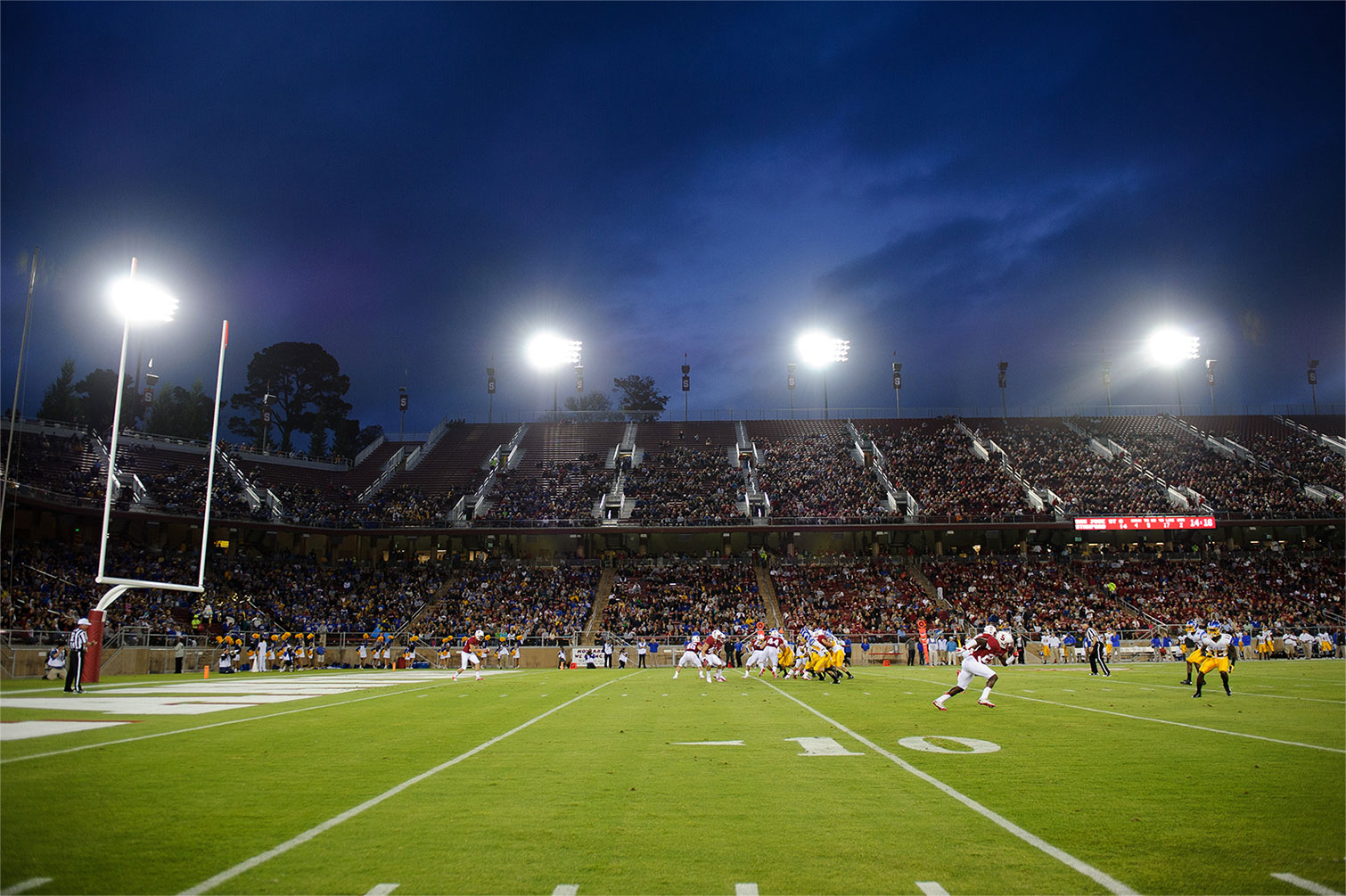

The 2x2 T3VS very short narrow forward throw beam is typically used for area lighting such as sports stadium lighting, tunnel light, parking lot etc.

1. The design of the TYPE III-Very Short sport light lens provides a versatile light distribution, making it suitable for various sports fields and activities.

2. The focused lighting helps reduce glare, contributing to enhanced visual comfort for both players and spectators during sports events.

3.The lens provides precise control over the direction and spread of light, ensuring optimal illumination for sports activities.

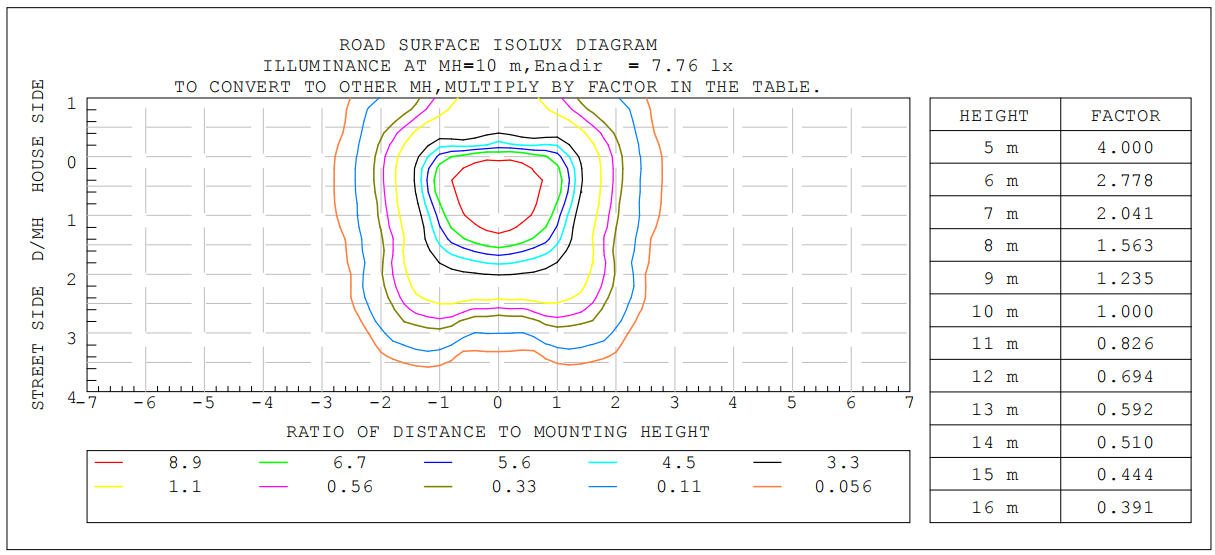

ALSP50D4LEDT3VS B ROAD SURFACE ISOLUX DIAGRAM
