Model: ALHB173D24LED90G
Diameter: 173mm
Height: 9.3mm
Angle: 90°
Material: PMMA
Transmittance: >90%
LED Type: 2835/ 3030/ 5050LED

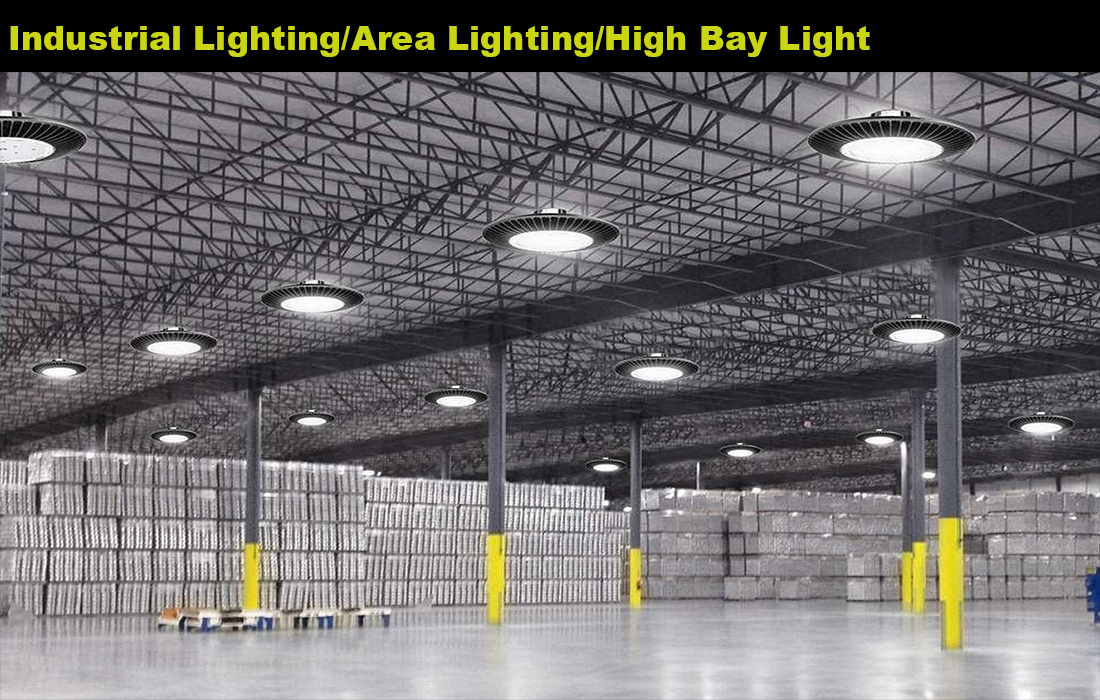

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting
1. 3x8 lens high power design 100W 24LEDs 90° beam for High Bay lighting
2. Its compatibility with a range of LED types, including 2835, 3030, and 5050, catering to diverse budget requirements of different customers,providing customers with greater flexibility and options.
3. With IP66 excellent waterproof and dustproof rating,making the lens suitable for various outdoor lighting applications, and challenging environmental conditions.

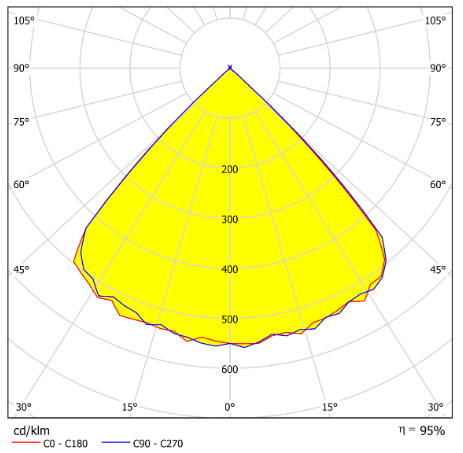

Distribution
Specifications
| Model: | ALHB173D24LED90G |
| Diameter: | 173x71.4mm |
| Height: | 9.3mm |
| Angle: | 90° |
| Material： | PMMA |
| Transmittance： | >90% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | Architecture lighting,High Bay lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
It shares the same profile 173mmx71.4mm as the 2x6 lens does
The beam angle is available for street light T2M, T5, and high bay lighting 30°, 60°，90°, 120°, 30x90°
The high efficiency and powerful lumen output to meet customers’ required power
It can be compatible with different sizes and quantities of LED chips such as 2*2835/2*3030, 3*2835/3*3030, 4*2835/4*3030, and 5050LED
ASAHI OPTICS ALHB173D24LED90G 3D Drawing.stp

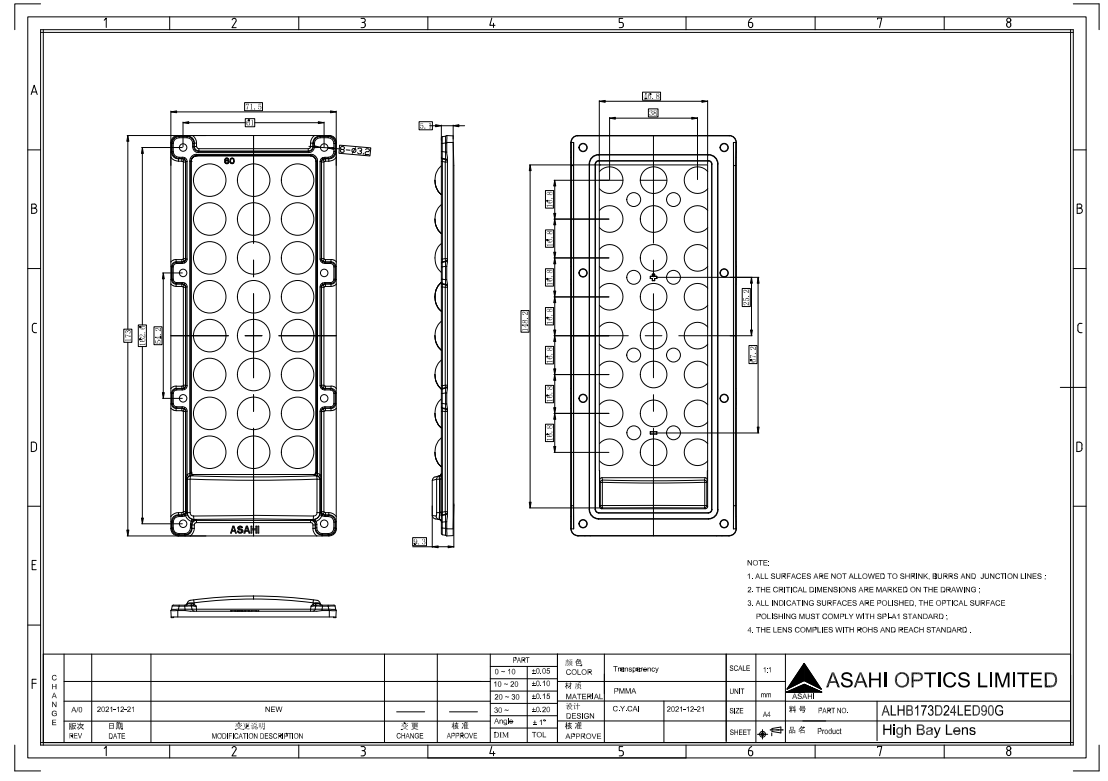

ASAHI OPTICS ALHB173D24LED90G Drawing.dwg
ASAHI OPTICS ALHB173D24LED90G Drawing.pdf
ASAHI OPTICS ALHB173D24LED PCB Drawing.dwg
ASAHI OPTICS 3X8 LENS LED BOARD.jpg
