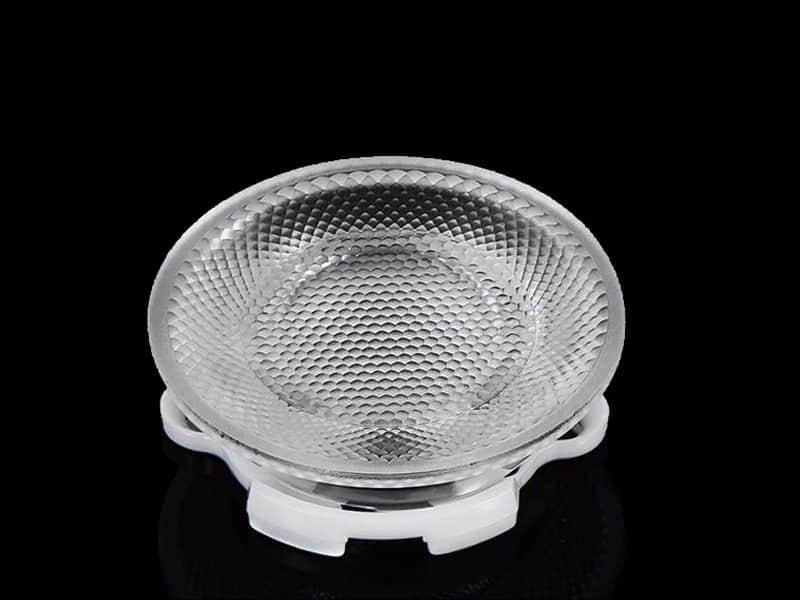

Model: AHCOB3511D
Diameter: 35mm
Height: 11mm
Angle: 24°,38°,60°
Material: PMMA
Transmittance: 93%
LED Type: COB LED

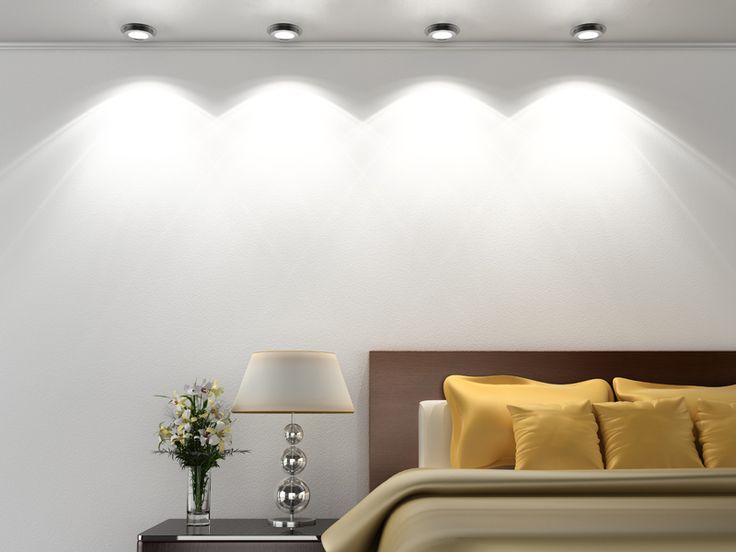

Lighting Applications: PAR lighting,Spot Light,Down Light
1, COB lenses can help create a smooth and uniform beam by reducing hotspots or uneven light distribution.
2, COB lenses provide precise control over the beam angle and light distribution of COB LEDs. They allow for customizable beam angles, ranging from narrow spots to wide floods, enabling lighting designers to achieve the desired lighting effects and coverage for specific applications.
3, COB lenses are incorporated into various indoor and outdoor lighting fixtures, including downlights, spotlights, floodlights, and wall washers. These lenses help shape the light emitted by the COB LEDs, ensuring efficient light distribution and achieving desired lighting effects for different applications.

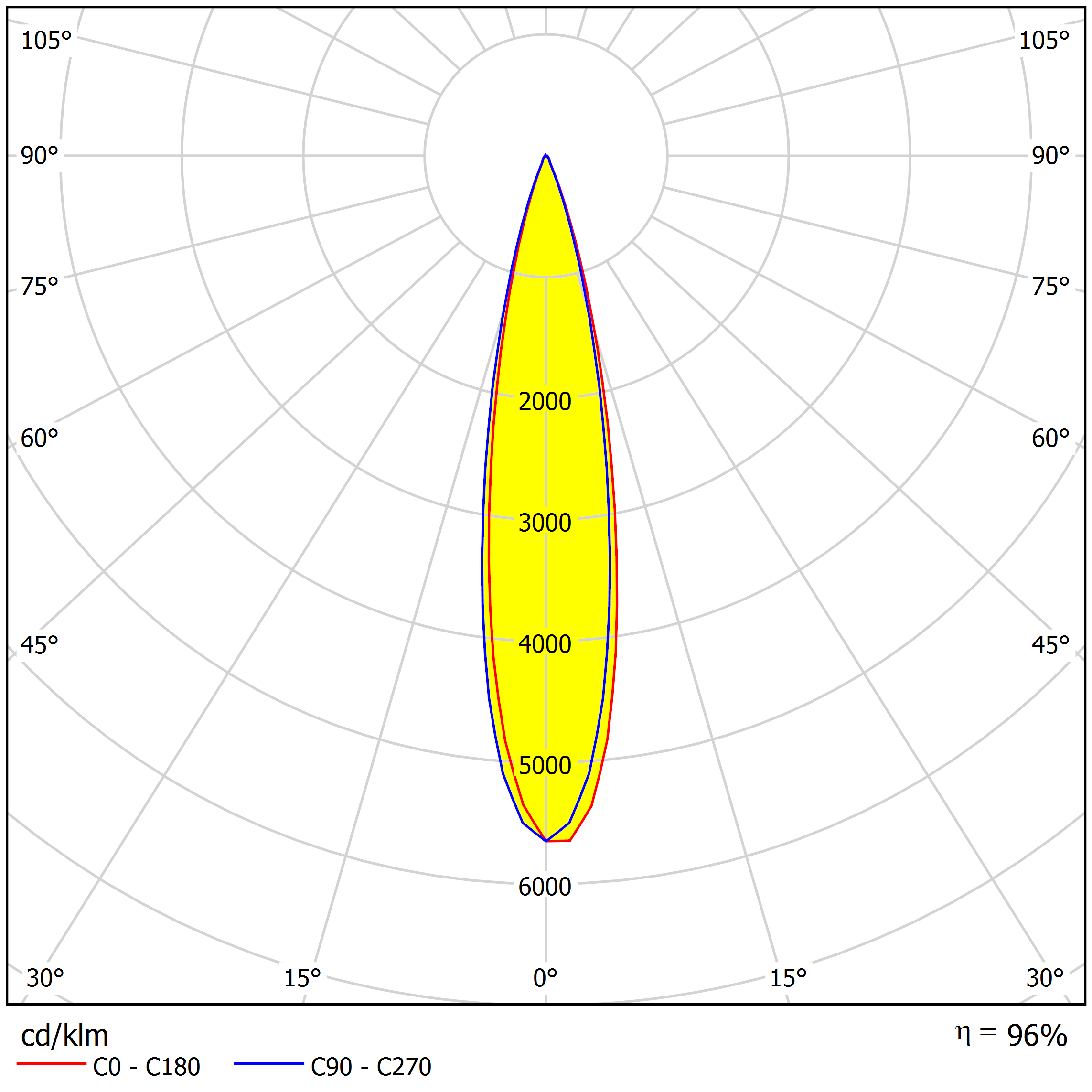

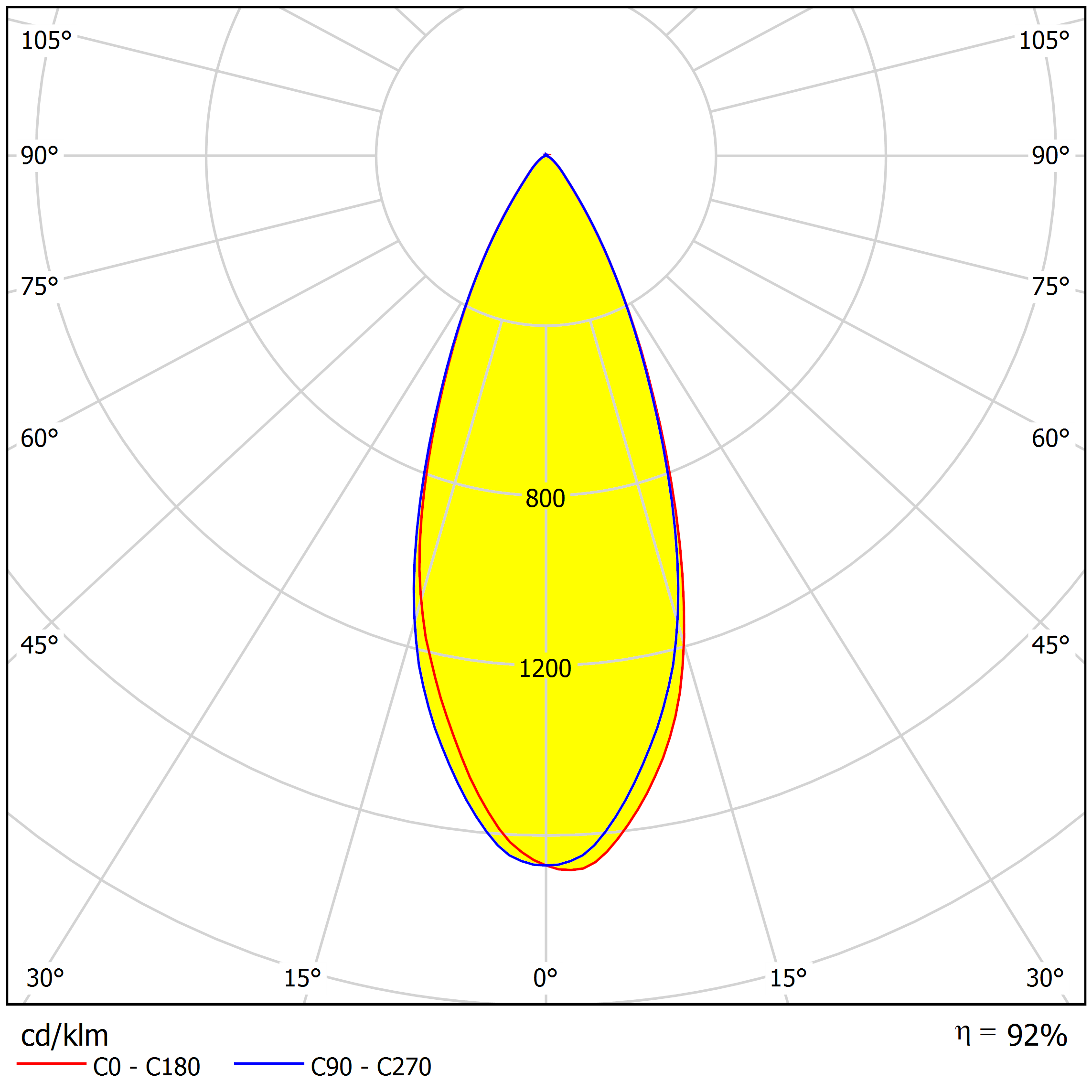

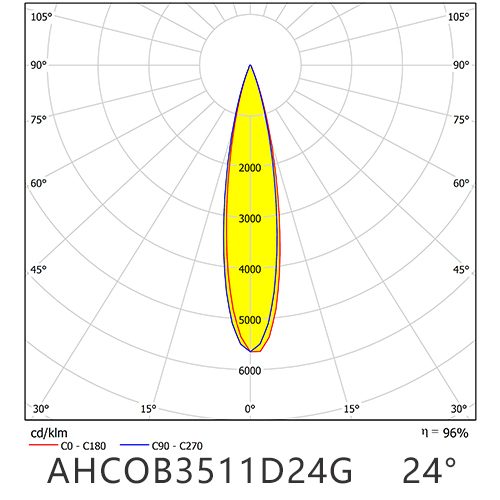

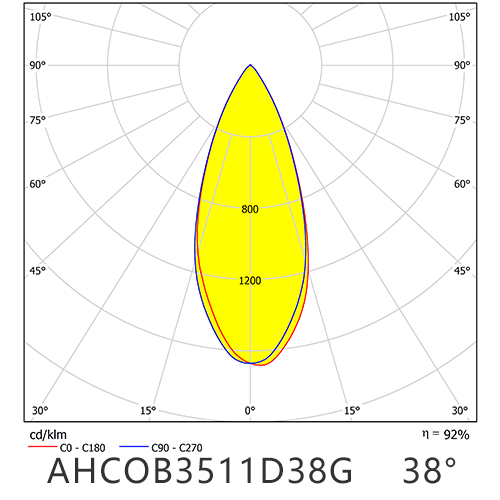

Distribution
Specifications
| Model: | AHCOB3511D24G |
| Diameter: | 35mm |
| Height: | 11mm |
| Angle: | 24°,38°,60° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | COB LES |
| Lighting applications | PAR lighting, Spot Light, Down Light |
LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
