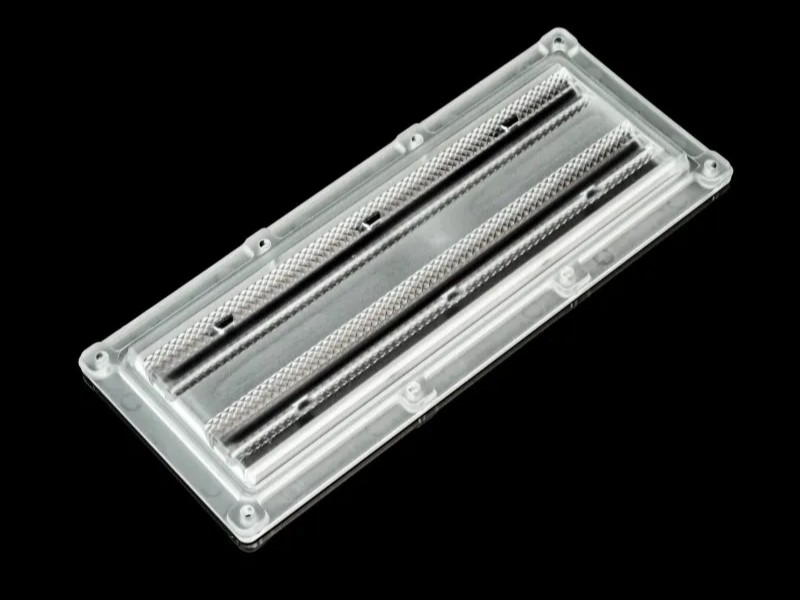

Model: ALHB173DXXLEDDA25G
Diameter: 173x71.4mm
Height: 10.38mm
Angle: DA25°
Material: PC-1250Z
Transmittance: >90%
LED Type: 2835/ 3030/ 5050LED
Lighting Applications: high bay lighting
1. NEW ARRIVAL-173mm Mx Family Double Asymmetric 25degree Linear Lighting Lens Compatible with 2x6 ZHAGA Standard
2. 173mm MX series can simultaneously adapt to different types of LEDs, including 5050, 2835, and 3030 LEDs. This capability caters to diverse budget and performance requirements, providing greater flexibility and choice.

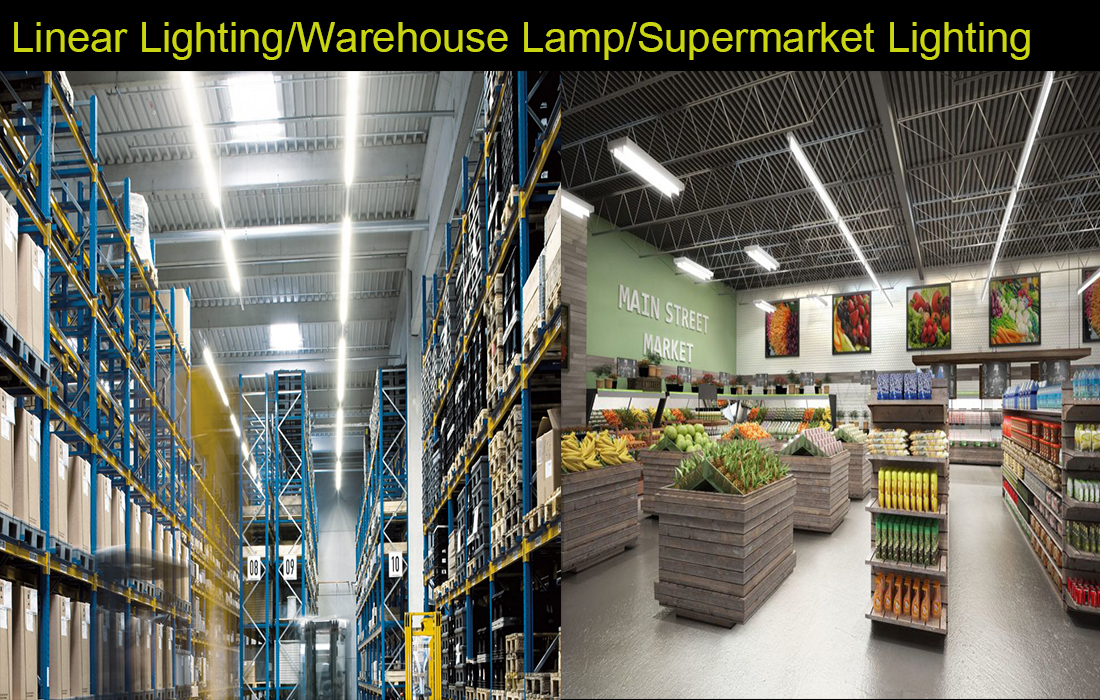

3. Due to its adaptability to various scenarios, the double asymmetric beam provides excellent performance in different lighting applications. Such as sports stadium lighting,linear lighting,architecture lighting etc.

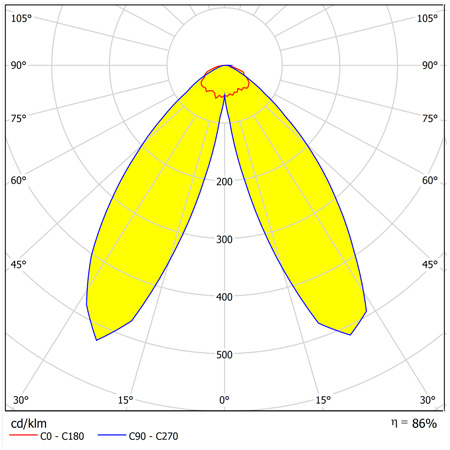

Distribution
Specifications
| Model: | ALHB173DXXLEDDA25G |
| Diameter: | 173x71.4mm |
| Height: | 10.38mm |
| Angle: | Double Asymmetric 25° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | high bay lighting,linear lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
This lens' family are flexible for customers to place LEDs freely to meet different requirements.

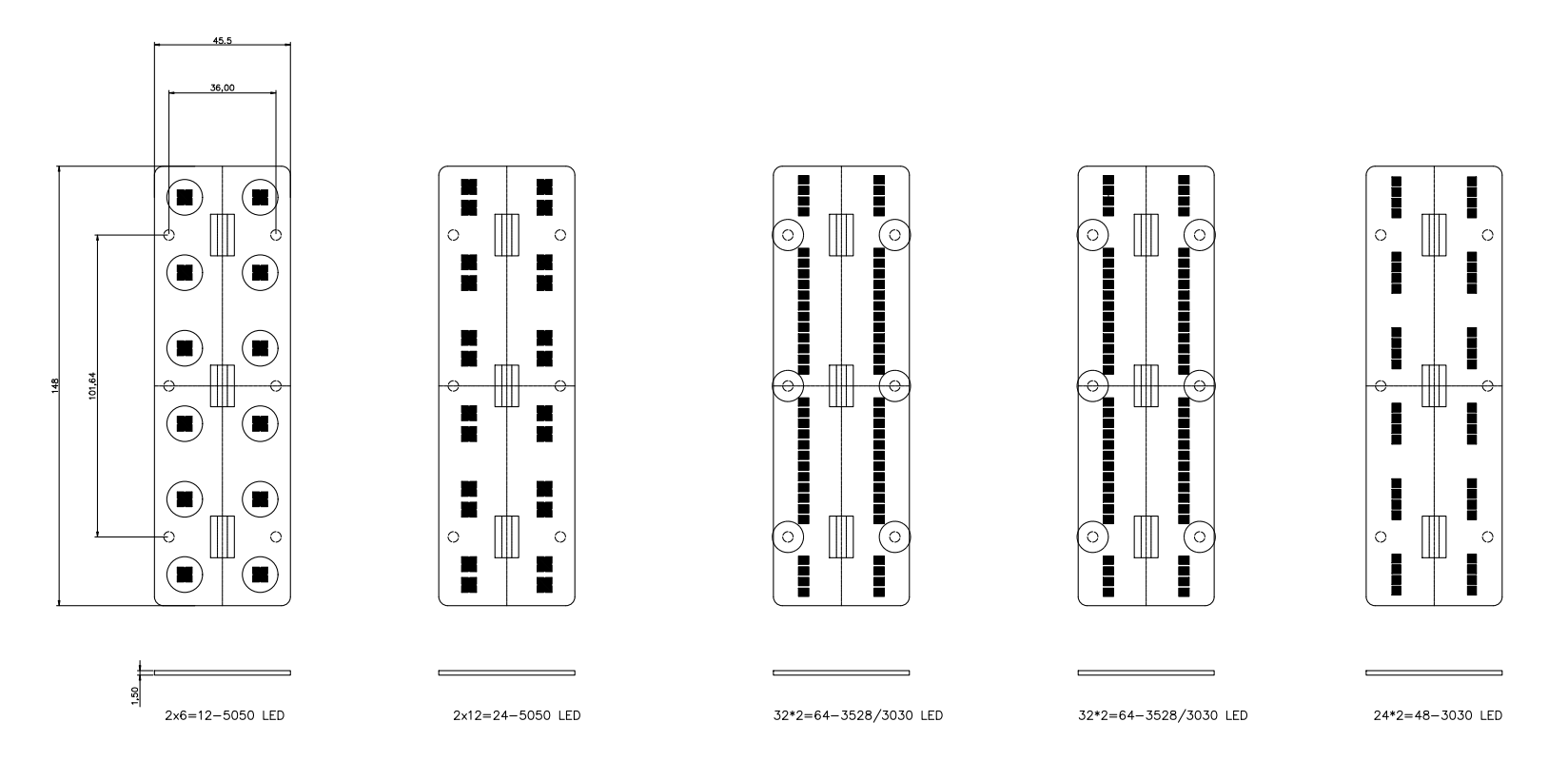

ASAHI Optics ALHB173DXXLEDDA25G 3D Drawing.stp
ASAHI Optics ALHB173DXXLEDDA25G Drawing.dwg
ASAHI Optics ALHB173DXXLEDDA25G Drawing.pdf
ASAHI Optics ALHB173DXXLEDDA25G PCB Drawing.dwg
