Model: AJST275D35LEDT3
Diameter: 275mm
Height: 8.0mm
Angle: T3M
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street Lighting
1.35-in-1 module lens with T3 medium distribution, suitable for medium width roadway lighting
2.Compatible with 4X2835,4X3030,5050LED., which can make the application more flexible, but also according to the market situation to choose the most cost-effective LEDs to reduce costs

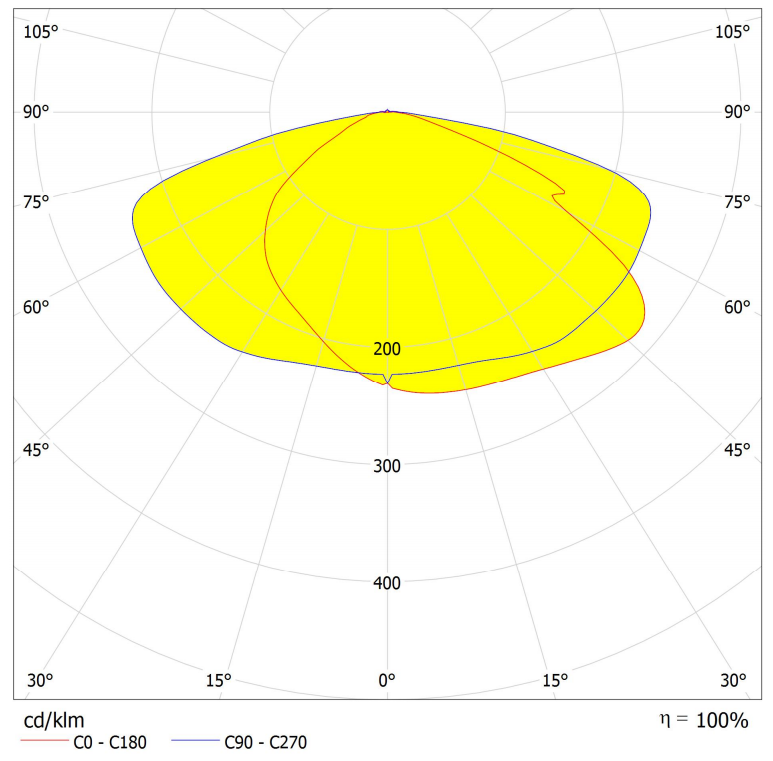

Distribution
Specifications
| Model: | AJST275D35LEDT3 |
| Diameter: | 275mm |
| Height: | 8.0mm |
| Angle: | T3M |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 5050LED |
| Lighting applications | Street Lighting |

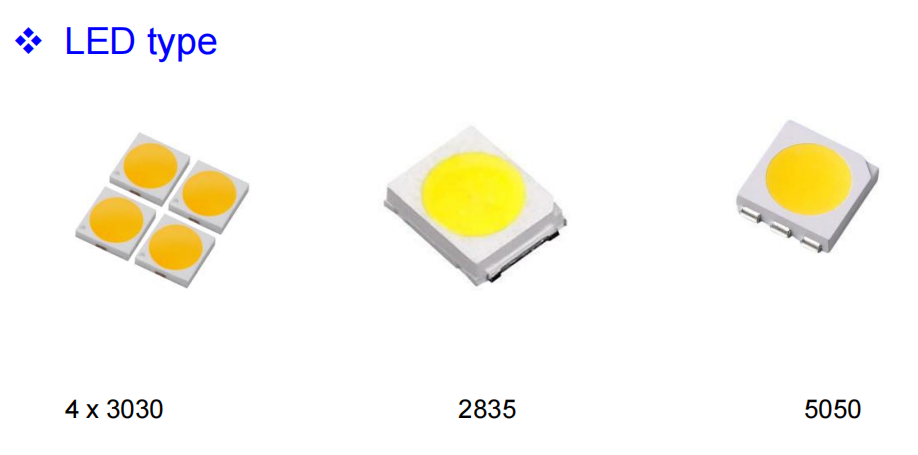

LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

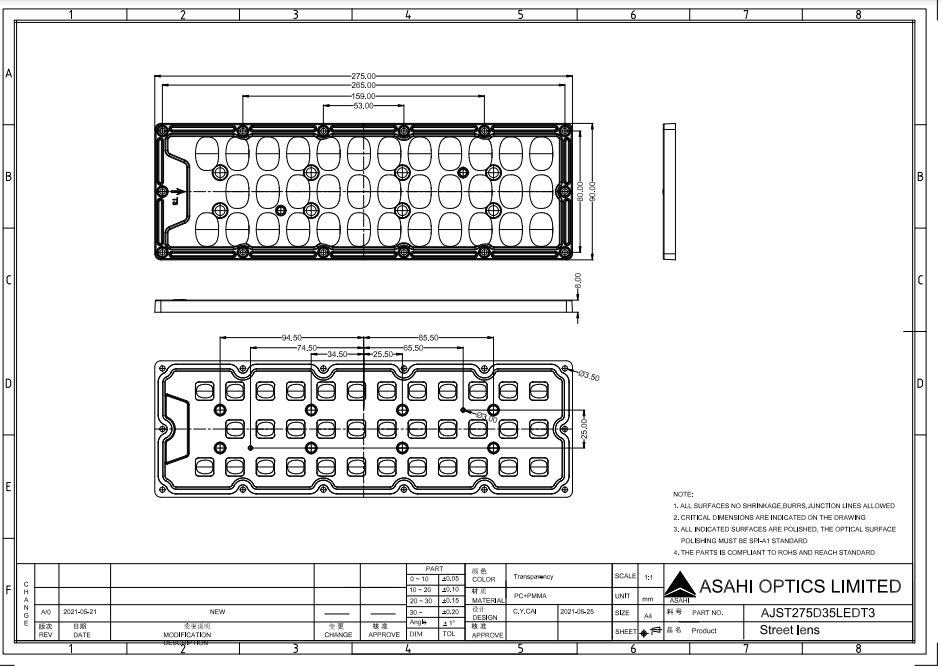

Asahi AJST275D35LEDT3 Drawing.dwg
Asahi AJST275D35LEDT3 Drawing.pdf
Asahi AJST275D35LED-PCB Drawing.dwg
Asahi AJST275D35LED-PCB Drawing.pdf
