Model: AR4420A

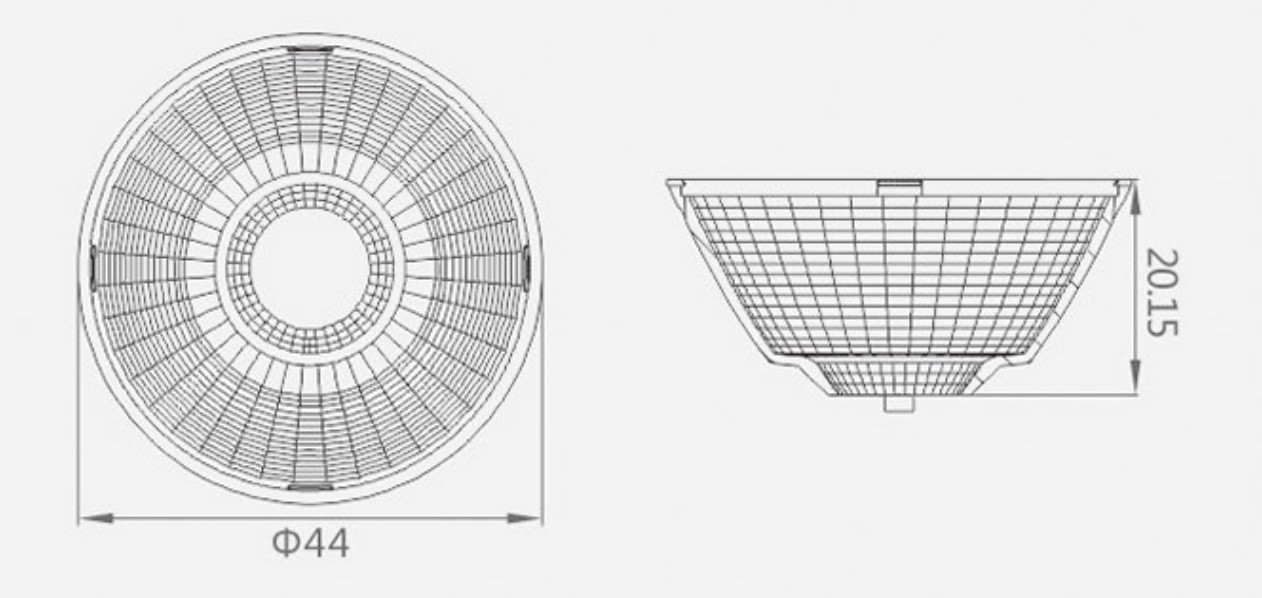

Diameter: 44mm, 11.5mm
Height: 20.15mm
Angle: 15°, 25°, 38°,60°
Material: PC + Aluminum Coating
Transmittance: >90%
LED Type: COB LED

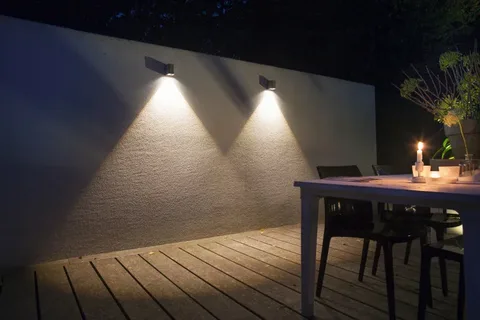

Lighting Applications: Track light, Down light

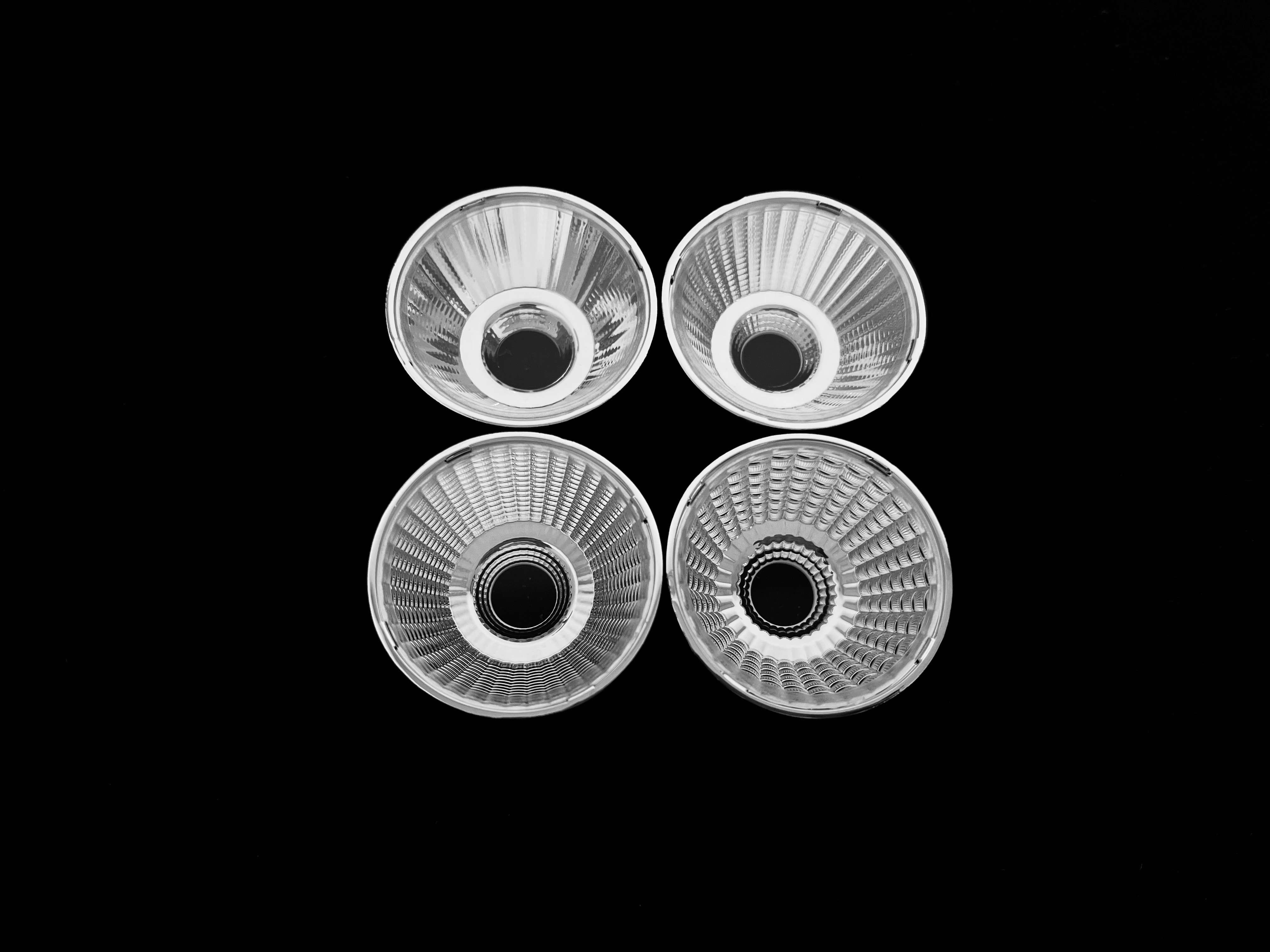

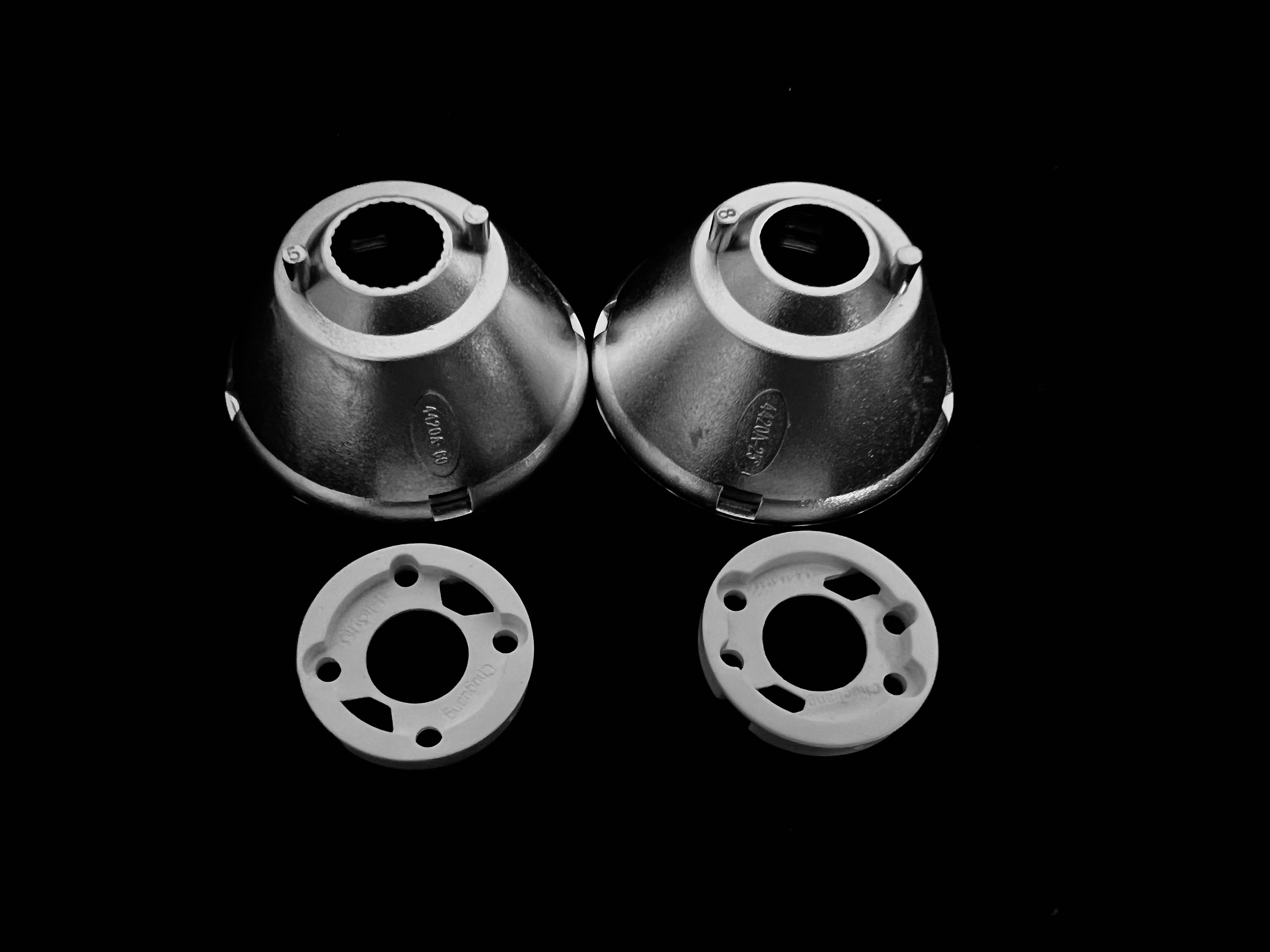

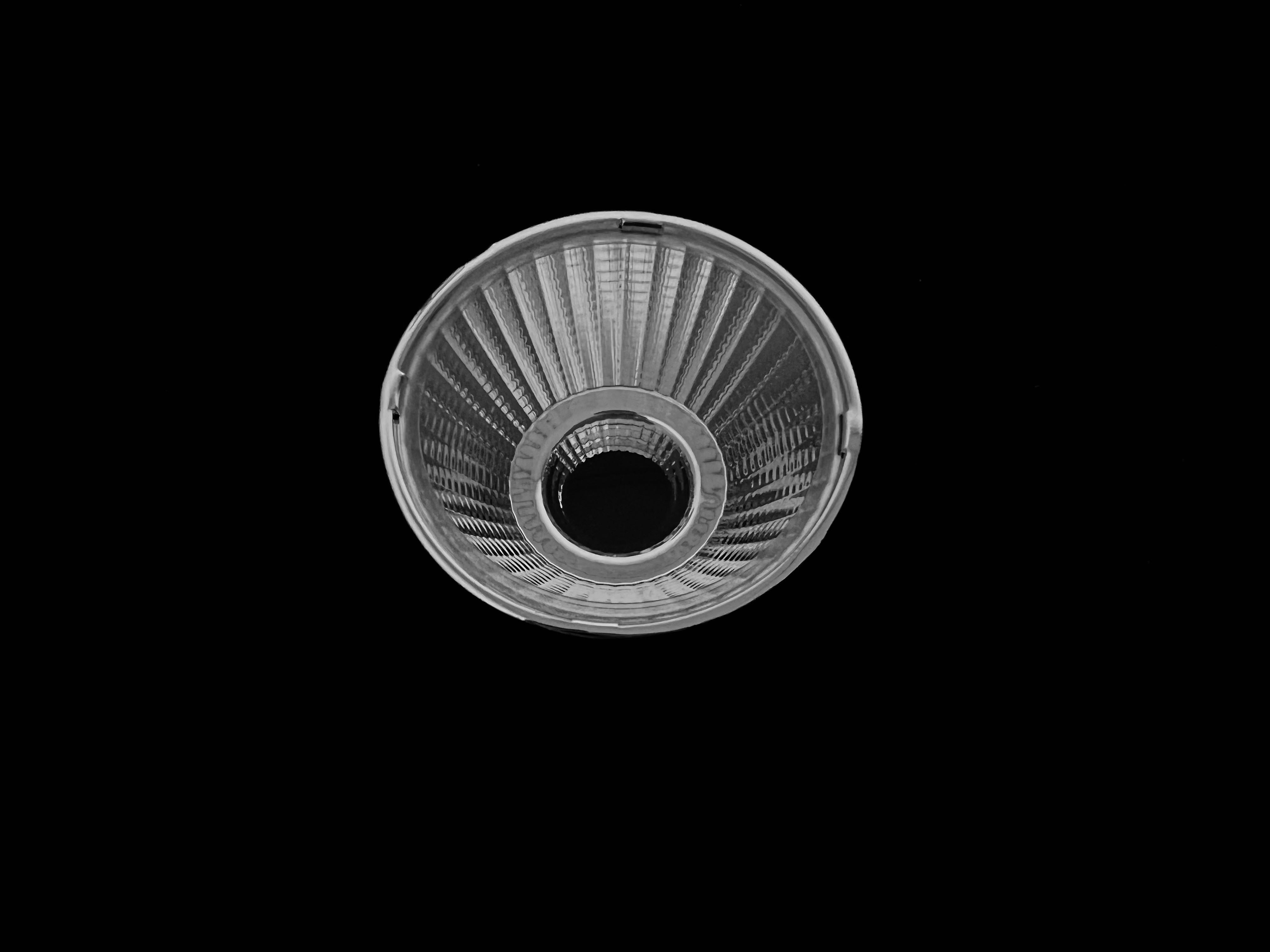

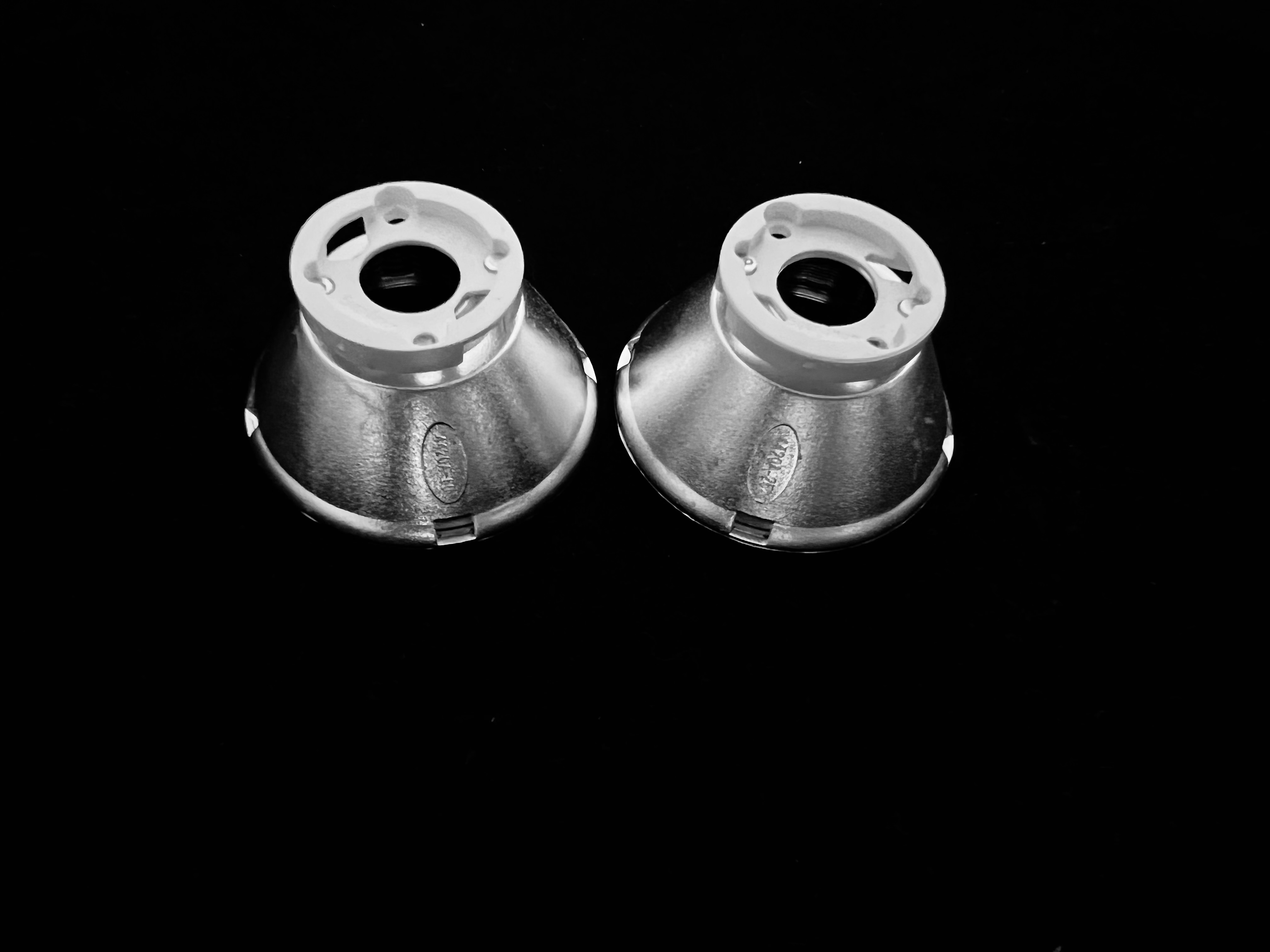

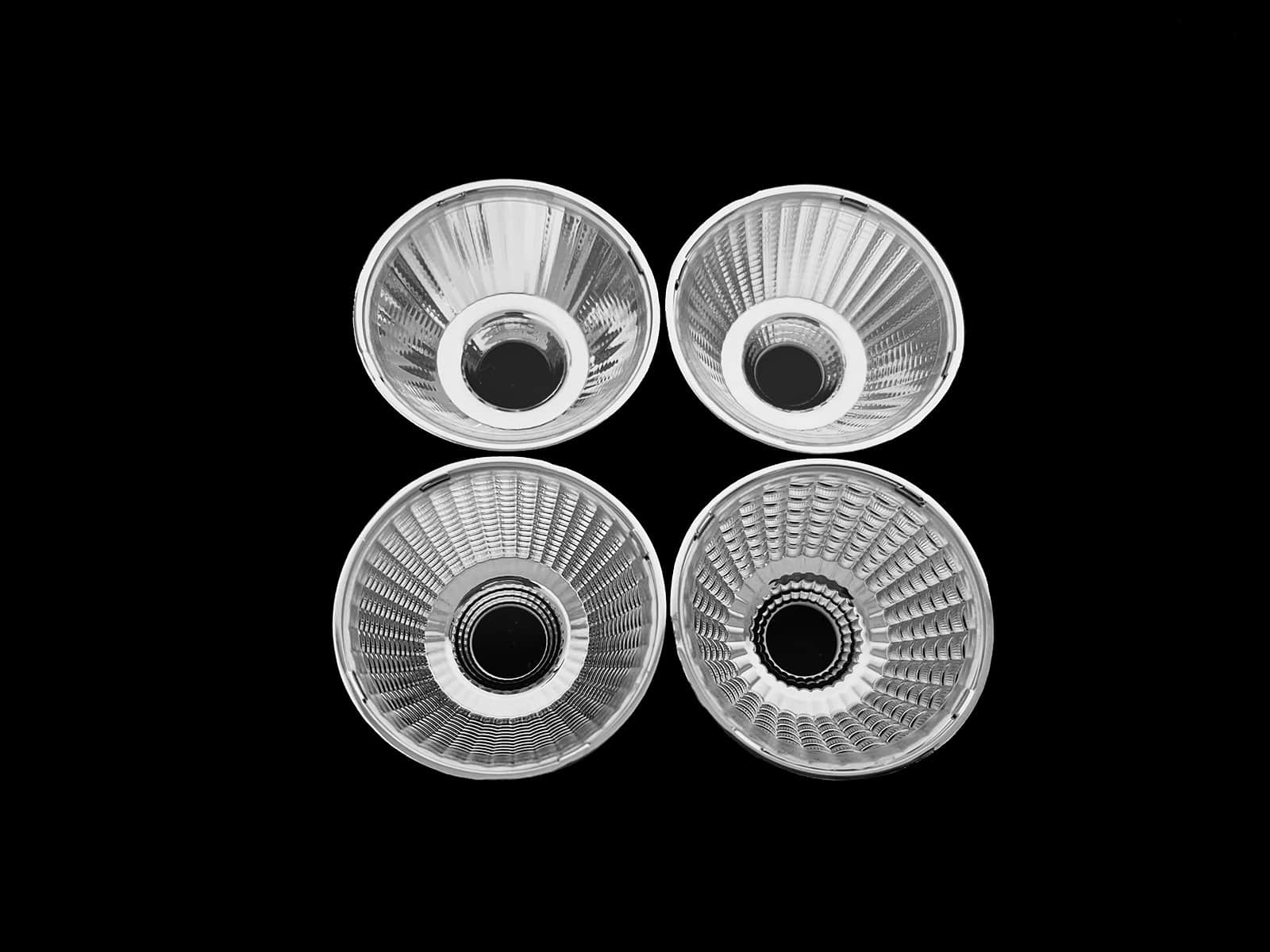

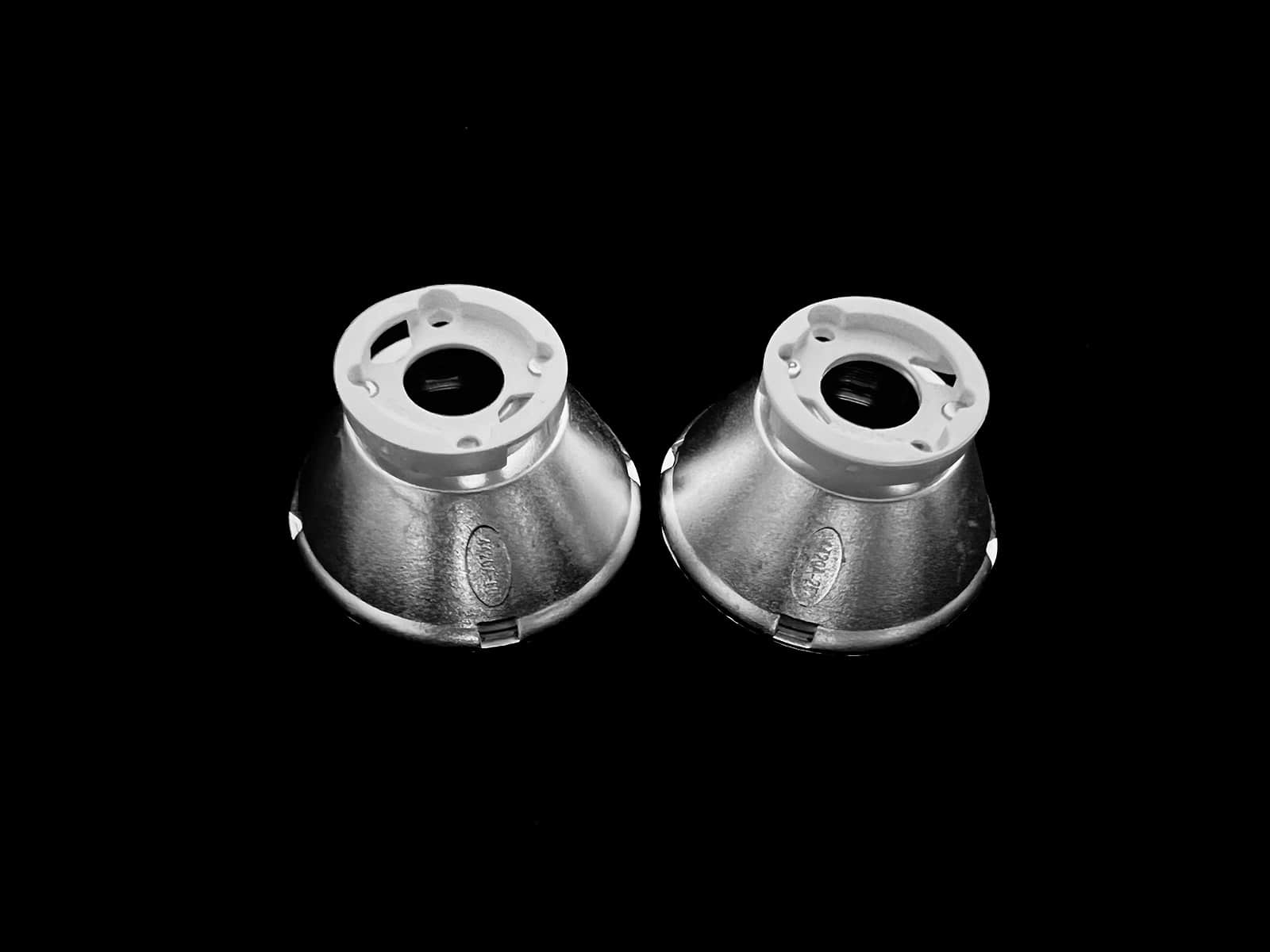

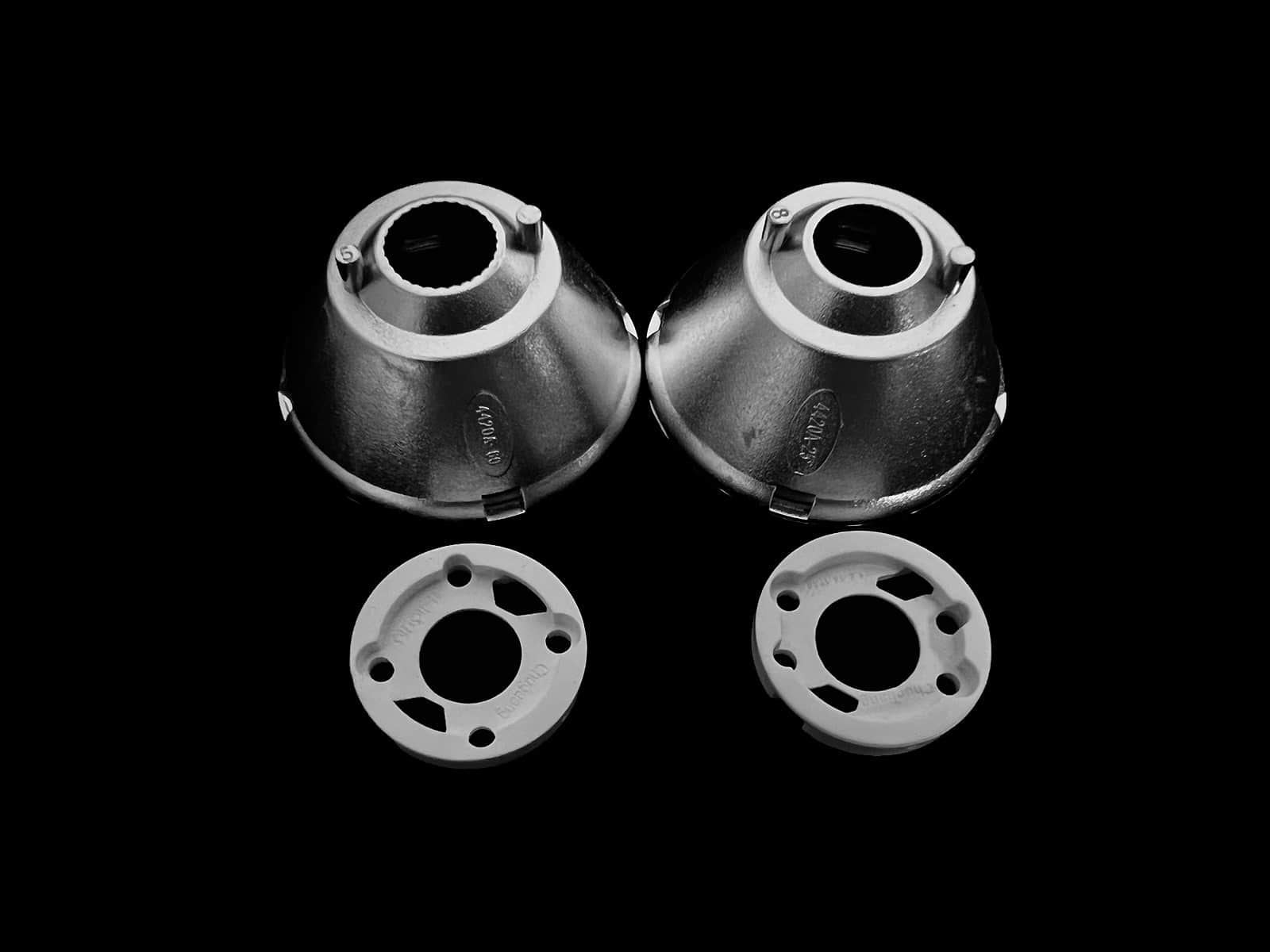

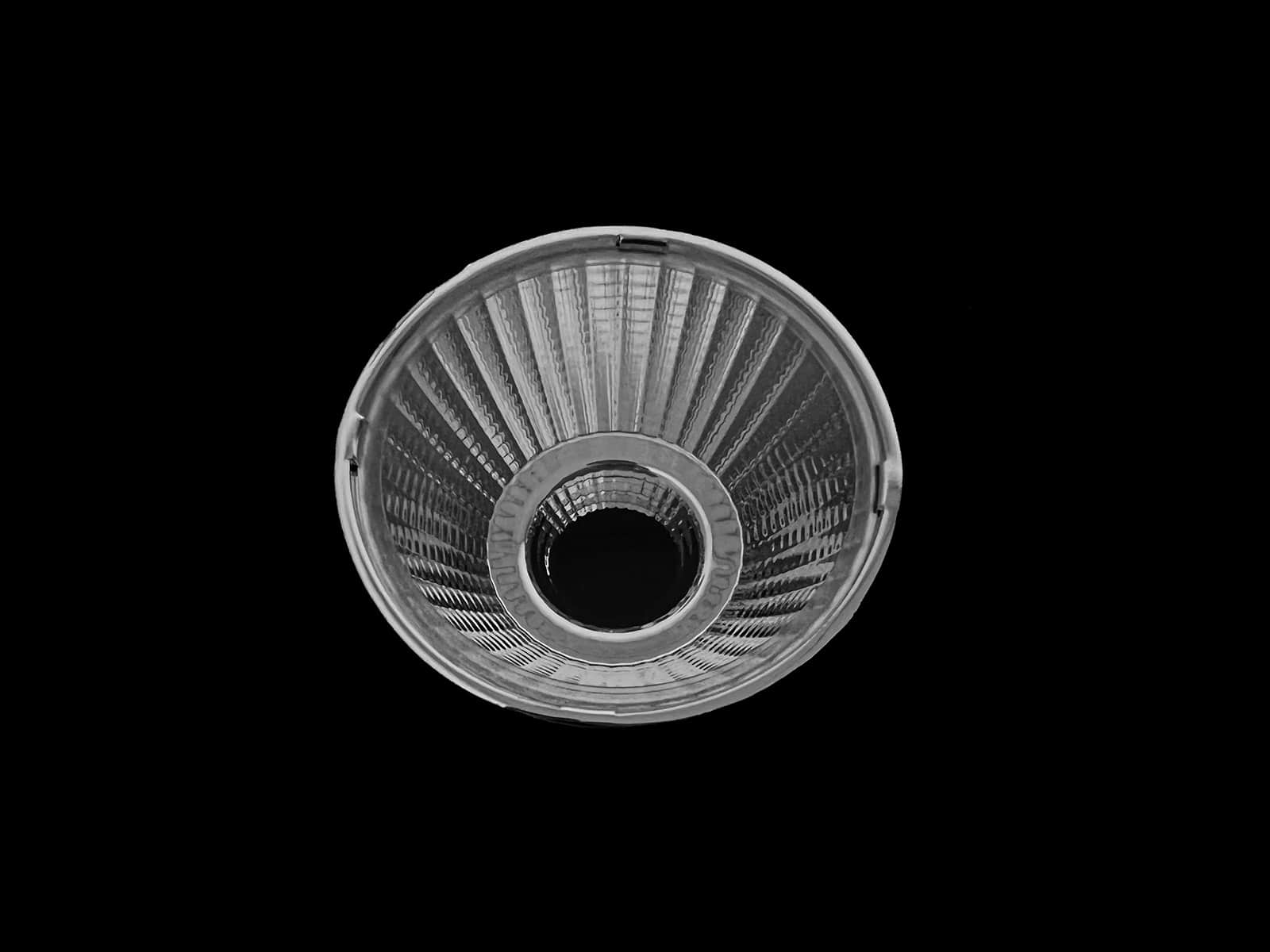

1, COB LED Reflector φ44mm 15°, 25°, 38°, 60° with holder
2, COB LED reflectors are used in industrial settings, such as warehouses, factories, and workshops, where high-intensity lighting is required. The reflector technology allows for efficient light distribution, ensuring adequate illumination of the workspace and improving safety and productivity.
3, COB LED reflectors come in various shapes and sizes to accommodate different lighting needs. They can be integrated into the design of a lighting fixture or used as separate accessories that can be attached to COB LED modules.

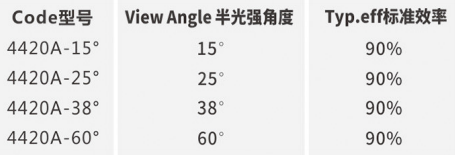

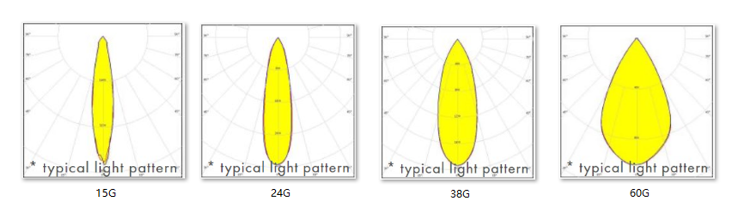

Distribution
Specifications
| Model: | AR4420A |
| Diameter: | 44mm, 11.5mm |
| Height: | 20.15mm |
| Angle: | 15°, 25°, 38°,60° |
| Material： | PC + Aluminum Coating |
| Transmittance： | >88% |
| LED Applications | COB LED |
| Lighting applications | Track light, Down light,Industrial lighting |

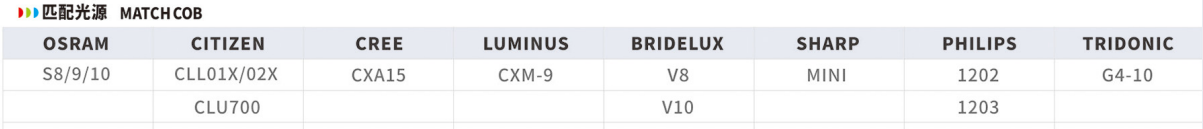

LED Type
CXA1304/1512
CCL010/020
LHC1-1202/3
036A
066A
CXM6/7
VERO13/10
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
