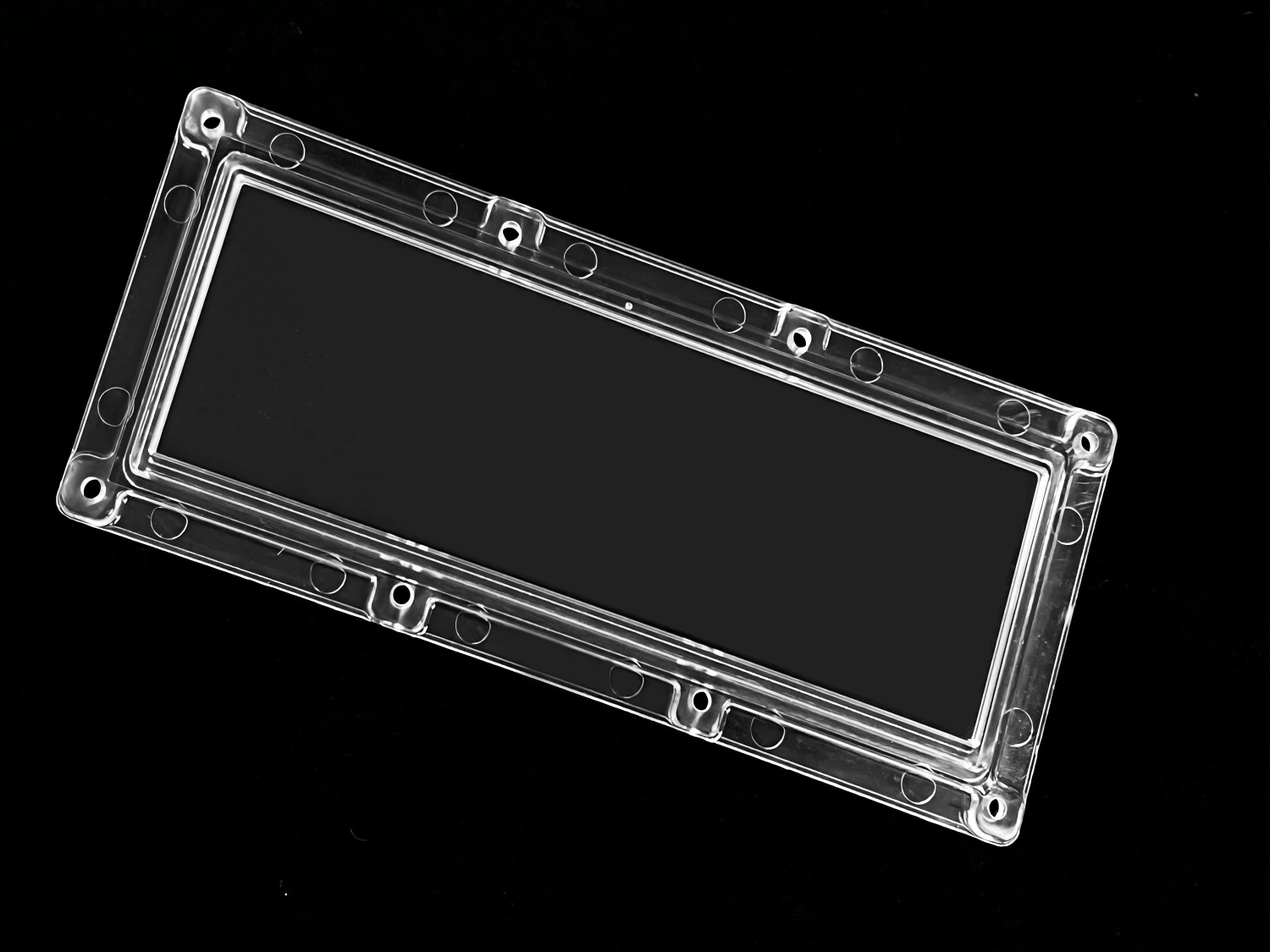

Model: ALHB173DXXLED120G
Diameter: 173mm
Height: 11.09mm
Angle: 120°
Material: PC
Transmittance: >90%
LED Type: 2835/ 3030/ 5050LED

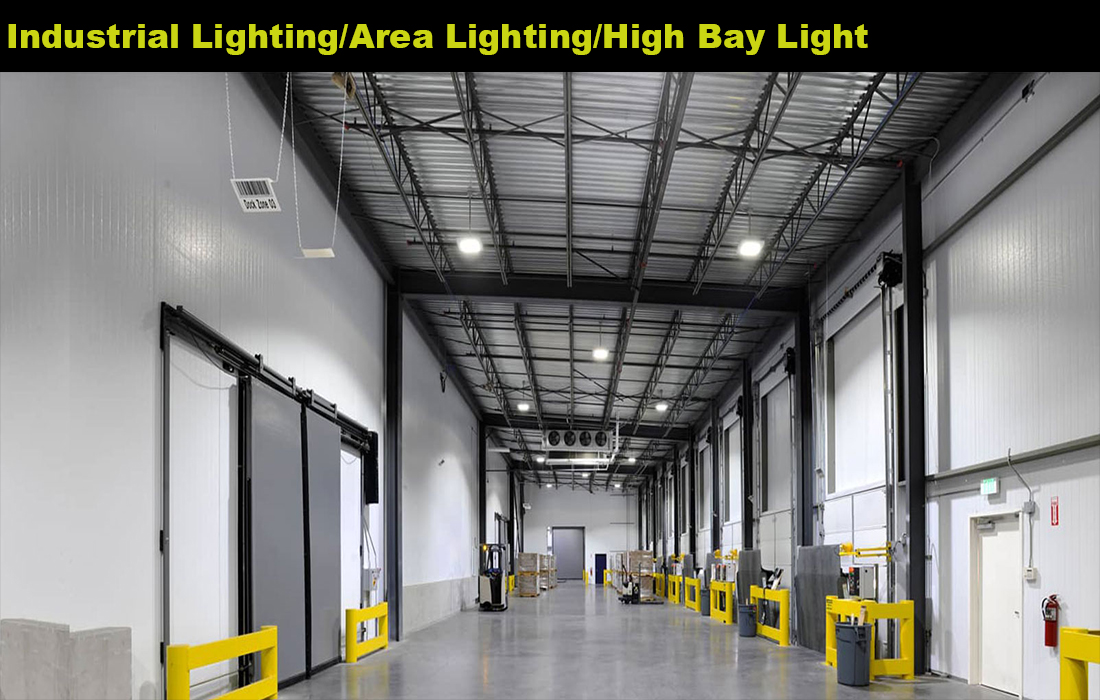

Lighting Applications: High Bay lighting

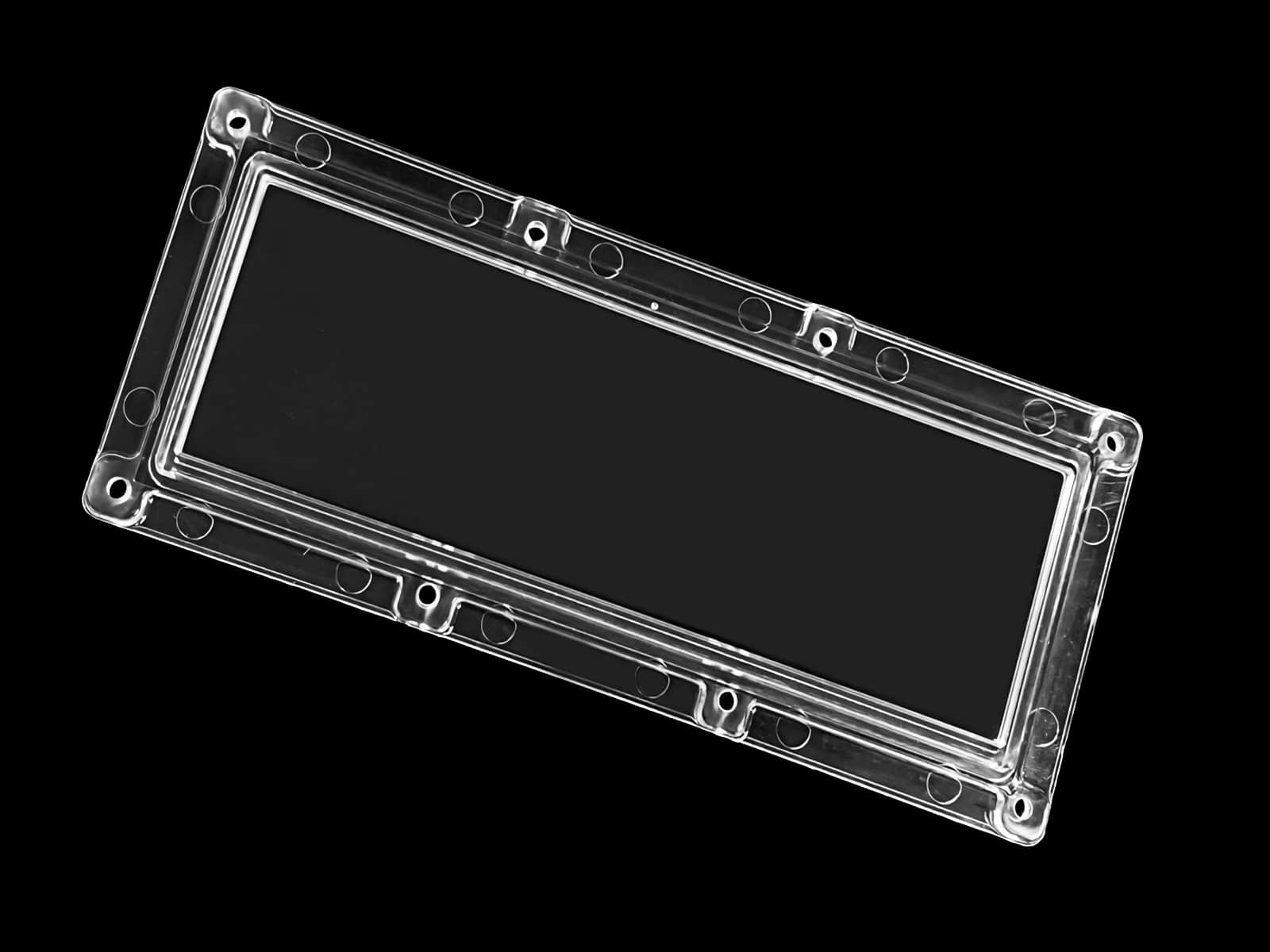

1. 3x8 LED Lens 120° features a compact design with three rows of eight optical surface.
2. IP66 rated for dust and water resistance, making it suitable for use in indoor and outdoor environments.
3. This lens is designed to emit light at a 120° beam angle, which means it covers a relatively wide area. It disperses the light evenly, providing uniform illumination over a broad space. The lens helps distribute the light emitted from the LEDs efficiently and prevents any unwanted light spillage or wastage.

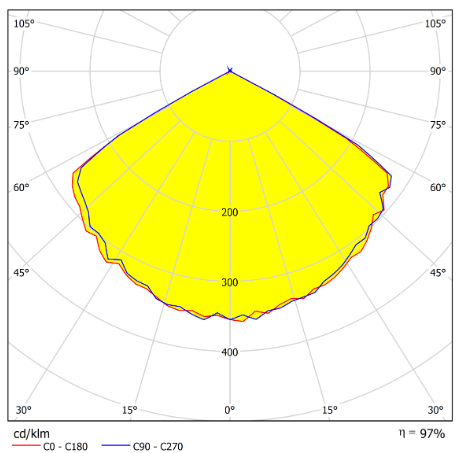

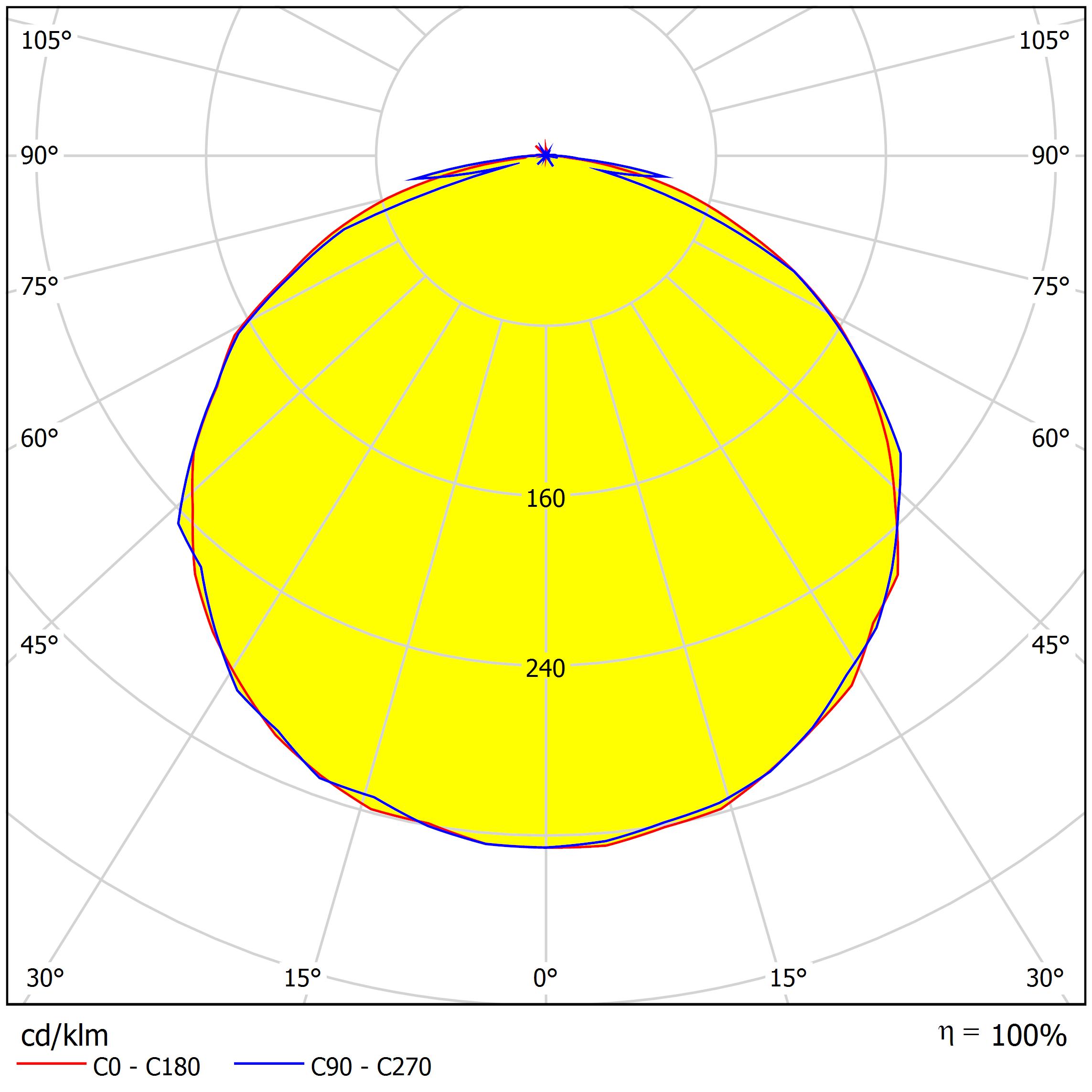

Distribution
Specifications
| Model: | ALHB173DXXLED120G |
| Diameter: | 173mm |
| Height: | 11.09mm |
| Angle: | 120° |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 2835/ 3030/ 5050LED |
| Lighting applications | High Bay Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Is flexible for customers to place LEDs freely to meet different requirements.
It shares the same profile 173mm*71.4mm as the 2x6 lens does,
which is desgined for gas stations luminaires and pole luminaires, etc.
It can be compatible with different sizes and quantities of LED chips such as 2*2835/2*3030, 3*2835/3*3030, 4*2835/4*3030, and 5050LED
ASAHI OPTICS ALHB173DXXLED120G 3D Drawing.stp

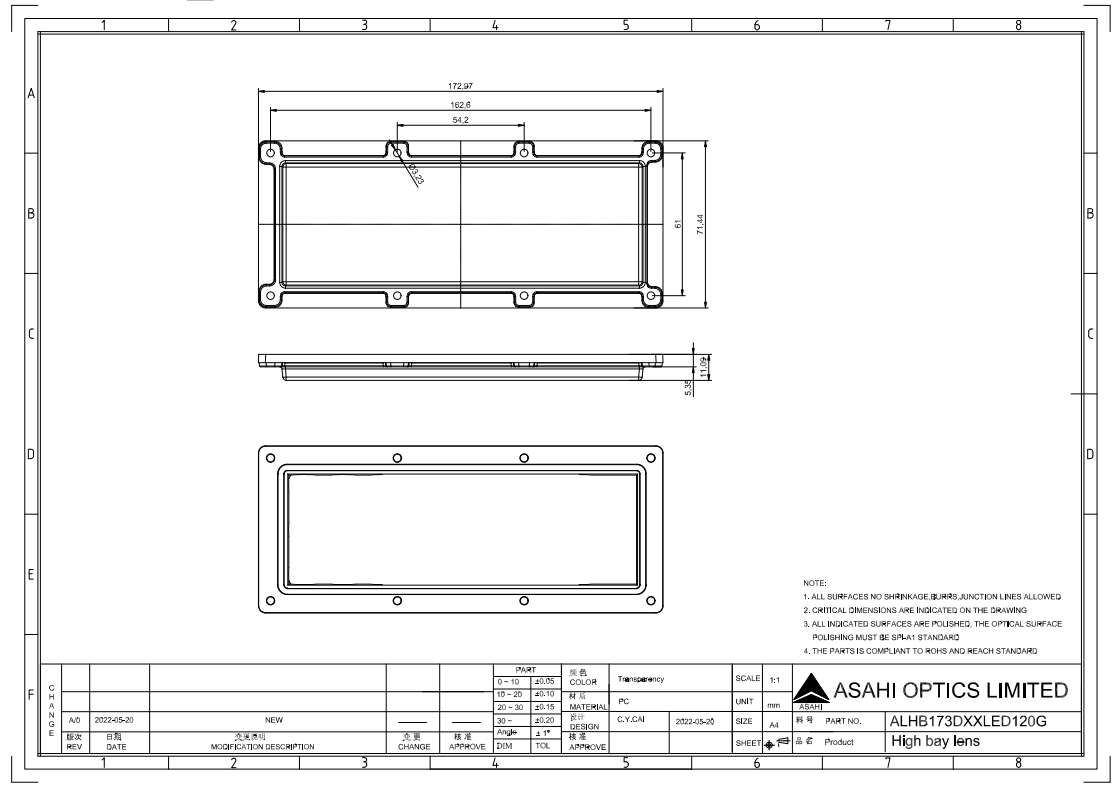

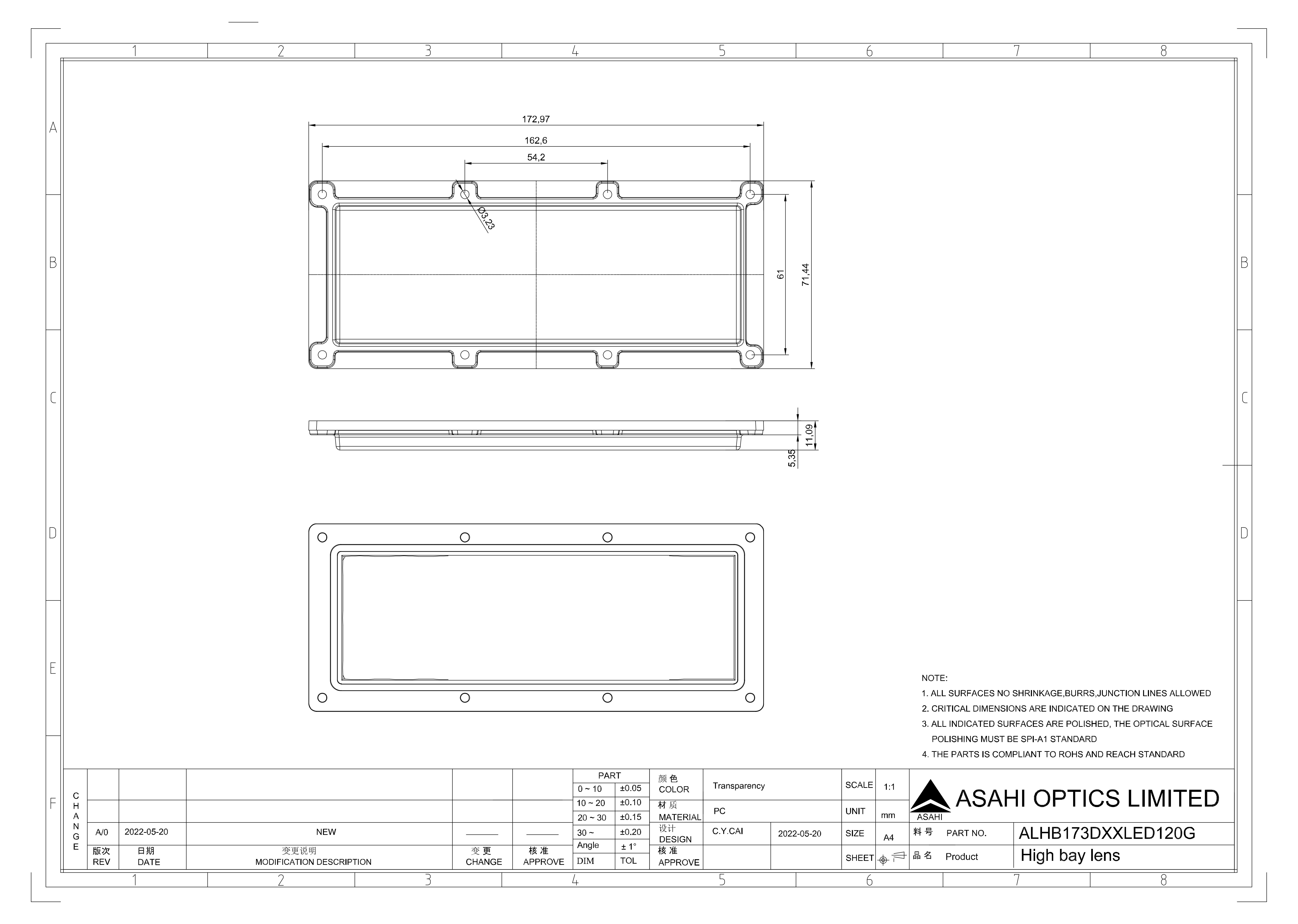

ASAHI OPTICS ALHB173DXXLED120G Drawing.dwg
ASAHI OPTICS ALHB173DXXLED120G Drawing.pdf

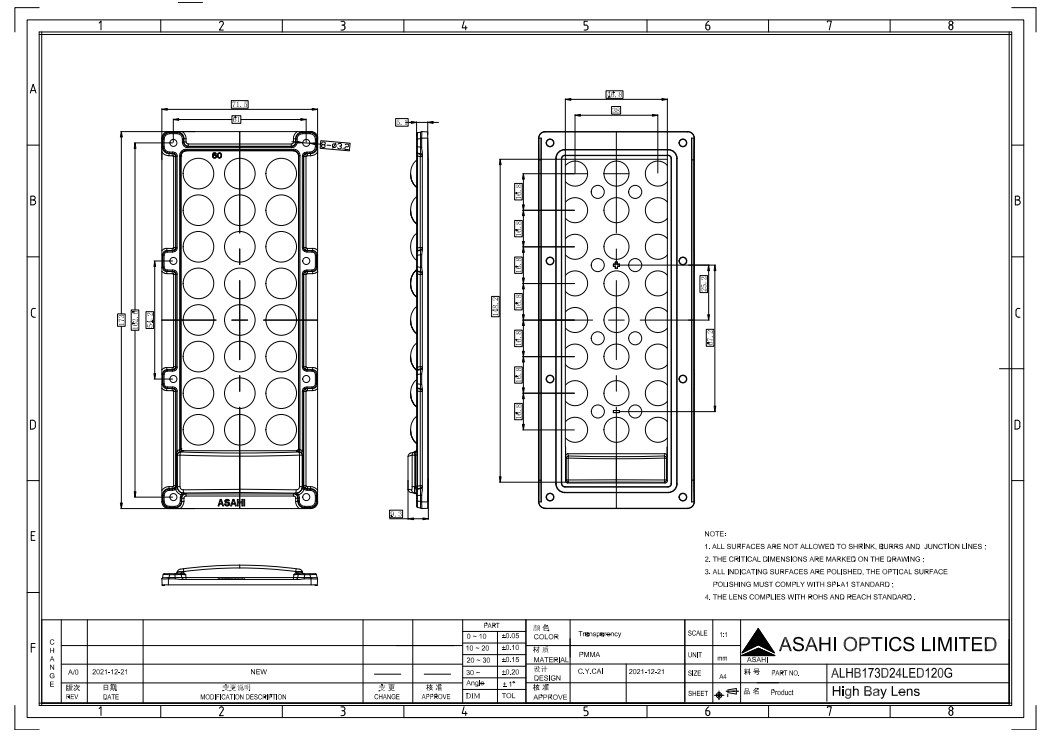

ASAHI OPTICS ALHB173D24LED PCB Drawing
ASAHI OPTICS 3X8 LENS LED BOARD.jpg
ASAHI OPTICS ALHB173DXXLED120G IES.ies
