Model: AJHB130D30LED
Diameter: 130mm
Height: 8.3mm,9.04mm
Angle: 30°,60°,90°,80x140°
Material: PC
Transmittance: >90%
LED Type: 5050LED
Lighting Applications: High Bay lighting, Street lighting

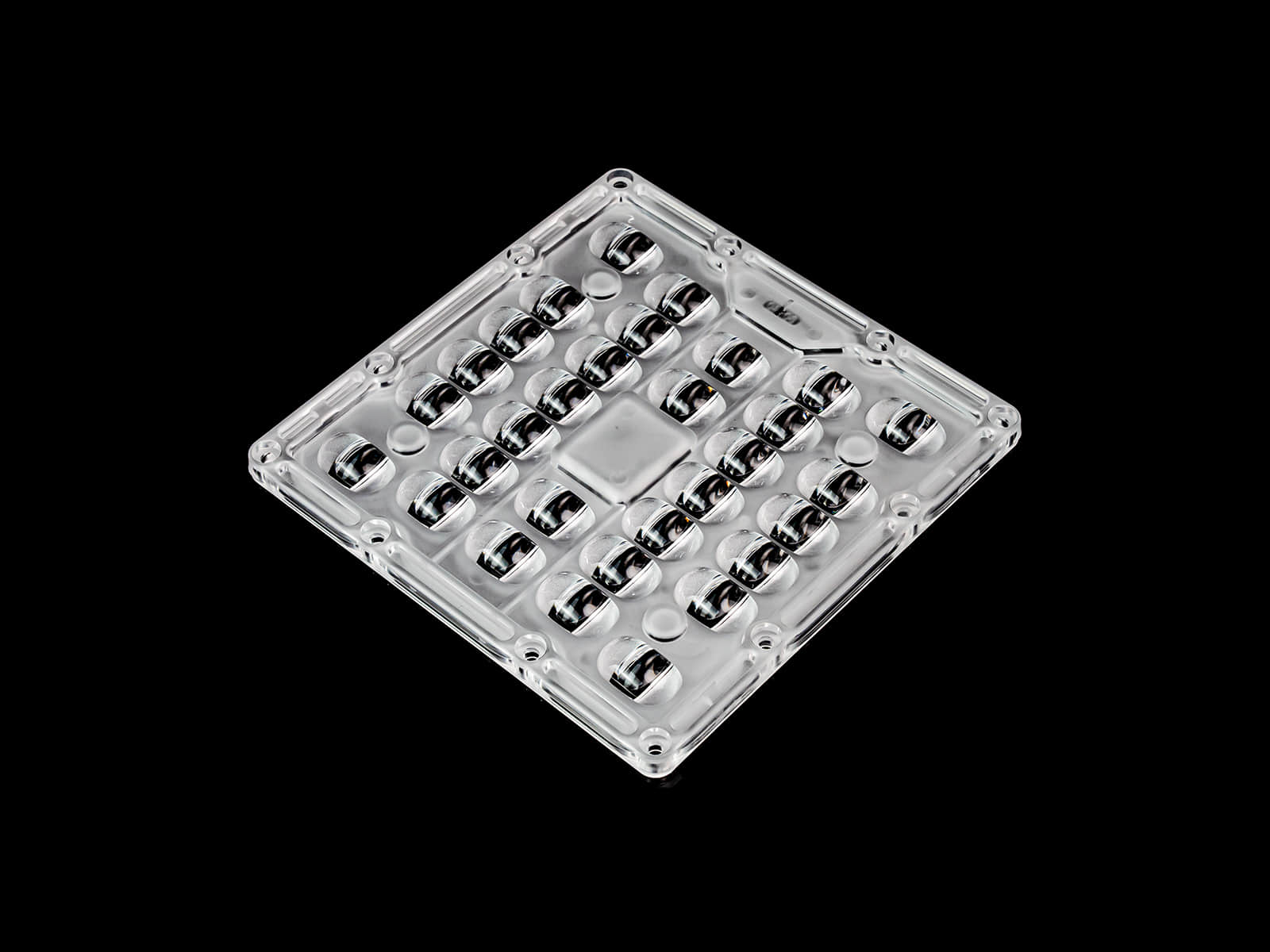

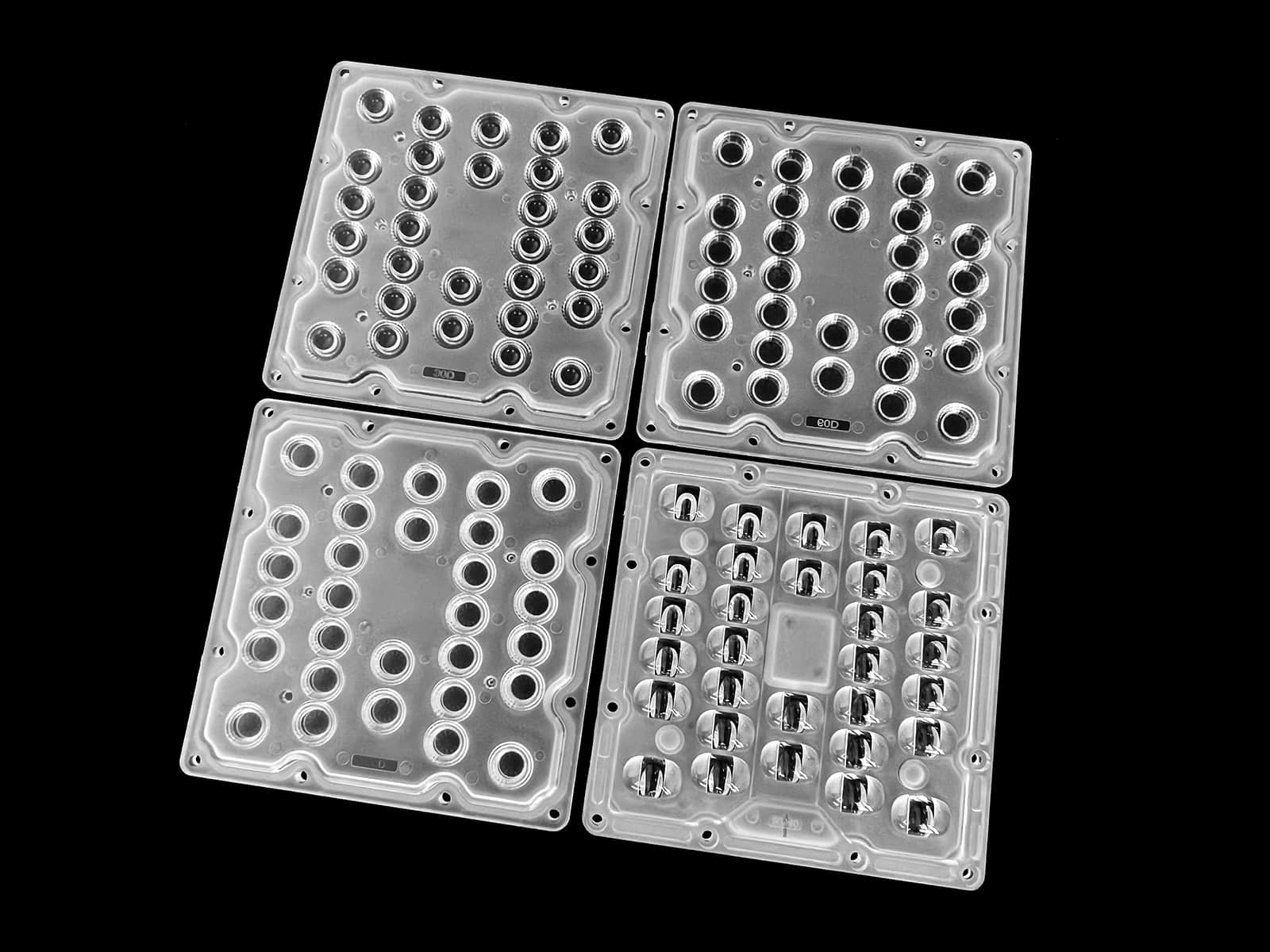

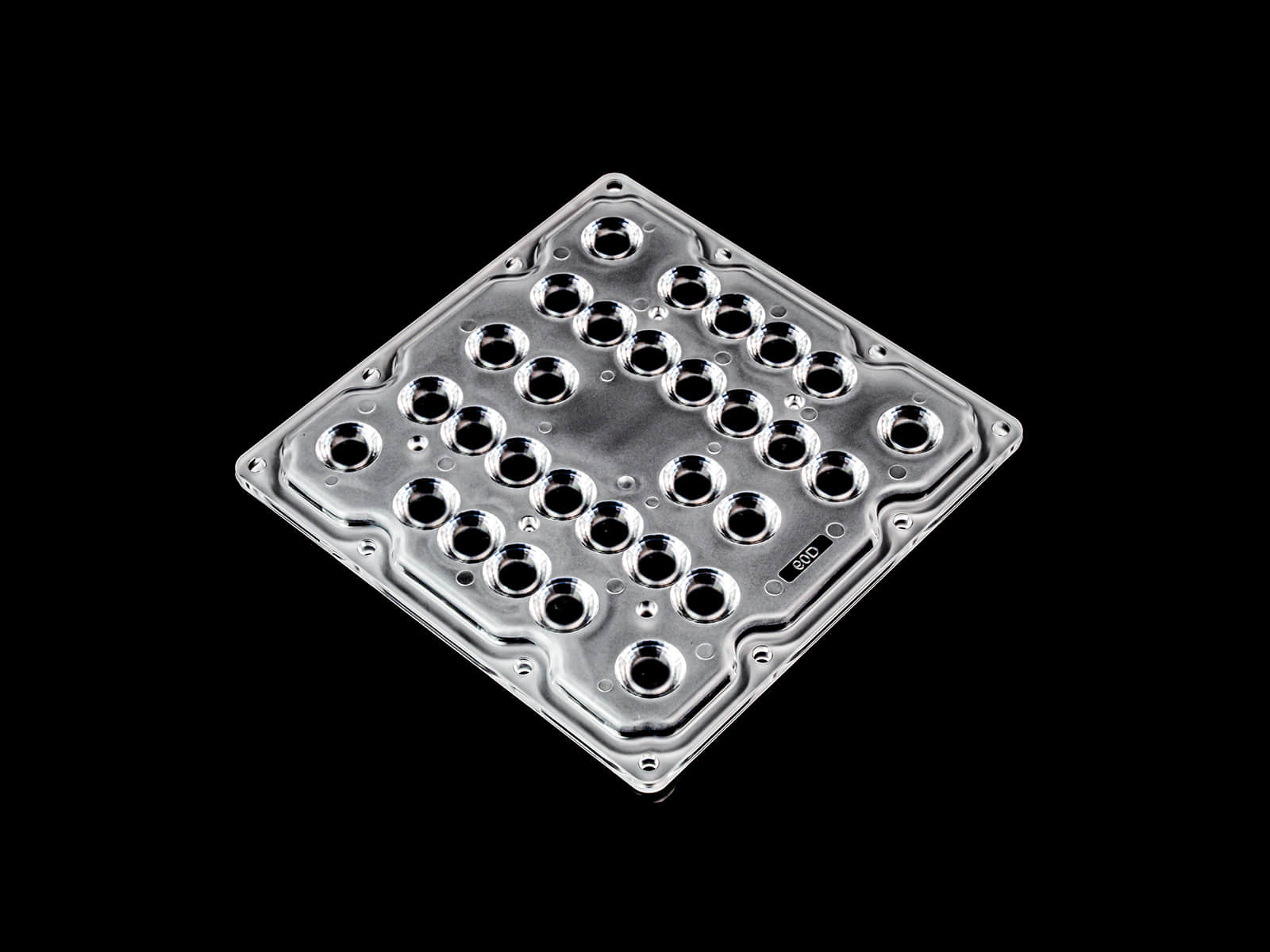

1. The 130mm 30-in-1 LED lens is a multi-functional optical accessory designed for LED lighting systems, commonly used high bay lighting, street lighting and architectural lighting.
2. With 130mm Diameter – A large lens size that ensures wide light coverage and high efficiency in beam control.

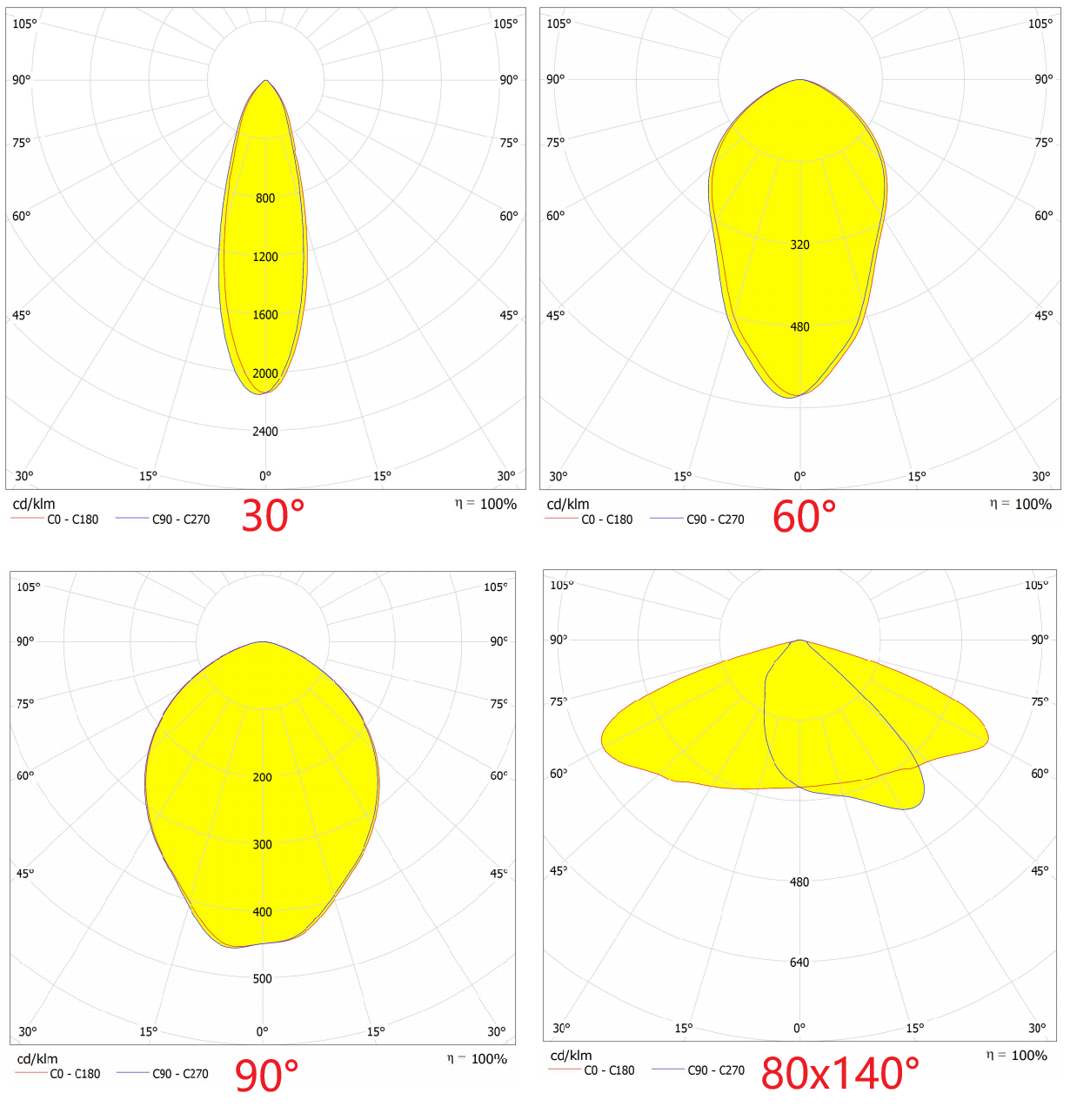

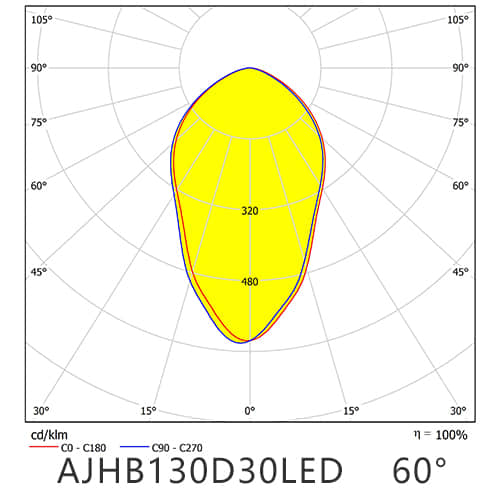

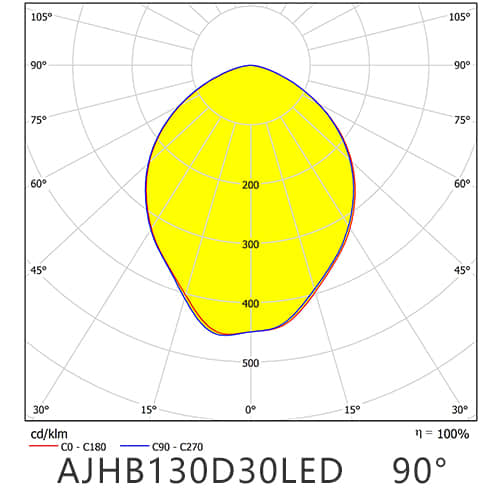

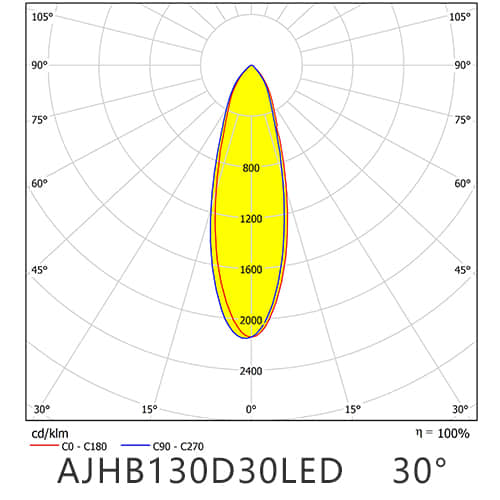

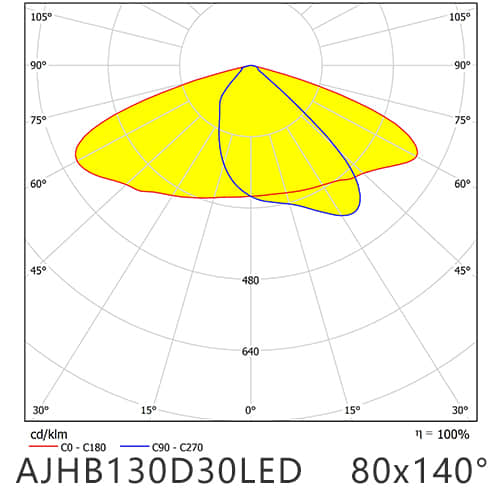

Distribution
Specifications
| Model: | AJHB130D30LED |
| Diameter: | 130mm |
| Height: | 8.3mm,9.04mm |
| Angle: | 30°,60°,90°,80x140° |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 5050LED |
| Lighting applications | High Bay lighting, Street lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 130mm 30-in-1 LED lens is a multi-functional optical accessory designed for LED lighting systems, commonly used high bay lighting, street lighting and architectural lighting.
2. With 130mm Diameter – A large lens size that ensures wide light coverage and high efficiency in beam control.
AJHB130D30LED30G 3D Drawing.stp
AJHB130D30LED60G 3D Drawing.stp
AJHB130D30LED90G 3D Drawing.stp
AJHB130D30LED80140G 3D Drawing.stp

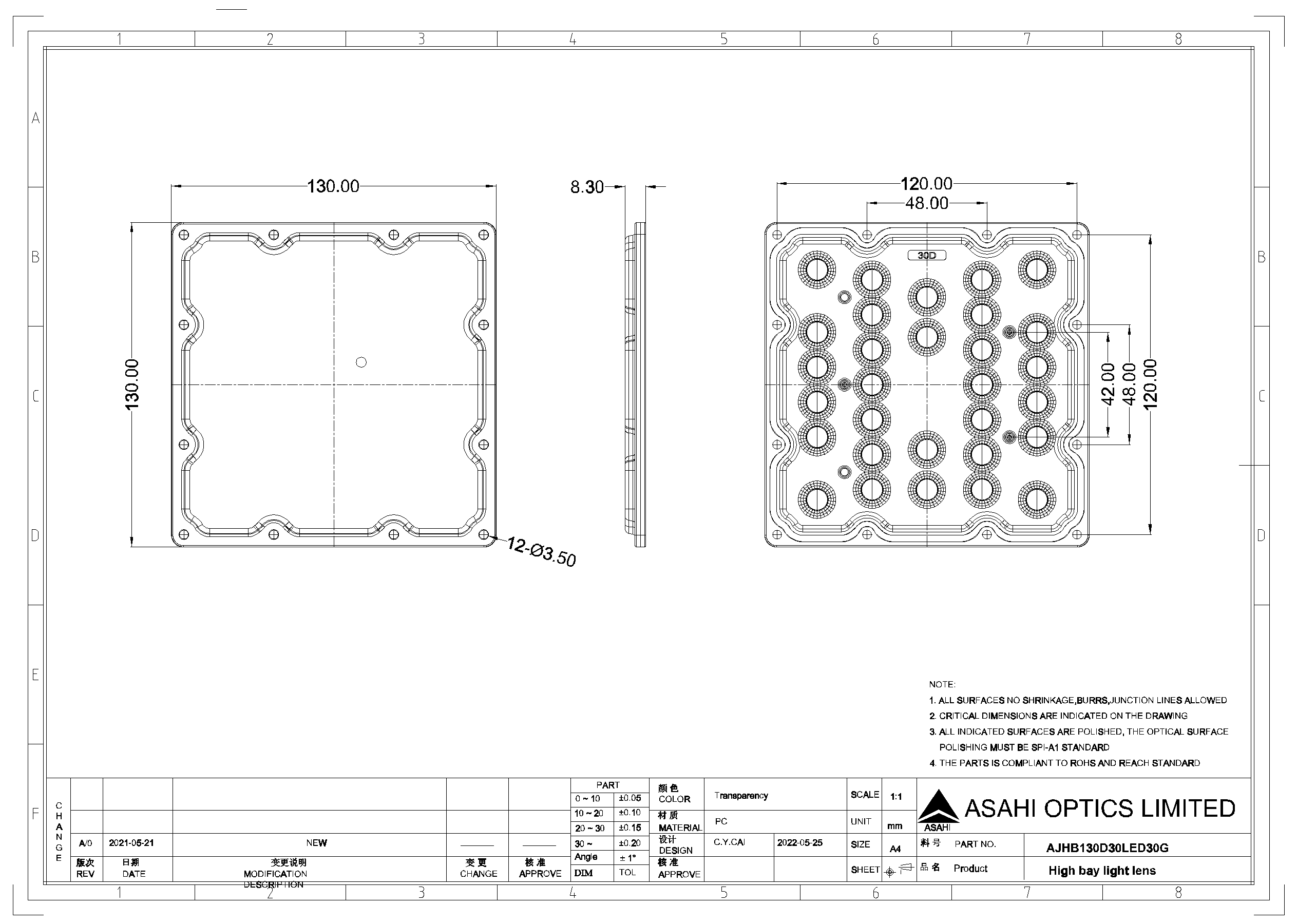

AJHB130D30LED30G 2D Drawing.dwg
AJHB130D30LED60G 2D Drawing.dwg
AJHB130D30LED90G 2D Drawing.dwg
AJHB130D30LED80140G 2D Drawing.dwg
AJHB130D30LED-PCB 2D Drawing.dwg
