Model: AJST275D35LEDT5
Diameter: 275mm
Height: 8.0mm
Angle: T5M
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street Lighting
1.The TYPE V angle design can effectively cover a wide area. In street lighting, plaza lighting and other scenarios.
2.275x90mm 35in1 street light lens made from PC material. Compatibility up to 5050 size LED package.

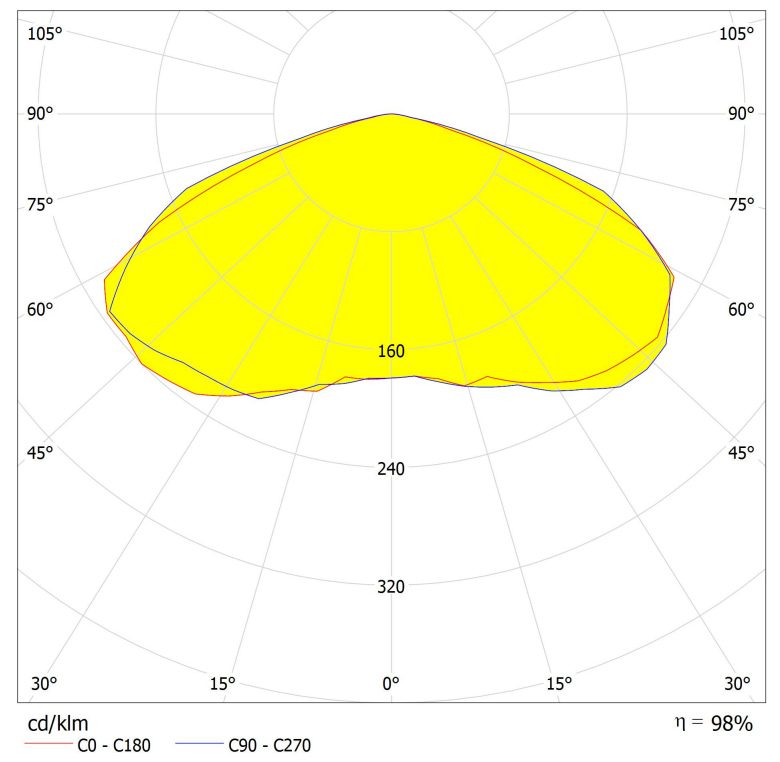

Distribution
Specifications
| Model: | AJST275D35LEDT5 |
| Diameter: | 275mm |
| Height: | 8.0mm |
| Angle: | T5M |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

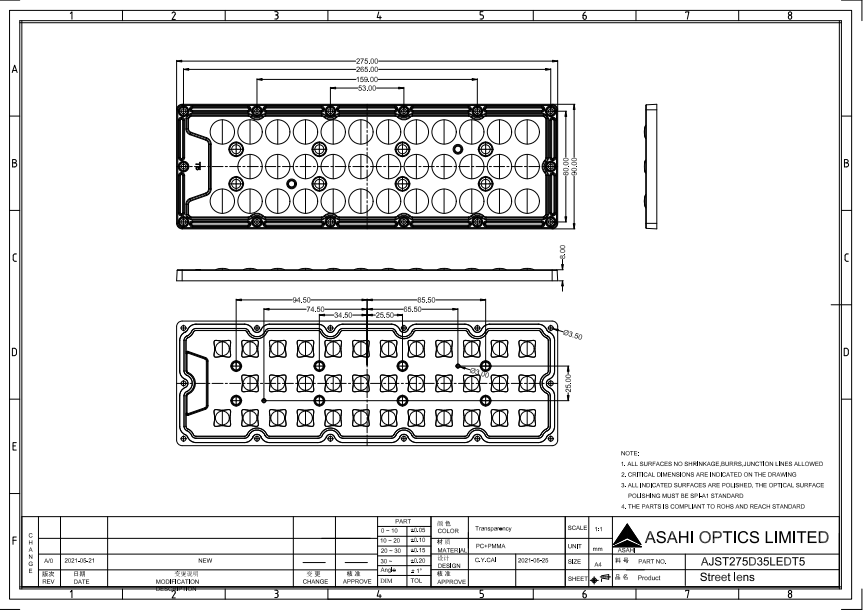

Asahi AJST275D35LEDT5 Drawing.dwg
Asahi AJST275D35LEDT5 Drawing.pdf
Asahi AJST275D35LED-PCB Drawing.dwg
Asahi AJST275D35LED-PCB Drawing.pdf
