Model: AJHB304D22LED90120G
Diameter: 304mm
Height: 8.6mm
Angle: 90x120°
Material: PC
Transmittance: >88%
LED Type: 7070LED

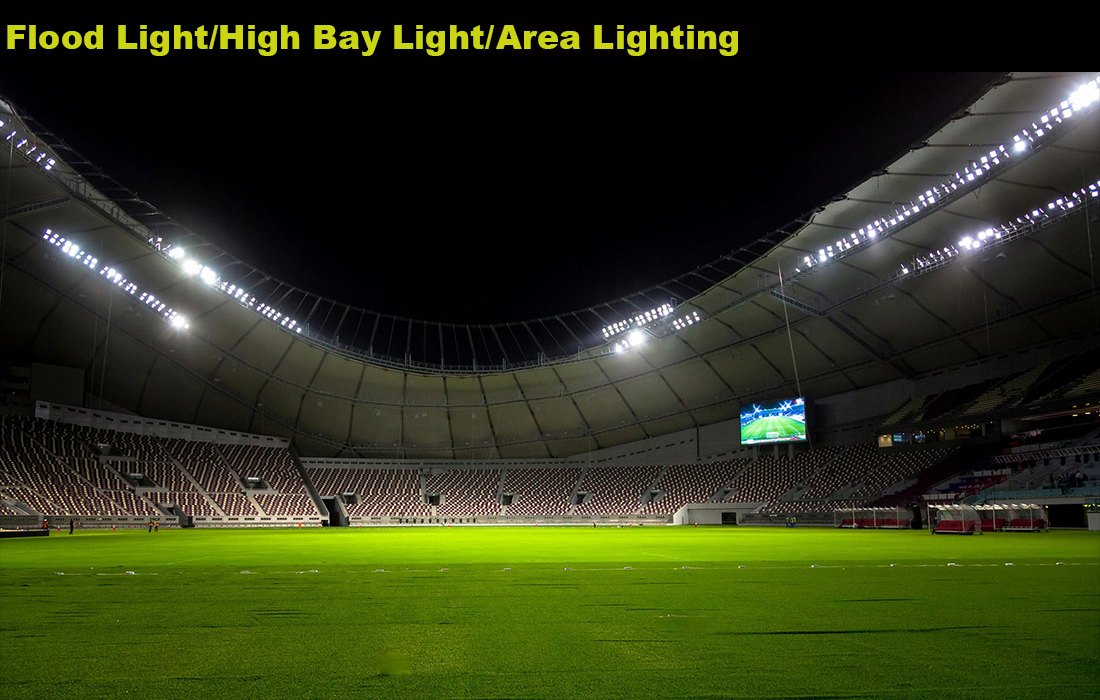

Lighting Applications: High bay lighting

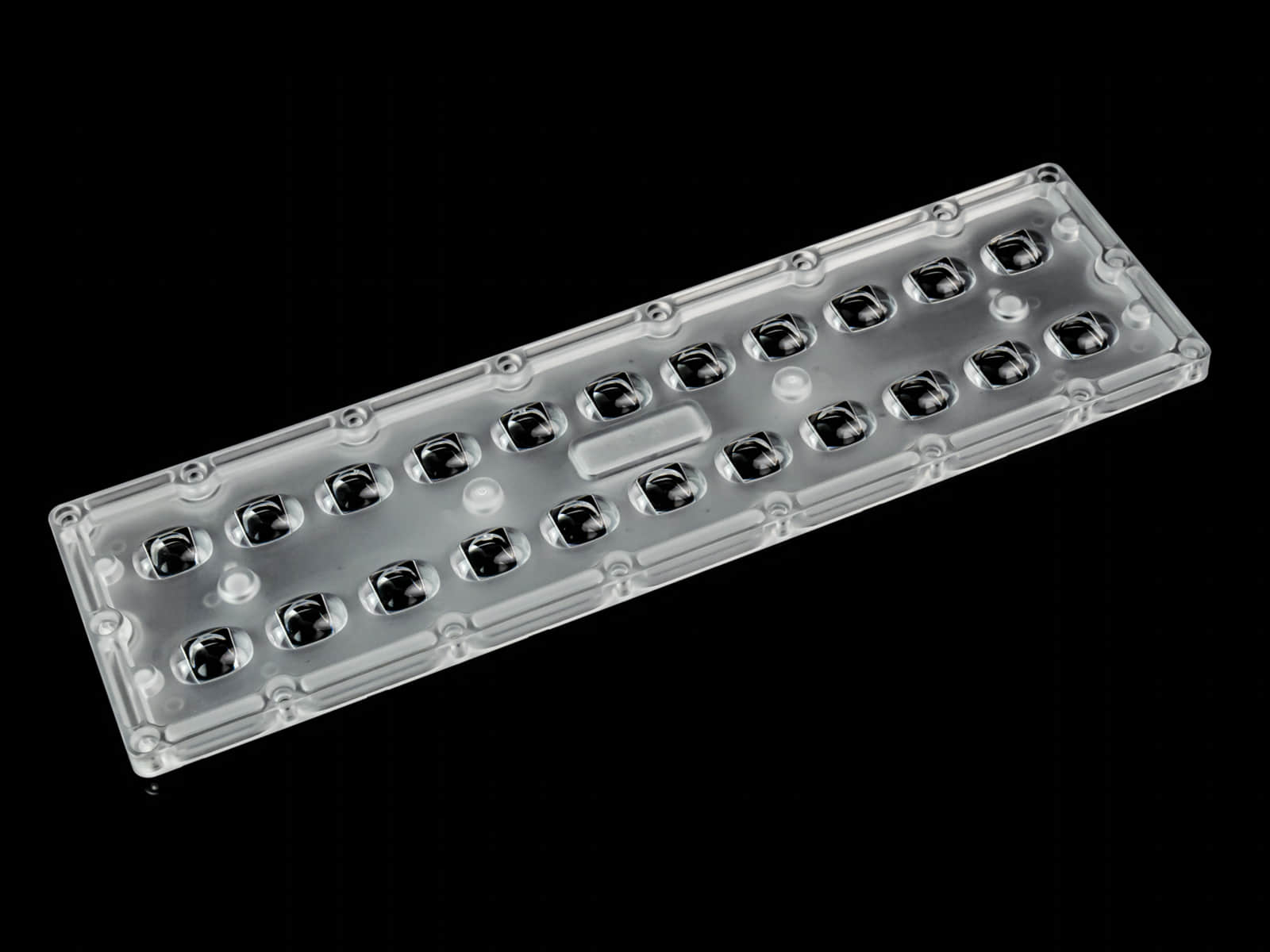

The 2x11 LED lens features a precision-engineered 90x120° beam angle, providing wide and uniform light distribution.
Maximizes light output efficiency, ensuring optimal illumination for outdoor and industrial applications while reducing energy consumption.

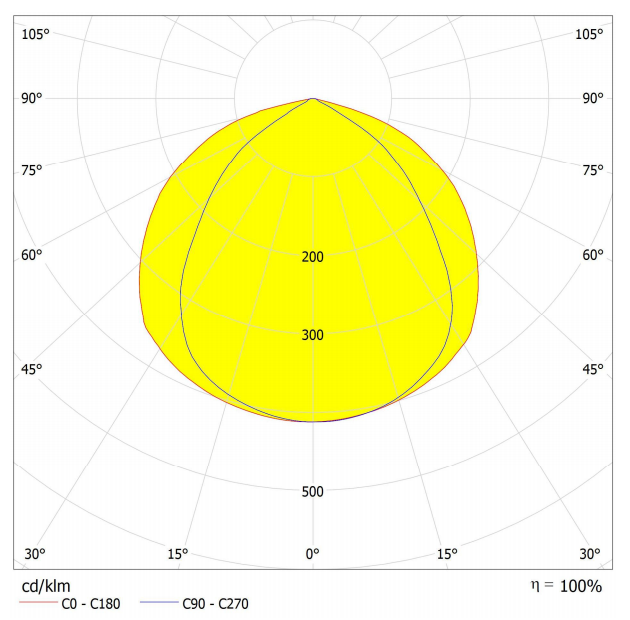

Distribution
Specifications
| Model: | AJHB304D22LED90120G |
| Diameter: | 304mm |
| Height: | 8.6mm |
| Angle: | 90x120° |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 7070LED |
| Lighting applications | High bay lighting |
LED Type
XHP70.3
OSCONIQ™ P 7070
LUXEON 7070 HE
149 Series
EMC7070LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
Asahi Optics AJHB304D22LED90120G Drawing.dwg
Asahi Optics AJHB304D22LED90120G Drawing.pdf
Asahi Optics AJHB304D22LED90120G.IES
