Model: ARHB256D90LED90G
Diameter: 256x78.5mm
Height: 7.35mm
Angle: 90°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 3030LED

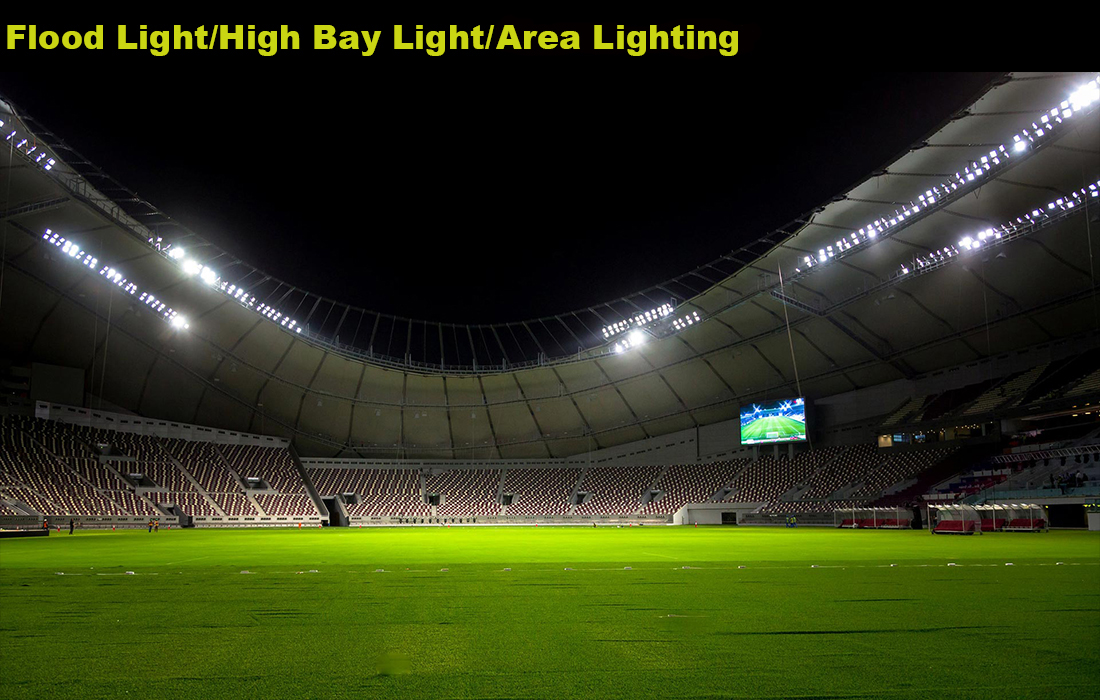

Lighting Applications: High Bay Lighting, Area Lighting
1. 90-in-1 moudle lens with 90° wide beam angle，ensures expansive coverage and effective illumination in floodlighting scenarios, making it well-suited for various outdoor lighting needs.
2. The lens holds an IP66 rating, with a high level of protection against dust and water ingress. This makes it suitable for outdoor applications where exposure to challenging weather conditions is a concern, ensuring reliable performance in various environments.

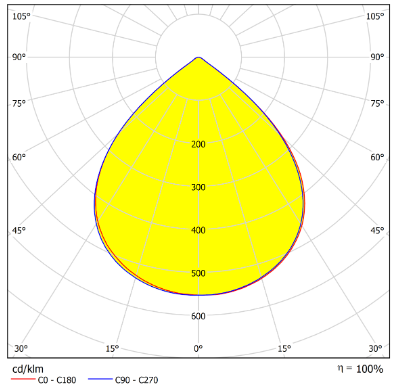

Distribution
Specifications
| Model: | ARHB256D90LED90G |
| Diameter: | 256x78.5mm |
| Height: | 7.35mm |
| Angle: | 90° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ARHB256D90LED3030T90G lens 3D drawing.STP

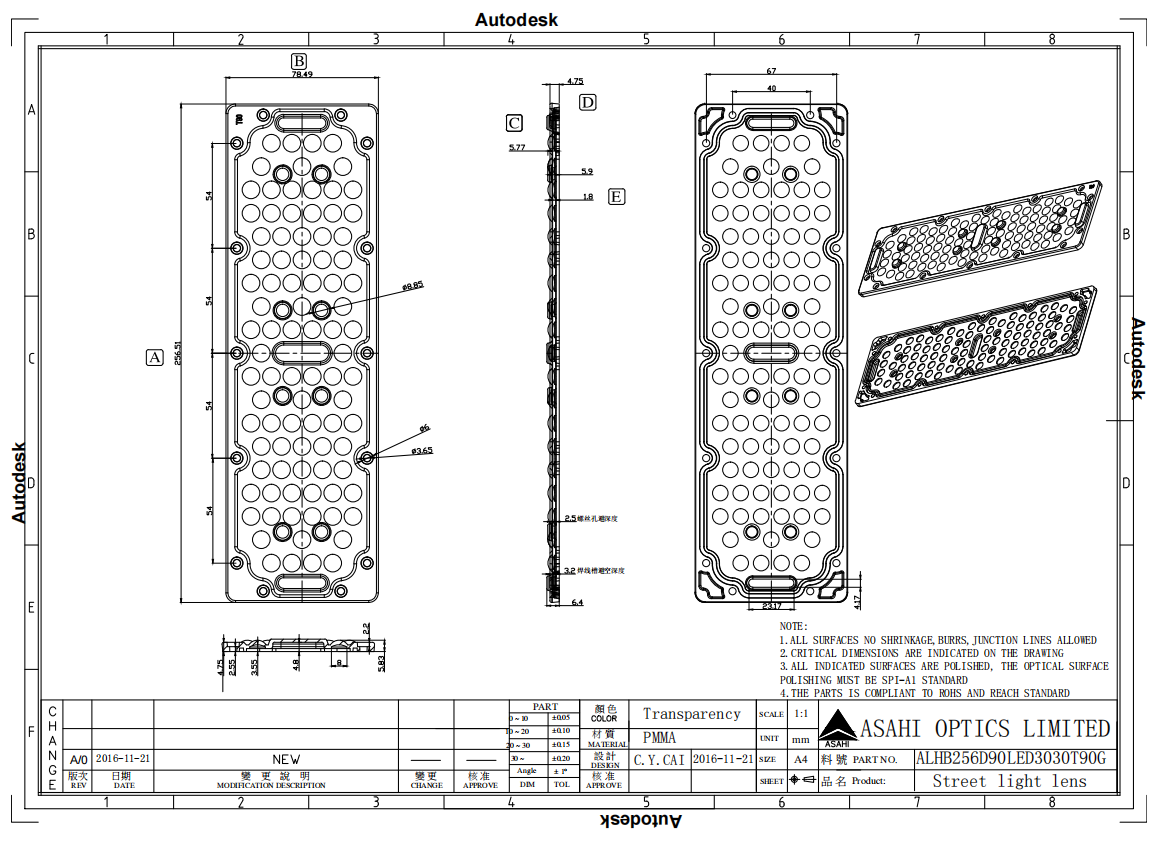

ASAHI OPTICS ARHB256D90LED3030T90G Drawing.dwg
