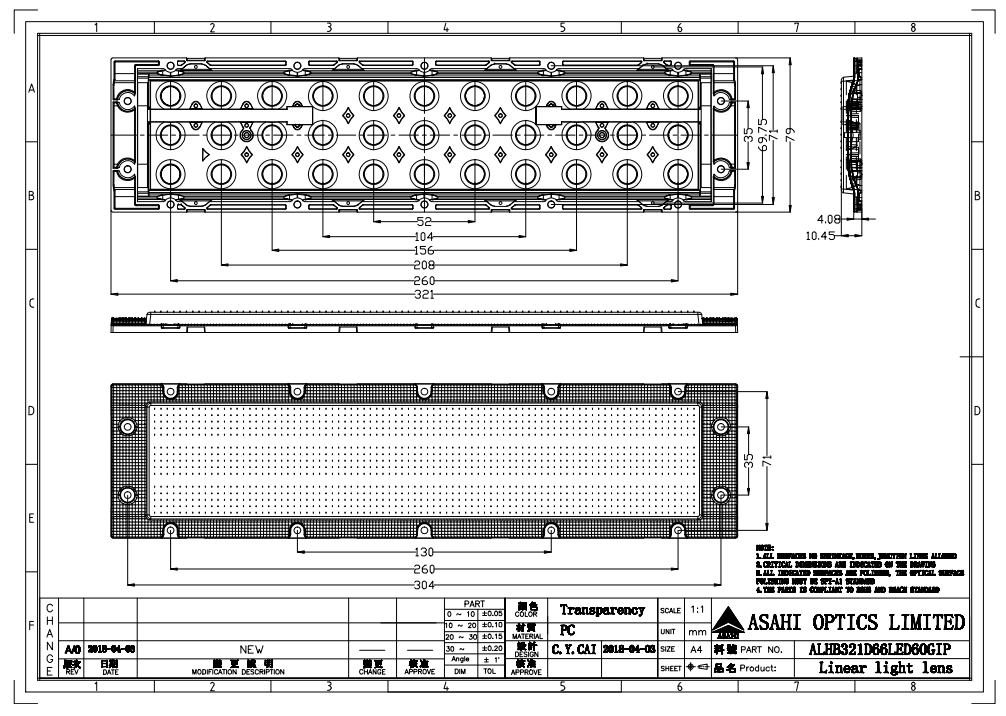

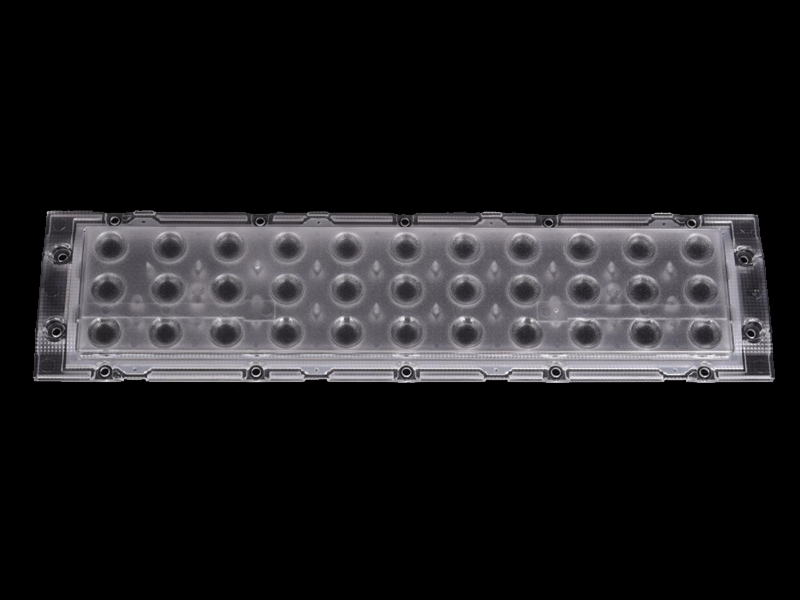

3x11 lens array 60° with IP66 protection and for IK08 test

Model: ALHB321D66LED60GIP

Diameter: 321.0mm,

Height: 79.0mm

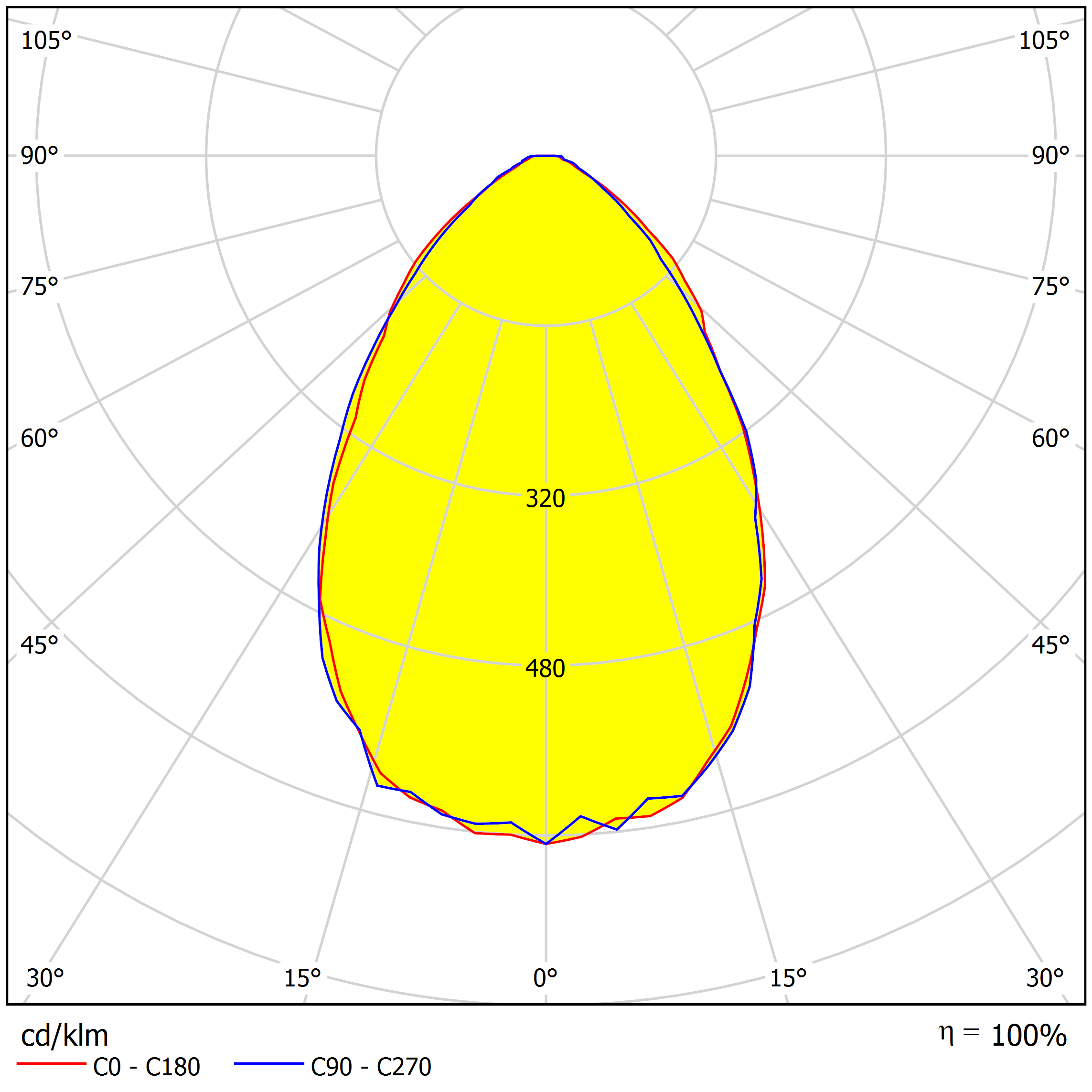

Angle: 60°

Material: PC-1250Z

Transmittance: >90%

LED Type: 3030''5630''5050

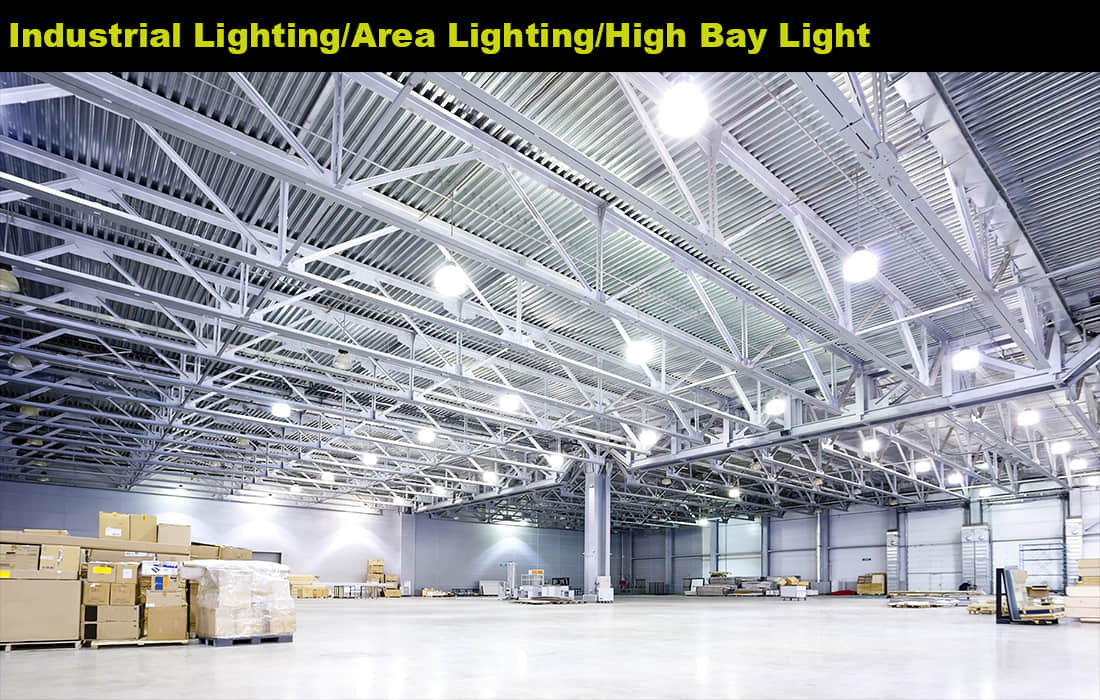

Lighting Applications: High Bay lighting, Linear Lighting

1. The 3X11 lens array is designed for Mid Power LEDs which is compatible with “3030”''5050''and“5630”LEDs.

2. For each optical surface, it is not only suitable for a single LED, but also can be matched with two LEDs to get higher lumens.

3. With IP66 protection rating,the lens array is fully protected against dust ingress and powerful water jets, making it suitable for outdoor use in harsh environmental conditions.

Specifications

Model:	ALHB321D66LED60GIP
Diameter:	321.0mm
Height:	79.0mm
Angle:	60°
Material：	PC-1250Z
Transmittance：	>88%
LED Applications	"3535""5050""5630"LED
Lighting applications	High Bay lighting, Linear Lighting

The 3X11 lens array is designed for Mid Power LEDs which is compatible with “3030”and“5630”LEDs.

Especially for each optical surface， it is not only for the single LED but also for double LEDs to get many high lumens.

Instructions as below

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
