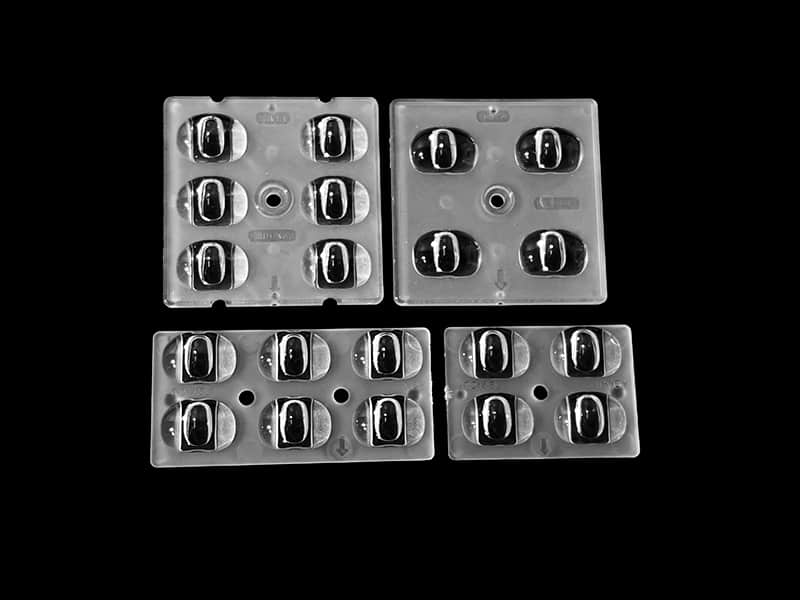

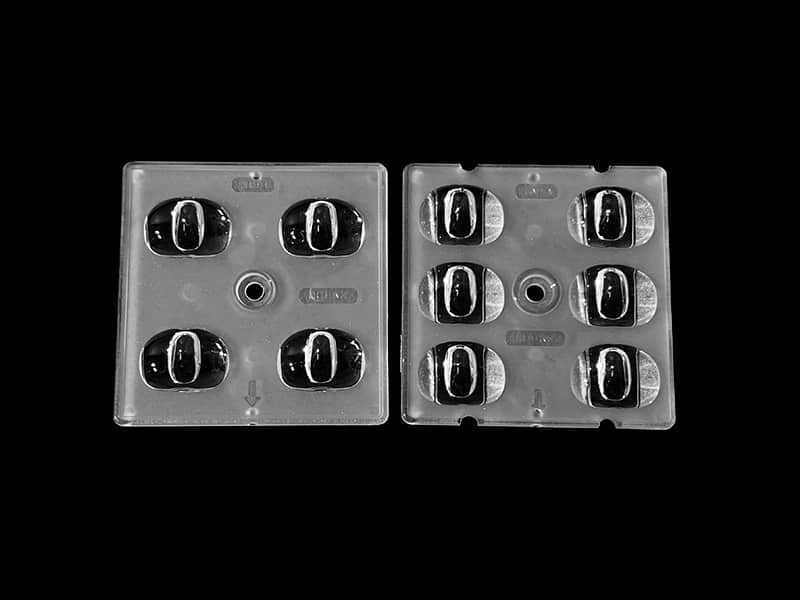

2x3 Lens Optimized 30x62mm Street Light T2M-cutoff

Model: ARST62D6LED5050T2M-cutoff

Diameter: 62.0mm

Height: 7.48mm

Angle: T2M-cutoff

Material: PC

Transmittance: >90%

LED Type: 5050LED

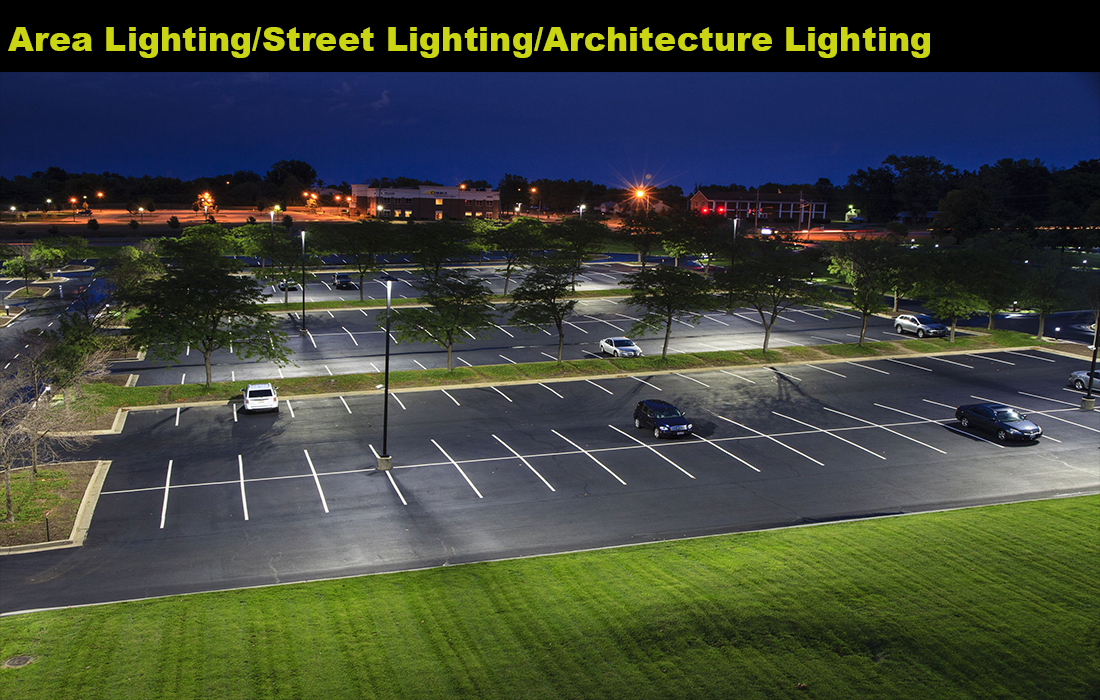

Lighting Applications: Street Lighting

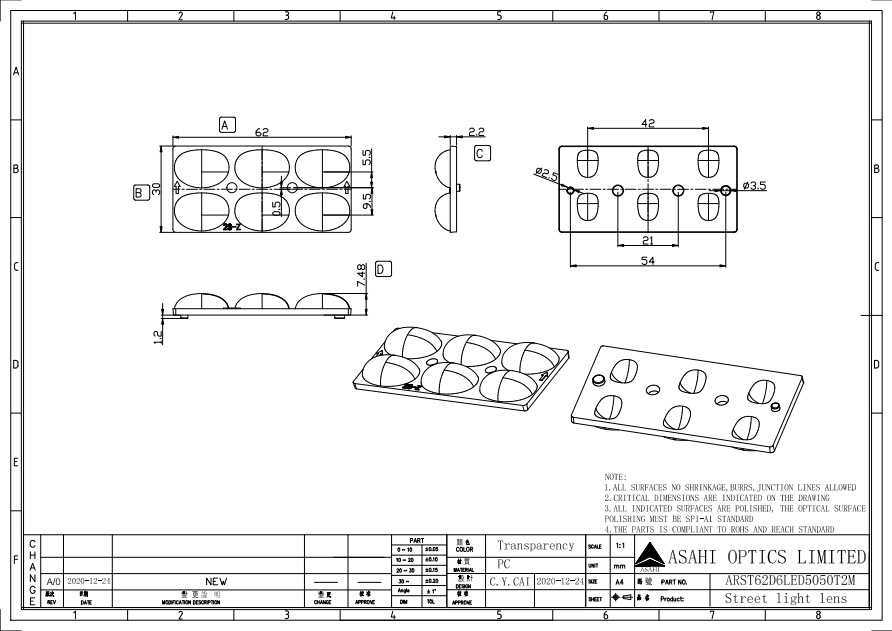

1. The new design of 2x3 lens 5050T2M-cutoff has been optimized in size 30mmx62mm

2. with the lamp housing remains the same, but more LEDs can be added to increase the power of the lamp.

3. The 2x3 lens T2M Cut-off is designed and tested with a glass cover for the IP66 water-proof solution.

4. The 2x3 lens T2M Cut-off optics is compatible with different LEDs Brands such as OSRAM S8, NICHIA488, LUMILEDS5050, SEOUL5050

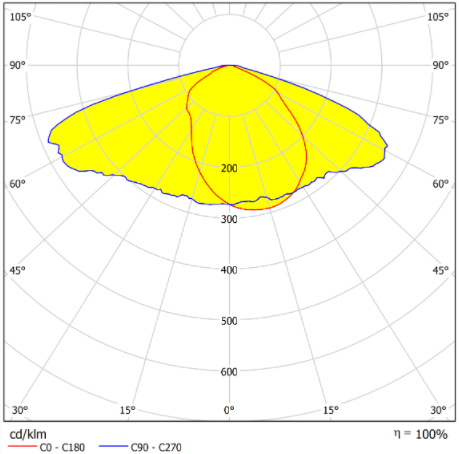

Distribution

Specifications

LED Type

JR5005C 6-V E

DURIS S 8

LUXEON 5050 Square

NVAW144AR

NVAW144AM

Xl5050LED

EMC5050LED

Packaging

---

Material Information

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

The new design of 2x3 lens 5050T2M-cutoff has been optimized in size 30mmx62mm

with the lamp housing remains the same, but more LEDs can be added to increase the power of the lamp

The 2x3 lens T2M Cut-off is designed and tested with a glass cover for the IP66 water-proof solution
The 2x3 lens T2M Cut-off optics is compatible with different LEDs Brands such as OSRAM S8, NICHIA488, LUMILEDS5050, SEOUL5050

1. The new design of 2x3 lens 5050T2M-cutoff has been optimized in size 30mmx62mm

2. with the lamp housing remains the same, but more LEDs can be added to increase the power of the lamp.

3. The 2x3 lens T2M Cut-off is designed and tested with a glass cover for the IP66 water-proof solution.

4. The 2x3 lens T2M Cut-off optics is compatible with different LEDs Brands such as OSRAM S8, NICHIA488, LUMILEDS5050, SEOUL5050

OSRAM S8 T2M CUTOFF
