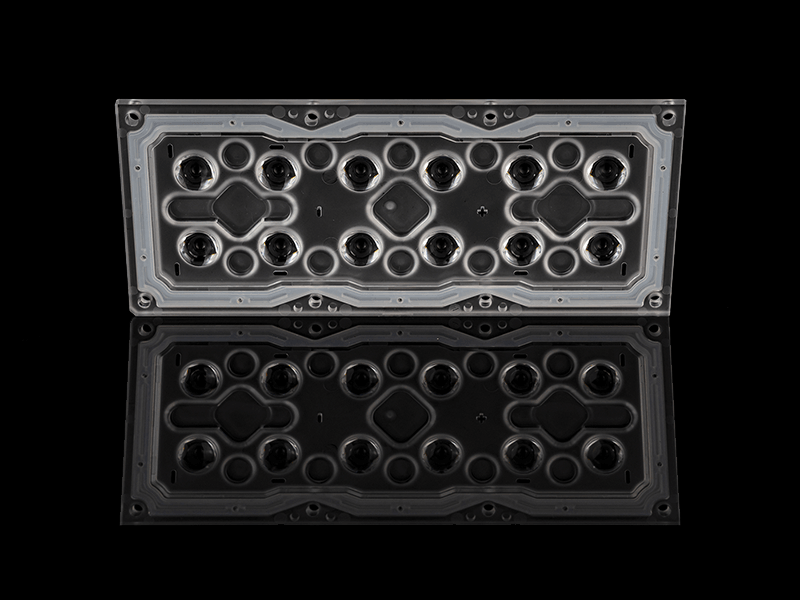

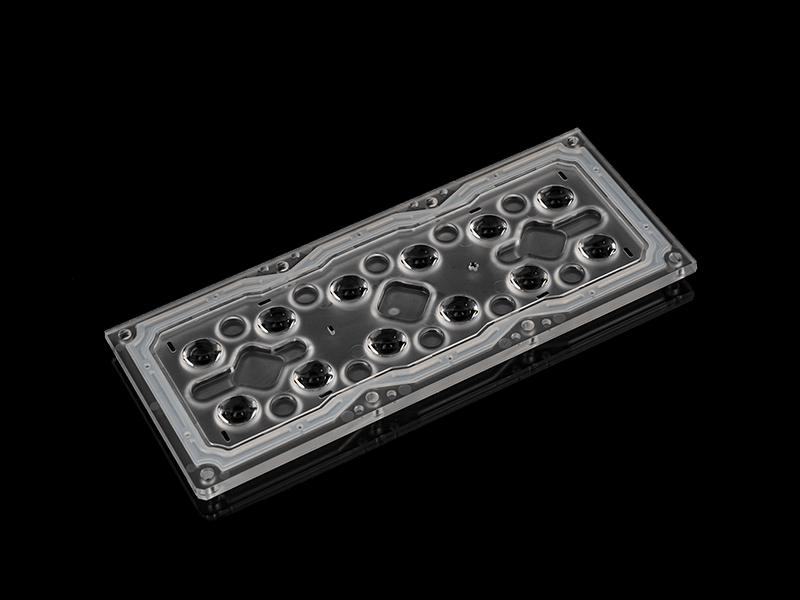

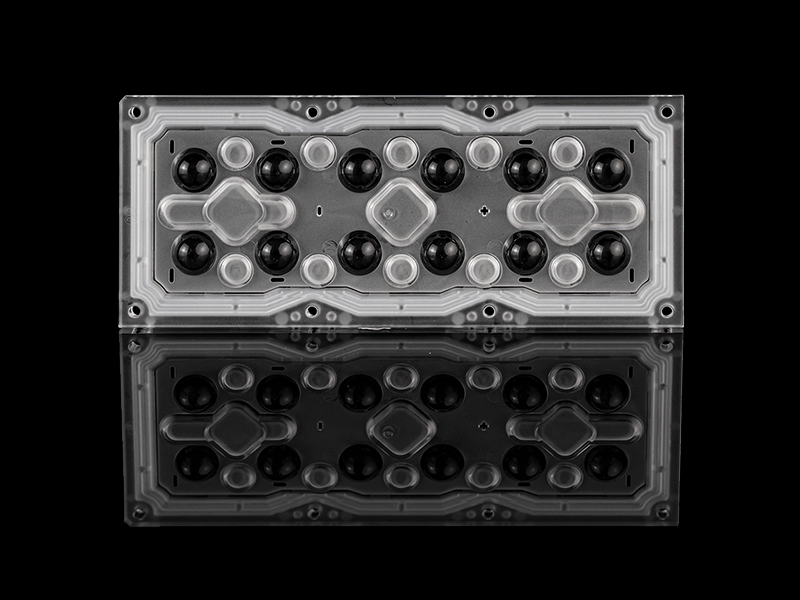

Large Area Lighting Lens IP66 173mm 5050LED 90 Degree

2x6 lens 173mmx71.4mm 5050LED 90 degree.

Large Area Lighting Lens IP66 173mm 5050LED 90 Degree

Model: ALD173D12LED90G

Diameter: 173*71.4mm

Height: 7.35mm

Angle: 90°

Material: PC

Transmittance: >90%

LED Type: 3535/5050LED

Lighting Applications: High Bay Lighting

1. 2x6 lens 90° for High Bay lighting.

2. The design of this lens is optimized for high optical efficiency, ensuring that a significant portion of the emitted light is directed to the intended area, minimizing wastage.

3. With IP66 excellent waterproof and dustproof rating,making the lens suitable for various outdoor lighting applications, and challenging environmental conditions.

Specifications

Model:	ALD173D12LED90G
Diameter:	173*71.4mm
Height:	7.35mm
Angle:	90 °
Material：	PC
Transmittance：	>90%
LED Applications	3535/5050LED
Lighting applications	High Bay Lighting

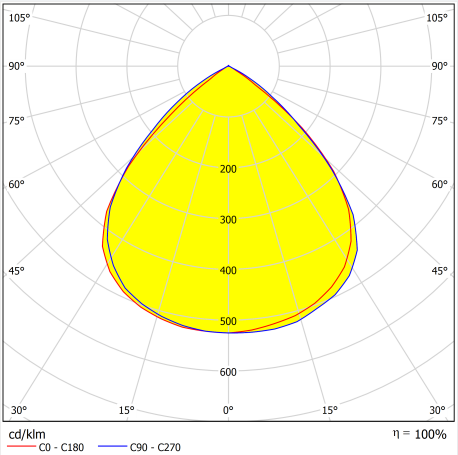

Light Distribution Curve

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
