Model: AJS45DRGBW3G
Diameter: 45.00mm
Height: 21.60mm
Angle: 3°
Material: PMMA
Transmittance: >93%
LED Type: CREE XML-RGBW
Lighting Applications: Stage light

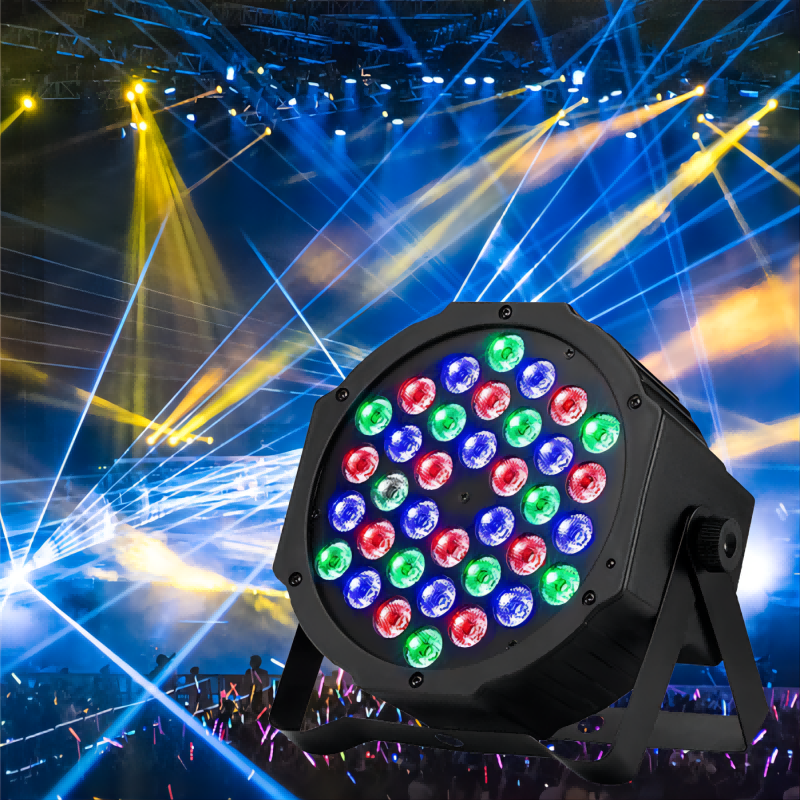

1, RGBW lenses are commonly used in lighting applications such as stage lighting, building facade lighting, and interior lighting.
2, By controlling the brightness and mixing ratio of LED lights of different colors, various color light effects can be achieved. Red, green, and blue LEDs can be mixed to produce various colored lights, while white LEDs can provide brighter overall lighting.
3, RGBW lenses are commonly employed in event lighting and decorative installations for weddings, festivals, and corporate events. They enable the creation of captivating lighting displays, including color-changing effects, pattern projections, and immersive lighting environments.
Distribution
Specifications
| Model: | AJS45DRGBW3G |
| Diameter: | 45mm |
| Height: | 26.1mm |
| Angle: | 3° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | CREE XML-RGBW |
| Lighting applications | Stage light |
LED Type
XML-RGBW
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
