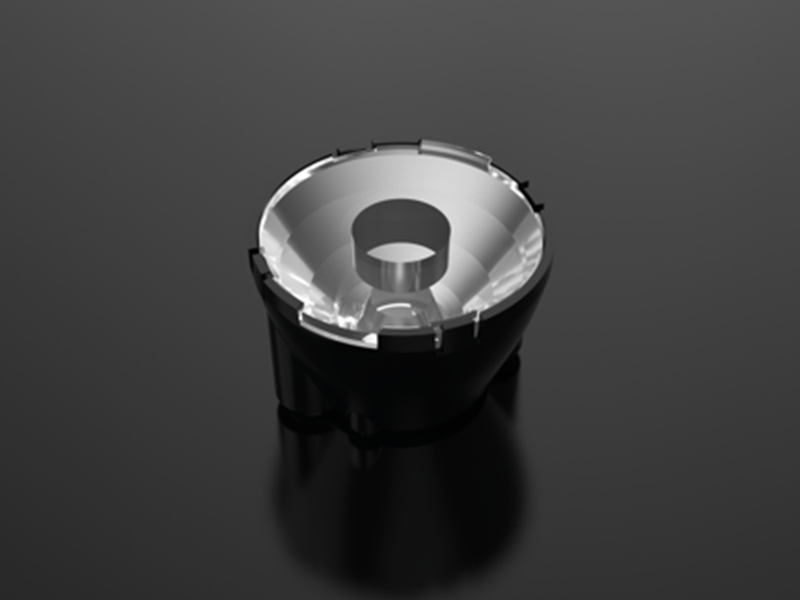

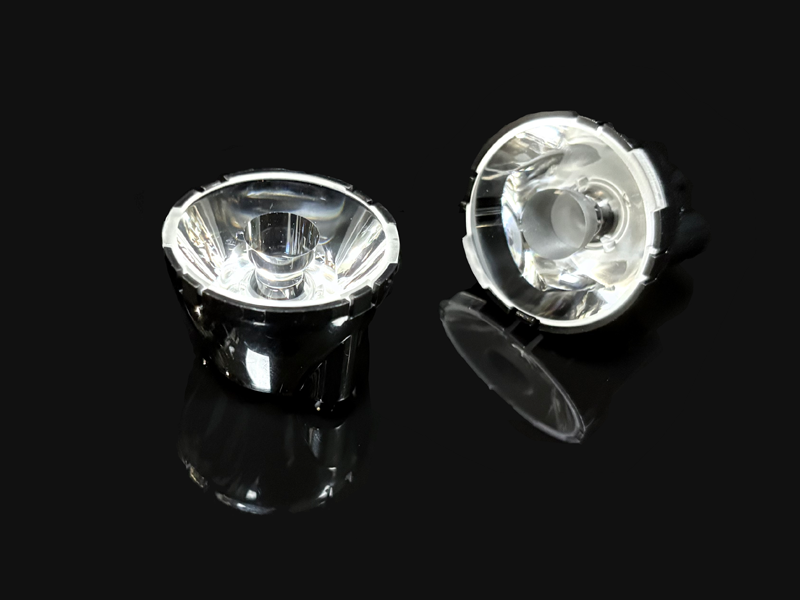

37.8mm surgical light lens

Model: ASH38D24H5D

Diameter: 37.8mm

Height: 24mm

Angle: 5°

Material: PMMA+PC

Transmittance: >93%

LED Type: Nichia NVSW2019FT-V2 LED

Lighting Applications: surgical light

Designed by 3535LED to achieve best lighting intensity.

It meets the IEC standard for surgery lighting and provides a high cd/lm value.
• High cd/lm values

Maximum luminous intensity (total luminous flux: 213 lm): 22849cd/213lm
Central luminous intensity (total luminous flux: 213 lm) : 2637.4cd/213lm
• D50/D10>0.7
• Meets IEC standard IEC 60601-2-41 for surgery lighting

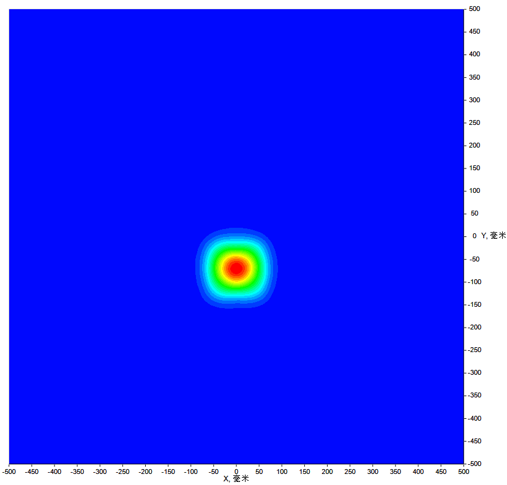

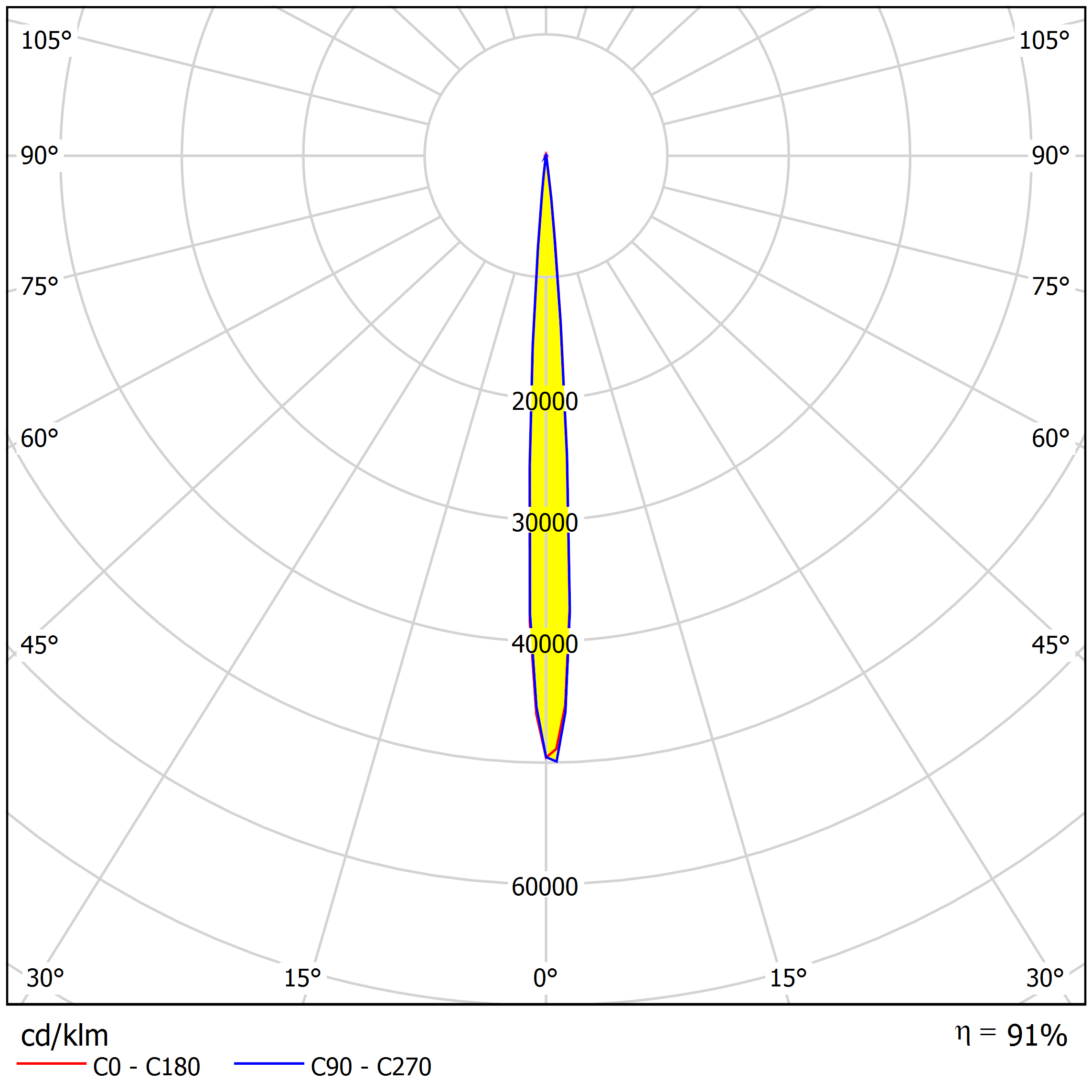

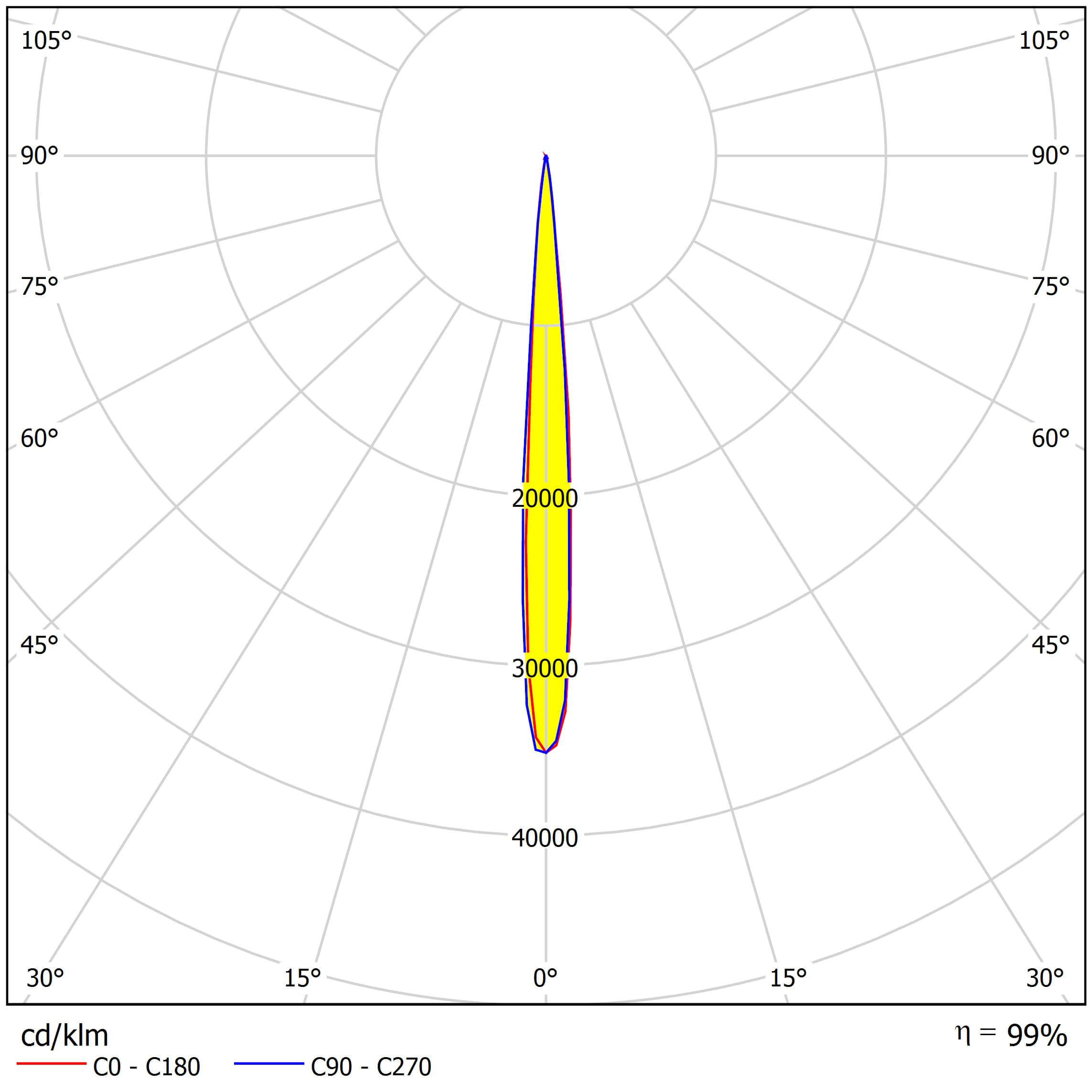

Distribution

Specifications

Model:	ASH38D24H5D
Diameter:	37.8mm
Height:	24mm
Angle:	5°
Material：	PMMA+PC
Transmittance：	>93%
LED Applications	Nichia NVSW2019FT-V2 LED
Lighting applications	surgical light

LED Type

NVSW2019FT-V2

Packaging

---

Material Information

Lens Material

L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature

PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability

PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec

PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate

400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

Designed by 3535LED to achieve best lighting intensity. It meets the IEC standard for surgery lighting and provides a high cd/lm value. • High cd/lm values
Maximum luminous intensity (total luminous flux: 213 lm): 22849cd/213lm Central luminous intensity (total luminous flux: 213 lm) : 2637.4cd/213lm • D50/D10>0.7 • Meets IEC standard IEC 60601-2-41 for surgery lighting

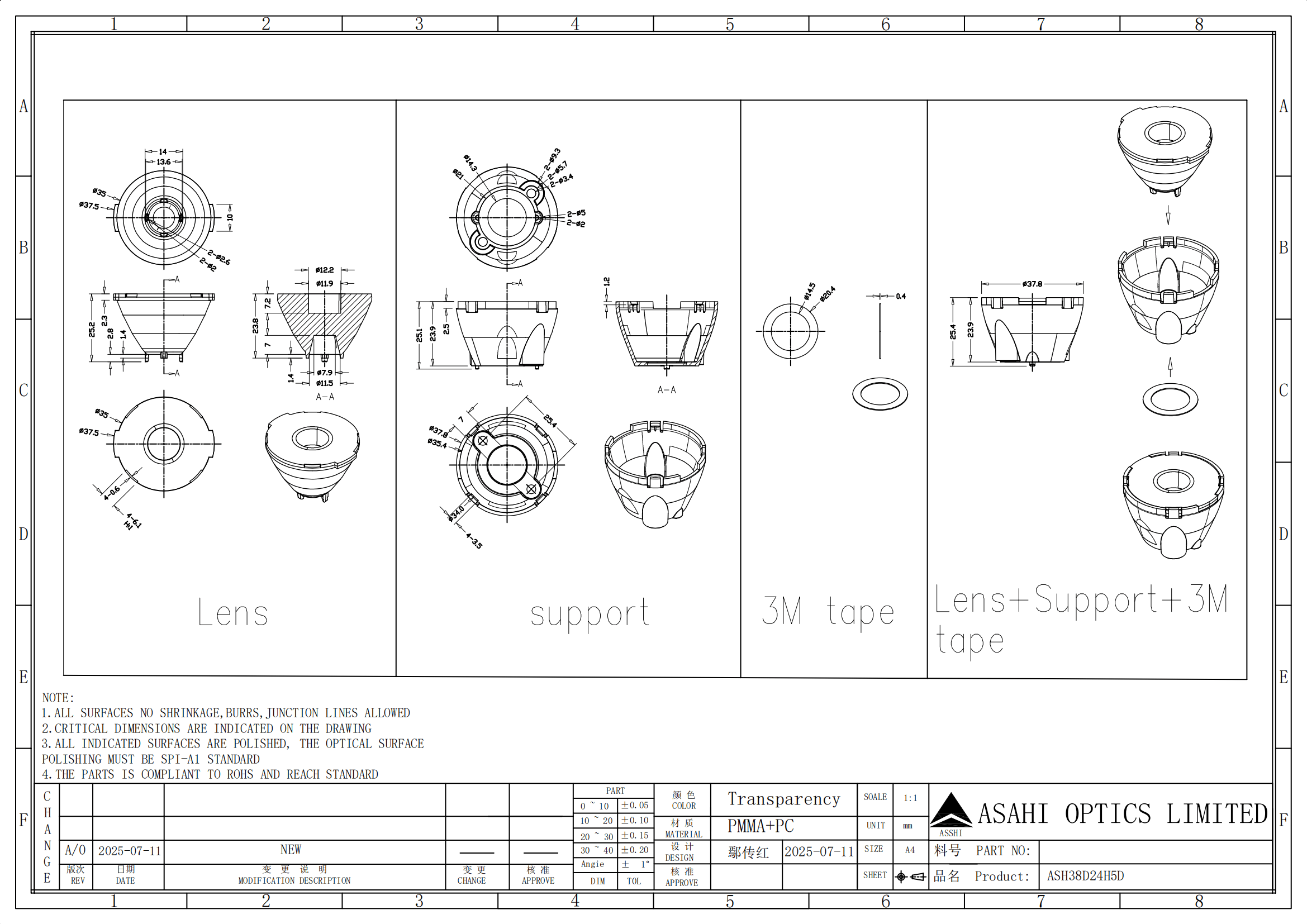

ASH38D24H5D Drawing.pdf
