Model: ALST50D4LED5050T2M
Diameter: 50x50mm
Height: 7.95mm
Angle: T2M
Material: PMMA , PC-1250Z
Transmittance: >90%
LED Type: 5050LED
Lighting Applications: Street lighting,Architecture lighting

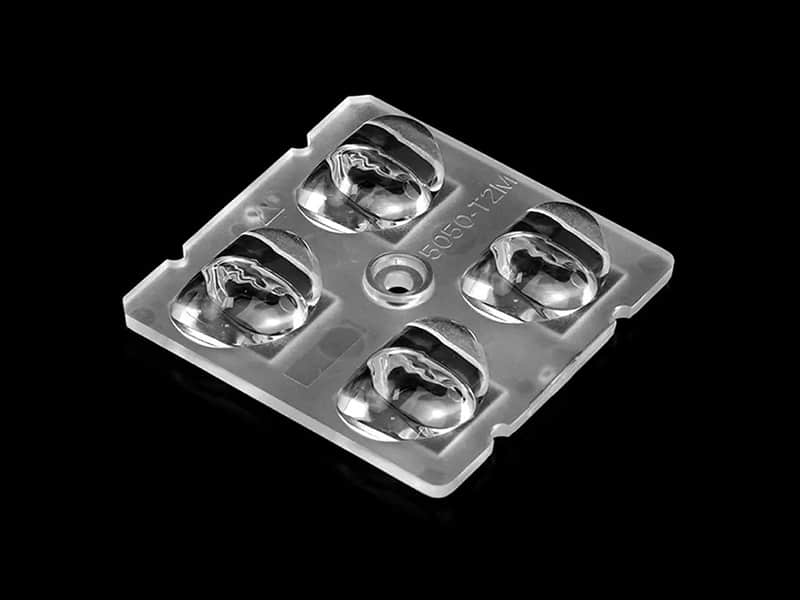

1. 2x2 TypeII-Medium street lens,through specialized optical design, the Type II-Medium lens can reduce upward or surrounding light scatter, helping to minimize light pollution levels and concentrating light where it's needed.
2. Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.
3. Provides clear and uniform illumination, improving visibility for pedestrians, cyclists, and motorists, enhancing safety.
1. 2x2 TypeII-Medium street lens,through specialized optical design, the Type II-Medium lens can reduce upward or surrounding light scatter, helping to minimize light pollution levels and concentrating light where it's needed.
2. Suitable for various outdoor lighting applications, including street lighting, parking lots, highways, and residential areas.
3. Provides clear and uniform illumination, improving visibility for pedestrians, cyclists, and motorists, enhancing safety.

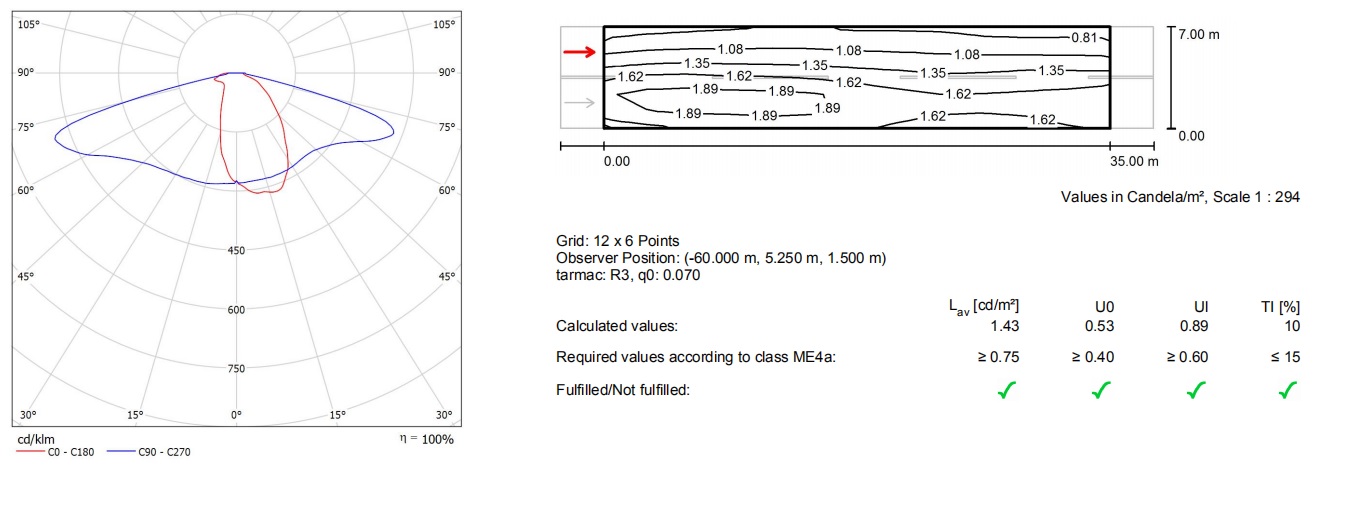

The 2x2 lens T2M is designed for less backlight and reached for a wide street road. The Beam with excellent longitudinal luminance uniformity

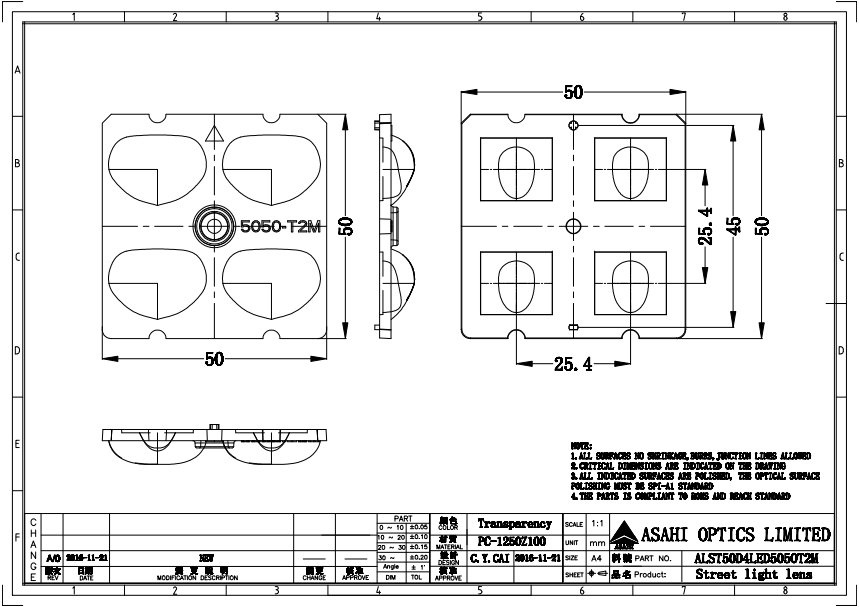

Specifications
| Model: | ALST50D4LED5050T2M |
| Diameter: | 50x50mm |
| Height: | 7.95mm |
| Angle: | T2M |
| Material： | PMMA |
| Transmittance： | >90% |
| LED Type | 5050LED |
| Lighting applications | Street lighting,Architecture lighting |

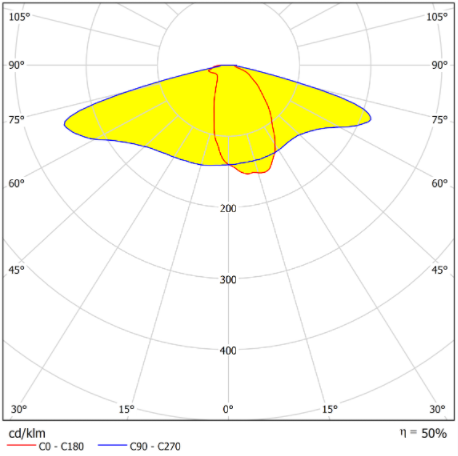

Light Distribution Curve
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
