Model: UFO184D60G, 90G-100W-K56
Diameter: 184mm
Height: 7.69mm
Angle: 60°,90°,120°
Material: PC-1250Z
Transmittance: 88%
LED Type: 2835/ 3030LED

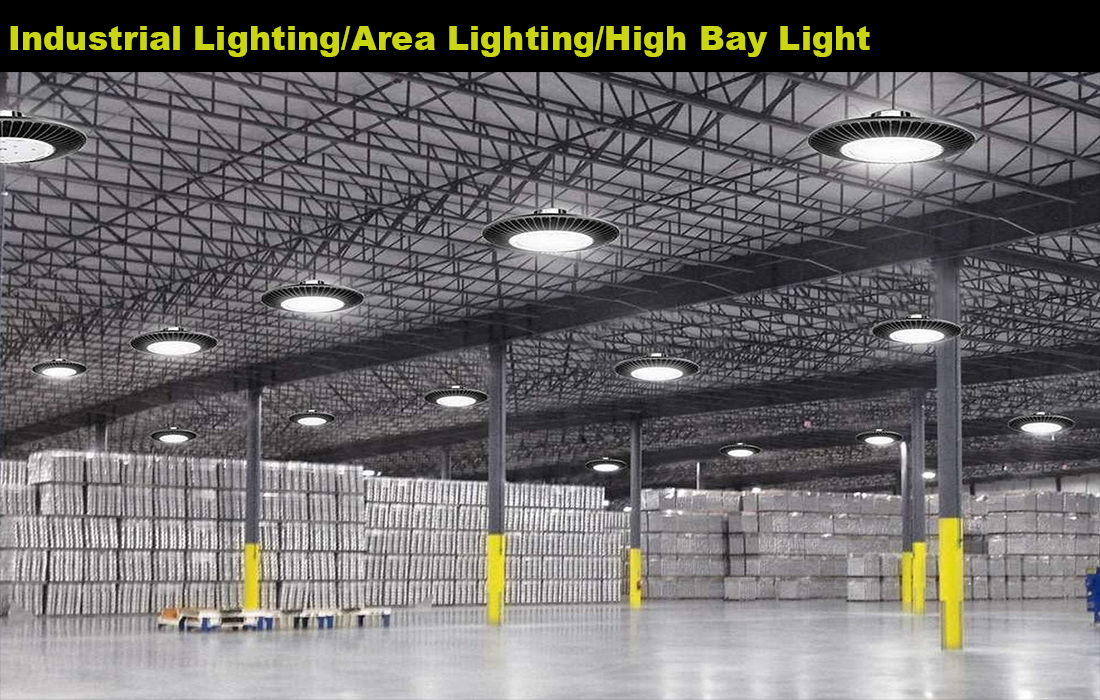

Lighting Applications: High Bay Lighting, Area Lighting
1.100 watts 184mm diameter Industrial Lighting Lens with 60-degree and 90-degree.
2.Our UFO lenses are dedicated to using optical design to make UFO LED light achieve low cost while enhancing the space for a bright and productive environment.

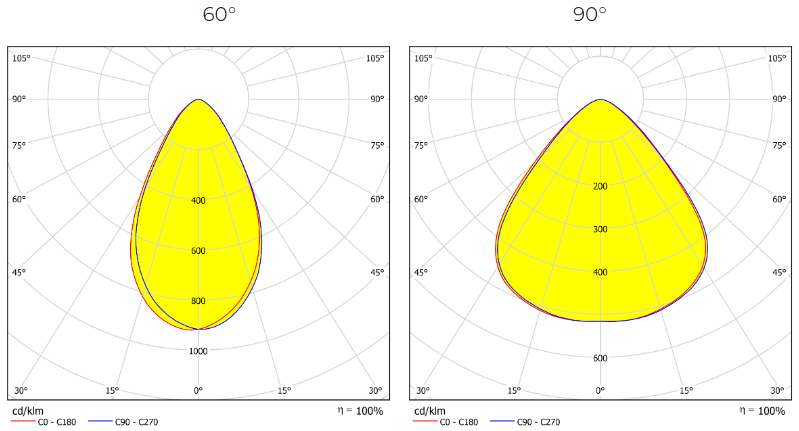

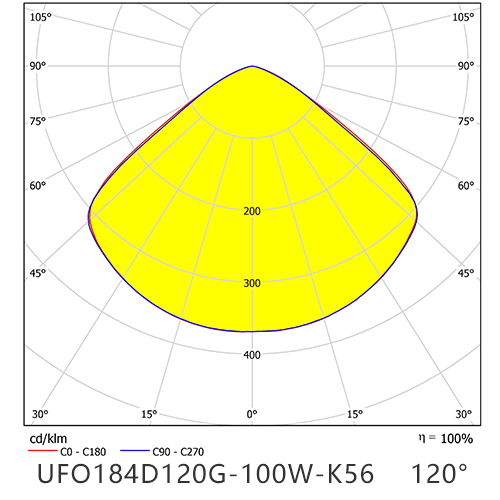

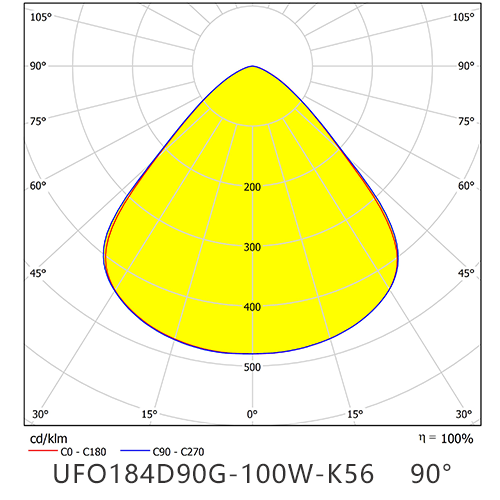

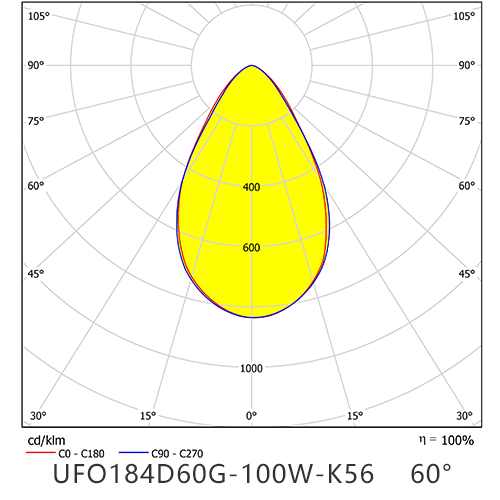

Distribution
Specifications
| Model: | UFO184D60G, 90G-100W-K56 |
| Diameter: | 184mm |
| Height: | 7.69mm |
| Angle: | 60°,90°,120° |
| Material： | PC-1250Z |
| Transmittance： | 88% |
| LED Applications | 2835/ 3030LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS UFO184D60G,90G,120G-100W-K56 lens 3D drawing.STP

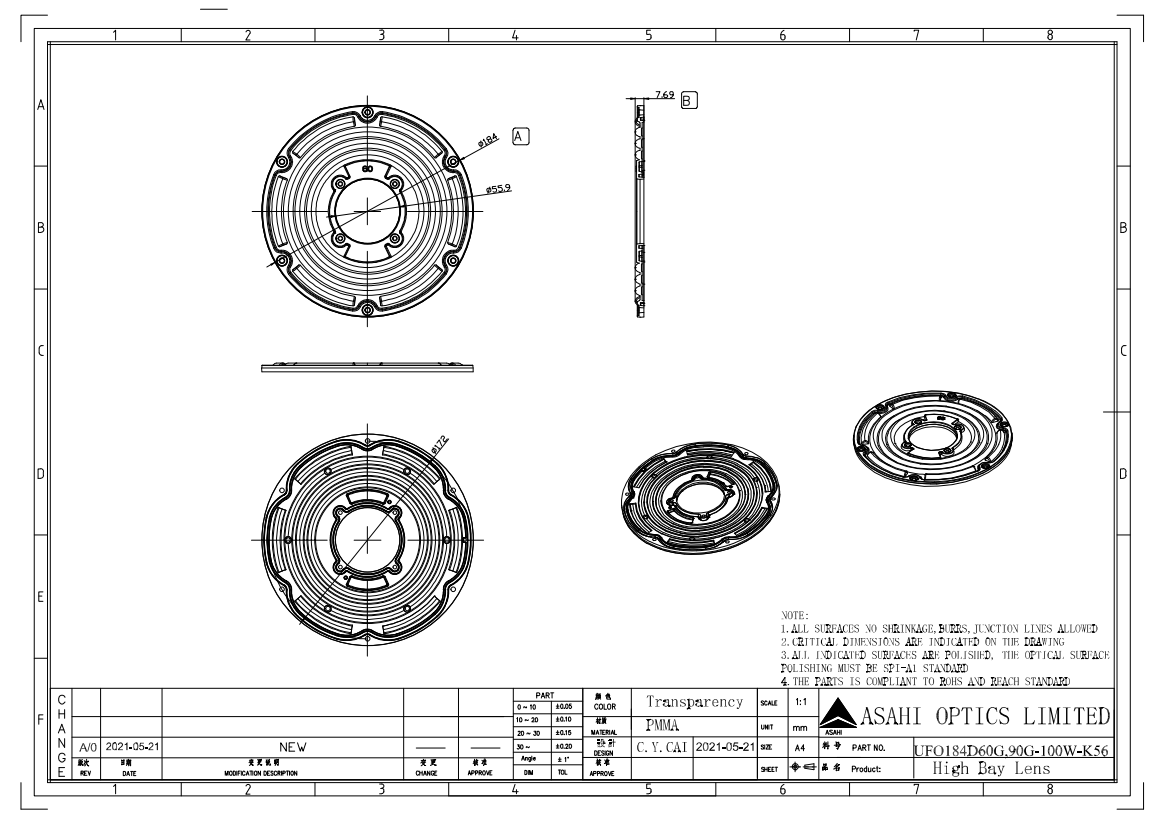

ASAHI OPTICS UFO184D60G,90G,120G-100W-K56 Drawing.dwg
ASAHI OPTICS UFO184D60G,90G,120G-100W-K56 Drawing.pdf
ASAHI OPTICS UFO184D60G-100W-K56 lens IES.ies
