Model: ARST236D28LEDT2M-Cutoff
Diameter: 236x70mm
Height: 7.1mm
Angle: T2M-CUTOFF
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 5050LED
Lighting Applications: Street Lighting
1. 28-in-1 module street lens with an excellent cutoff design, ensuring precise control and directionality of the light, minimizing light spill and enhancing overall performance.Making it a perfect fit for urban and street environments.

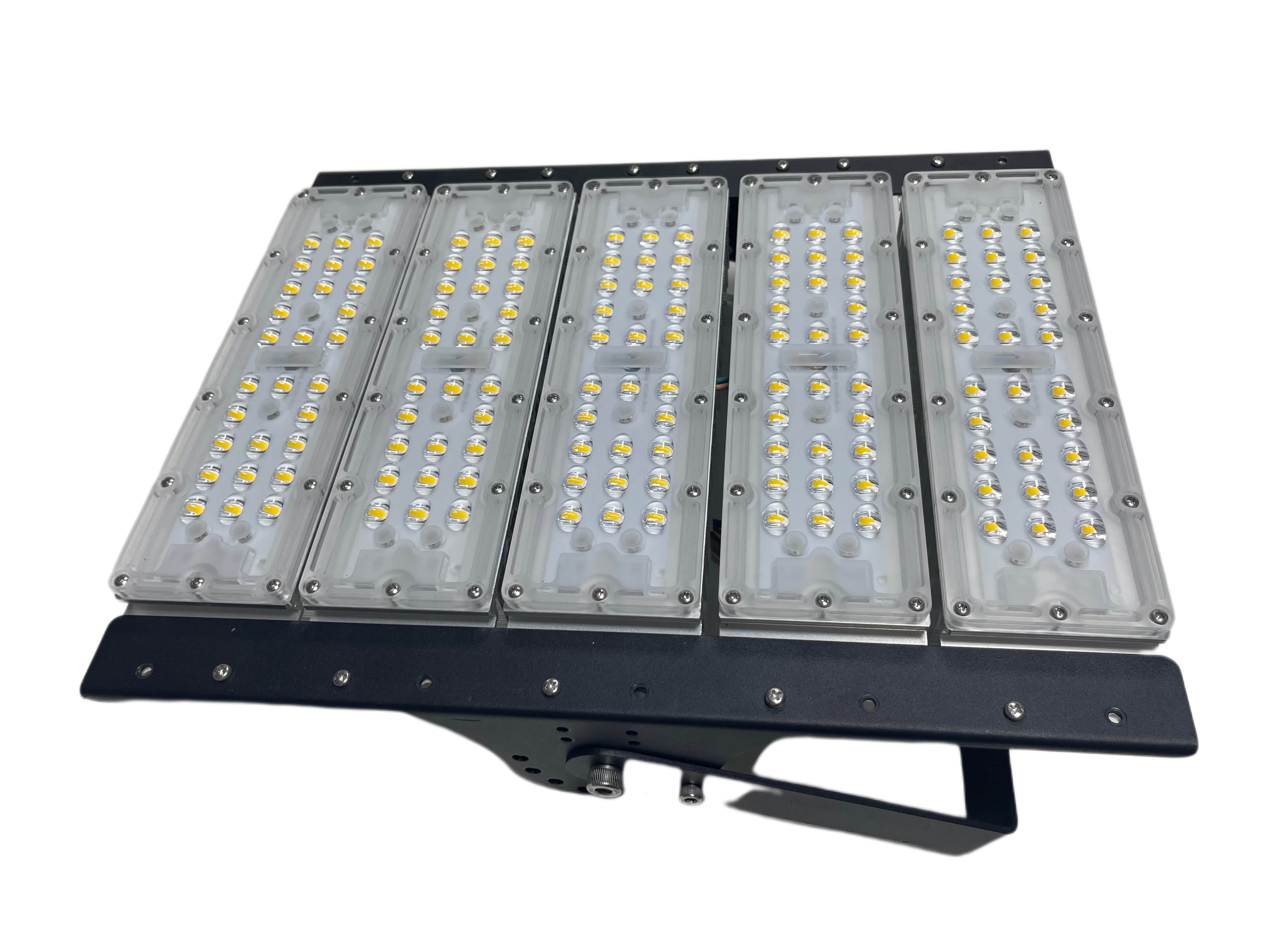

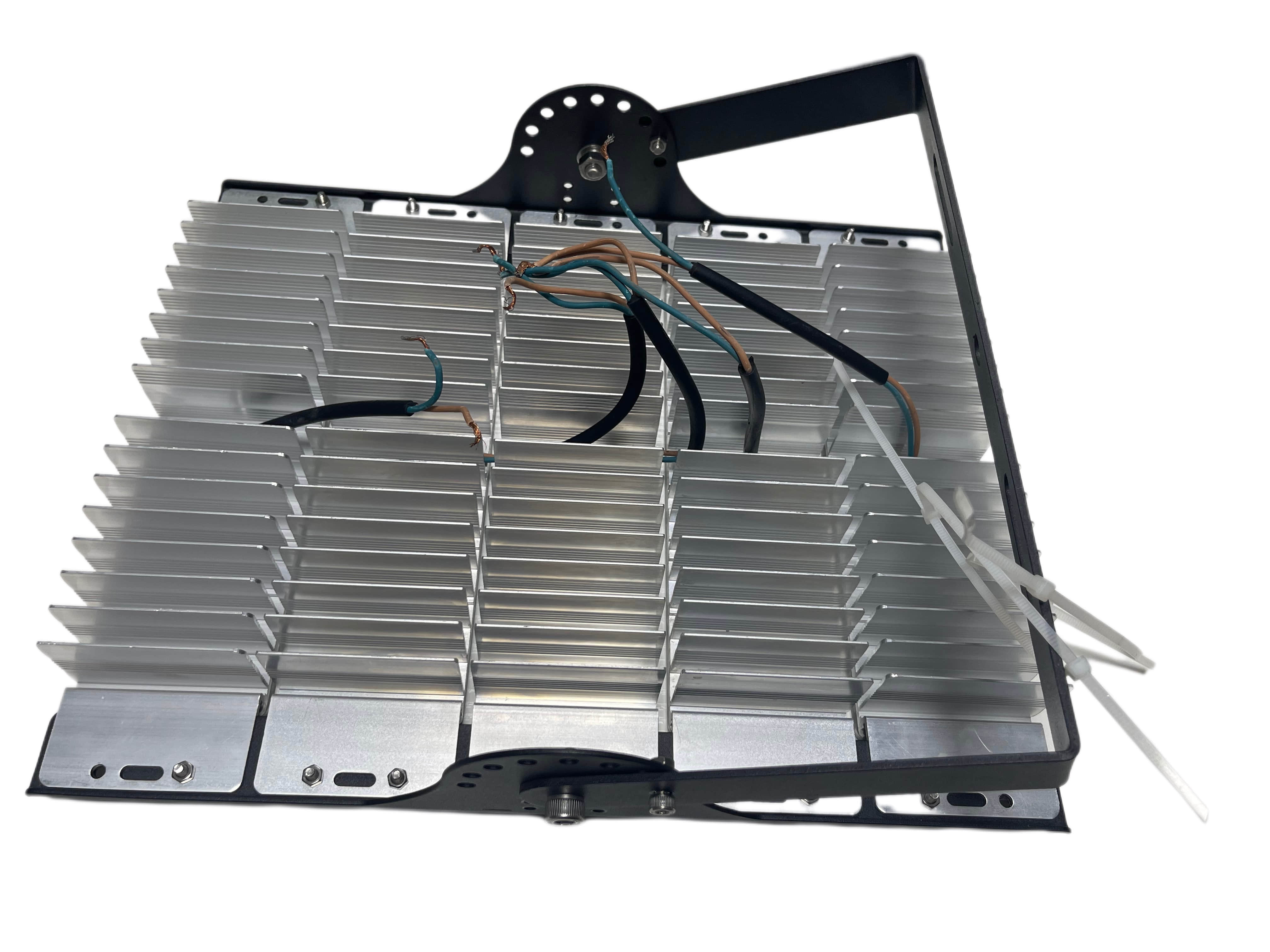

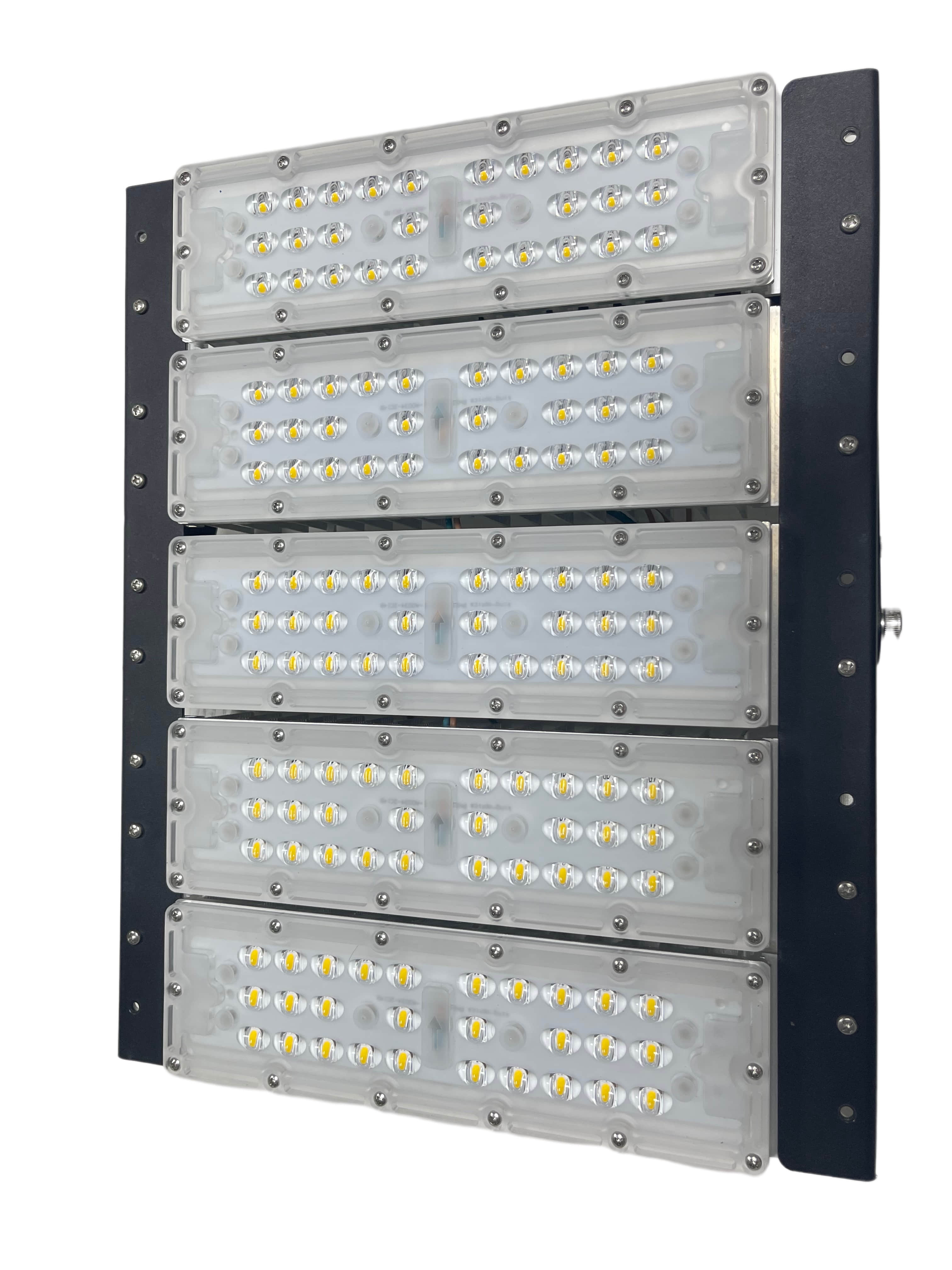

2. Designed for high-power applications, each lens module can achieve an impressive 100W output, providing robust and efficient lighting solutions

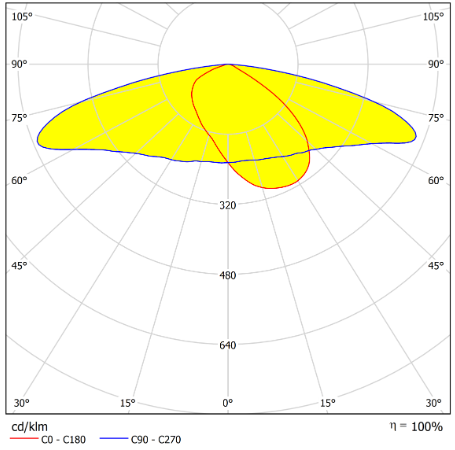

Distribution
Specifications
| Model: | ARST236D28LEDT2M-Cutoff |
| Diameter: | 236x70mm |
| Height: | 7.1mm |
| Angle: | T2M-CUTOFF |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ARST236D28LEDT2M-cutoff lens 3D drawing.STP

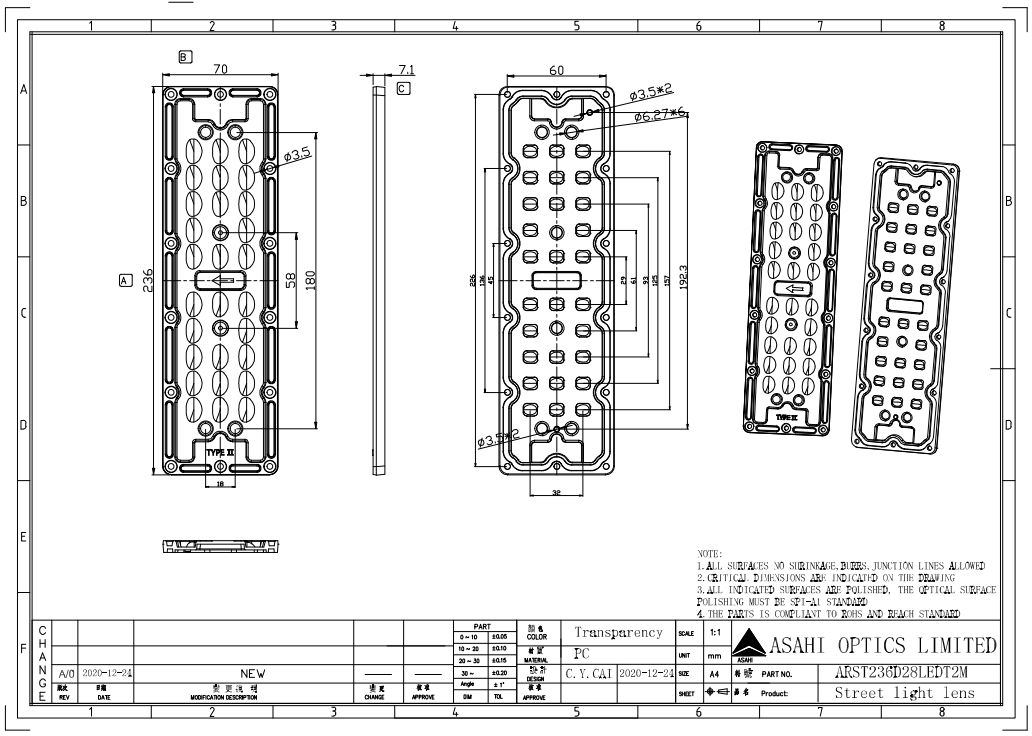

ASAHI OPTICS ARST236D28LEDT2M-cutoff Drawing.dwg
ASAHI OPTICS ARST236D28LEDT2M-cutoff Drawing.pdf
ASAHI OPTICS ARHB236D28LEDs PCB Drawing.dwg
