24LEDs high bay lens provides a narrow beam angle of 25°

Model: AJHB50D24LEDT25

Diameter: 50.0mm

Height: 5.6mm

Angle: 25°

Material: PC

Transmittance: >93%

LED Type: "3030"LED

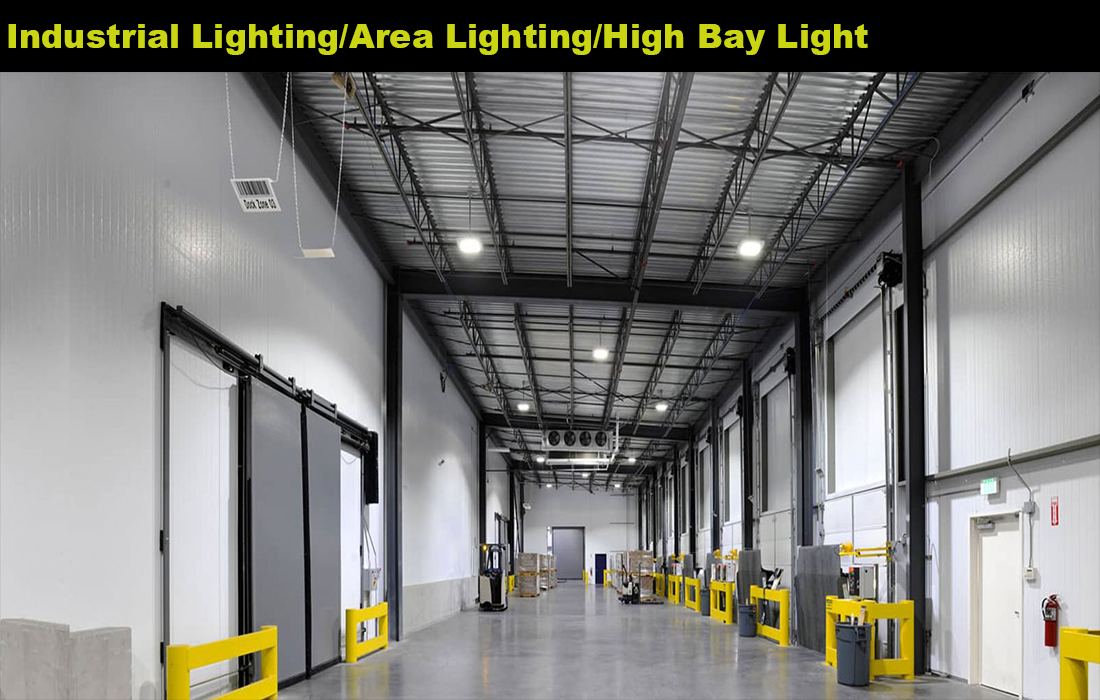

Lighting Applications: Industrial Lighting、Area Lighting/High Bay Light

1. The 24 LEDs lens for high bay with 3030 LED provides 25° beam angle for focused and efficient lighting in industrial and commercial settings.

2. This type of lens is designed to optimize the distribution of light, ensuring maximum illumination with minimal energy consumption. It is ideal for high bay applications where bright and uniform light coverage is required.

3. The lens designed with 3030LED, which offers high performance and reliability, making it a cost-effective solution for lighting large spaces.

Specifications

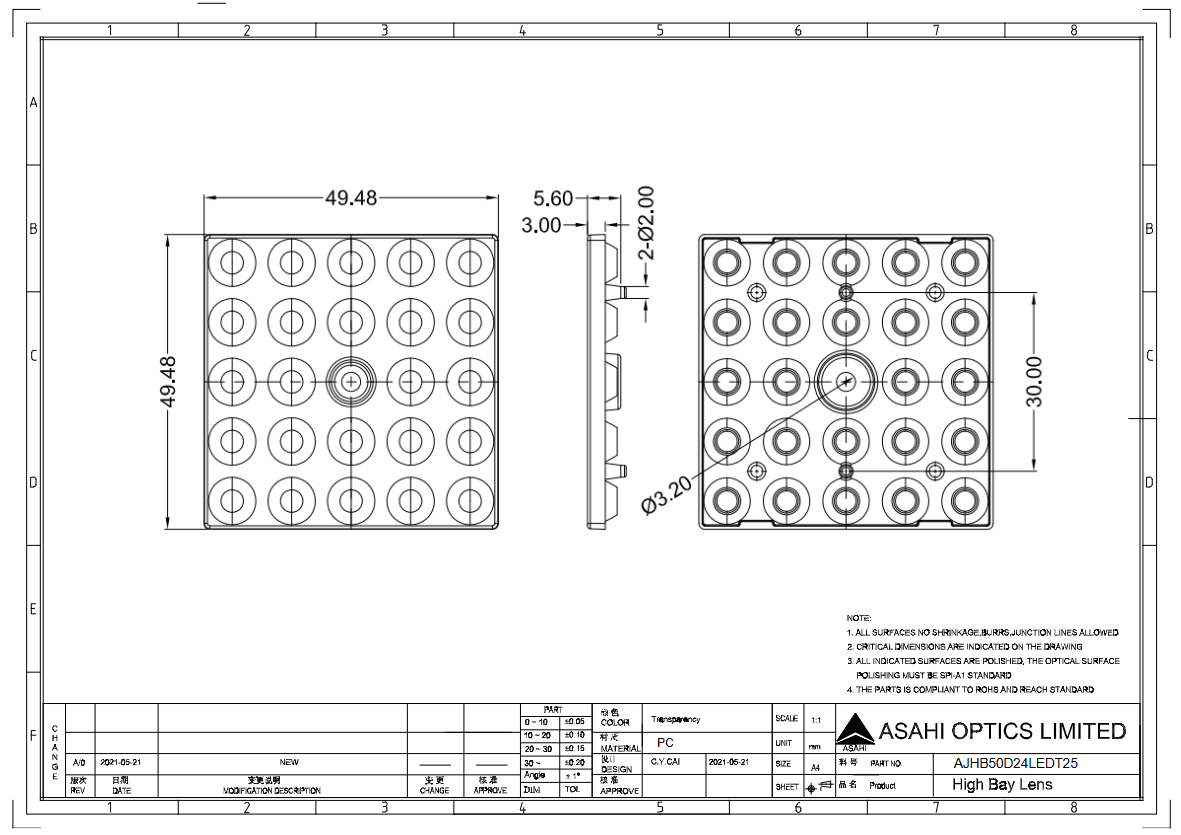

Model:	AJHB50D24LEDT25
Diameter:	50.0mm
Height:	5.6mm
Angle:	25°
Material：	PC
Transmittance：	>90%
LED Applications	"3030"LED
Lighting applications	Industrial Lighting、Area Lighting/High Bay Light

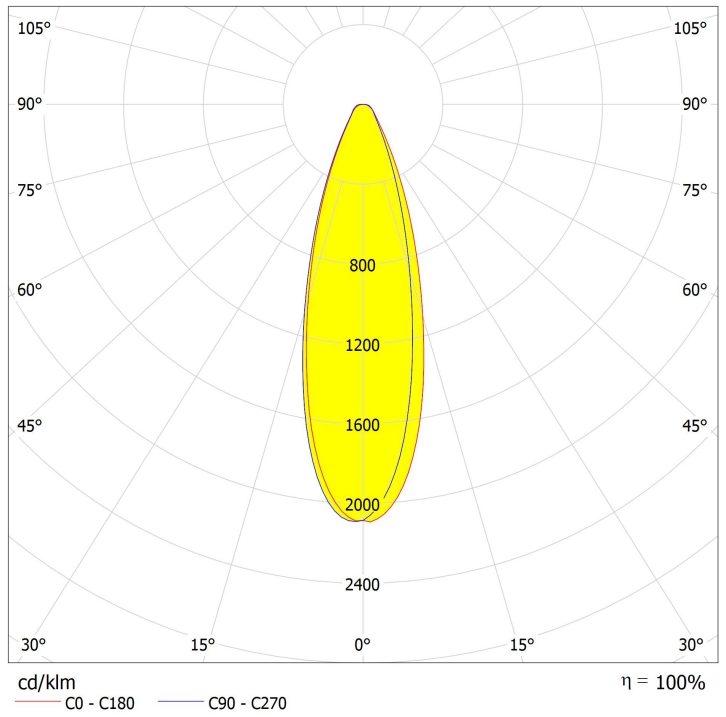

Light Distribution Curve

AJHB50D24LEDT25 Light Distribution Curve

High Bay Lens 2 1

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
