Model: AJST260D180LEDT2/T3/T4/T5
Diameter: 260.0mm
Height: 8.0mm
Angle: Type II,Type III,Type IV,Type V
Material: PC
Transmittance: >88%
LED Type: 3030LED

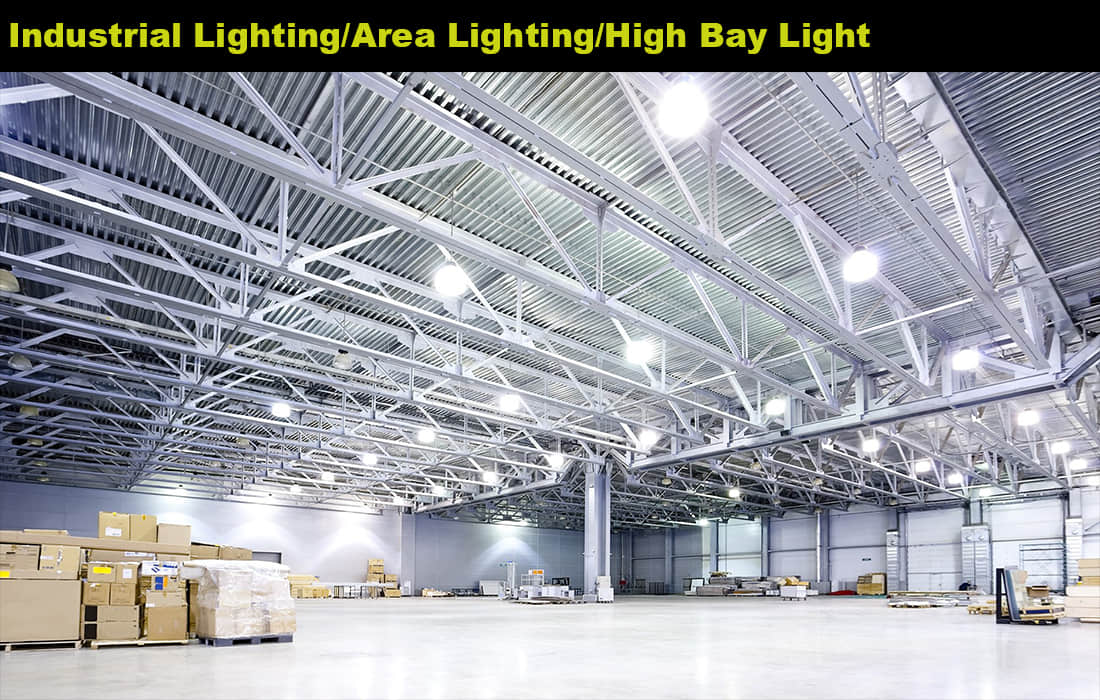

Lighting Applications: High Bay lighting, Street lighting

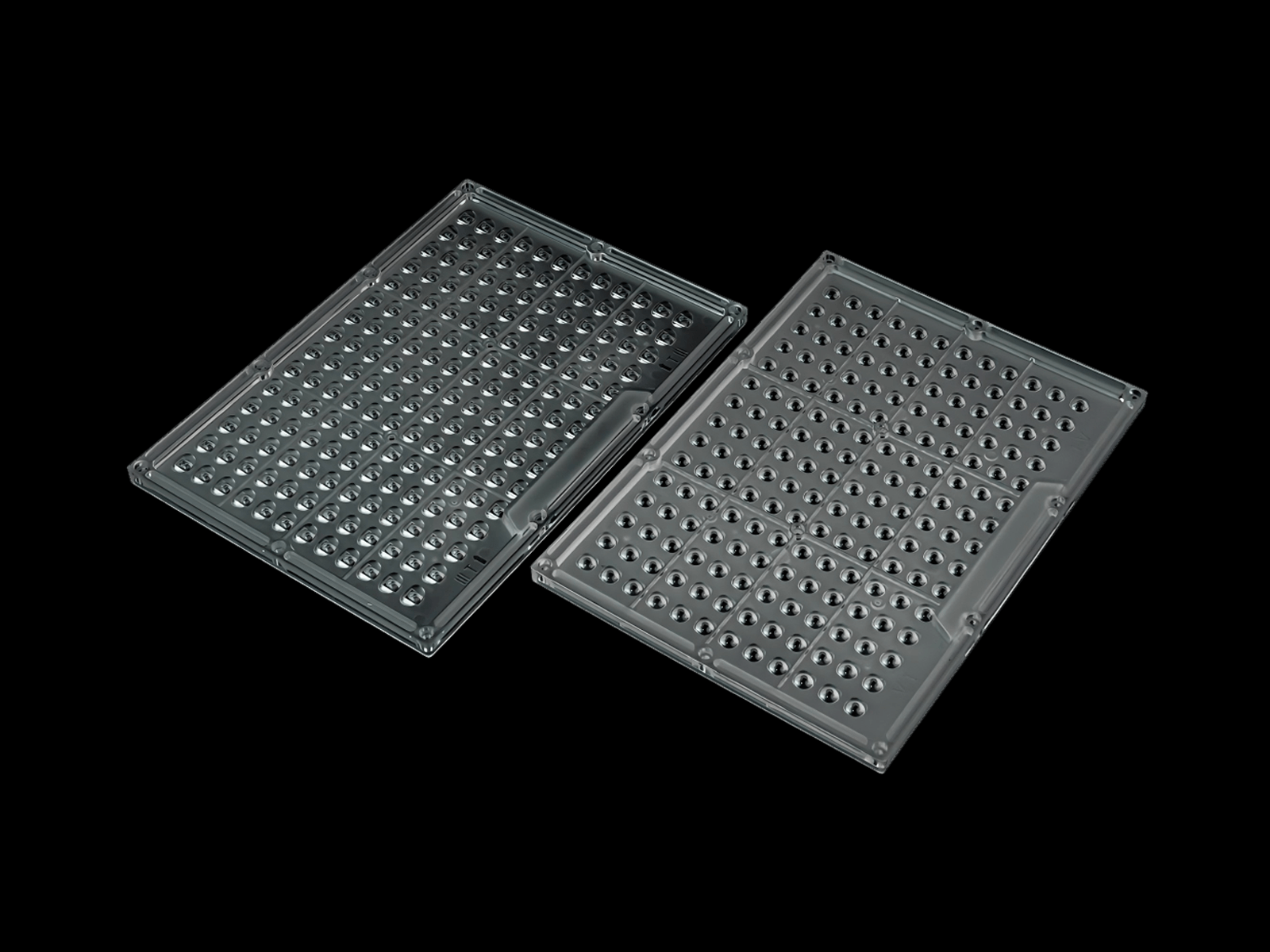

1. The 260mm 180LEDs lens is a high-performance secondary optics solution designed for street lighting applications, ensuring optimal light distribution with minimal glare and energy waste.
2. It provides different beam angles categorized under Type II, Type III, Type IV, and Type V distributions—standard classifications for roadway lighting.

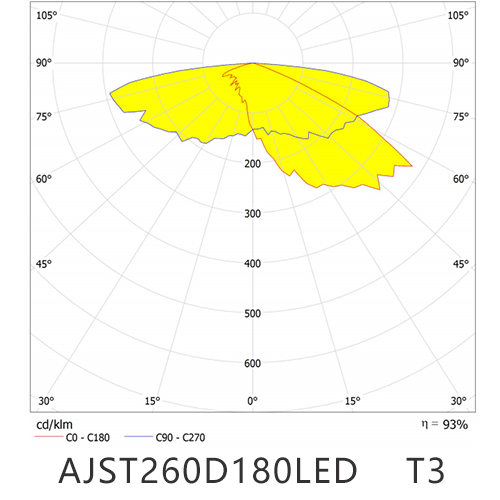

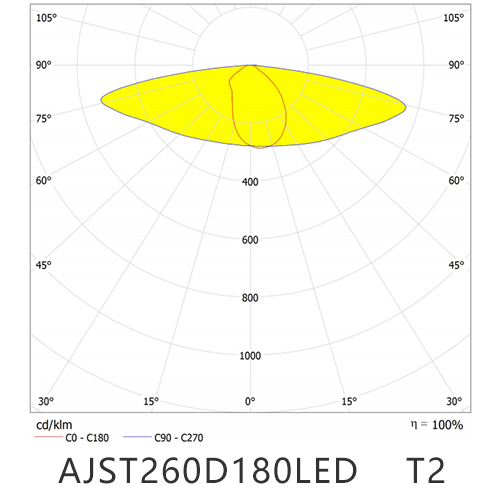

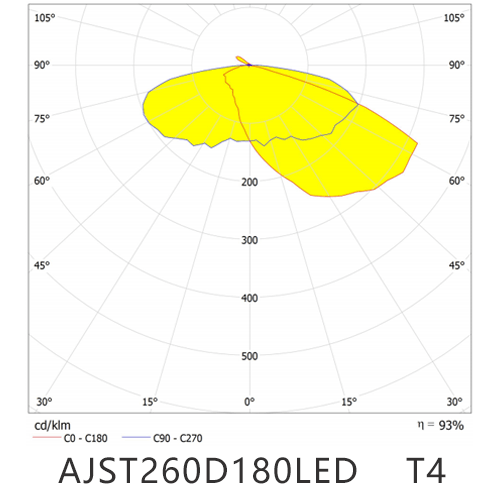

Distribution
Specifications
| Model: | AJST260D180LEDT2/T3/T4/T5 |
| Diameter: | 260.0mm |
| Height: | 8.0mm |
| Angle: | Type II,Type III,Type IV,Type V |
| Material： | PC |
| Transmittance： | >88% |
| LED Type | 3030LED |
| Lighting applications | High Bay lighting, Street lighting |
LED Type

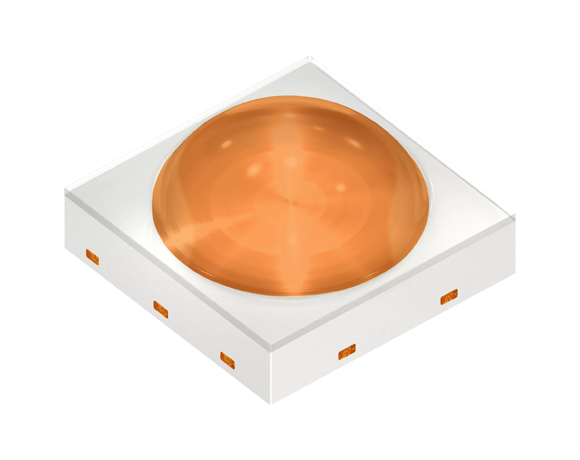

OSRAM OSCONIQ® P

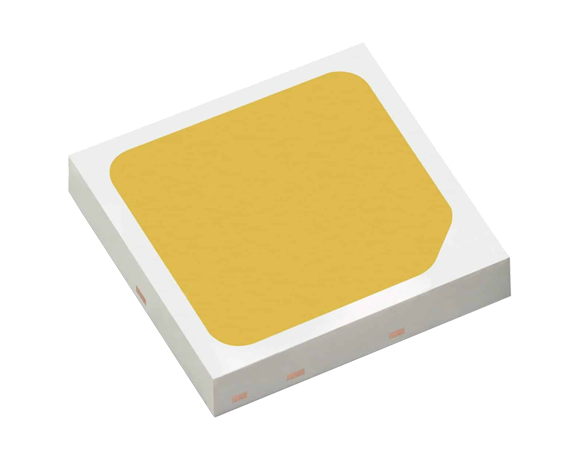

LUXEON 3030 HE

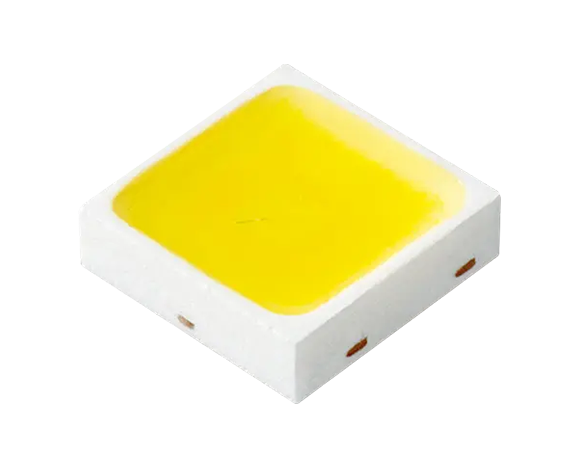

NFSW 3030 series

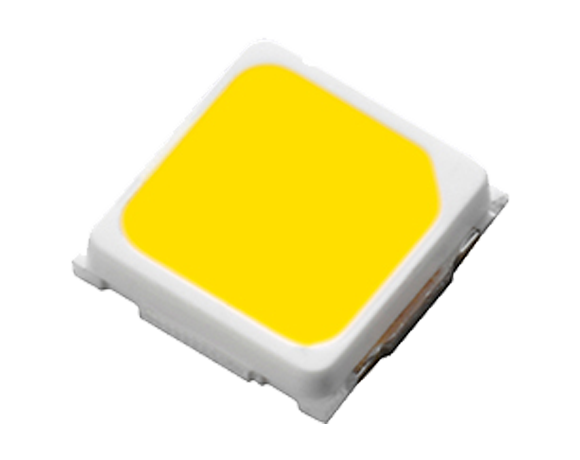

XI3030 series

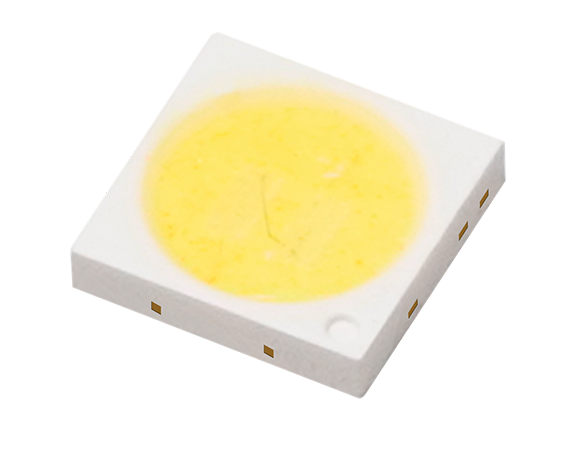

EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 260mm 180LEDs lens is a high-performance secondary optics solution designed for street lighting applications, ensuring optimal light distribution with minimal glare and energy waste.
2. It provides different beam angles categorized under Type II, Type III, Type IV, and Type V distributions—standard classifications for roadway lighting.
