Model: AJHB50D4LED5050T50G
Diameter: 50x50mm
Height: 8.0mm
Angle: 50°
Material: PC-1250Z
Transmittance: >90%
LED Type: 3535LED/5050LED

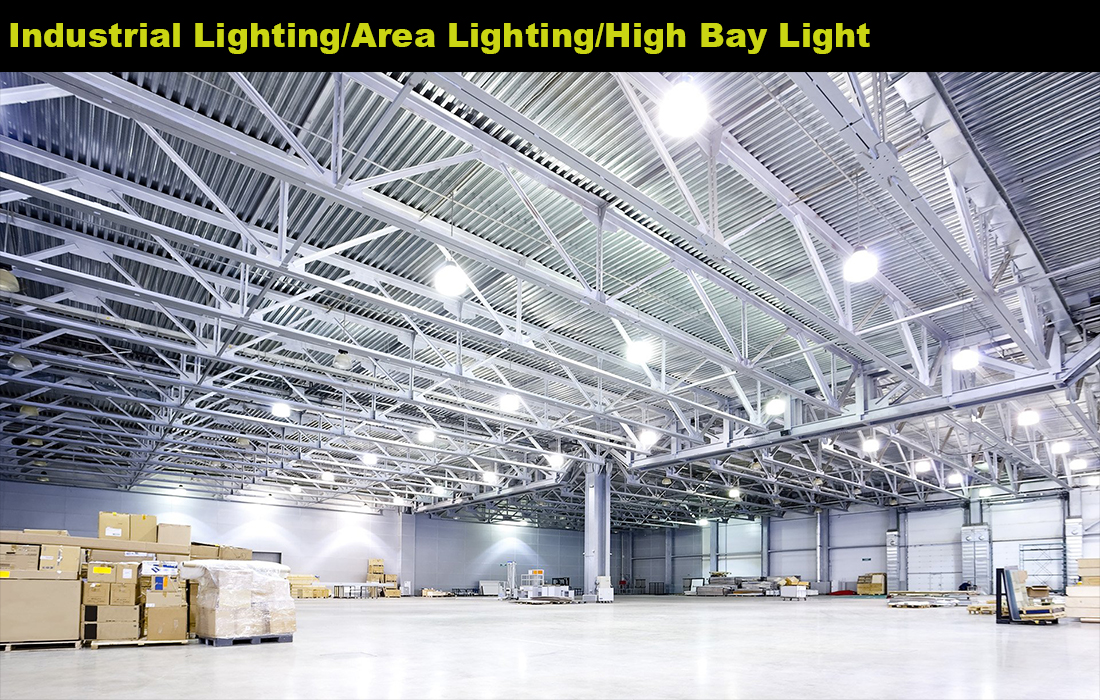

Lighting Applications: Architecture lighting,High Bay lighting
1.The 2x2-50 degree lens compatible for 3535LED, provides a balanced and versatile illumination.
2. 2x2-50degree lens suitable for a wide range of lighting scenarios. Whether used in warehouses, manufacturing facilities, or indoor sports arenas etc.
3. It's made of high quality PC material with excellent UV resistance.

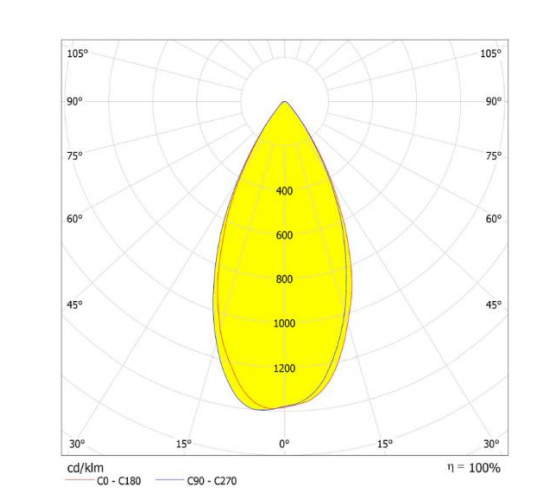

Distribution
Specifications
| Model: | AJHB50D4LED3535T50G |
| Diameter: | 50x50mm |
| Height: | 8mm |
| Angle: | 50° |
| Material： | PC |
| Transmittance： | 92% |
| LED Type | 3535LED |
| Lighting applications | High Bay Light/Flood Light/Sport Light |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1.The 2x2-50 degree lens compatible for 3535LED, provides a balanced and versatile illumination.
2. 2x2-50degree lens suitable for a wide range of lighting scenarios. Whether used in warehouses, manufacturing facilities, or indoor sports arenas etc.
3. It's made of high quality PC material with excellent UV resistance.
