Model: AJST50D4LED5050ME1
Diameter: 50x50mm
Height:
Angle: TypeII-ME1
Material: PC
Transmittance: ＞92%
LED Type: 5050LED

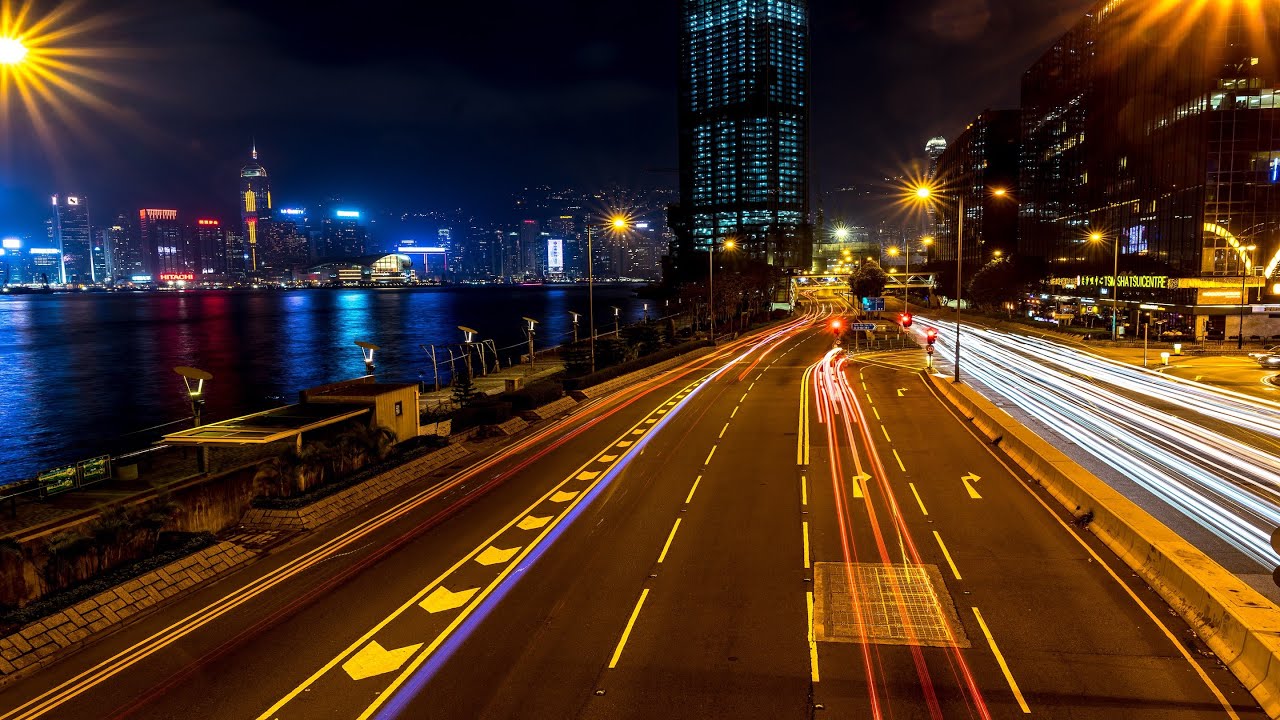

Lighting Applications: Street Lighting
1. The 2x2 lens T2 medium ME1 is designed to provide precise and efficient light distribution for medium-range applications.
2.This lens was designed for ME1-lighting classes according to EN 13201-2

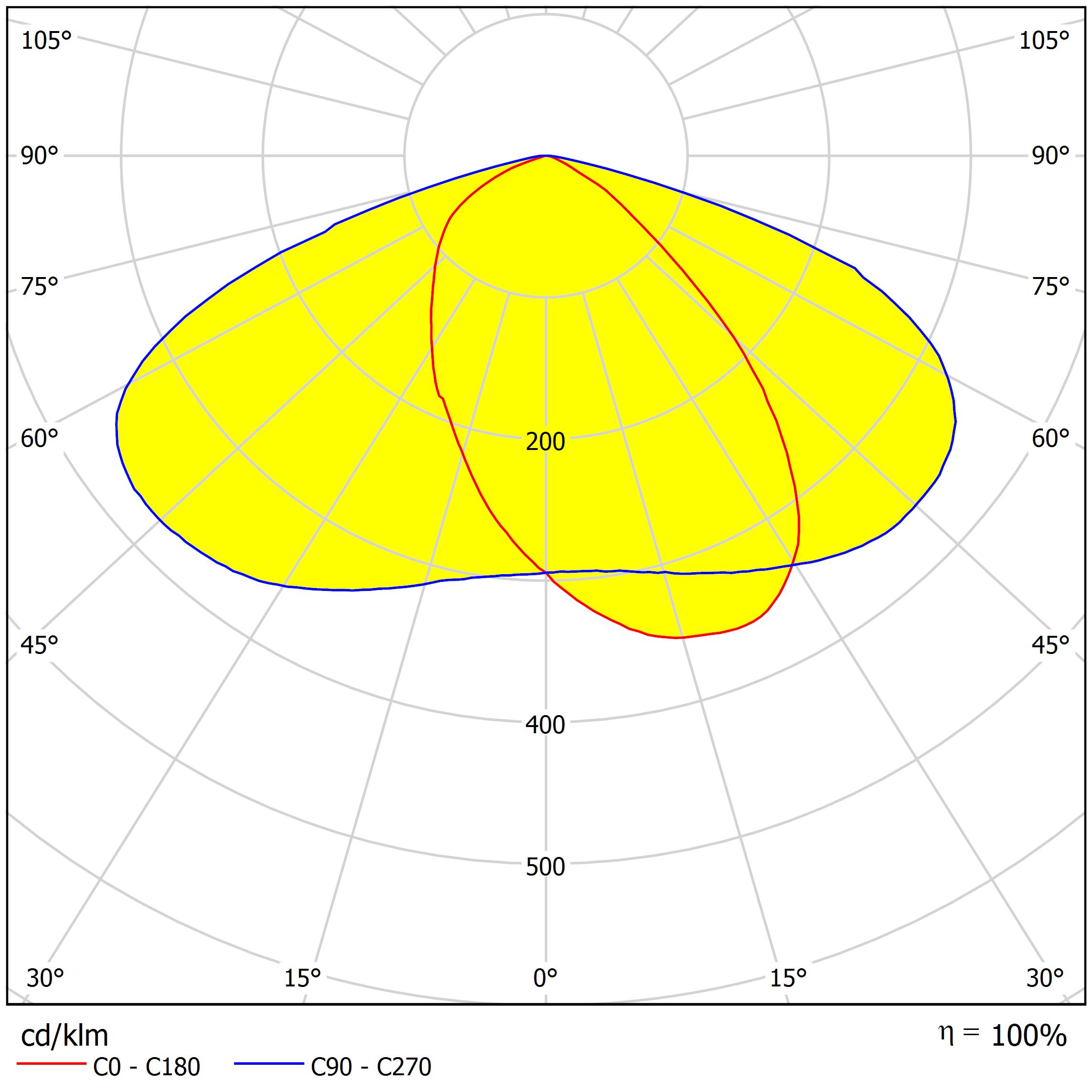

Distribution
Specifications
| Model: | AJST50D4LED5050ME1 |
| Diameter: | 50x50mm |
| Height: | |
| Angle: | TypeII-ME1 |
| Material： | PC |
| Transmittance： | ＞92% |
| LED Type | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 2x2 lens T2 medium ME1 is designed to provide precise and efficient light distribution for medium-range applications.
2.This lens was designed for ME1-lighting classes according to EN 13201-2
