Model: AJST304D22LEDT2
Diameter: 304mm
Height: 8.6mm
Angle: Type II
Material: PC
Transmittance: >88%
LED Type: 7070LED
Lighting Applications: Street lighting
This series of lenses are designed for 7070 LEDs, aiming to meet the needs of high brightness, high color rendering and excellent heat dissipation performance, and are suitable for lighting scenarios such as shoebox lights, street lights, spotlights, parking lot lighting, plaza lighting, etc.
At the same time, this series of lenses provide a variety of beam angle options (including 60 °, 90x120 °, T2, T3, T4S, T5, etc.), which can effectively expand the customer's product line to meet the diversified lighting needs.

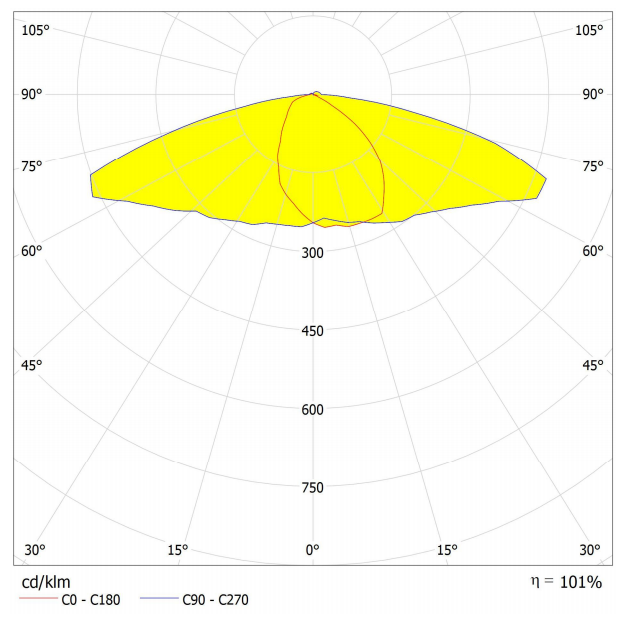

Distribution
Specifications
| Model: | AJST304D22LEDT2 |
| Diameter: | 304mm |
| Height: | 8.6mm |
| Angle: | Type II |
| Material： | PC |
| Transmittance： | >88% |
| LED Applications | 7070LED |
| Lighting applications | Street Lighting |

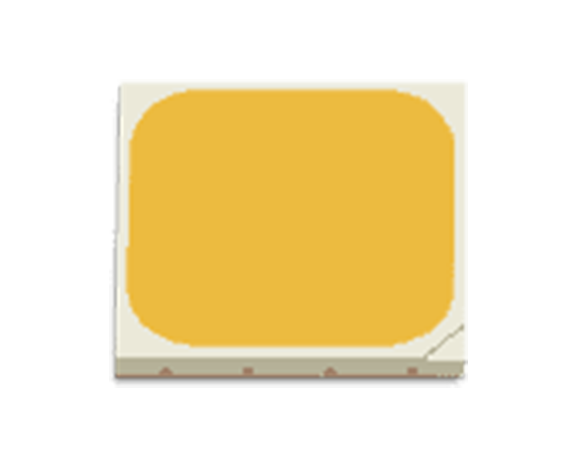

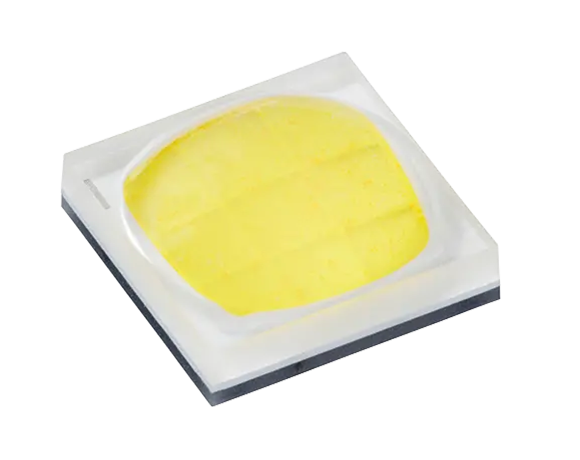

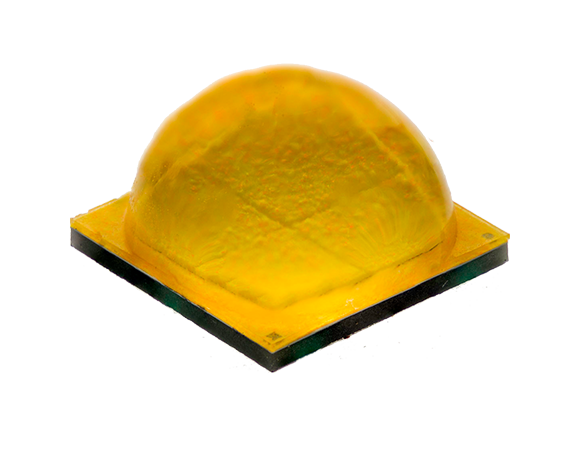

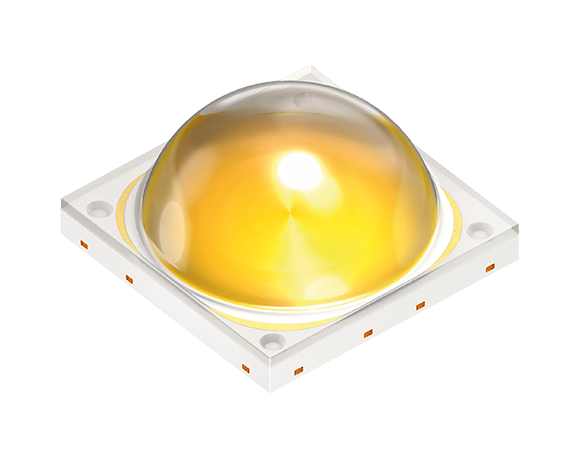

LED Type
XHP70.3
OSCONIQ™ P 7070
LUXEON 7070 HE
149 Series
EMC7070LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

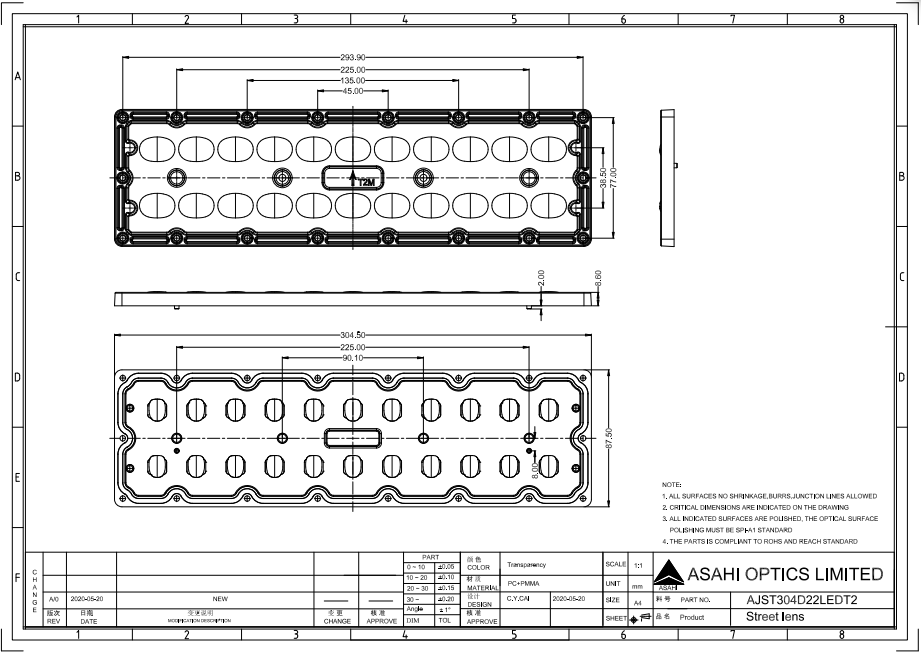

Asahi Optics AJST304D22LEDT2 Drawing.dwg
Asahi Optics AJST304D22LEDT2 Drawing.pdf
Asahi Optics AJST304D22LEDT2.IES
