Model: ALST50D12LED3030T2M
Diameter: 50x50mm
Height: 4.02mm
Angle: T2M
Material: PC-1250Z
Transmittance: >90%
LED Type: 3030LED
Lighting Applications: Street lighting,Architecture lighting,
1. 50mm 12x1 lens constructed from high quality PC-1250Z material,offering durability and resistance to weather conditions, UV radiation, and impact.
2.The design of the 12X1 TypeII-Medium street lens helps to increase the overall brightness of the streetlight, improving visibility in the surrounding environment and making it easier for pedestrians and drivers to perceive their surroundings.
3. Delivers high lumen output, ensuring powerful and effective illumination for expansive areas.

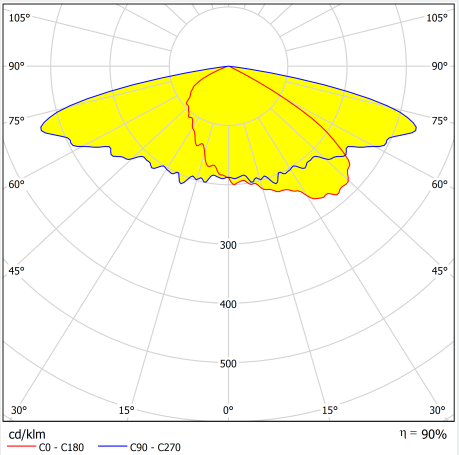

Distribution
Specifications
| Model: | ALST50D12LED3030T2M |
| Diameter: | 50x50mm |
| Height: | 4.02mm |
| Angle: | T2M |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030LED |
| Lighting applications | Street lighting,Architecture lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

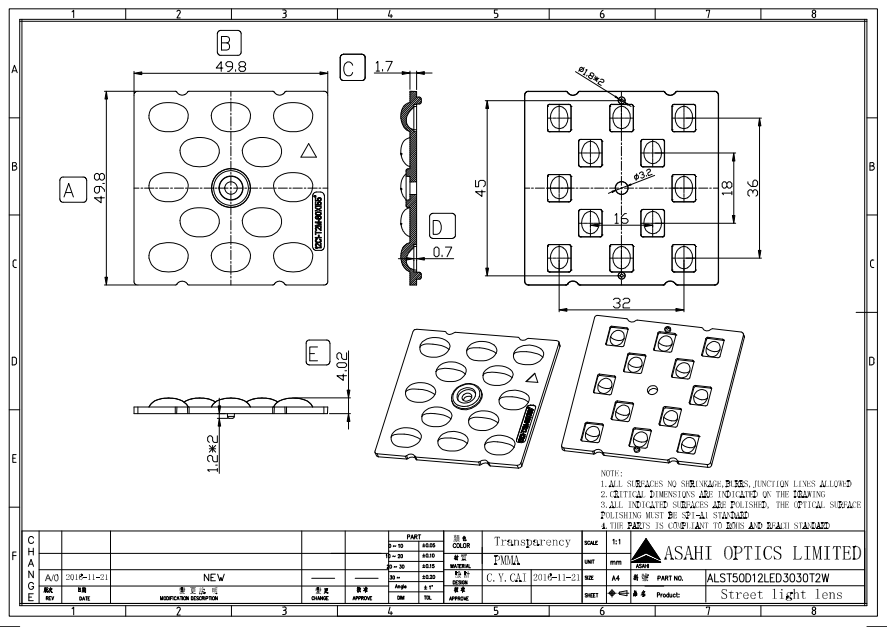

ASAHI OPTICS ALST50D12LED3030T2W Drawing.dwg
ASAHI OPTICS ALST50D12LED3030T2W Drawing.pdf
ASAHI OPTICS ALST50D12LED3030T2W lens IES.ies
