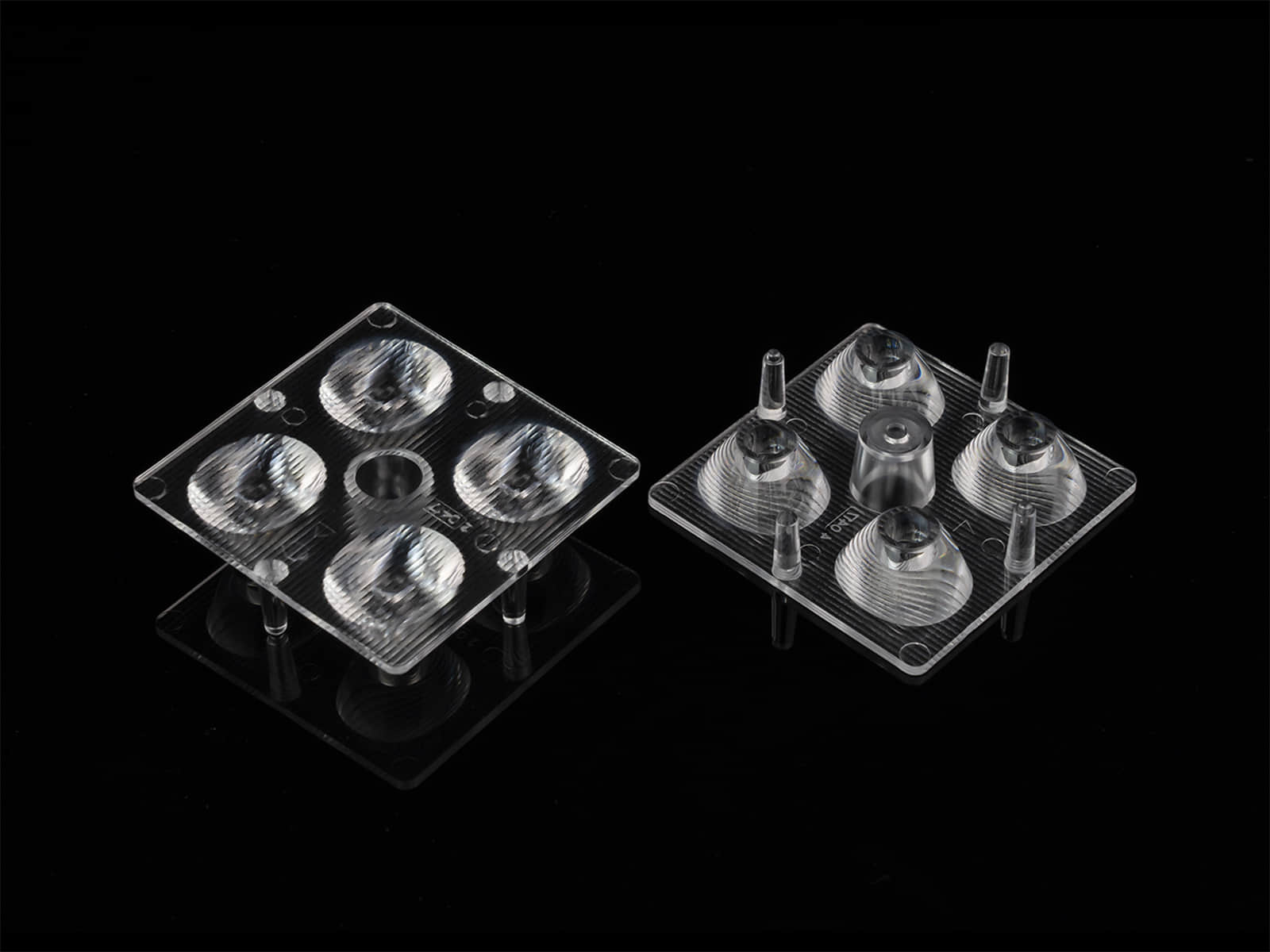

Model: ALSP50D4LED3535T1VS-B
Diameter: 50x50mm
Height: 11.25mm
Angle: T1VS-B
Material: PC-1250Z
Transmittance: >93%
LED Type: 3535LED
Lighting Applications: Sport lighting, Stadium lighting
1. The design of TYPE I-Very Short sport light lenses helps reduce glare, providing a comfortable viewing experience for both athletes and spectators.
2. 2x2 sport lenses are versatile and can be applied to different sports fields, providing tailored illumination for activities such as tennis, basketball, or volleyball.
3. Offers a long operational lifespan, reducing the need for frequent replacements and maintenance, and providing cost savings over time.

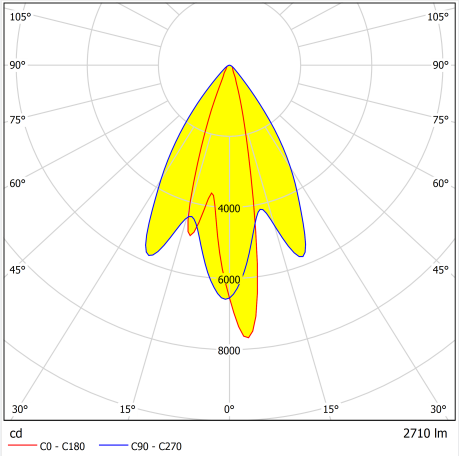

Distribution
Specifications
| Model: | ALSP50D4LED3535T1VS-B |
| Diameter: | 50x50mm |
| Height: | 11.25mm |
| Angle: | TypeI-Very Short |
| Material： | PC-1250Z |
| Transmittance： | >93% |
| LED Type | 3535LED |
| Lighting applications | Sport lighting, Stadium lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

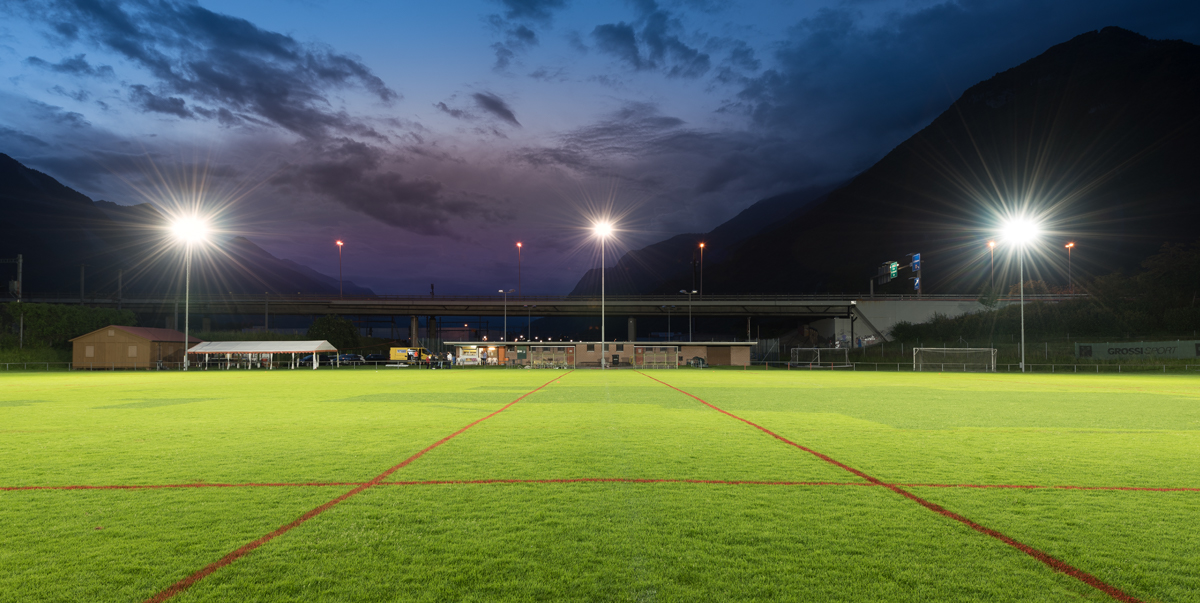

The 2x2 T1VS very short narrow forward throw beam is typically used for area lighting such as sports stadium lighting, tunnel light, parking lot etc.
1. The design of TYPE I-Very Short sport light lenses helps reduce glare, providing a comfortable viewing experience for both athletes and spectators.
2. 2x2 sport lenses are versatile and can be applied to different sports fields, providing tailored illumination for activities such as tennis, basketball, or volleyball.
3. Offers a long operational lifespan, reducing the need for frequent replacements and maintenance, and providing cost savings over time.

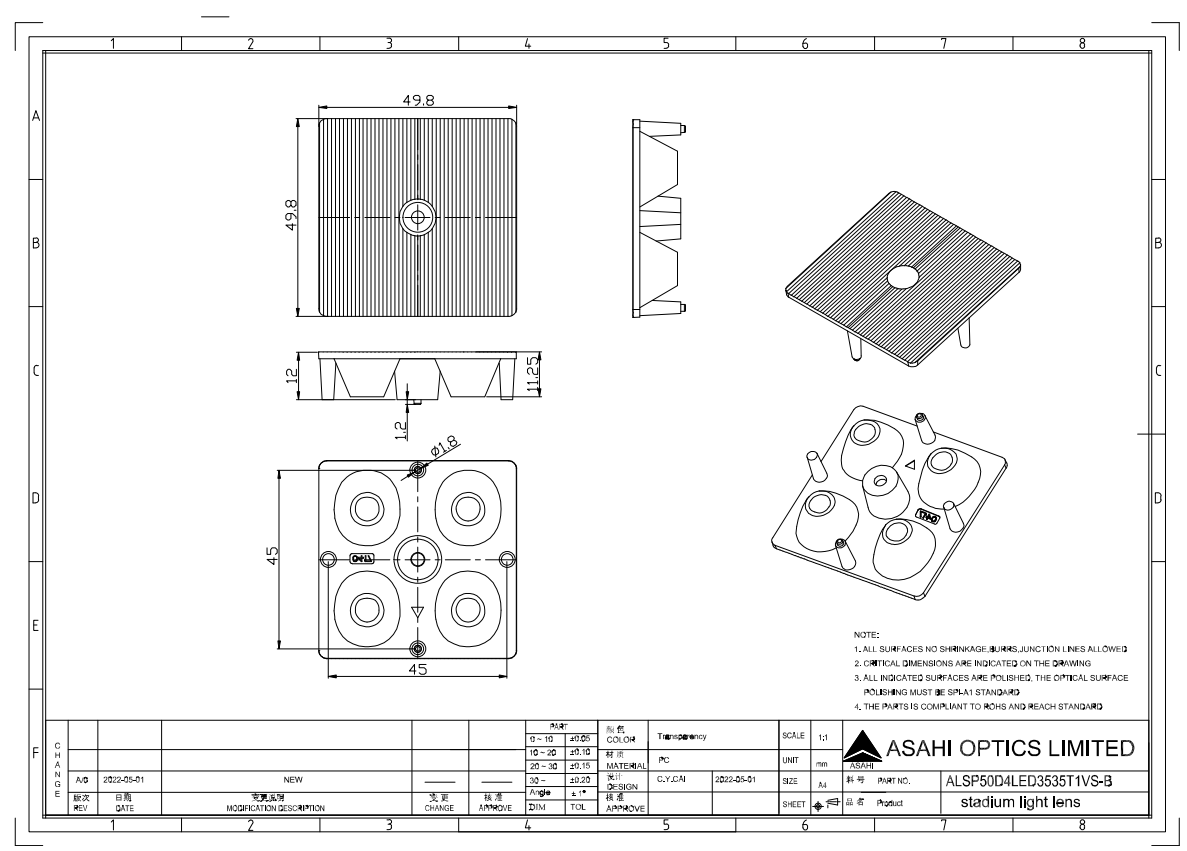

Asahi Optics ALSP50D4LED3535T1VS-B Drawing.dwg
Asahi Optics ALSP50D4LED3535T1VS-B Drawing.pdf
Asahi Optics ALSP50D4LED3535T1VS-B- lens-PC.ies
