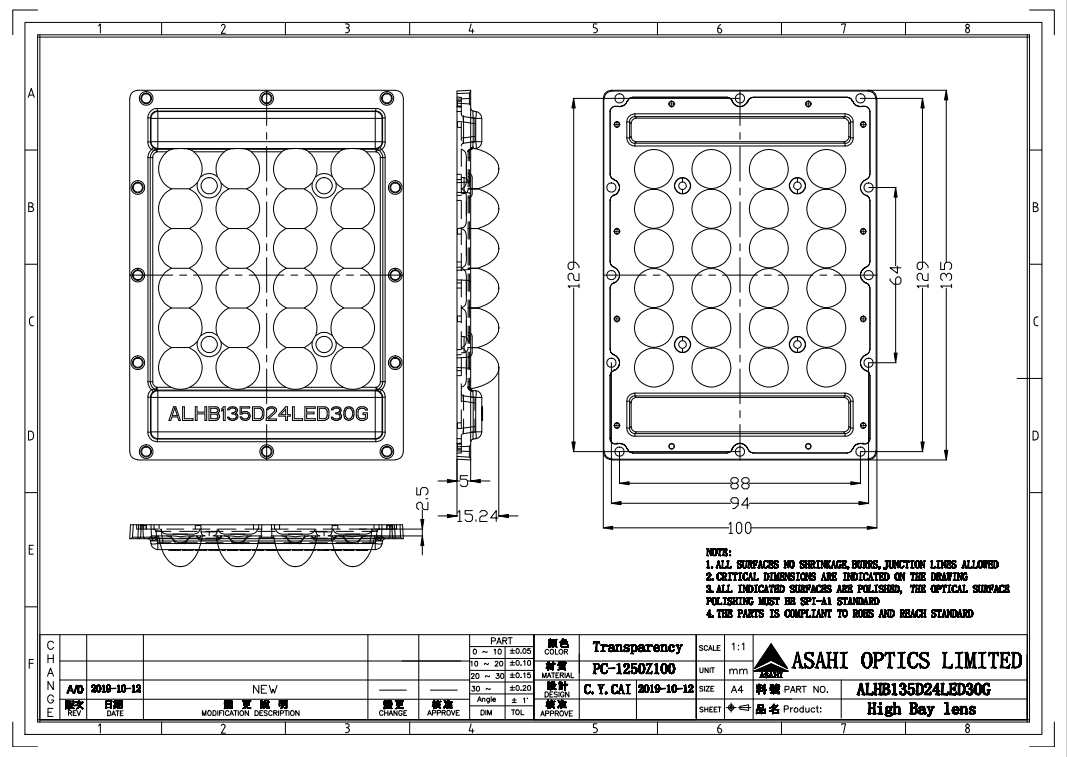

Model: ALHB135D24LED30G
Diameter: 135mm+100mm
Height: 15.24
Angle: 30°
Material: PC-1250Z
Transmittance: >90%
LED Type: "3535" "5050"

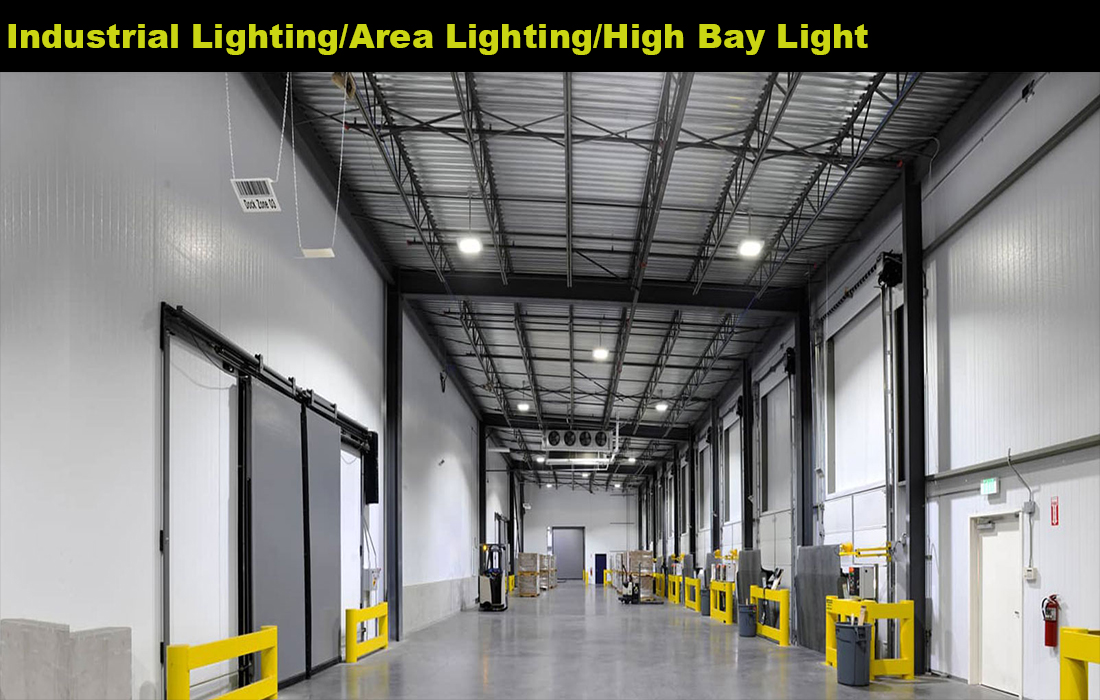

Lighting Applications: High Bay Lighting, Area Lighting

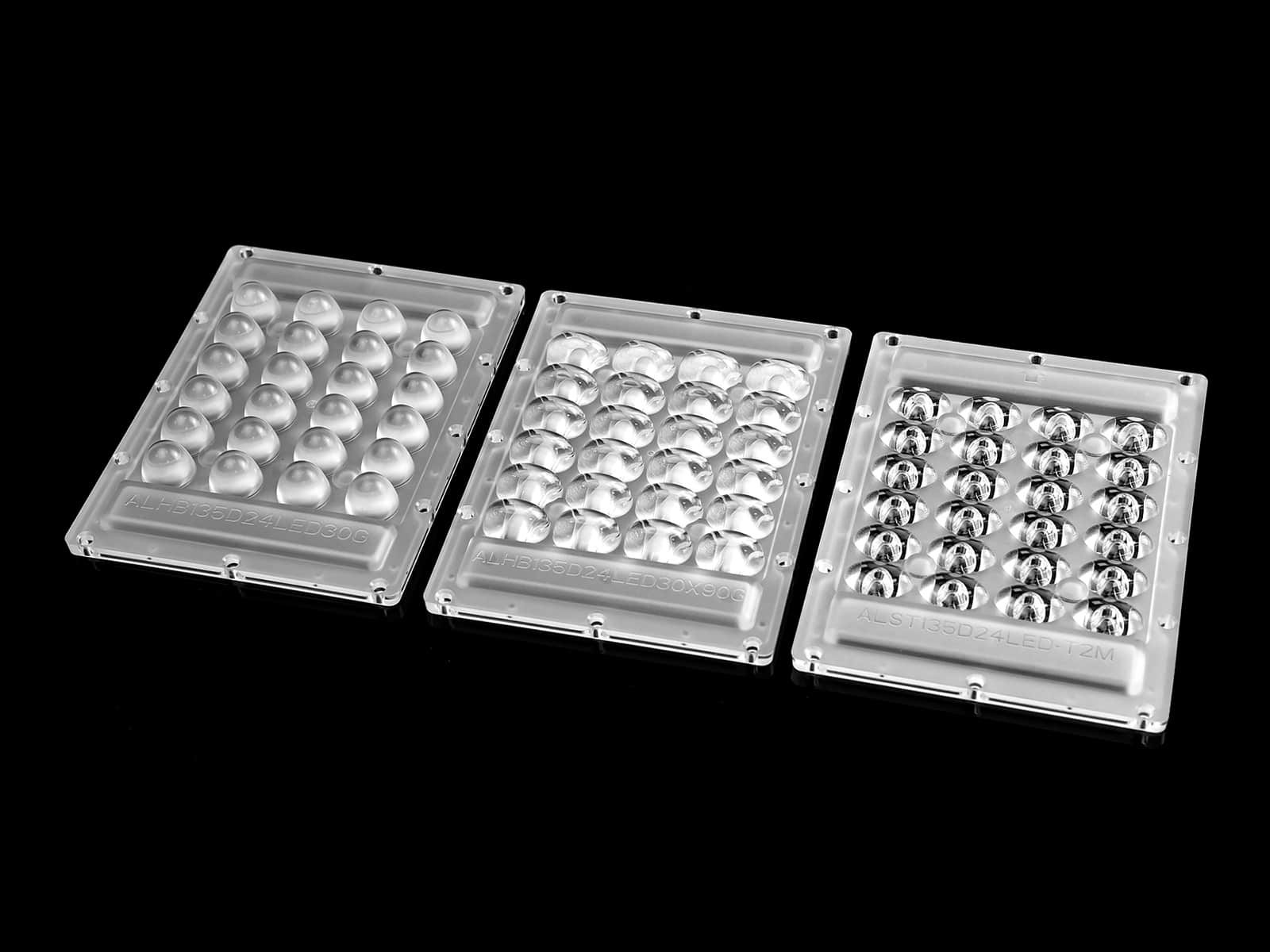

1. 4x6-30degre1. 4x6-30degree lens is designed to simultaneously match both 3535 and 5050 LED types,offers flexibility and options for customers, allowing them to choose the LED source that best suits their specific requirements and preferences.

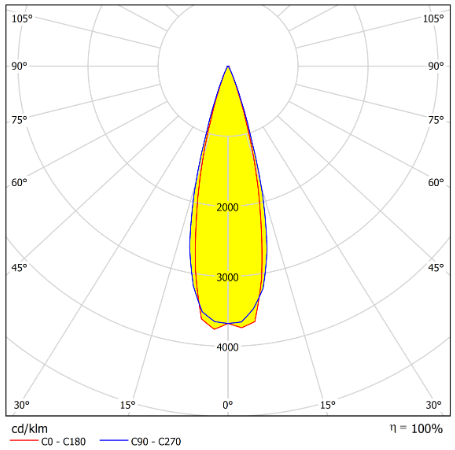

2. With a focused 30° beam angle, this lens is particularly suitable for high bay lighting applications. The narrower beam angle ensures concentrated and directed illumination, making it ideal for environments with high ceilings where targeted and efficient lighting is essential.
3. It's made of PC material,exhibits high-temperature resistance up to 120°C.e lens is designed to simultaneously match both 3535 and 5050 LED types,offers flexibility and options for customers, allowing them to choose the LED source that best suits their specific requirements and preferences.
2. With a focused 30° beam angle, this lens is particularly suitable for high bay lighting applications. The narrower beam angle ensures concentrated and directed illumination, making it ideal for environments with high ceilings where targeted and efficient lighting is essential.
3. It's made of PC material,exhibits high-temperature resistance up to 120°C.
| Model: | LHB135D24LED30G |
| Diameter: | 135*100mm |
| Height: | 15.24mm |
| Angle: | 30 ° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | "3535" "5050" LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED LENS Maintenance Instruction
1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
