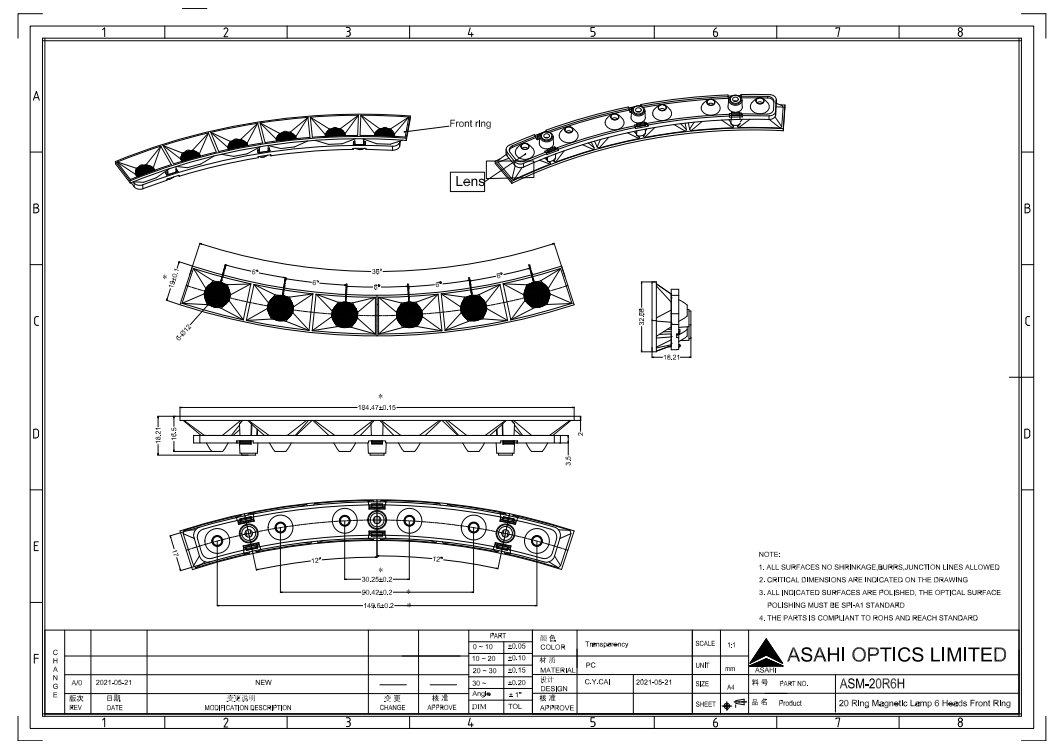

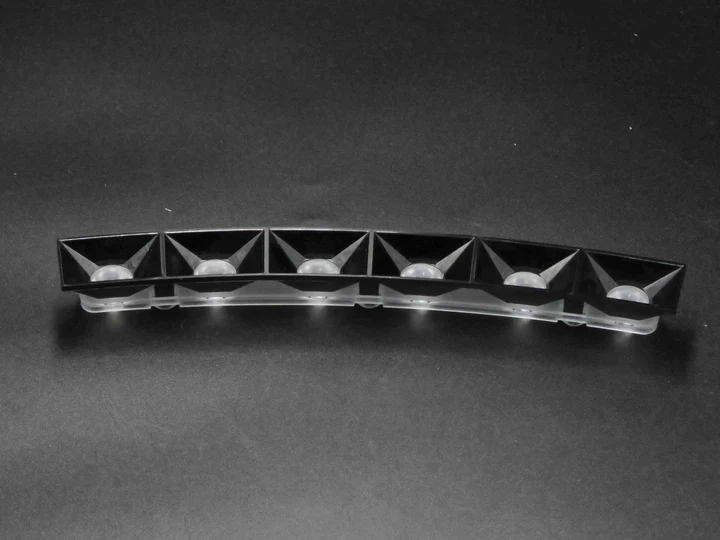

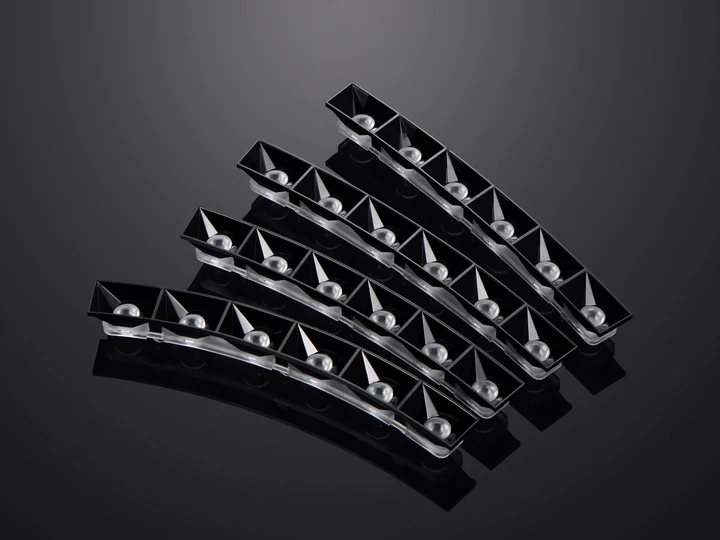

Model: ASM-20R6H
Diameter: 184.47mm
Height: 32.68mm
Angle:
Material: PC
Transmittance: 90%
LED Type: "3030""3535"LED

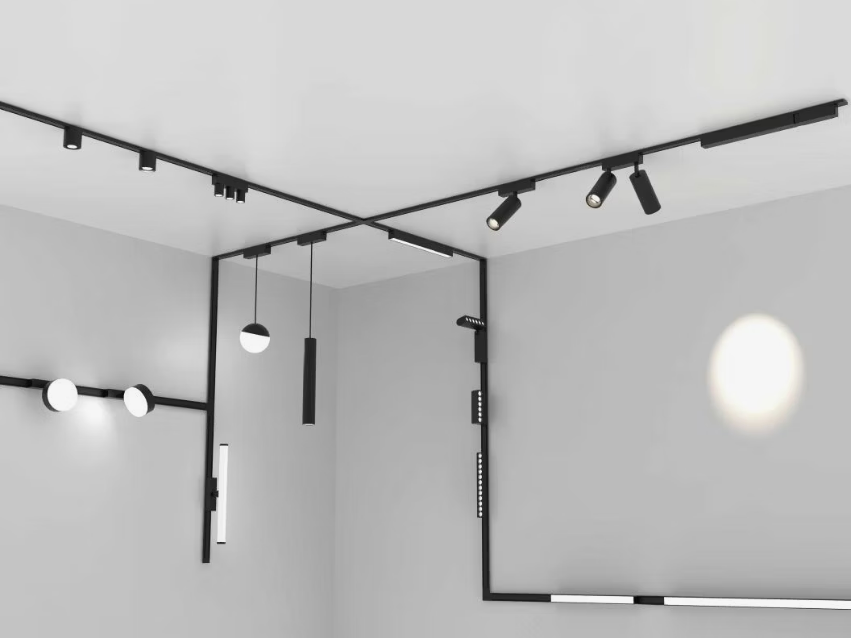

Lighting Applications: linear light, Magnetic Track Lighting, Indoor lighting
1, This led lens can be used for magnetic track light.
2, The magnetic track light lens with complete dimensions: 600mm, 800mm, 900mm, 1000mm, 1500mm, 1800mm, 2000mm, 2400mm, 3000mm.
Distribution
Specifications
| Model: | ASM-20R6H |
| Diameter: | 184.47mm |
| Height: | 32.68mm |
| Angle: | T2M |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 3030/ 3535LED |
| Lighting applications | linear light, Magnetic Track Lighting, Indoor lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. This led lens can be used for magnetic track light.
2. The magnetic track light lens with complete dimensions: 600mm, 800mm, 900mm, 1000mm, 1500mm, 1800mm, 2000mm, 2400mm, 3000mm.
