Model: AST20DP30G
Diameter: 20.0mm
Height: 7.67mm
Angle: Asy 30°
Material: PMMA
Transmittance: >93%
LED Type: CREE XP-G , XP-E

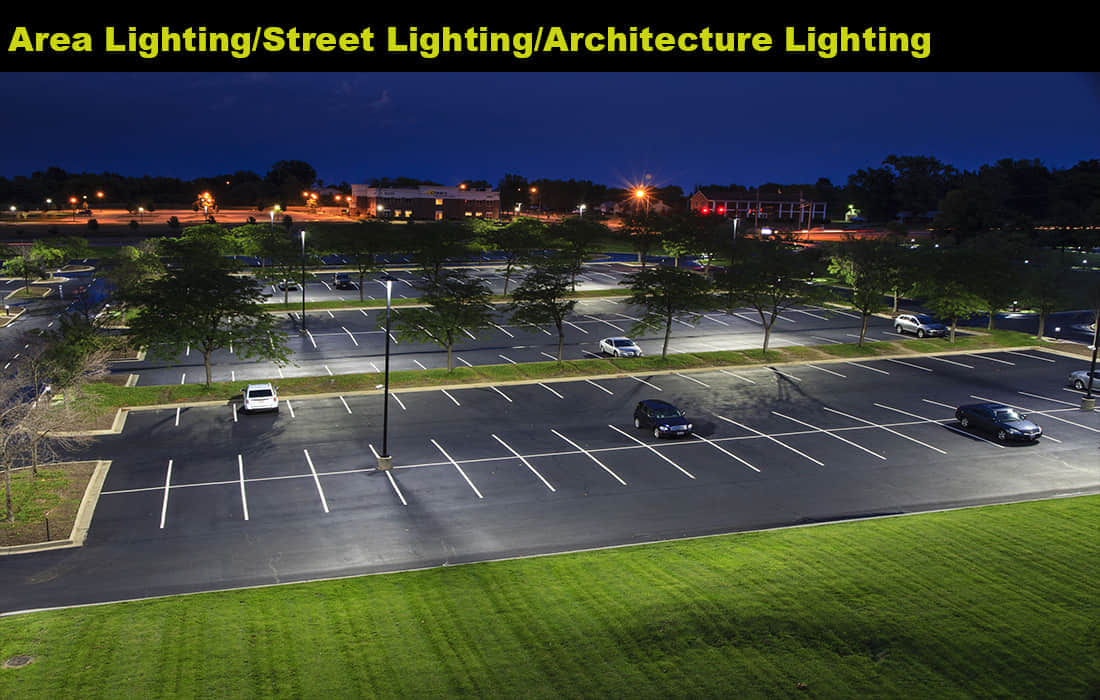

Lighting Applications: Area lighting
1. This 20mm single lens was designed by PMMA material with high lighting transmittance upto 93%.
2. This 20mm single lens designed with asymmetric beams can meet particular architecture lighting applications.

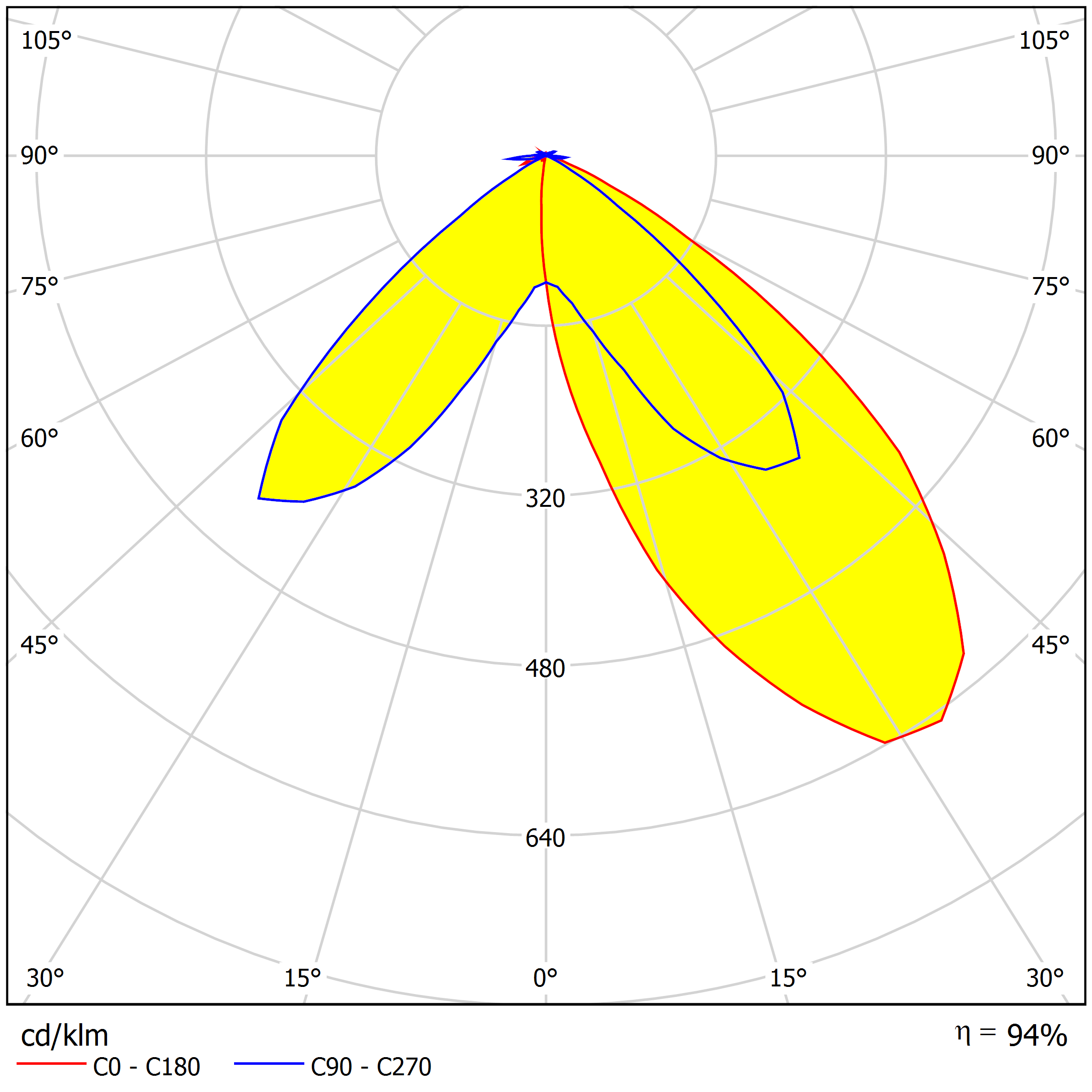

Distribution
Specifications

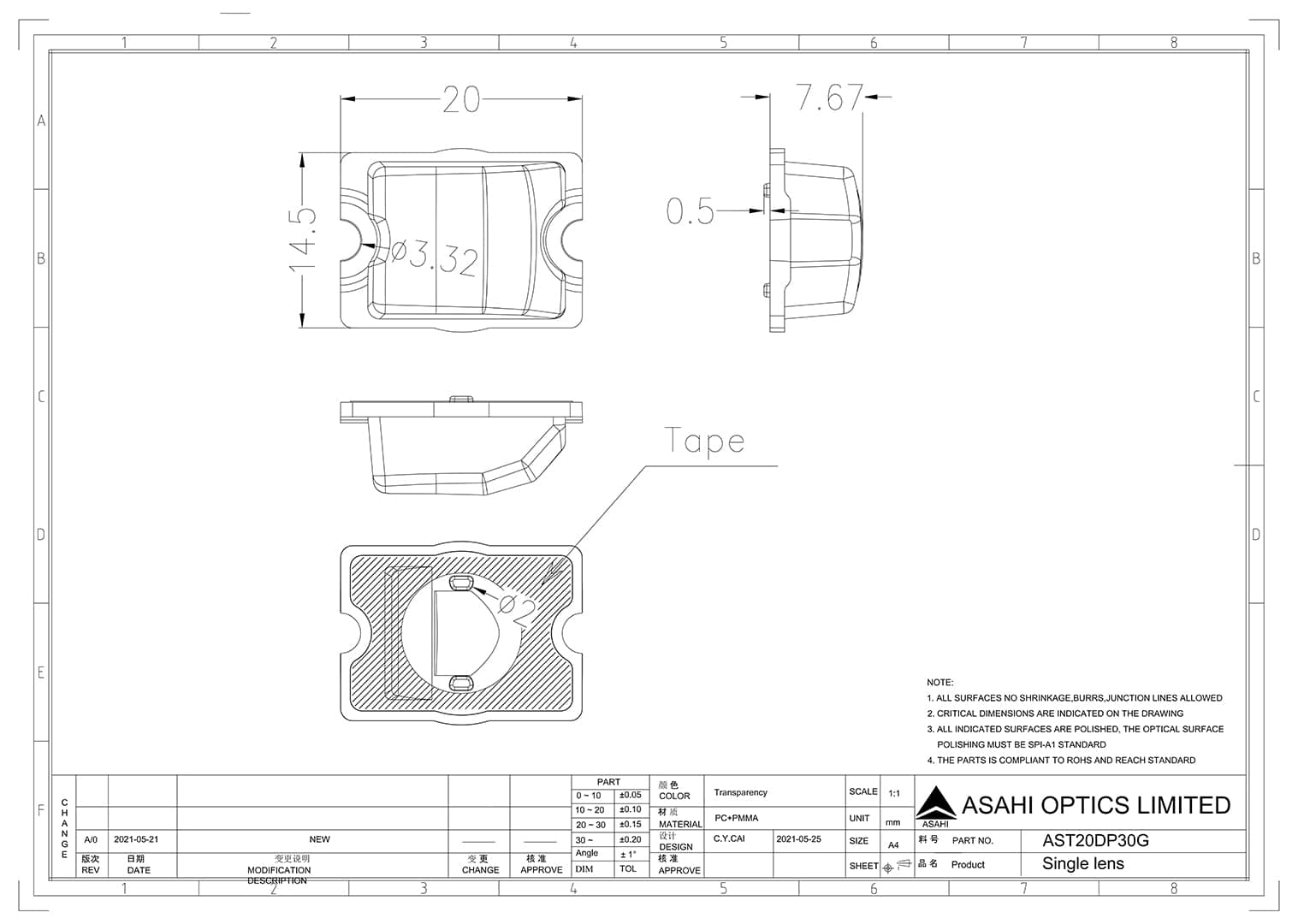

| Model: | AST20DP30G |
| Diameter: | 20.0mm |
| Height: | 7.67mm |
| Angle: | Asy 30° |
| Material： | PMMA |
| Transmittance： | >93% |
| LED Applications | CREE XP-G , XP-E |
| Lighting applications | Area lighting |
LED Type
XPE
XPE2
XP-G2
XP-G3
OSLON SSL80
SQUARE
LUXEON HL4Z
NVSW219GL
PK2E-2LVE-B2R8N
PK2N-4LVE-SBVR8
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
30° LED lens spreads the light emitted by the LED over a wider angle compared to a narrower lens, resulting in a broader light distribution.
Area Coverage: The wider beam angle of 30° allows for a larger coverage area, making it suitable for applications that illuminate a broader space with uniform lighting.
