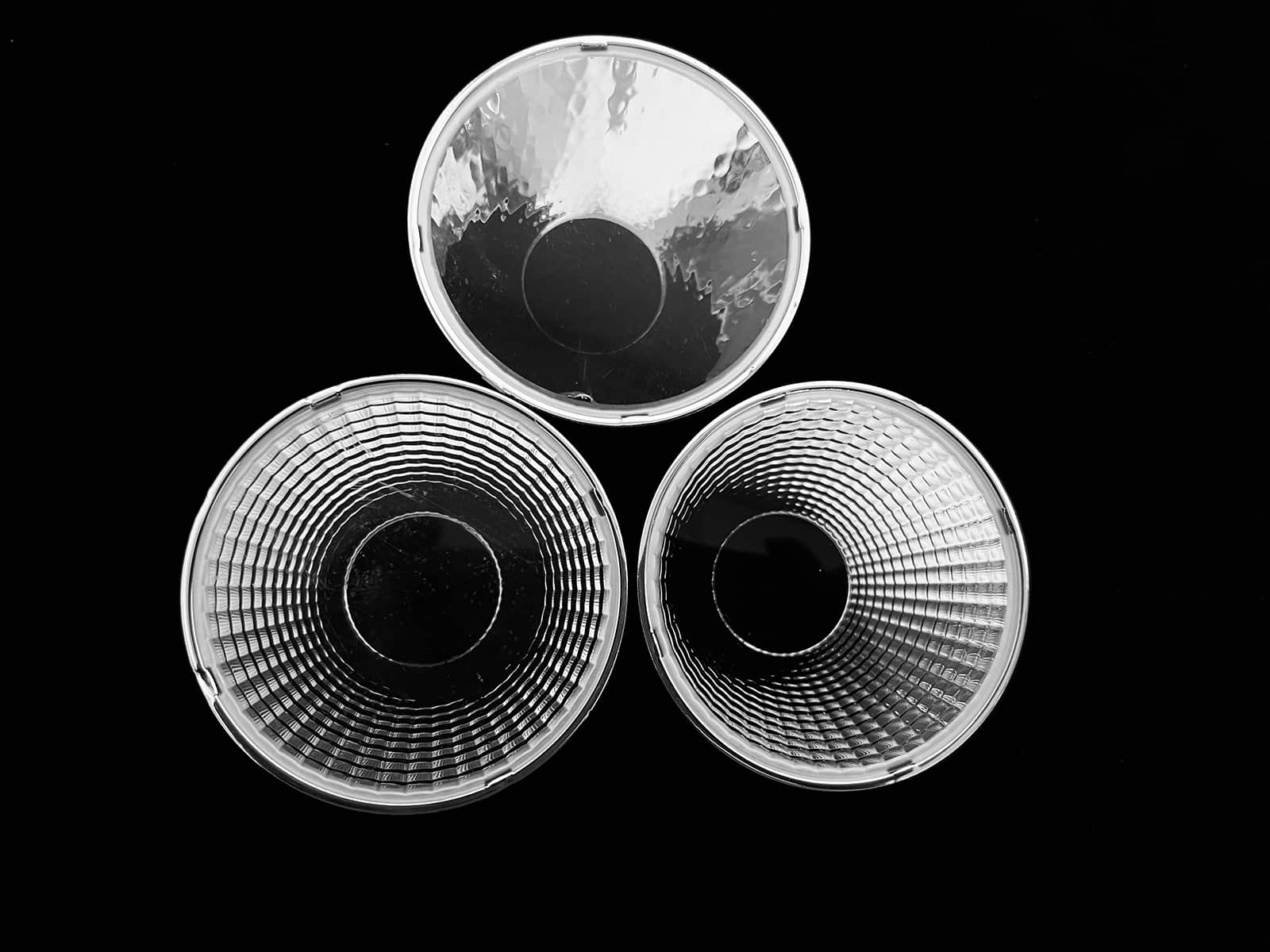

91mm COB LED Reflector With Holder With View Angle 15° 25°38°
91mm COB LED Reflector With Holder With View Angle 15° 25°38°

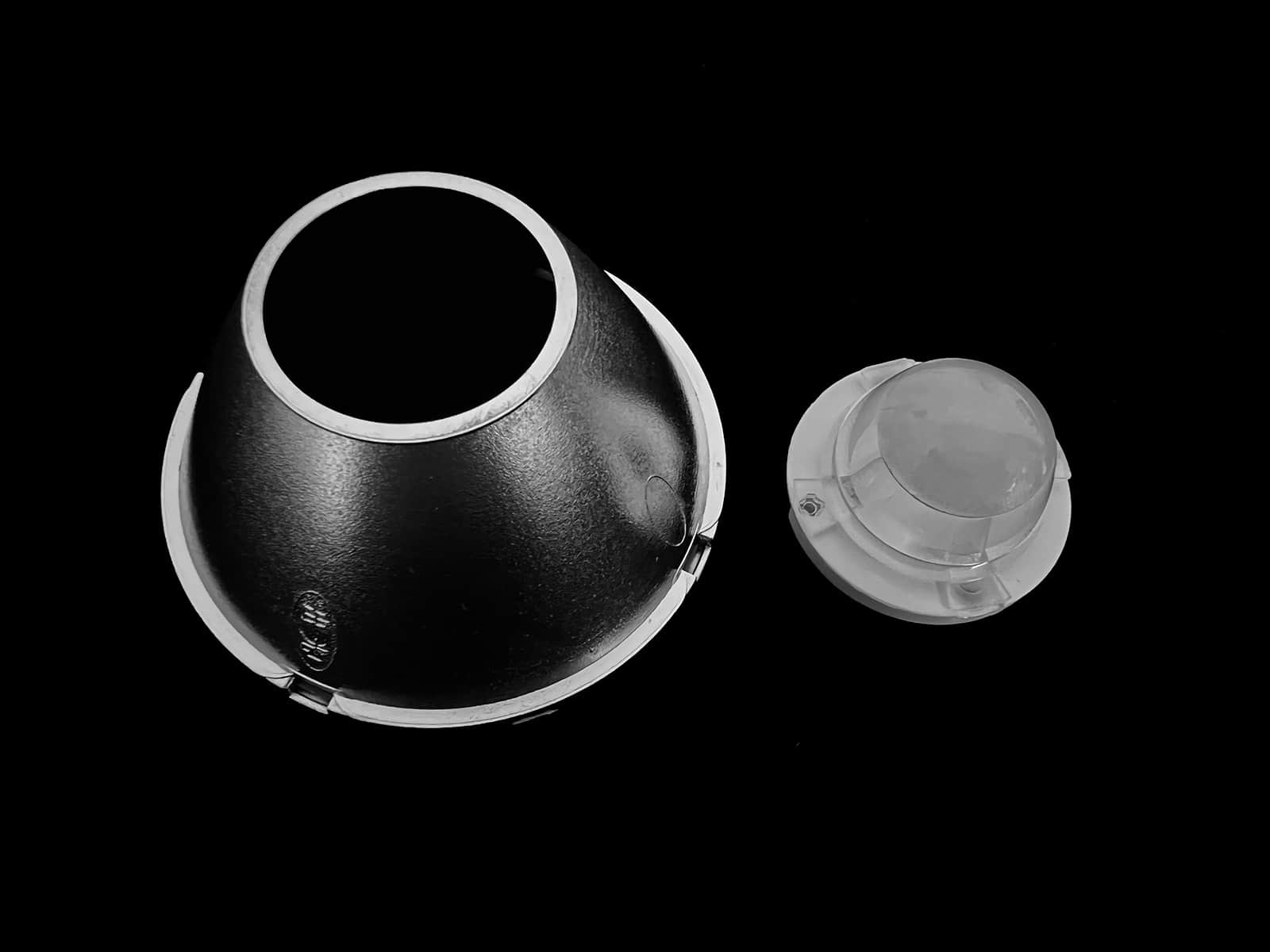

COB LED Reflector with holder 3
COB LED Reflector with holder 4

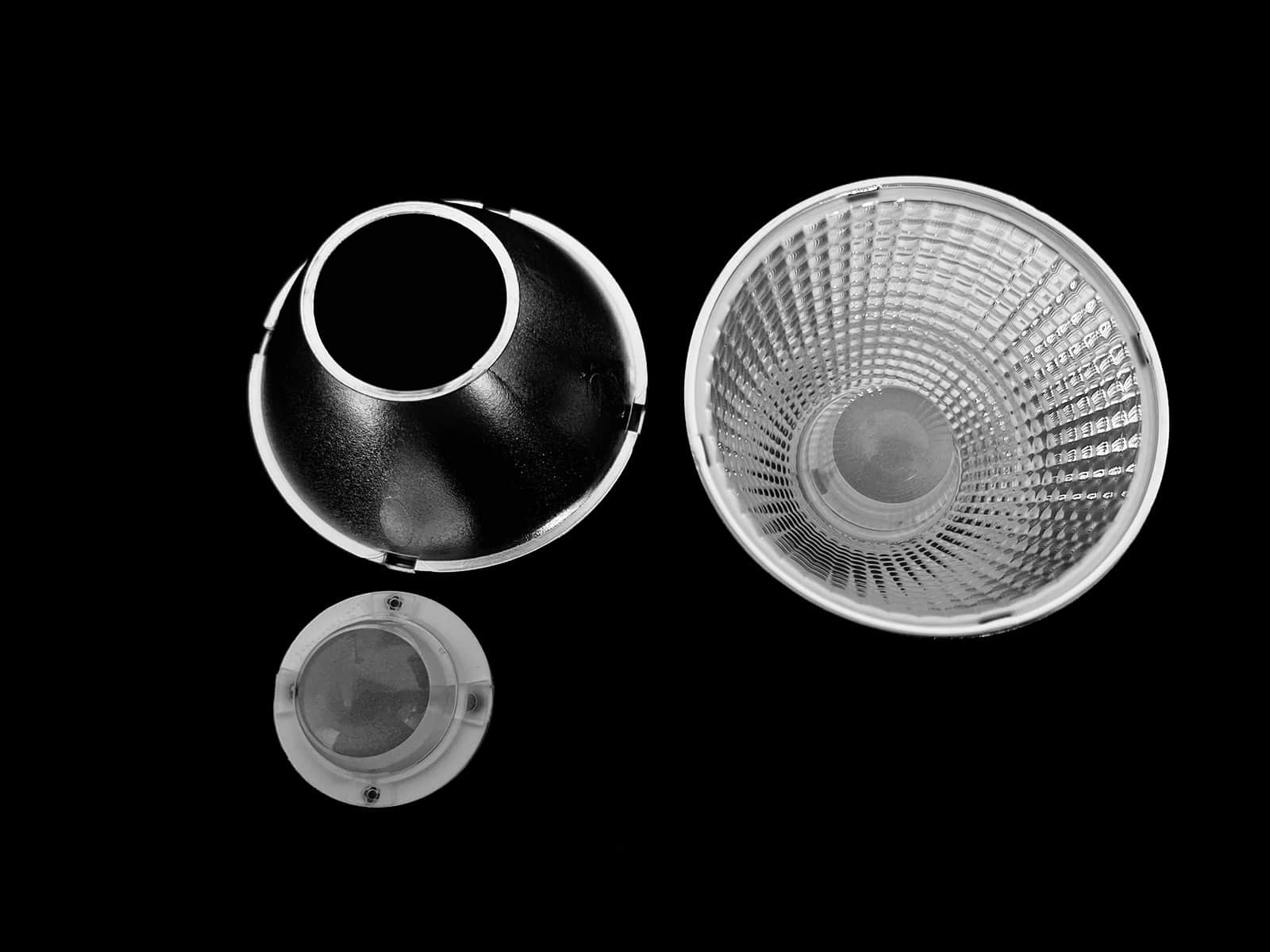

COB LED Reflector with holder

91mm COB LED Reflector With Holder With View Angle 15° 25°38°

Model: AR9146T

Diameter: 91mm, 31mm

Height: 45.5mm

Angle: 15°, 25°, 38°

Material: PC+Aluminum Coating

Transmittance: >88%

LED Type: COB LED

Lighting Applications: PAR lighting,Spot Light,Down Light

1, 91mm COB LED Reflector With Holder.
2, COB lenses are available in different beam angle options, allowing for precise control over the spread of light. Common beam angles include narrow spot (less than 20 degrees), medium flood (around 30-45 degrees), wide flood (around 60 degrees), and elliptical or asymmetric beams for specialized applications.
3, COB lenses are designed to maximize the efficiency of the COB LED by minimizing light loss and optimizing light distribution.

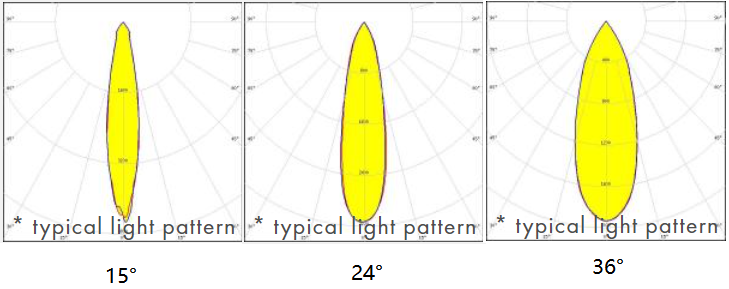

Distribution

91mm COB LED Reflector With Holder With View Angle 15° 25°38° Distribution

Specifications

Model: AR9146T
Diameter: 91mm, 31mm
Height: 45.5mm
Angle: 15°, 24°, 38°
Material： PC+Aluminum Coating
Transmittance： >88%
LED Applications COB LED
Lighting applications PAR lighting, Spot Light, Down Light

LED Type

CREE COB cree

CXA1304/1512

CITIZEN COB CITIZEN logo

CCL010/020

Lumileds COB lumileds

LHC1-1202/3

NICHIA COB nichia

036A

066A

LUMINUS COB Luminus logo

CXM6/7

BridgeLux COB BridgeLux

VERO13/10

Packaging

---

Material Information

pmma temperature
pc temperature
pmma rti
pc rti
glove 1
no chemical

  • Lens Material

    L06: PMMA 8N/ L46: PC 1250Z

  • Operating Temperature

    PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C

  • UL Flammability

    PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm

  • UL RTI Elec

    PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]

  • Light Transmission Rate

    400nm ~ 900nm>90%

If necessary, Clean lenses with mild soap, water and soft cloth.

Never use any commercial cleaning solvents on lenses, like alcohol.

Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.





AR9146T

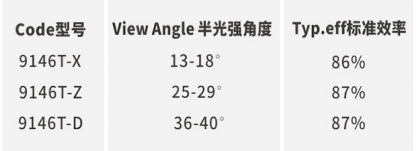

AR9146T code

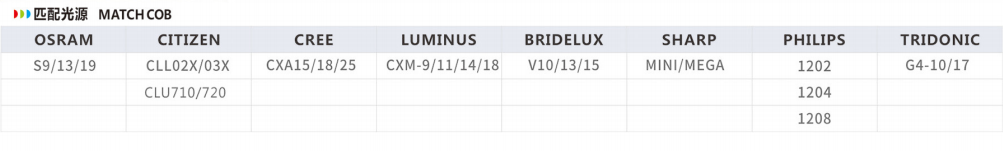

AR9146T match cob

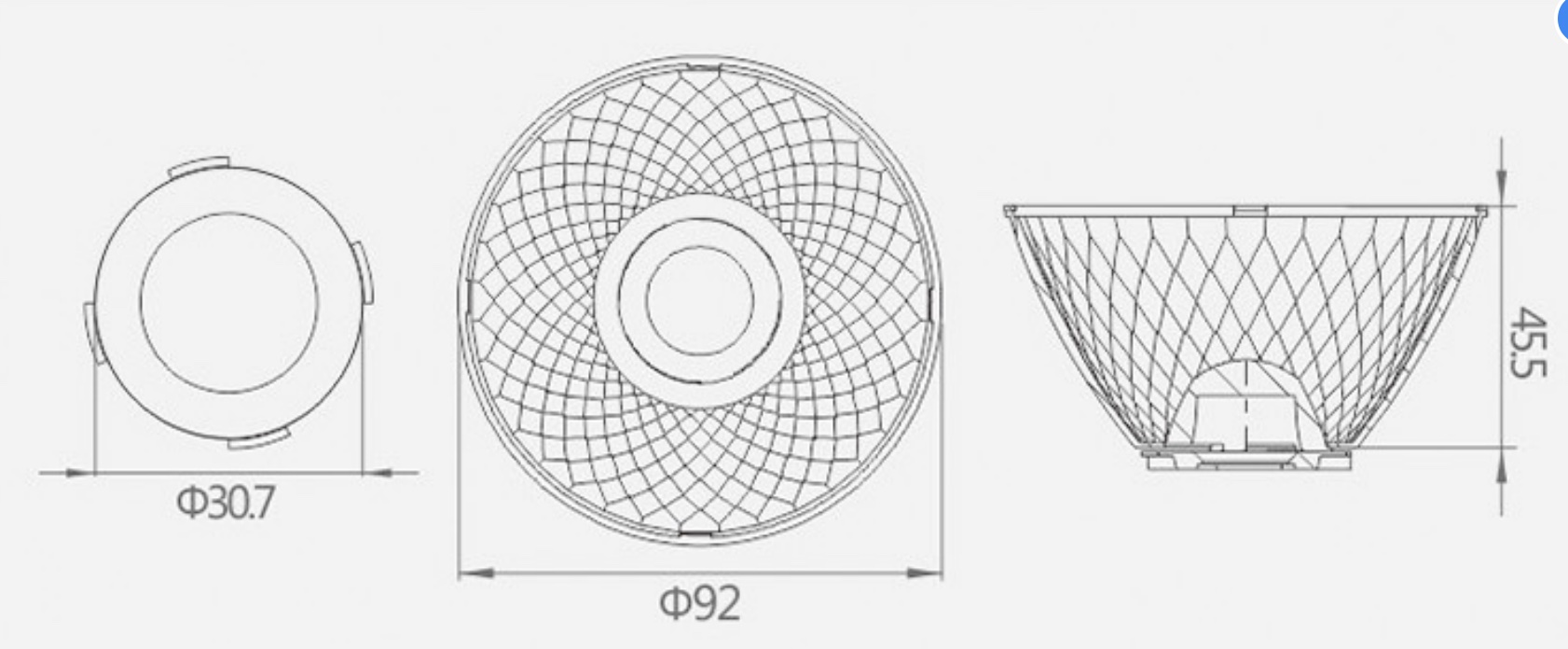

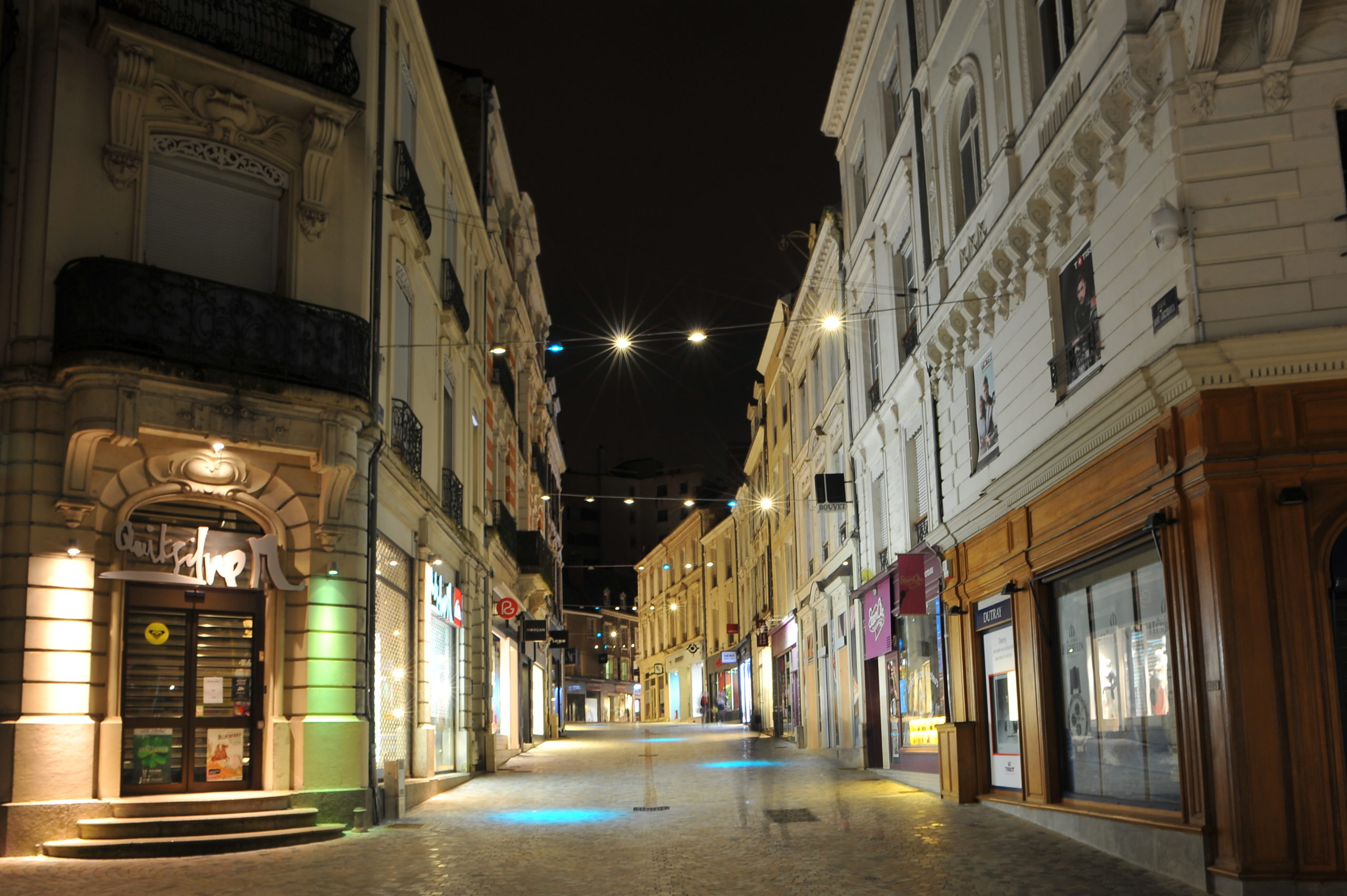

91mm COB LED Reflector With Holder With View Angle 15° 25°38° Distribution91mm COB LED Reflector With Holder With View Angle 15° 25°38° Drawing91mm COB LED Reflector With Holder With View Angle 15° 25°38° Application
