Model: ARHB236D64LEDT90
Diameter: 236mm
Height: 7.1mm
Angle: 90°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 3030 LED
Lighting Applications: High Bay Lighting, Area Lighting
1. On the basic character of 3030 and 2835 series light, show the application of the Combination of optical and construction.
2. This lens has an IP rating of IP66, making it ideal for outdoor use as it is resistant to water and dust.
3. The 64LEDs lens is produced by PC matetial,ensuring long-term durability and stability.

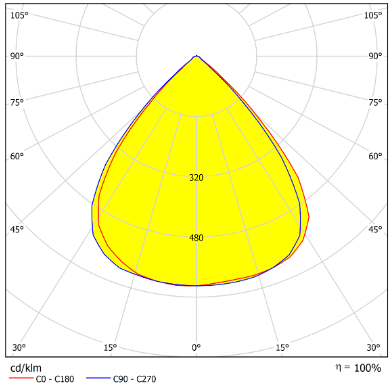

Distribution
Specifications
| Model: | AJHB236D64LEDT90 |
| Diameter: | 236mm |
| Height: | 7.1mm |
| Angle: | 90° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 2835/3030 LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
OSRAM OSCONIQ® P
LUXEON 3030 HE
NFSW 3030 series
XI3030 series
EMC 3030 series
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
ASAHI OPTICS ARHB236D64LEDT90 lens 3D drawing.STP
ASAHI OPTICS ARHB236D64LEDT90 Drawing.dwg
ASAHI OPTICS ARHB236D64LEDT90 Drawing.pdf
ASAHI OPTICS ARHB236D64LEDT90 lens IES.ies
