Model: ALST46LED5050T2M-cutoff
Diameter: 220mm
Height: 8.04mm
Angle: T2M-cutoff
Material: PC
Transmittance: >90%
LED Type: 5050LED
Lighting Applications: Street Lighting
1. This 46LEDs lens is developed for TYPE II-Medium(T2M) CUT-OFF and BUG standard, which ensures that the luminaires with excellent backlight control, illuminance uniformity, and cutoff light distribution.
2. The street light optical diagram T2M-cutoff is strictly required by Brazil government have to pass IMMETRO certification.

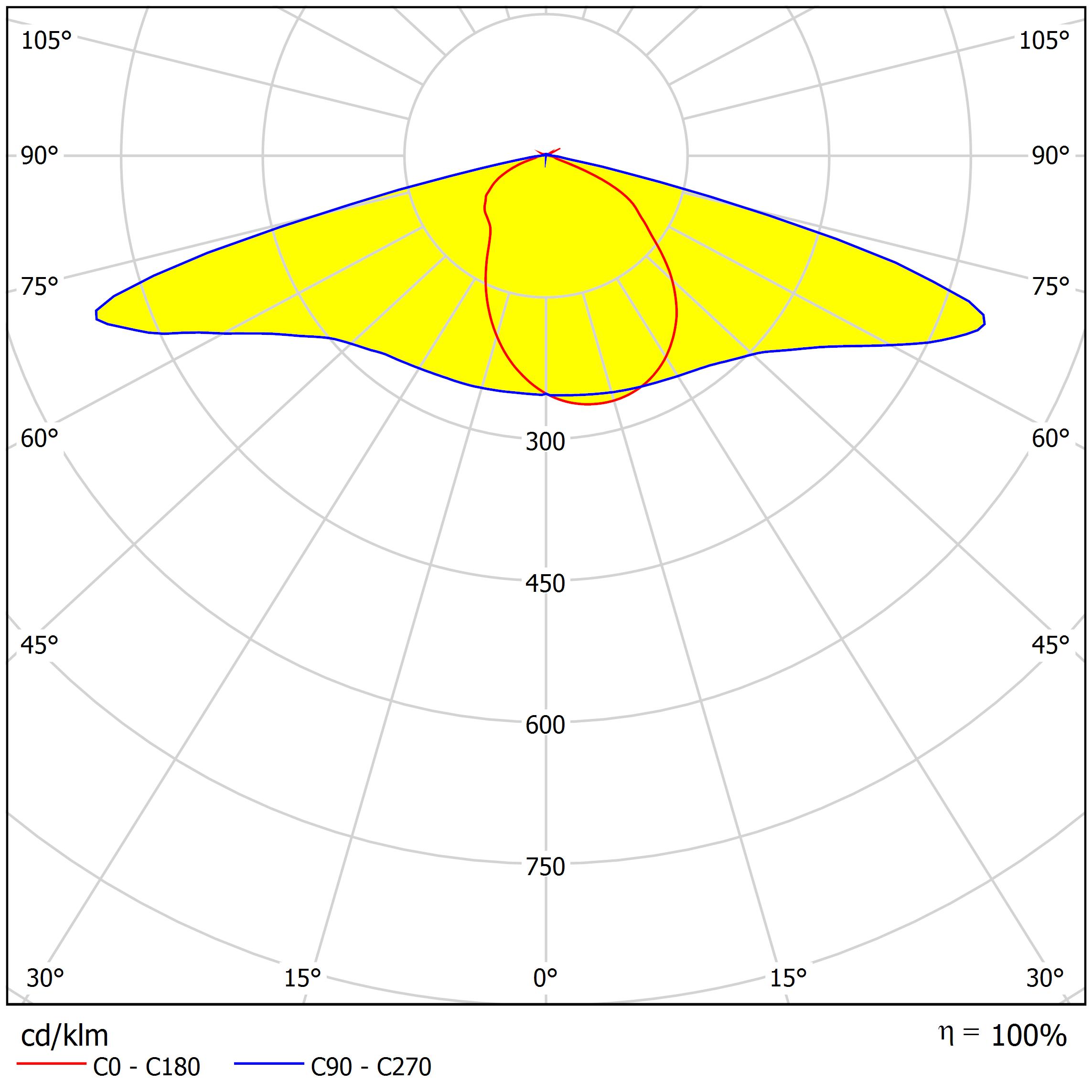

Distribution
Specifications
| Model: | ALST46LED5050T2M-cutoff |
| Diameter: | 220mm |
| Height: | 8.04mm |
| Angle: | T2M-cutoff |
| Material： | PC |
| Transmittance： | >90% |
| LED Applications | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

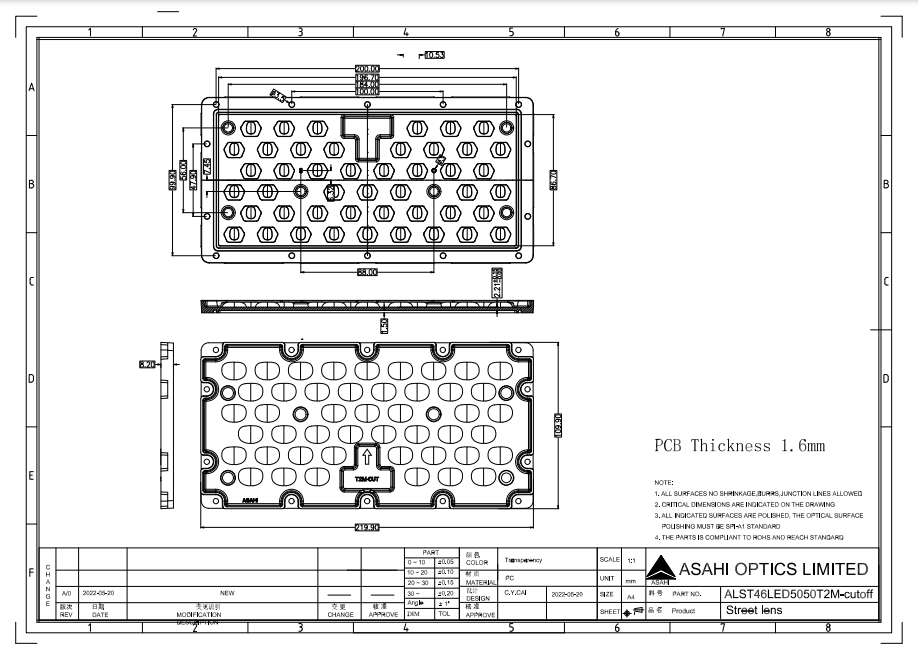

ALST46LED5050T2M-cutoff 3D Drawing.stp
ALST46LED5050T2M-cutoff Drawing.dwg
ALST46LED5050T2M-cutoff Drawing.pdf
ALST46LED5050T2M-cutoff PCB Drawing.dwg
ALST46LED5050T2M-cutoff PCB Drawing.pdf
