Model: AJSP50D6LED5050P45G
Diameter: 50x50mm
Height: 9.42mm
Angle: Asymmetric 45°
Material: PC
Transmittance: ＞90%
LED Type: 5050LED
Lighting Applications: Sport Lighting,Stadium Lighting
1. The 2x3 asymmetric 45degree stadium light lens helps minimize glare by selectively allowing light waves oriented in a specific direction to pass through. This is beneficial for providing a comfortable viewing experience for both players and spectators.
2. The lenses are versatile and can be applied to different sports fields, providing tailored lighting solutions for activities such as soccer, football, baseball, or tennis.

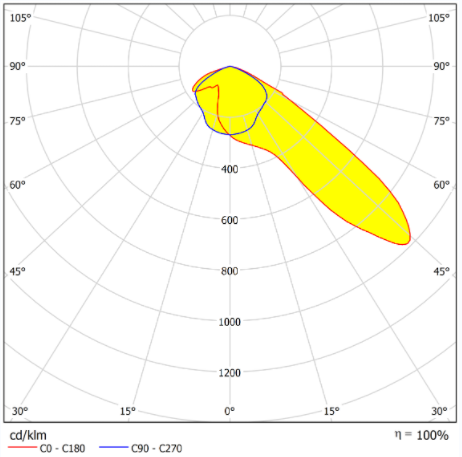

Distribution
Specifications
| Model: | AJSP50D6LED5050P45G |
| Diameter: | 50x50mm |
| Height: | 9.42mm |
| Angle: | Asymmetric 45° |
| Material： | PC |
| Transmittance： | ＞90% |
| LED Type | 5050LED |
| Lighting applications | Sport Lighting,Stadium Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
1. The 2x3 asymmetric 45degree stadium light lens helps minimize glare by selectively allowing light waves oriented in a specific direction to pass through. This is beneficial for providing a comfortable viewing experience for both players and spectators.
2. The lenses are versatile and can be applied to different sports fields, providing tailored lighting solutions for activities such as soccer, football, baseball, or tennis.
Asahi Optics welcomes your questions, inquires and feedback. Please use the form below or contact us at any of the addresses below. Our sales team will get back to you shortly.
