Model: AJST50D4LEDT2M
Diameter: 50x50mm
Height: 9.24
Angle: Type II
Material: PC
Transmittance: >88%
LED Type: 5050LED
Lighting Applications: Street light
1. This 2x2 lens T2M was designed by 5050LED and widely used for street lighting.
2. Its PMMA material can enbale the luminaire to achieve 93% lighting efficiency.
3. 50x50mm dimension makes itself suit various of luminaire fixtures.

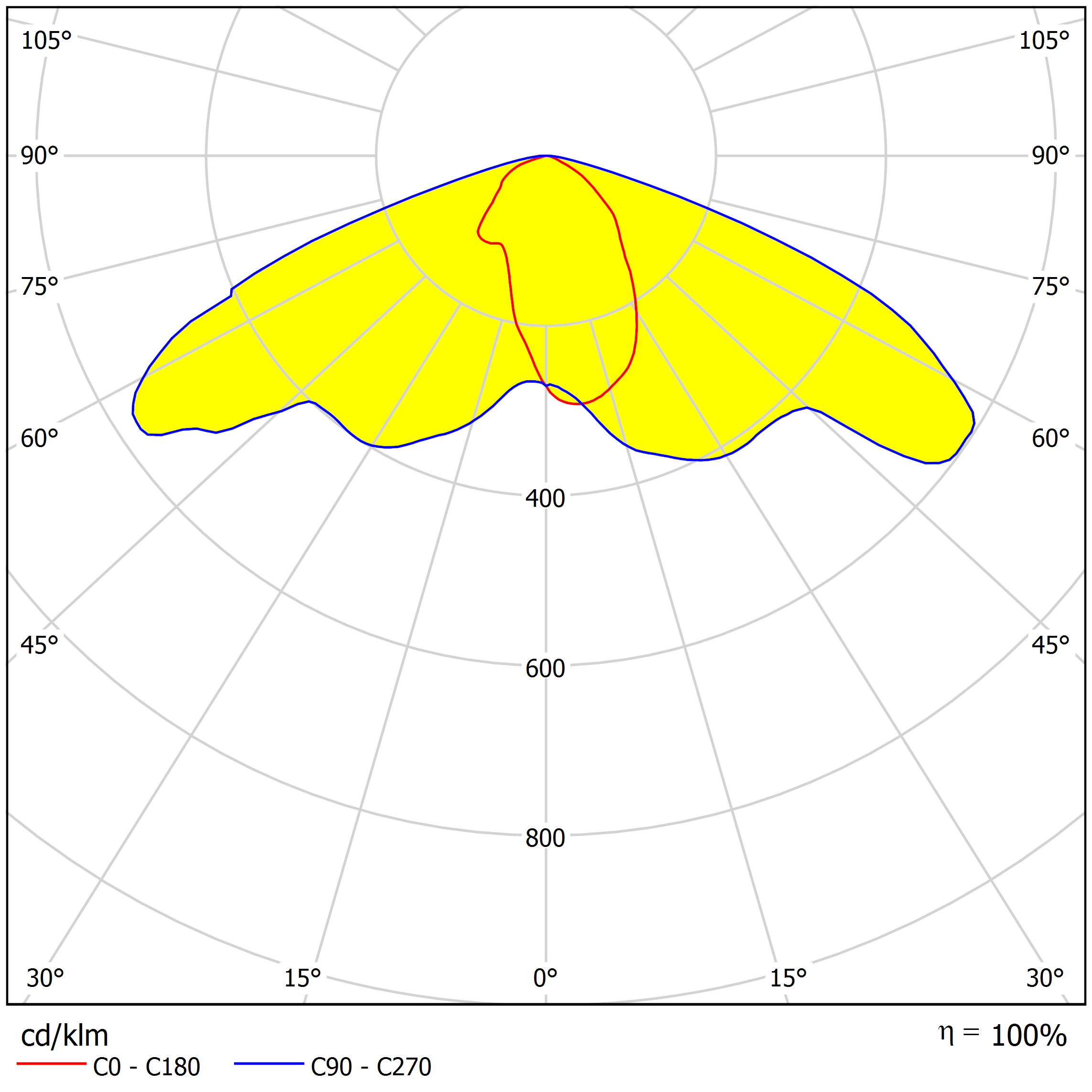

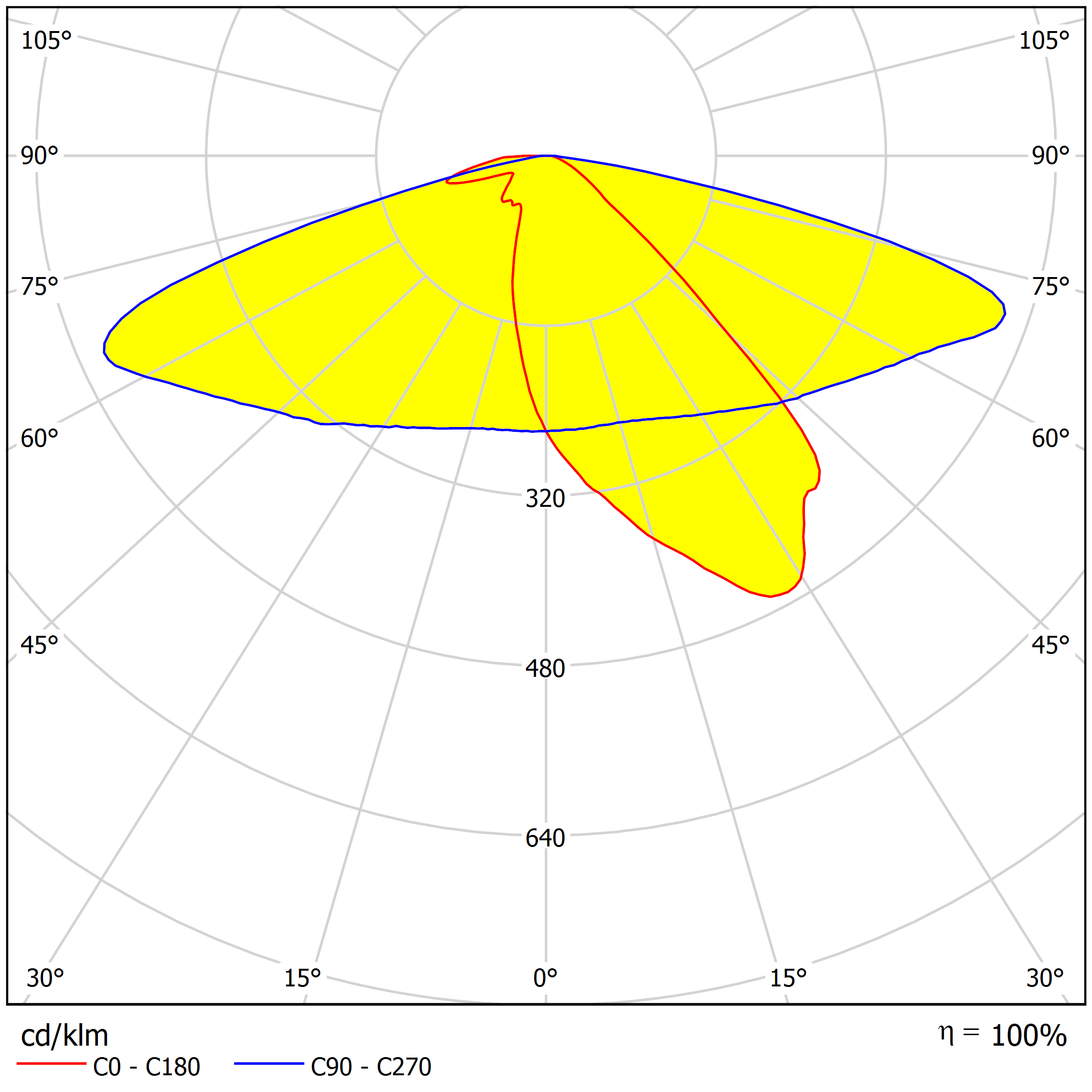

Distribution
Specifications
| Model: | AJST50D4LEDT2M |
| Diameter: | 50x50mm |
| Height: | 9.24mm |
| Angle: | Type II |
| Material： | PC |
| Transmittance： | >88% |
| LED Type | 5050LED |
| Lighting applications | Street Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

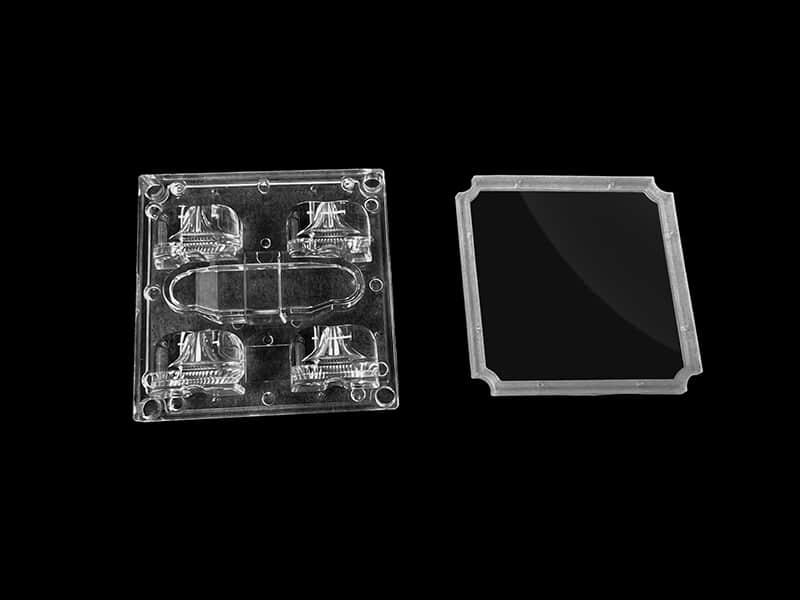

IP66 2x2 lens
An IP66 rating is commonly used in outdoor surveillance cameras, industrial applications, and other environments where the lens needs to be protected from harsh weather conditions, dust, and moisture.
This rating ensures that the lens is durable and capable of operating reliably in challenging outdoor environments.
1. This 2x2 lens T2M was designed by 5050LED and widely used for street lighting.
2. Its PMMA material can enbale the luminaire to achieve 93% lighting efficiency.
3. 50x50mm dimension makes itself suit various of luminaire fixtures.
