Model: ALHB321D66LED3080GIP
Diameter: 321mm
Height: 79mm
Angle: 30x80°
Material: PC-1250Z
Transmittance: >90%
LED Type: 3030/ 5630/ 5050LED

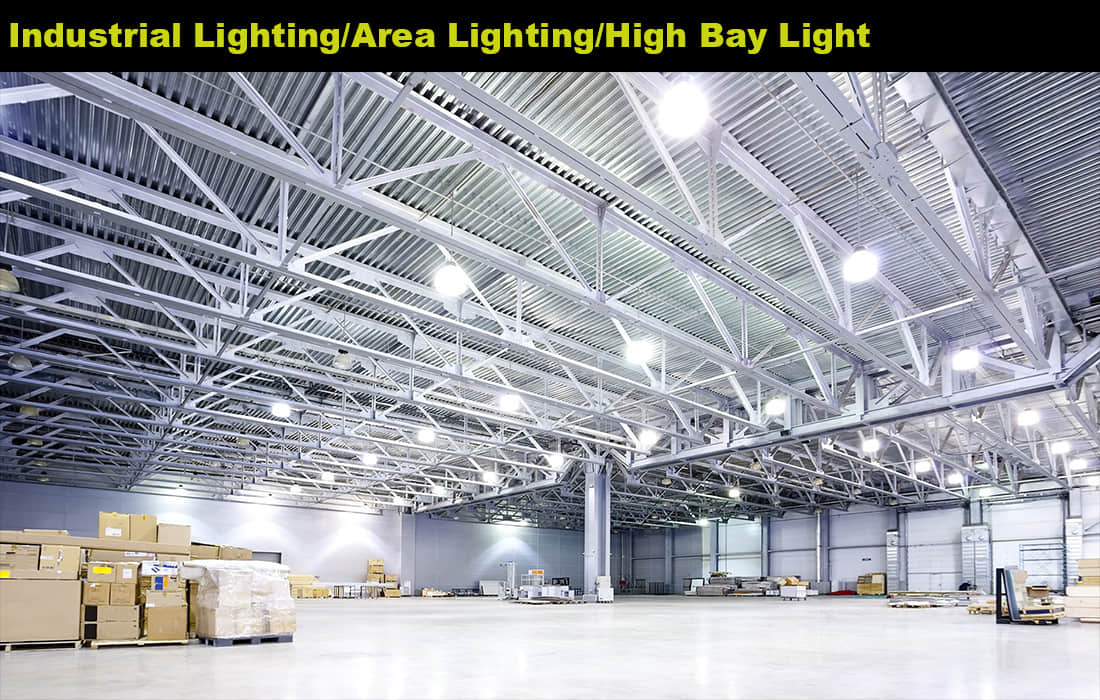

Lighting Applications: High Bay lighting, Linear Lighting
1. The 3X11 lens array is designed for Mid Power LEDs which is compatible with “3030”''5050''and“5630”LEDs.
2. For each optical surface, it is not only suitable for a single LED, but also can be matched with two LEDs to get higher lumens.
3. The lens complies with the Zhaga standard, which defines the interchangeability of LED light sources from different manufacturers, ensuring compatibility and ease of maintenance.

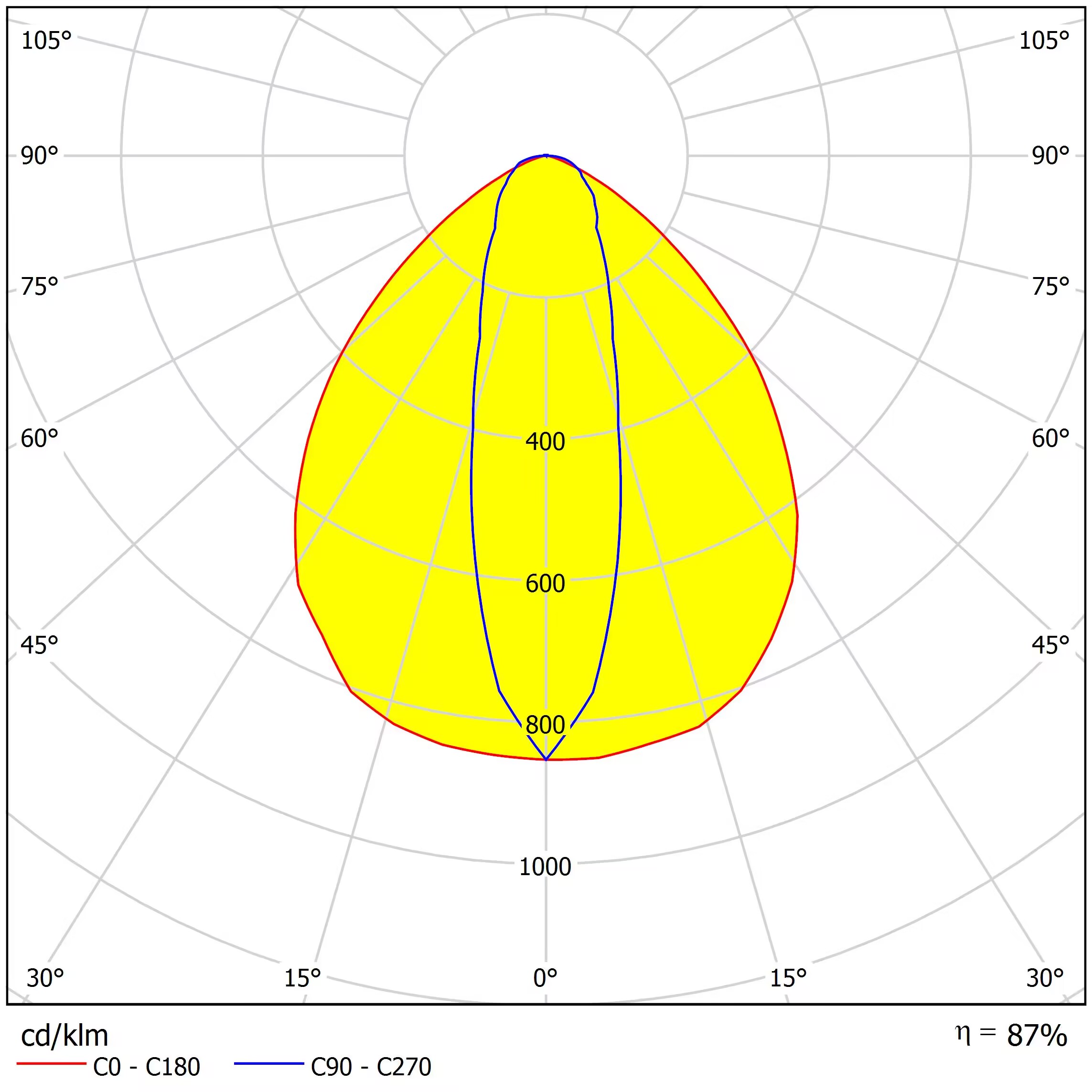

Distribution
Specifications
| Model: | ALHB321D66LED3080GIP |
| Diameter: | 321mm |
| Height: | 79mm |
| Angle: | 30x80° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 3030/ 5630/ 5050LED |
| Lighting applications | High Bay lighting, Linear Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.
The 3X11 lens array is designed for Mid Power LEDs which is compatible with “3030”''5050''and“5630”LEDs.
For each optical surface, it is not only suitable for a single LED, but also can be matched with two LEDs to get higher lumens.
Instructions as below
ASAHI OPTICS ALHB321D66LED3080GIP 3D drawing.stp

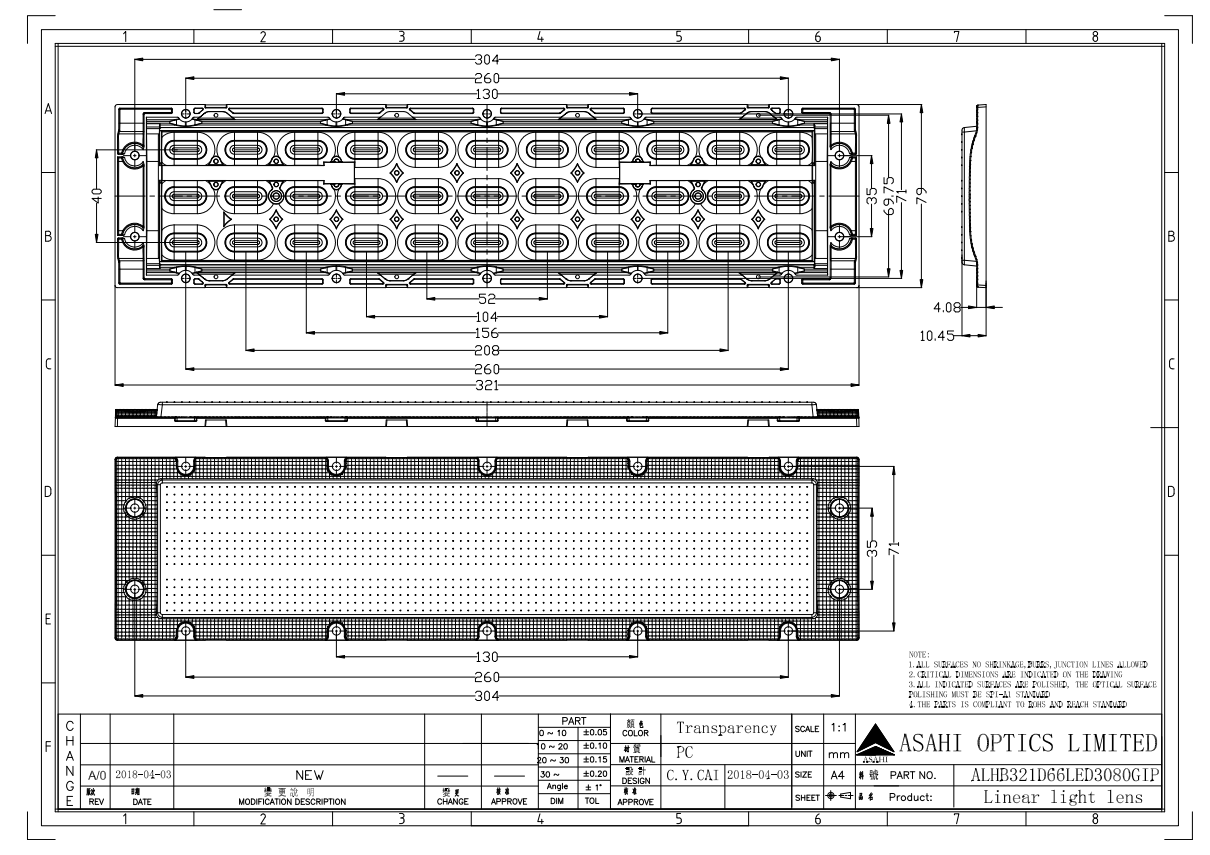

Asahi Optics ALHB321D66LED3080GIP Drawing.dwg
