Model: ARHB236D28LED5050T90G
Diameter: 236x70mm
Height: 8.9mm
Angle: 90°
Material: PC-1250Z TEIJIN
Transmittance: >90%
LED Type: 5050LED

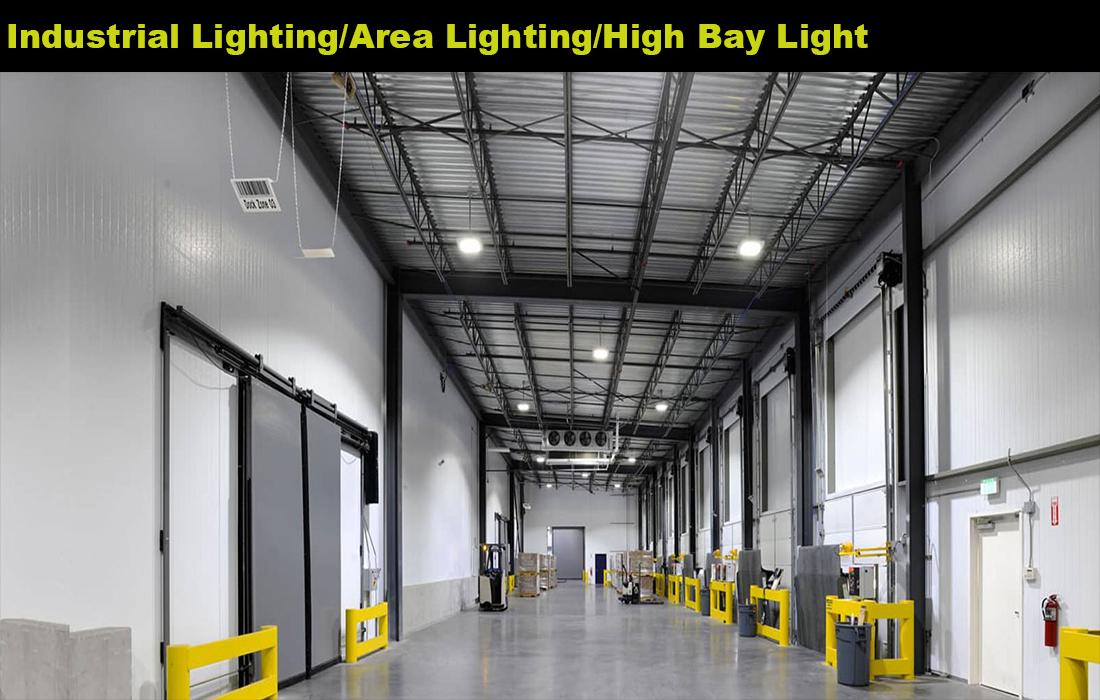

Lighting Applications: High Bay Lighting, Area Lighting

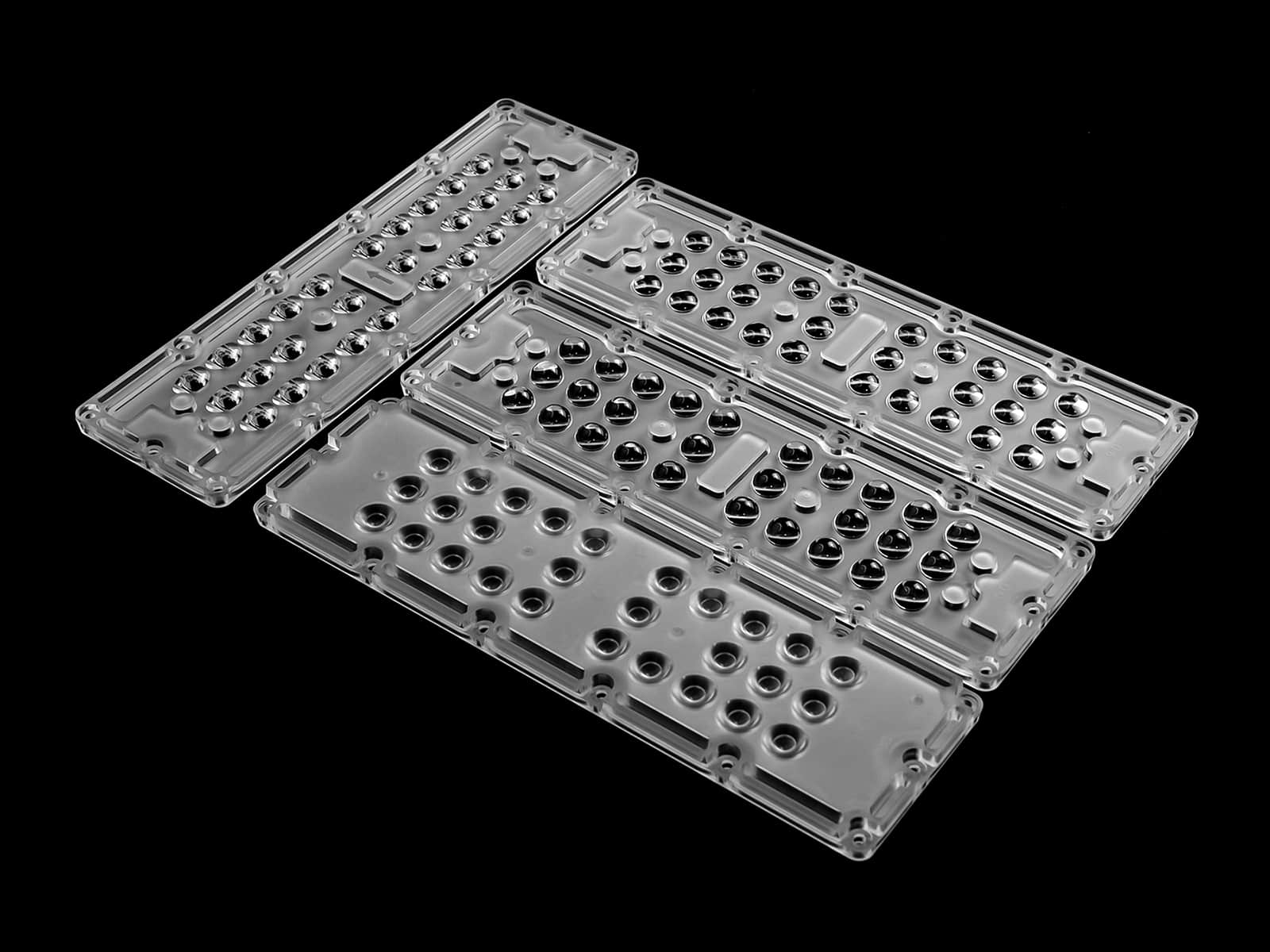

1. 28-in-1 module lens with an 90° medium angle, provides extensive illumination coverage, making it ideal for lighting large areas efficiently.
2. Suited for various applications including flood lighting, industrial lighting, and stadium lighting, offering adaptability to diverse outdoor lighting needs.
3. One lens module can achieve an impressive 100W output, ensuring powerful and effective lighting solutions.

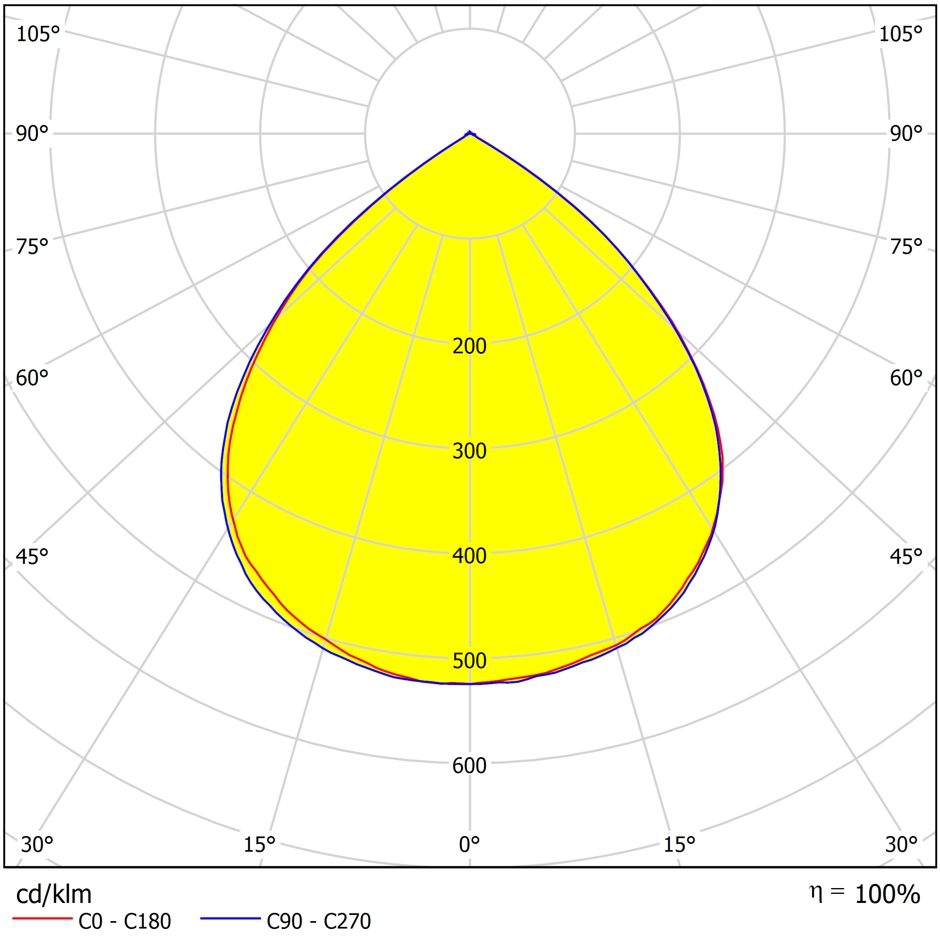

Distribution
Specifications
| Model: | ARHB236D28LED5050T90G |
| Diameter: | 236x70mm |
| Height: | 8.9mm |
| Angle: | 90° |
| Material： | PC-1250Z |
| Transmittance： | >90% |
| LED Applications | 5050LED |
| Lighting applications | High Bay Lighting, Area Lighting |
LED Type
JR5005C 6-V E
DURIS S 8
LUXEON 5050 Square
NVAW144AR
NVAW144AM
Xl5050LED
EMC5050LED
Packaging
---Material Information
Lens Material
L06: PMMA 8N/ L46: PC 1250Z
Operating Temperature
PMMA:-40°C~ +80°C/ PC: -40°C~ +120°C
UL Flammability
PMMA: [email protected]/ PC 1250Z: V-2 @1.5mm
UL RTI Elec
PMMA: 90°C @1.5mm/ PC 1250Z: 125°[email protected]
Light Transmission Rate
400nm ~ 900nm>90%
If necessary, Clean lenses with mild soap, water and soft cloth.
Never use any commercial cleaning solvents on lenses, like alcohol.
Please handle or install lenses with wearing gloves, skin oils may damage lens or its optical characteristic.

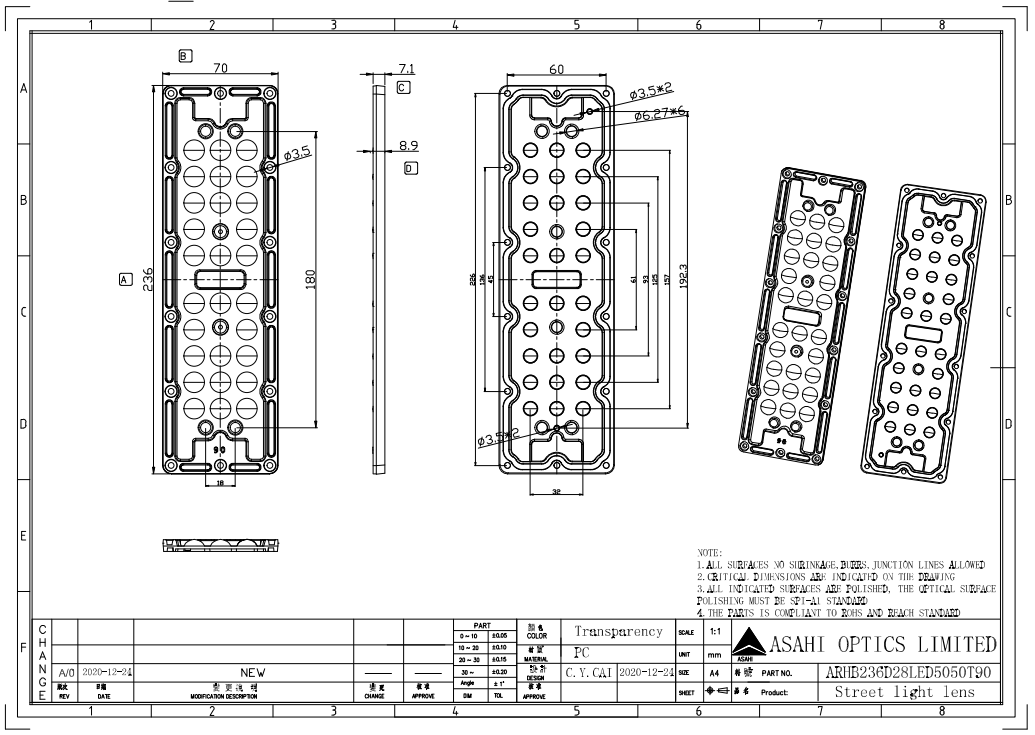

ASAHI OPTICS ARHB236D28LED5050T90 lens 3D drawing.STP
ASAHI OPTICS ARHB236D28LED5050T90 Drawing.dwg
ASAHI OPTICS ARHB236D28LED5050T90 Drawing.pdf
ASAHI OPTICS ARHB236D28LEDs PCB Drawing.dwg
ASAHI OPTICS ARHB236D28LEDs PCB Drawing.pdf
ASAHI OPTICS ARHB236D28LED5050T90 lens IES.ies
